Description

Core Communication Functionality

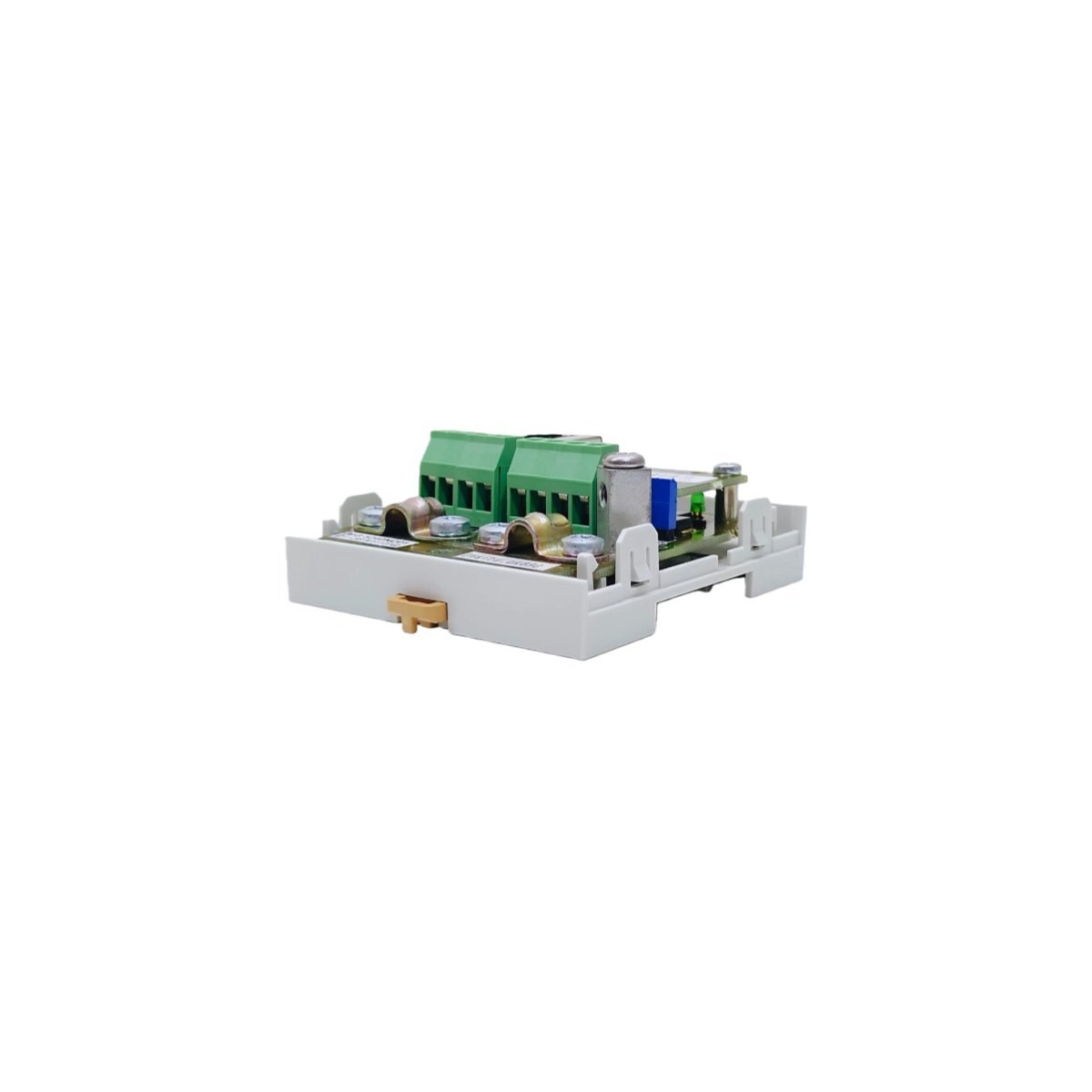

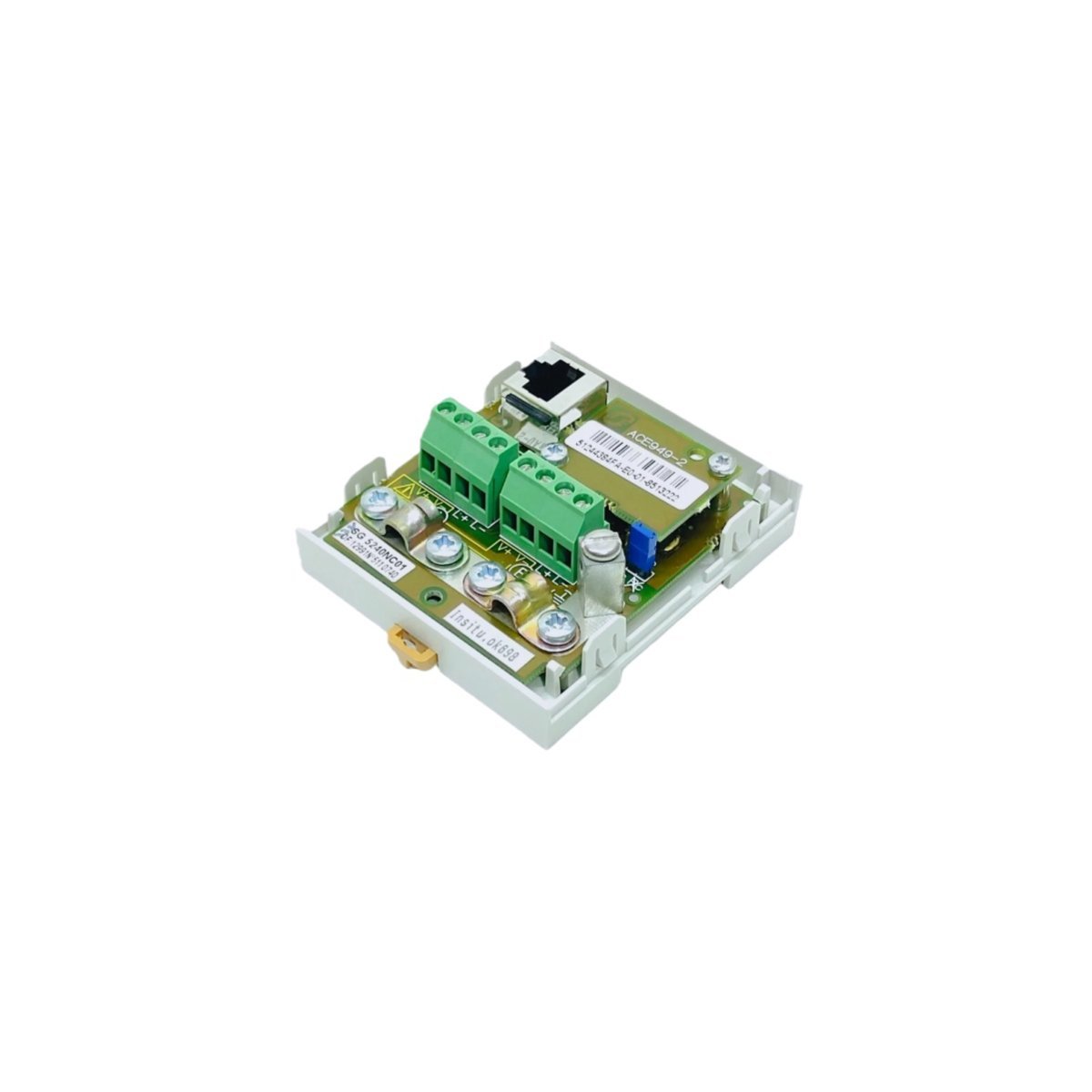

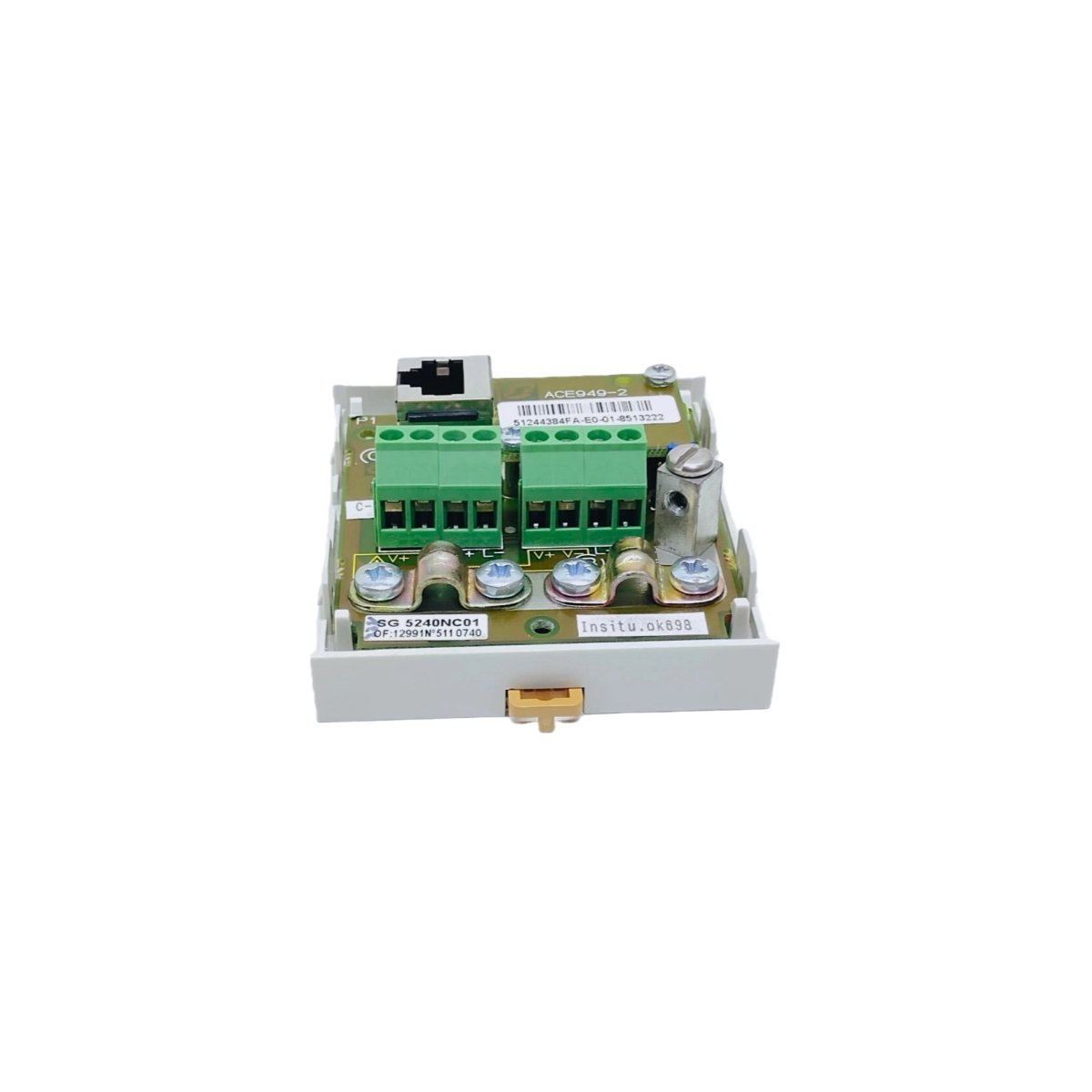

The Schneider Electric ACE949-2 acts as a bridge for 2-wire RS485 serial communication, specifically developed to link SEPAM protection relays with remote monitoring systems. Because industrial environments often present significant electrical interference, this module utilizes high-grade galvanic isolation—ranging from 500V to 1500V AC—to safeguard signal integrity and prevent damage to connected hardware. Consequently, the device enables reliable data transmission between field-level protection equipment and supervisory control systems like SCADA or local PLCs.

Technical Performance and Specifications

• Manufacturer: Schneider Electric
• Model: ACE949-2
• Product Type: Communication Interface Module
• Application: RS485 2-wire network connection for SEPAM series
• Power Supply: 24 V DC nominal
• Power Consumption: 5W to 10W during active operation
• Isolation Voltage: 500V to 1500V AC
• Mounting Type: Standard 35mm DIN rail
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Weight: Approximately 0.12 kg (Net unit weight)
• Housing Dimensions: 45 x 61 x 95 mm

Industrial Application and Installation

System integrators primarily utilize the ACE949-2 within electrical substations and power distribution cabinets where space efficiency is a priority. Since the module features a compact DIN rail mount design, it fits seamlessly into high-density control panels without requiring specialized tools for installation. Furthermore, its ability to withstand extreme storage temperatures makes it suitable for deployment in remote utility sites. By standardizing the interface for current and voltage protection units, the ACE949-2 simplifies the wiring architecture of modern smart grids and industrial power management networks.

Reliability and System Protection

Beyond basic connectivity, the ACE949-2 emphasizes long-term operational stability through its robust physical construction. It effectively manages the harsh electrical transients common in power protection applications. Moreover, the module’s active status and steady performance help maintenance teams reduce downtime by ensuring that diagnostic data from SEPAM relays reaches the control room without interruption. Therefore, this interface module serves as a critical link in maintaining the safety and efficiency of high-voltage electrical assets.
