Product Description

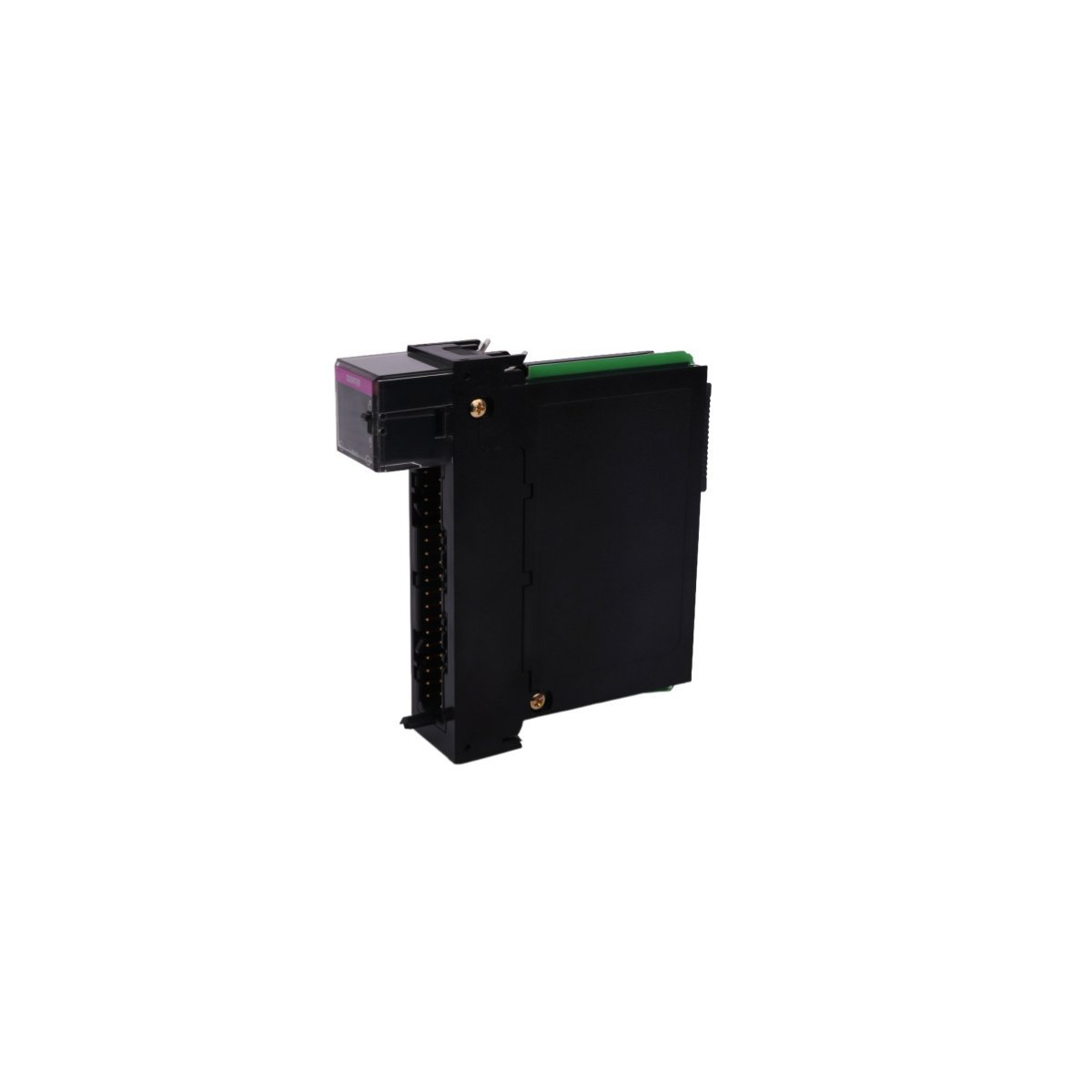

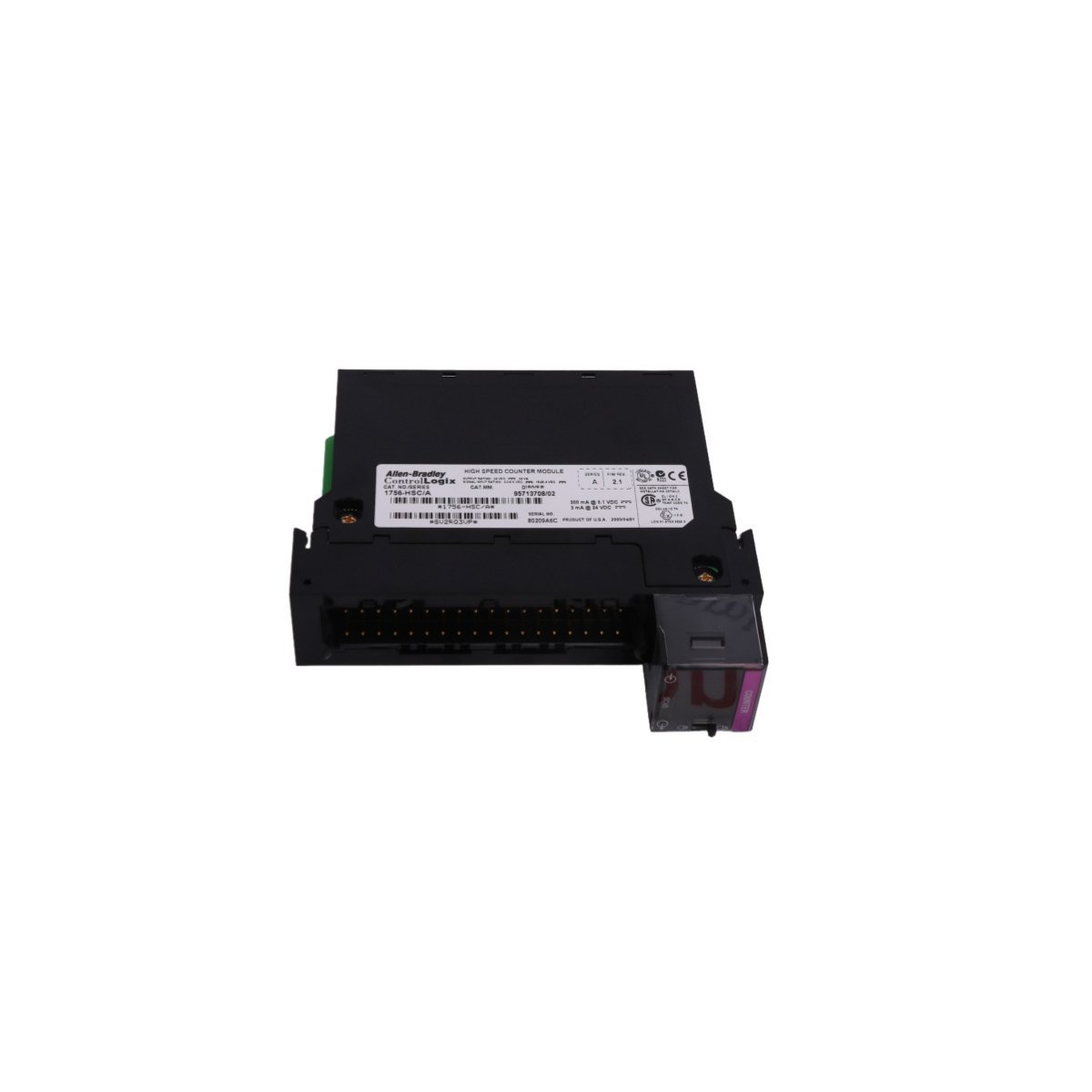

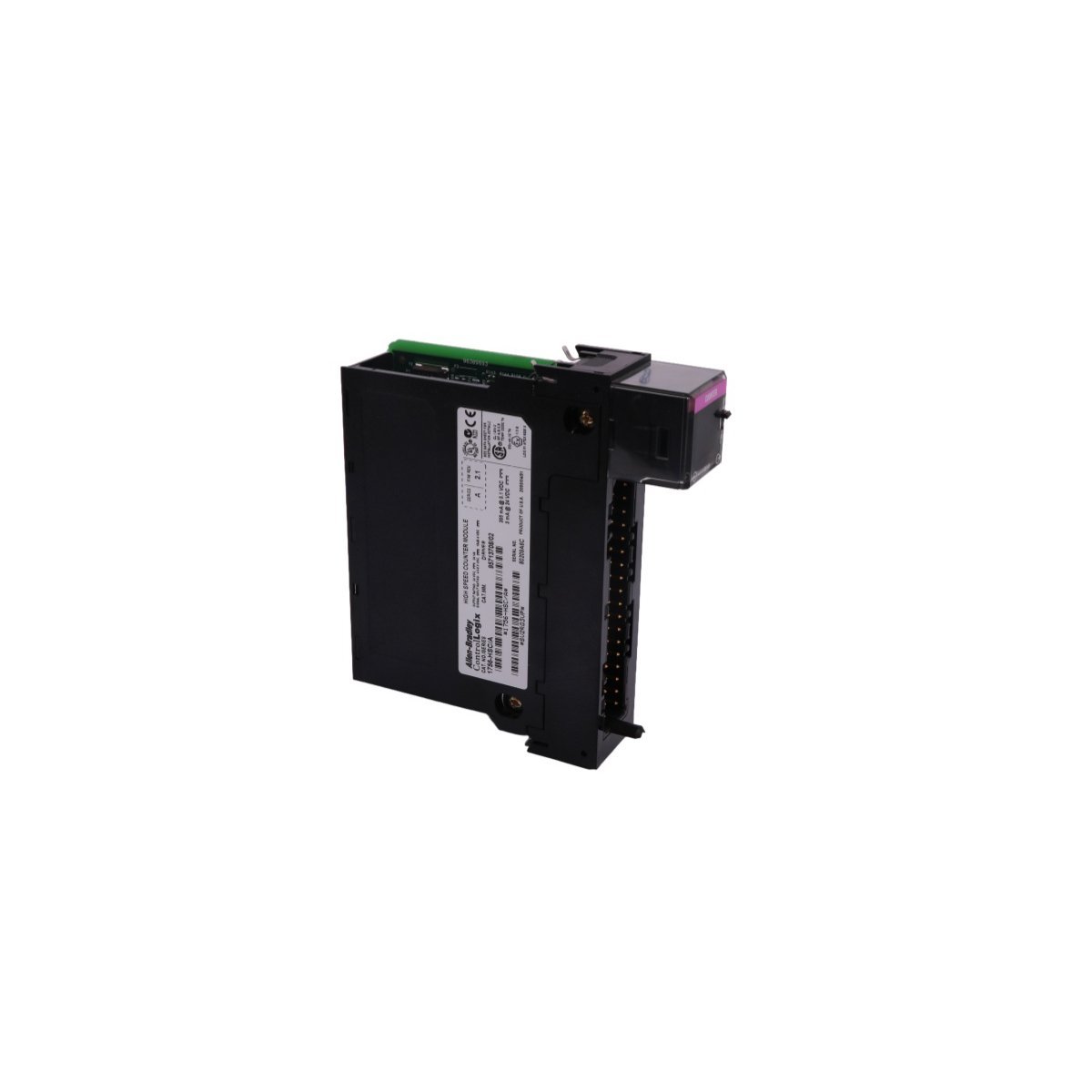

The Allen-Bradley 1756-HSC serves as a high-performance counting solution within the ControlLogix ecosystem, specifically engineered to process rapid pulse streams that exceed the scanning capabilities of standard I/O modules. This module provides two main channels that support high-speed input signals, making it indispensable for applications requiring precise position sensing, flow metering, and complex motion monitoring. By offloading the high-speed pulse processing from the main controller CPU, the 1756-HSC ensures real-time accuracy and reduces overall system overhead.

System integrators typically deploy this module to interface with incremental encoders and various pulse-output sensors. Because the module features multiple operating modes—including counter, frequency, and period measurement—it adapts easily to diverse industrial requirements. Furthermore, the unit supports high-speed outputs that can trigger immediate actions based on predefined count values, facilitating near-instantaneous control loops for sorting, packaging, and high-speed assembly lines.

Reliability remains a core feature of the 1756-HSC architecture. It utilizes a removable terminal block (RTB) system to simplify wiring and maintenance, though users must order the RTB separately (typically the 1756-TBNH or 1756-TBSH). Additionally, the module supports producers/consumer communication technology, which allows multiple controllers to share the high-speed data simultaneously across the ControlLogix backplane. This collaborative data sharing enhances the scalability of large-scale automation projects while maintaining strict synchronization.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Series: ControlLogix
• Module Type: High-Speed Counter (2 Channels)
• Input Frequency (Max): 1 MHz (Counter Mode) / 500 kHz (Encoder Mode)
• Input Voltage Range: 5V DC or 12/24V DC (Dependent on wiring configuration)
• Backplane Current: 300 mA @ 5.1V DC; 3 mA @ 24V DC
• Number of Outputs: 4 (2 per channel)
• Mounting: ControlLogix Chassis (Any Slot)
• Operational Temperature: 0°C to 60°C (32°F to 140°F)
