Description

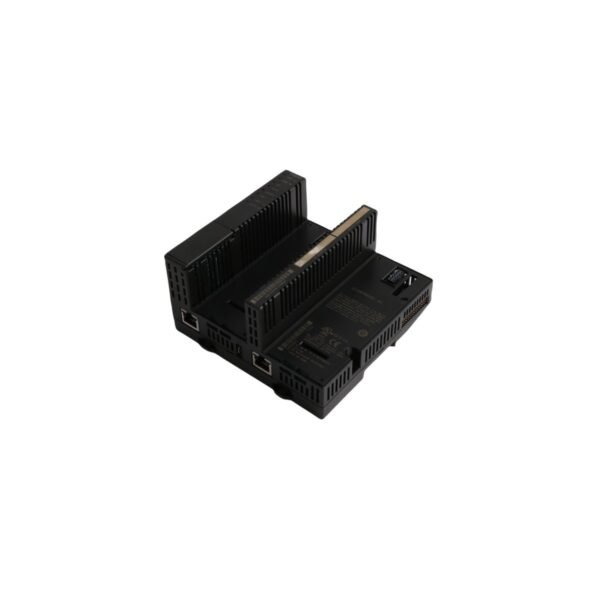

The GE IC200PNS001, also cataloged as the IC200PNS001 Scanner Module, operates as a dedicated hardware component for Profinet-based distributed I/O data exchange within Series 90-70 and PACSystems network platforms.

Hardware Specifications

Backplane Bus Communication and Networking

The IC200PNS001 provides deterministic Profinet I/O device connectivity, utilizing two RJ45 ports to function as an embedded switch. This architecture supports linear, star, and ring Ethernet topologies while maintaining a total I/O data throughput of 2880 bytes. The module firmware flash compatibility ensures alignment with PACSystems RX3i/RX7i controller versions, facilitating real-time diagnostic reporting and I/O scan coordination. The deterministic network performance is achieved via configurable update rates ranging from 1 ms to 512 ms, allowing for precise synchronization of discrete and analog I/O data across the Profinet bus.

Frequently Asked Questions

Q: Does the IC200PNS001 support hot-swapping of I/O modules during operation?

A: Yes, the module supports hot-swapping of I/O modules on the VersaMax carrier when configured correctly, allowing for maintenance without interrupting the entire Profinet network segment.

Q: Is the integrated USB port suitable for permanent data logging or network communication?

A: No, the USB port is strictly designated for firmware upgrades and configuration loading; it is not intended for continuous network communication or permanent external device connection.

Field Installation Guidelines

• Ensure the DIN rail or panel mounting surface is grounded according to industrial standards to facilitate effective EMI shielding for the metal chassis.
• Maintain a minimum clearance of 5 cm around the module to prevent thermal accumulation, as the device relies on passive convection cooling.
• Terminate all Ethernet cabling using industrial-grade RJ45 connectors and ensure the cable length does not exceed 100 meters per segment to avoid signal attenuation.
• Verify the IP address configuration and subnet mask via the Proficy Machine Edition software before connecting the module to an active Profinet network to prevent address conflicts.
• When installing expansion modules, ensure they are securely latched onto the VersaMax carrier to maintain solid backplane electrical contact for power and data signals.
