Technical Capabilities and Performance

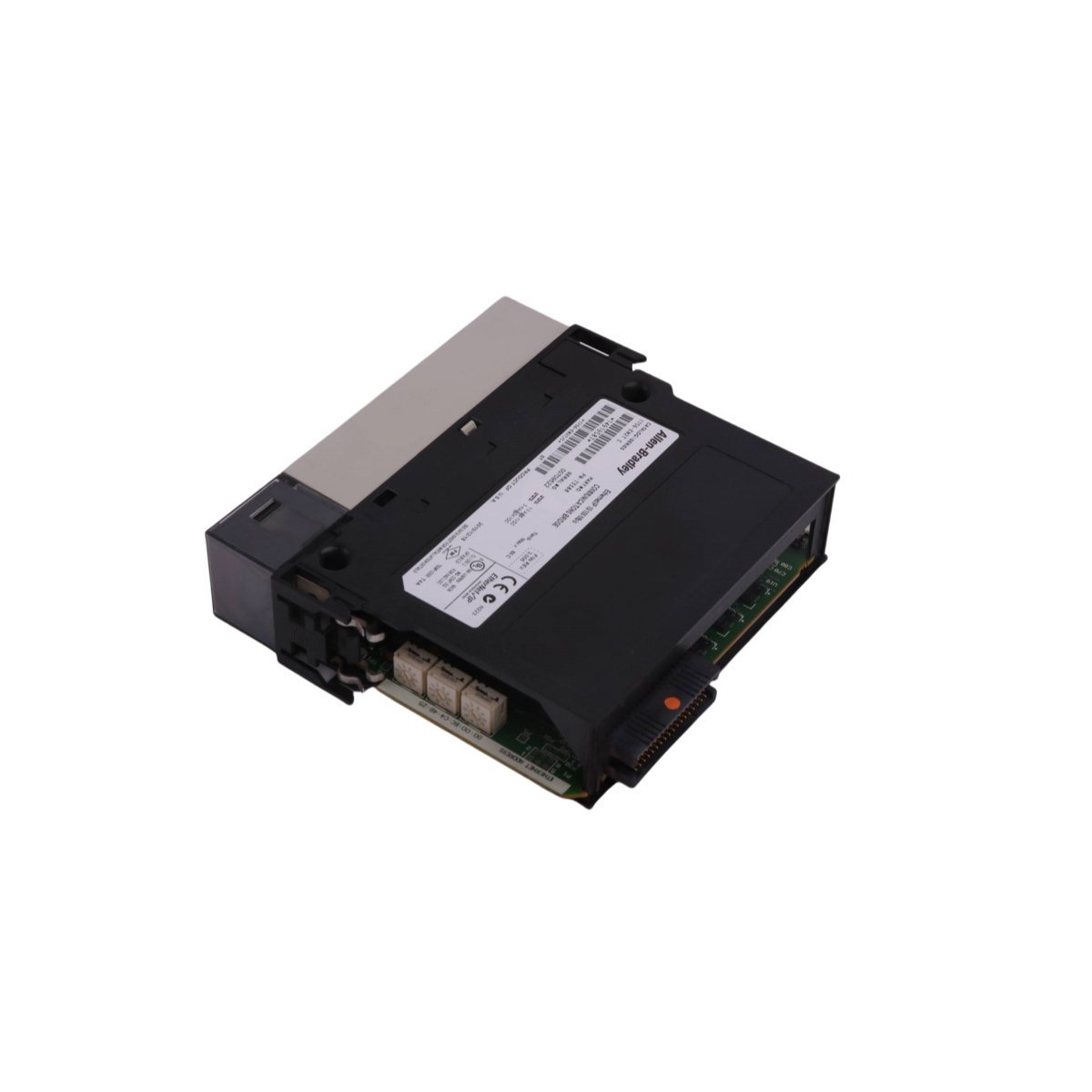

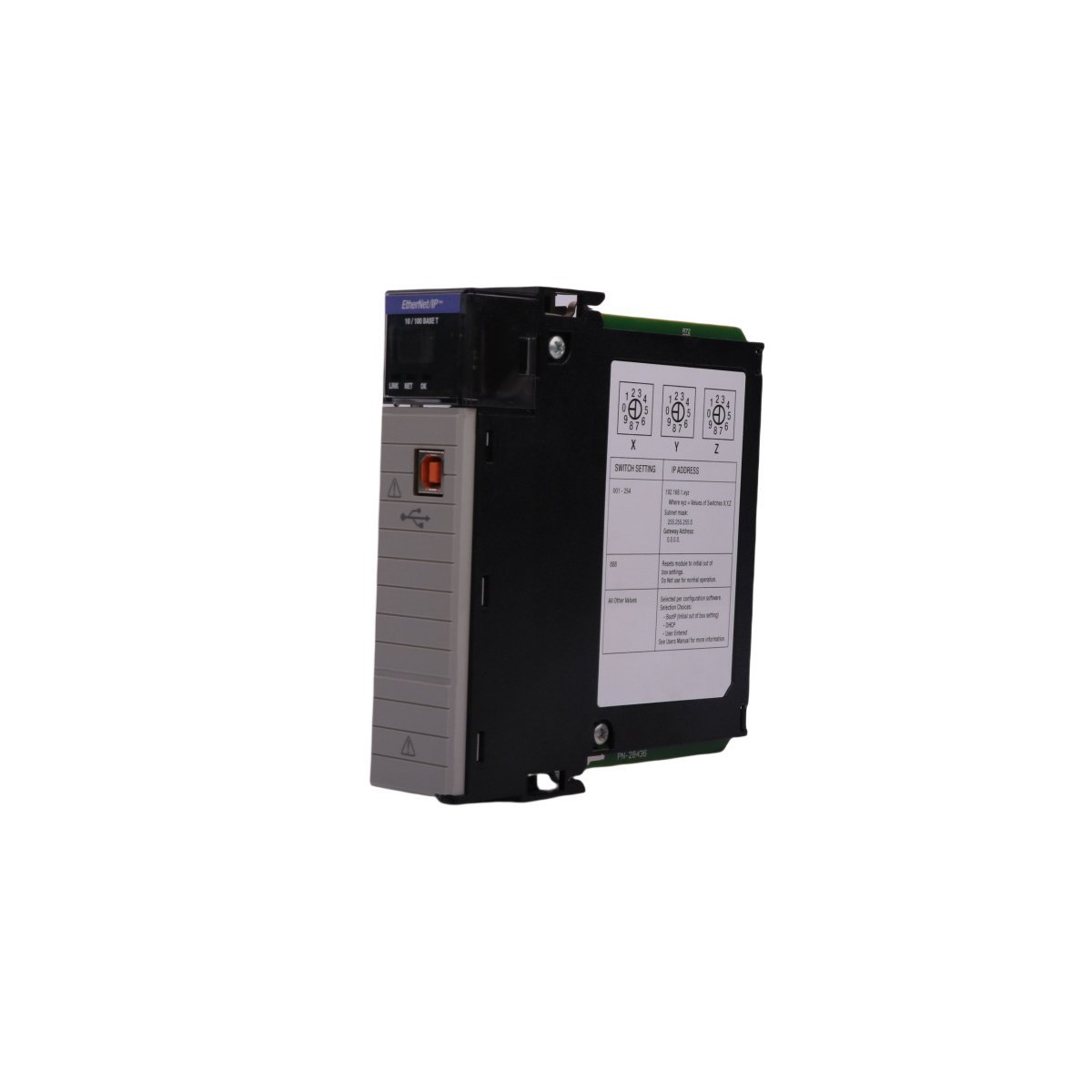

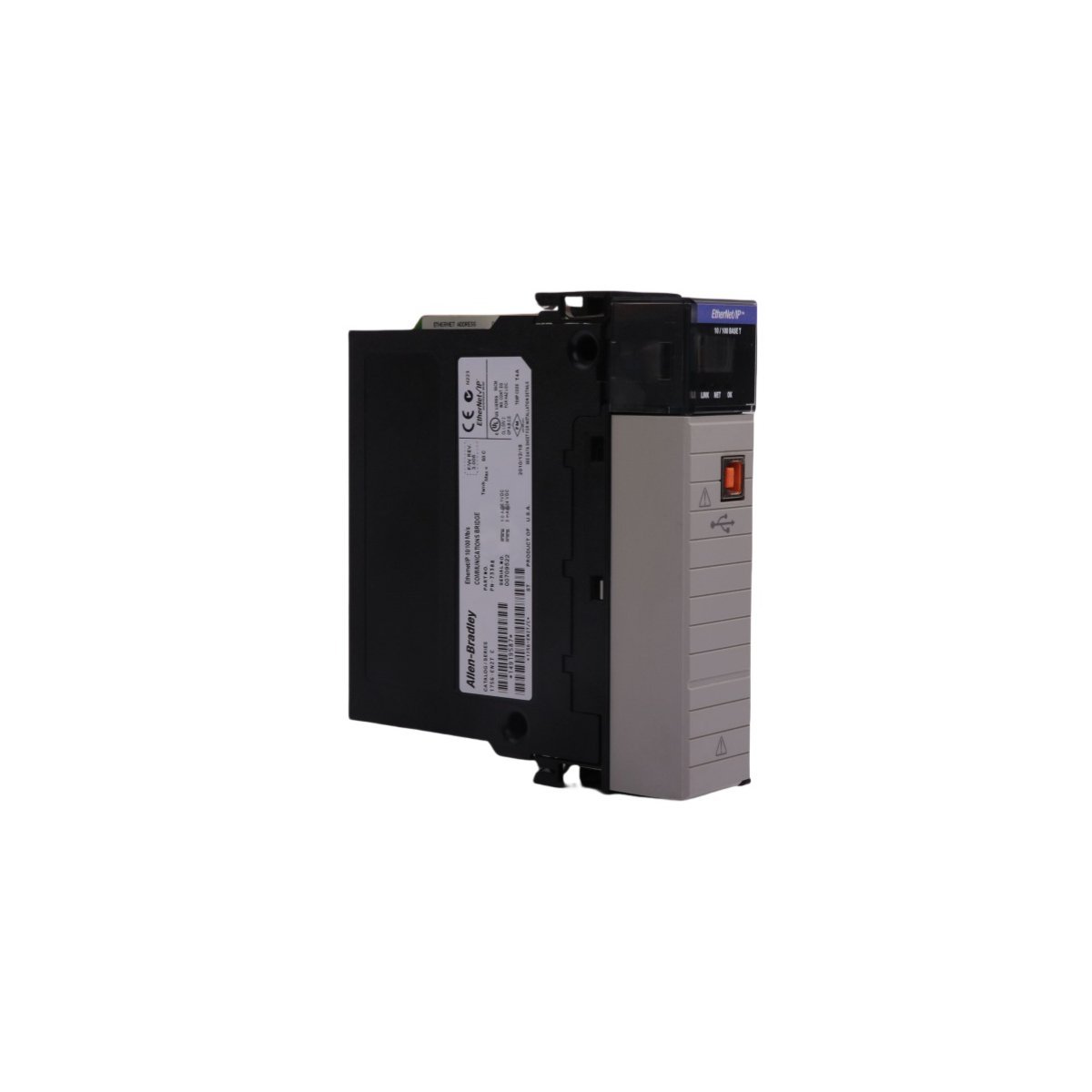

The Allen-Bradley 1756-EN2T serves as a high-performance communication interface that links a ControlLogix chassis to an EtherNet/IP network. This module facilitates high-speed data exchange and provides a bridge for information flow between the controller and various field devices. Furthermore, the hardware supports 10/100 Mbps Fast Ethernet speeds via its primary RJ45 port, ensuring rapid throughput for time-critical automation tasks. By managing up to 256 Logix and 128 TCP/IP connections simultaneously, the module accommodates the dense data requirements of modern industrial environments.

System Integration and Motion Control

Beyond standard messaging, the 1756-EN2T excels in sophisticated control architectures. It supports CIP Safety, which allows the concurrent transmission of safety and standard control data over the same wire, thereby reducing wiring complexity. Additionally, the module handles integrated motion control for up to 8 axes on EtherNet/IP, providing the synchronization necessary for high-precision robotic and packaging applications. Because it utilizes standard TCP/IP encapsulation, the module eliminates the need for proprietary routing tables, which significantly simplifies the network configuration process for system integrators.

Specifications and Environmental Durability

• Manufacturer: Allen-Bradley / Rockwell Automation
• Part Number: 1756-EN2T
• Network Speed: 10/100 Mbps Fast Ethernet
• Connection Capacity: 256 Logix / 128 TCP/IP connections
• Motion Support: Integrated motion for up to 8 axes
• Power Consumption: 1A @ 5.1V DC
• Thermal Output: 17.4 BTU/hour
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Compatibility: 1756-A4, A7, A10, A13, A17 Chassis
• Installation: Single-slot width

Network Resilience and Security

To ensure maximum uptime, the 1756-EN2T supports diverse network topologies, including linear and Device Level Ring (DLR) configurations. This self-healing capability allows the network to maintain communication even during a physical link failure. Moreover, the module incorporates electronic keying and a protected mode to safeguard the system against unauthorized access or incorrect hardware installation. These security layers, combined with its robust resistance to vibration and humidity, make it an ideal choice for critical infrastructure in manufacturing and process industries.
