Description

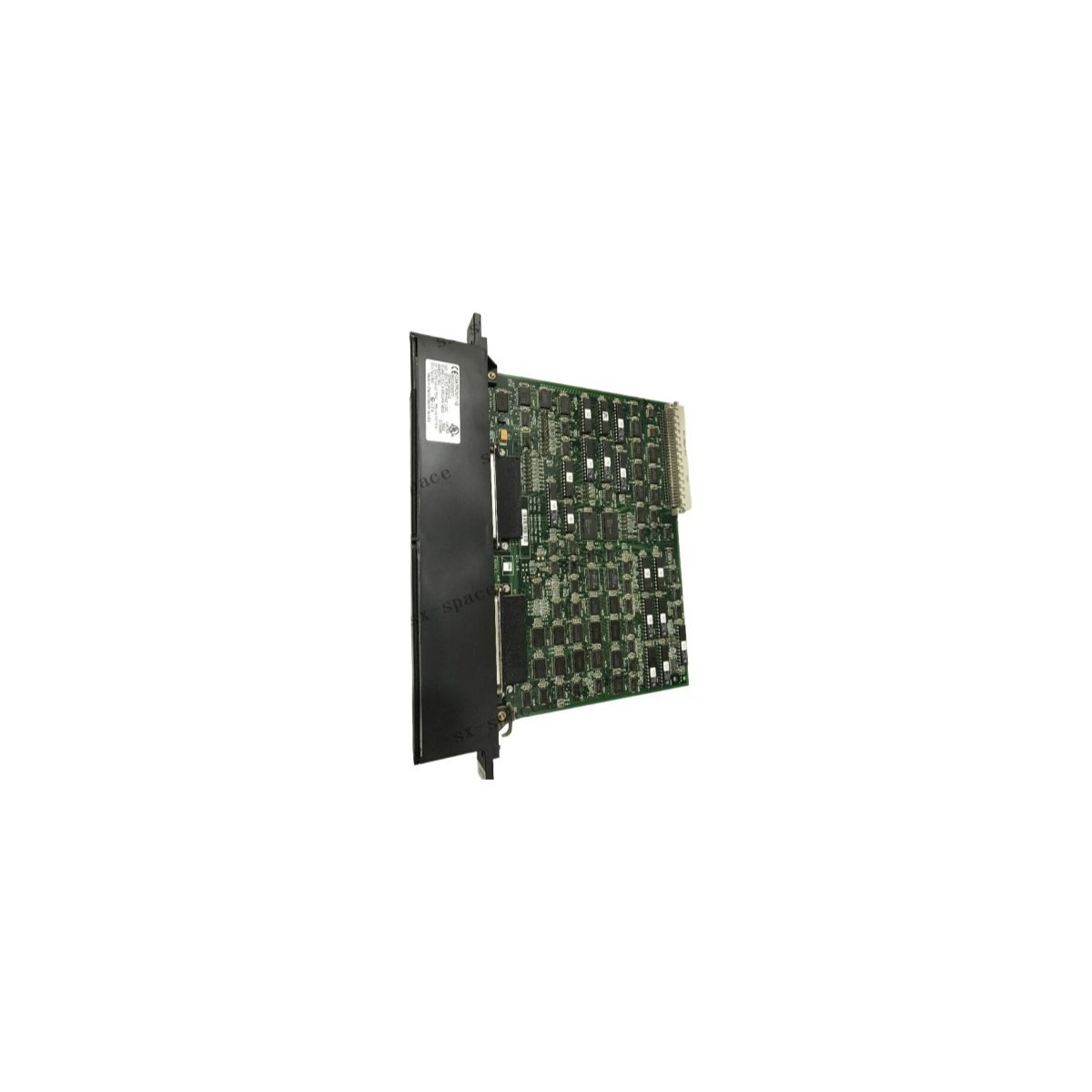

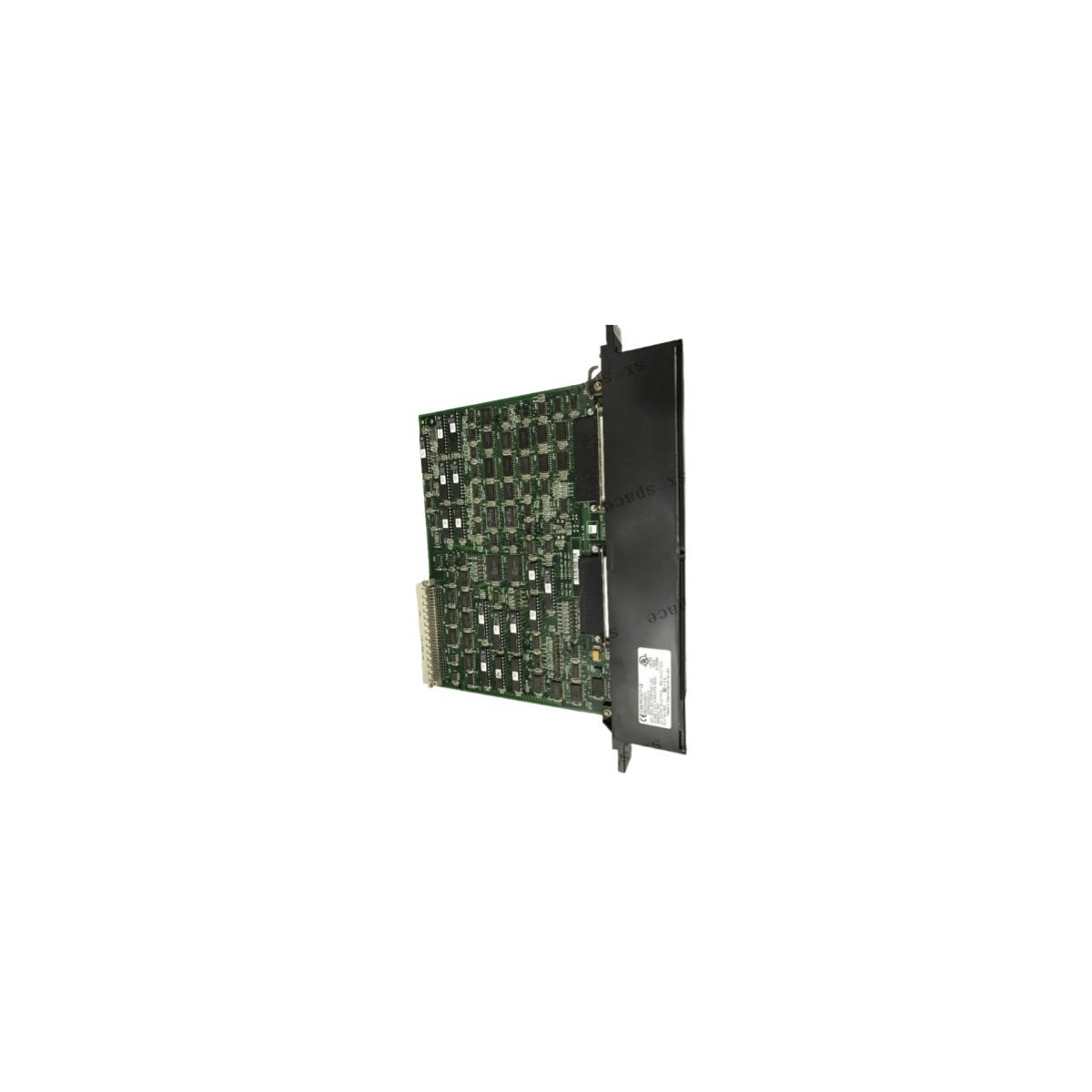

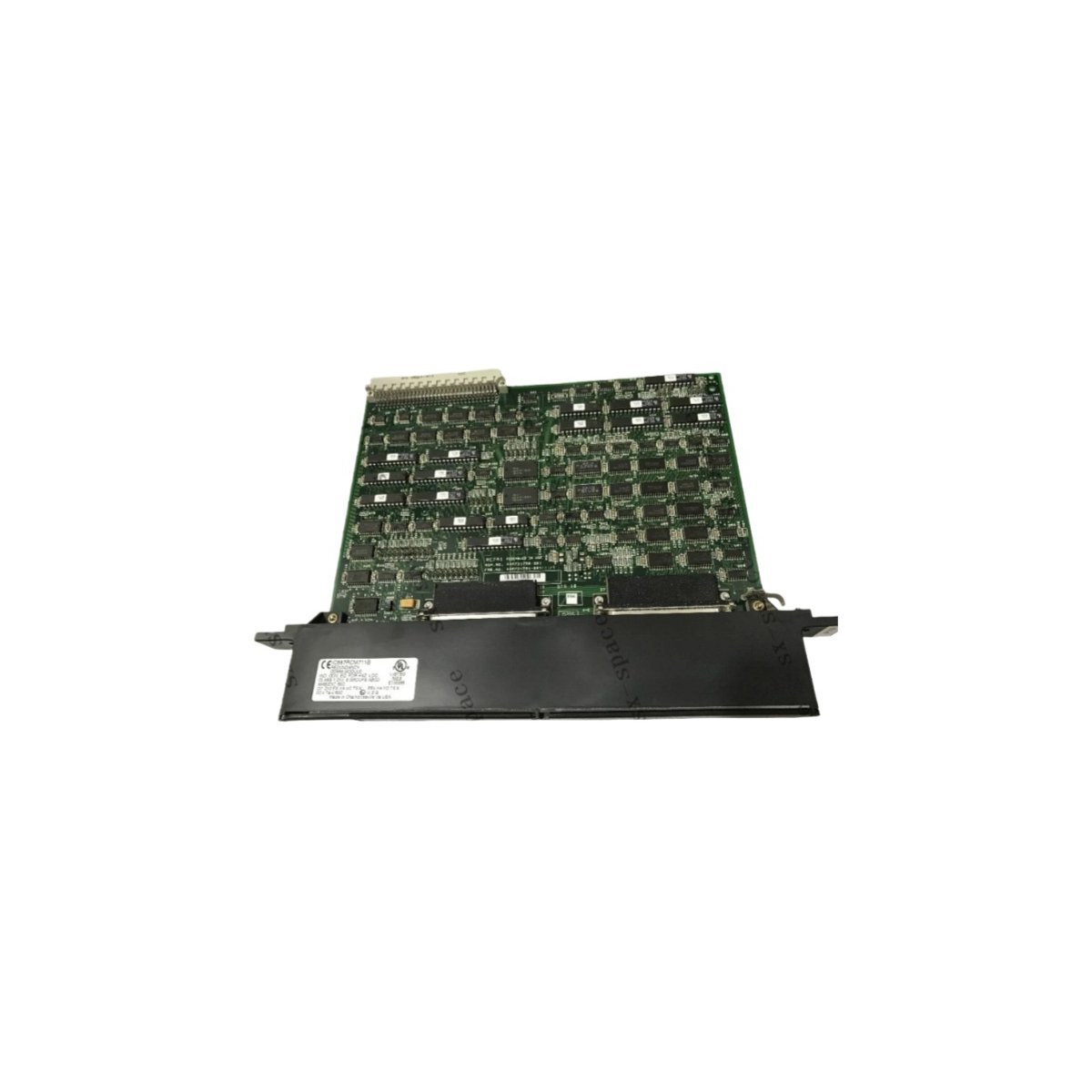

The GE IC687RCM711 is a specialized communication interface designed for Series 90-70 High-Speed Backup (HSB) systems. This module establishes a high-speed data link between primary and secondary CPU racks to ensure continuous process availability. It synchronizes critical internal data and I/O status in real-time. Consequently, the backup unit remains ready to assume control instantly if the active processor fails. This hardware is essential for industrial applications where even a few seconds of downtime causes significant losses.

Technical Performance and Specifications

This module offers rapid data transfer rates to keep redundant processors in perfect lockstep. Its hardware architecture supports efficient memory mirroring across the HSB link.

• Communication Speed: Up to 500 KB per second
• Power Consumption: 1.2 Amps at 5V DC
• Form Factor: Single-slot module for Series 90-70 racks
• Link Distance: Supports cable lengths up to 15 meters (50 feet)
• Bus Interface: Standard backplane connection for 5V bus
• System Compatibility: Series 90-70 Hot Standby (HSB) configurations
• Physical Dimensions: 20 x 11.5 x 5.7 cm
• Unit Weight: 0.9 kg

Control Interface and Visual Diagnostics

The front panel features integrated tools for manual system management and instant status verification. Five dedicated green LED indicators track the operational health of both the module and the CPU link. These lights show the status of the “Active” and “Backup” units during normal processing. Furthermore, a physical pushbutton allows technicians to trigger a manual switchover between racks. This manual override is vital for performing routine maintenance without stopping the entire production line. After a switchover occurs, the module requires a short stabilization period to re-synchronize the CPUs.

Installation and System Integration

Engineers can easily integrate the IC687RCM711 into existing Series 90-70 control architectures. It requires no external isolation components for standard operation. Because it occupies only one rack slot, it leaves room for other critical I/O modules. The two front-facing connectors facilitate secure cabling between redundant enclosures. Moreover, the hardware design minimizes electromagnetic interference in noisy factory environments. This module is a core component for building fault-tolerant control systems in the energy and manufacturing sectors.
