Product Description

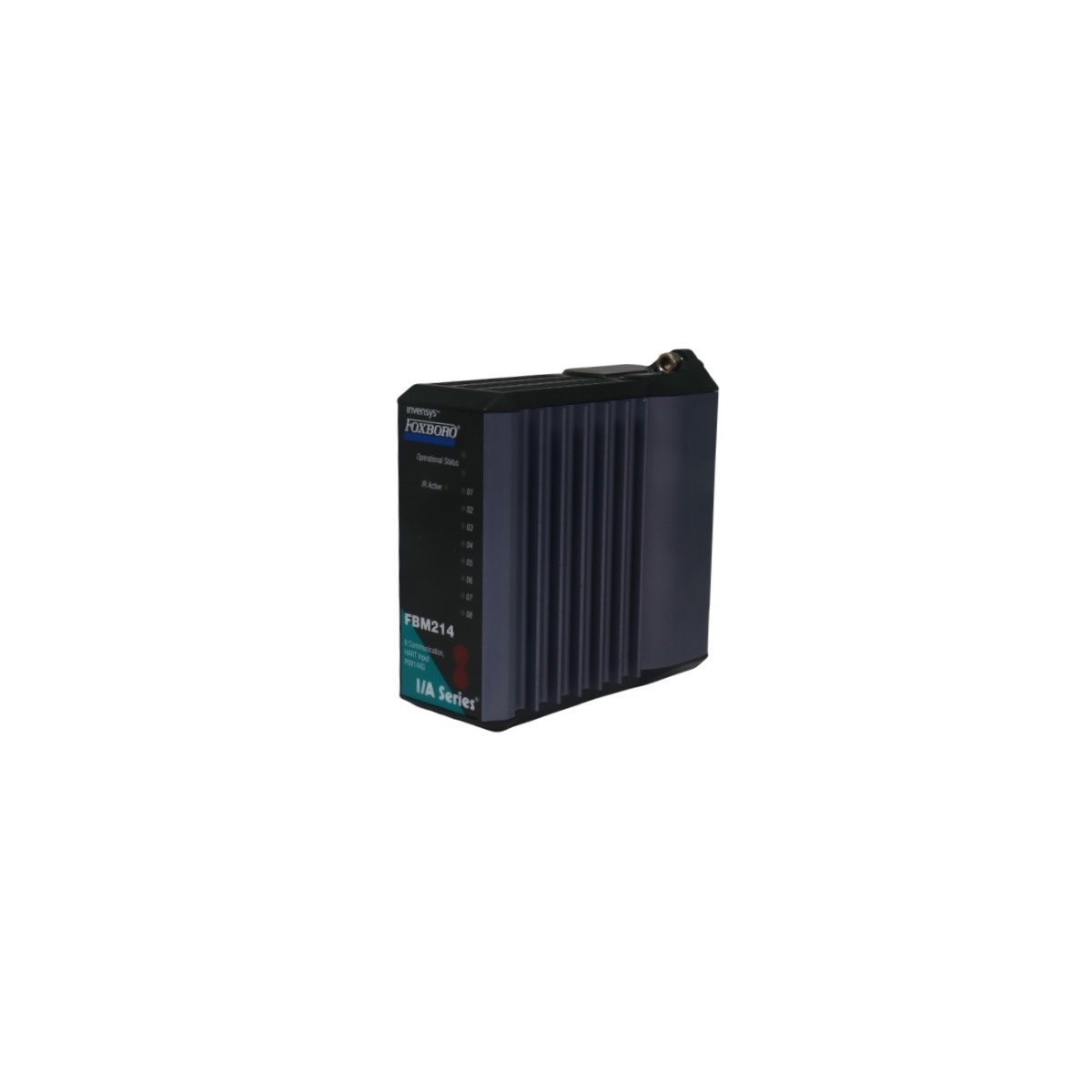

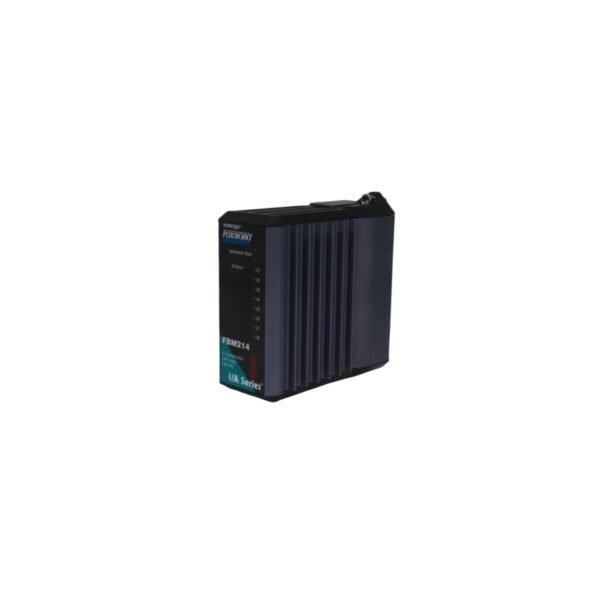

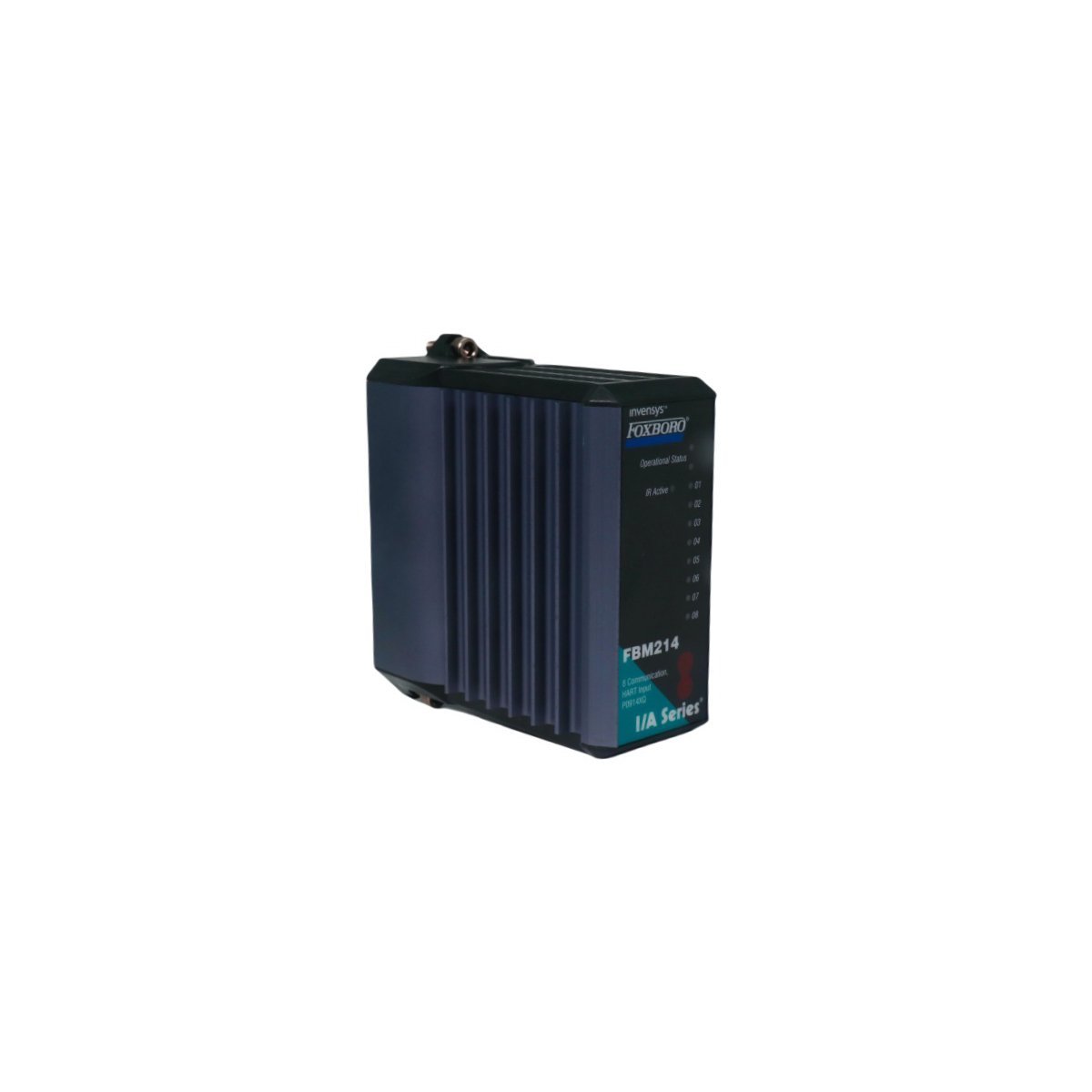

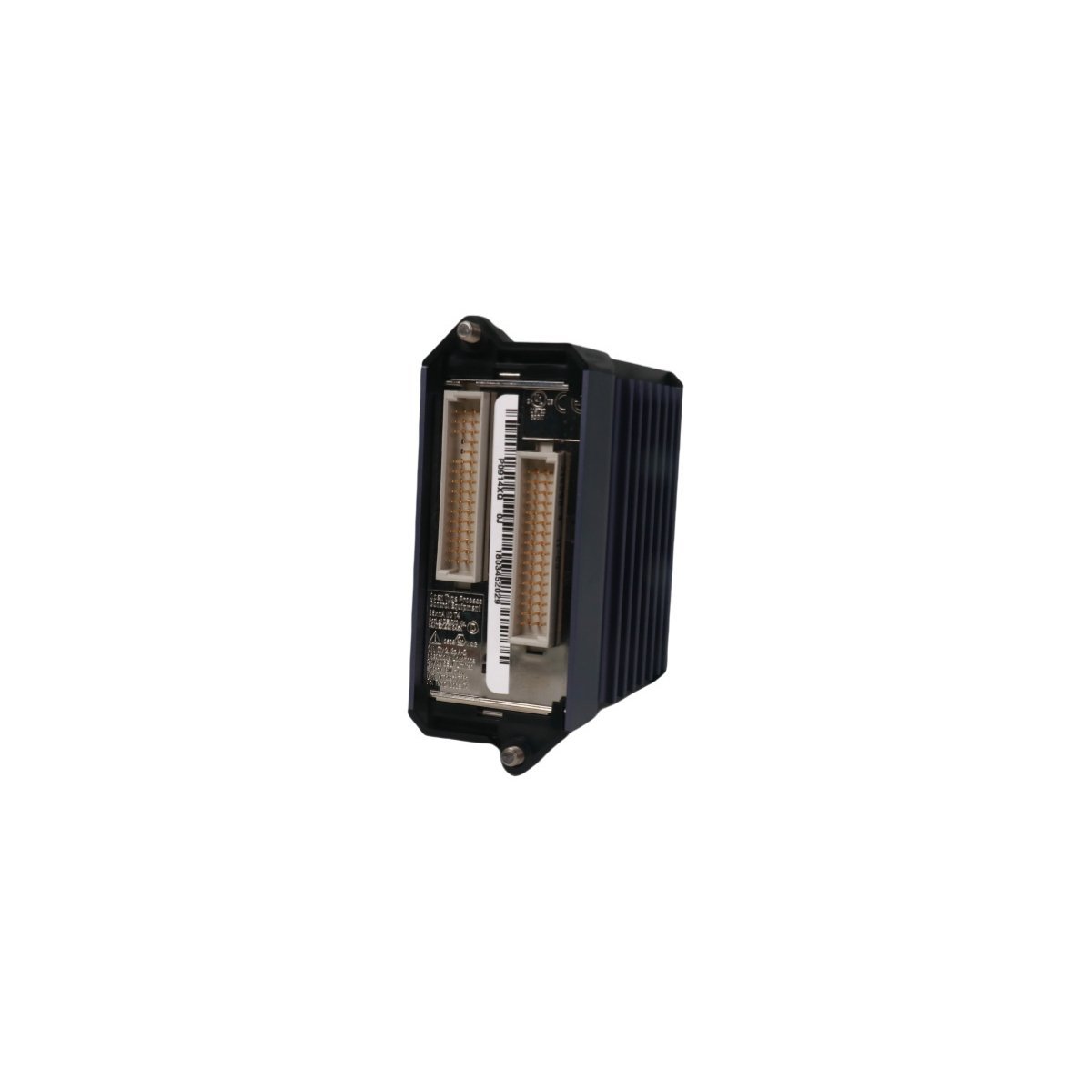

The Foxboro FBM214 module functions as a sophisticated bridge between field instrumentation and the I/A Series system. By integrating eight group-isolated channels, this interface efficiently manages standard 4 to 20 mA analog signals alongside digital HART Frequency Shift Keying (FSK) data. Because each channel features a dedicated FSK modem, the module facilitates bidirectional digital communication without disrupting the primary analog measurement.

Advanced Data Communication

As a dedicated host for HART field devices, the FBM214 enables the control system to request and process up to two digital messages every second. This capability allows the DCS to access universal, common practice, and device-specific commands for comprehensive asset management. While it does not support burst mode, it works seamlessly with the Intelligent Field Device Configurator (IFDC) to streamline device setup and troubleshooting. Furthermore, the module employs sigma-delta data conversion technology to ensure superior accuracy and signal resolution for every connected input.

Power Management and Installation

The interface offers versatile powering options to suit various field requirements. While the FBM214 provides a common isolated power supply for all eight channels, users may also implement an external power source. When utilizing a shared external supply across multiple channels, a Cable Balun module becomes necessary to eliminate channel crosstalk and preserve signal integrity.

Technical Performance and Durability

The ruggedized construction of the FBM214 makes it suitable for deployment in Class G3 harsh environments. Its compact footprint allows for high-density installation within standard enclosures, while galvanic isolation protects the module logic and system ground from field-side electrical noise. Consequently, this interface provides a reliable and scalable solution for modern industrial plants requiring deep integration with intelligent field instrumentation.

Technical Specification Overview

• Input Channels: 8 isolated analog input channels
• Input Signal Range: 4 to 20 mA DC (Analog) / HART FSK (Digital)
• Conversion Method: Sigma-delta A/D per channel
• Isolation: Galvanic isolation between field group and logic
• Environmental Rating: Class G3 (Harsh)
• Powering: Internal (common isolated) or External (24V DC)
• Digital Communication Rate: 2 messages per second
• Compliance: HART Universal and Common Practice commands
