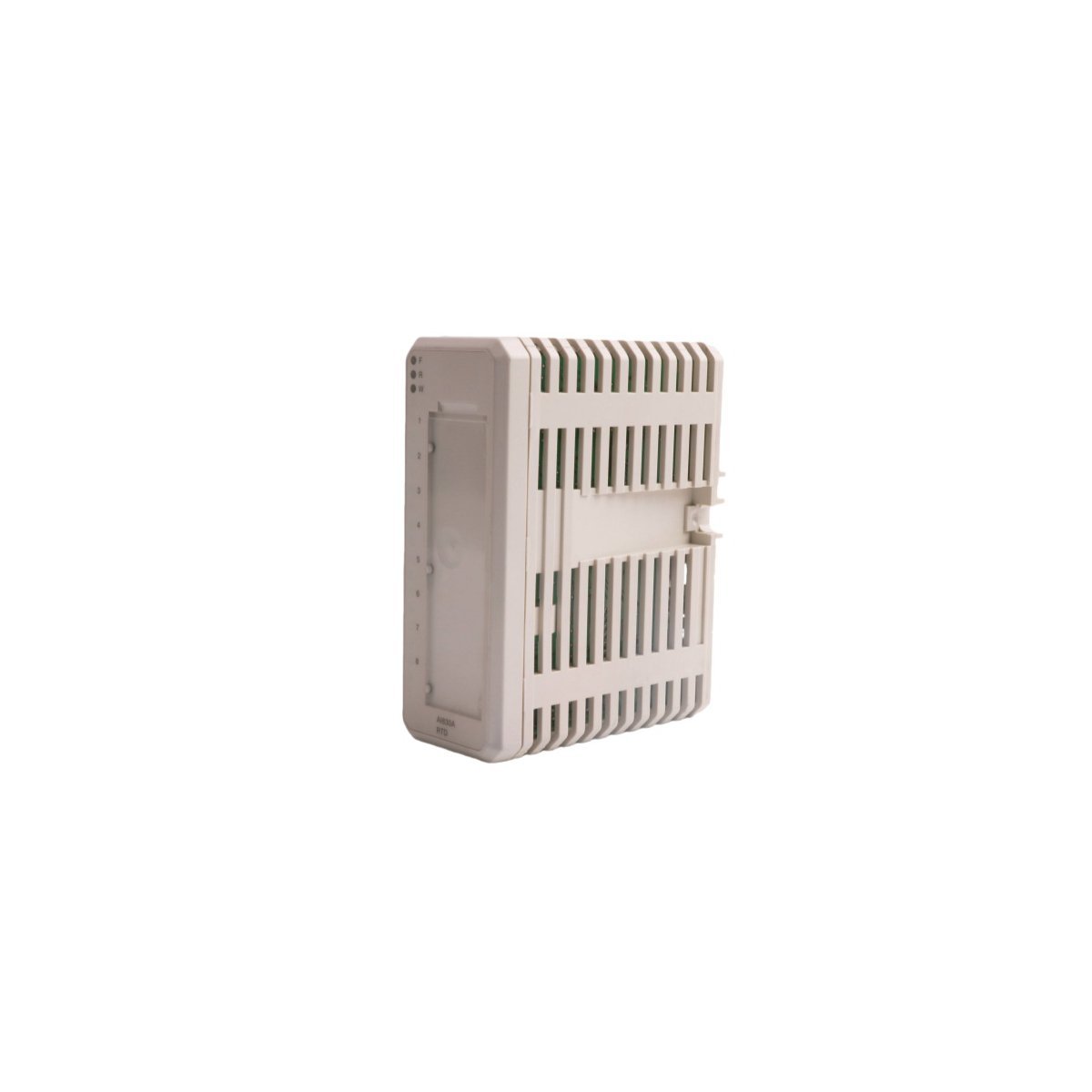

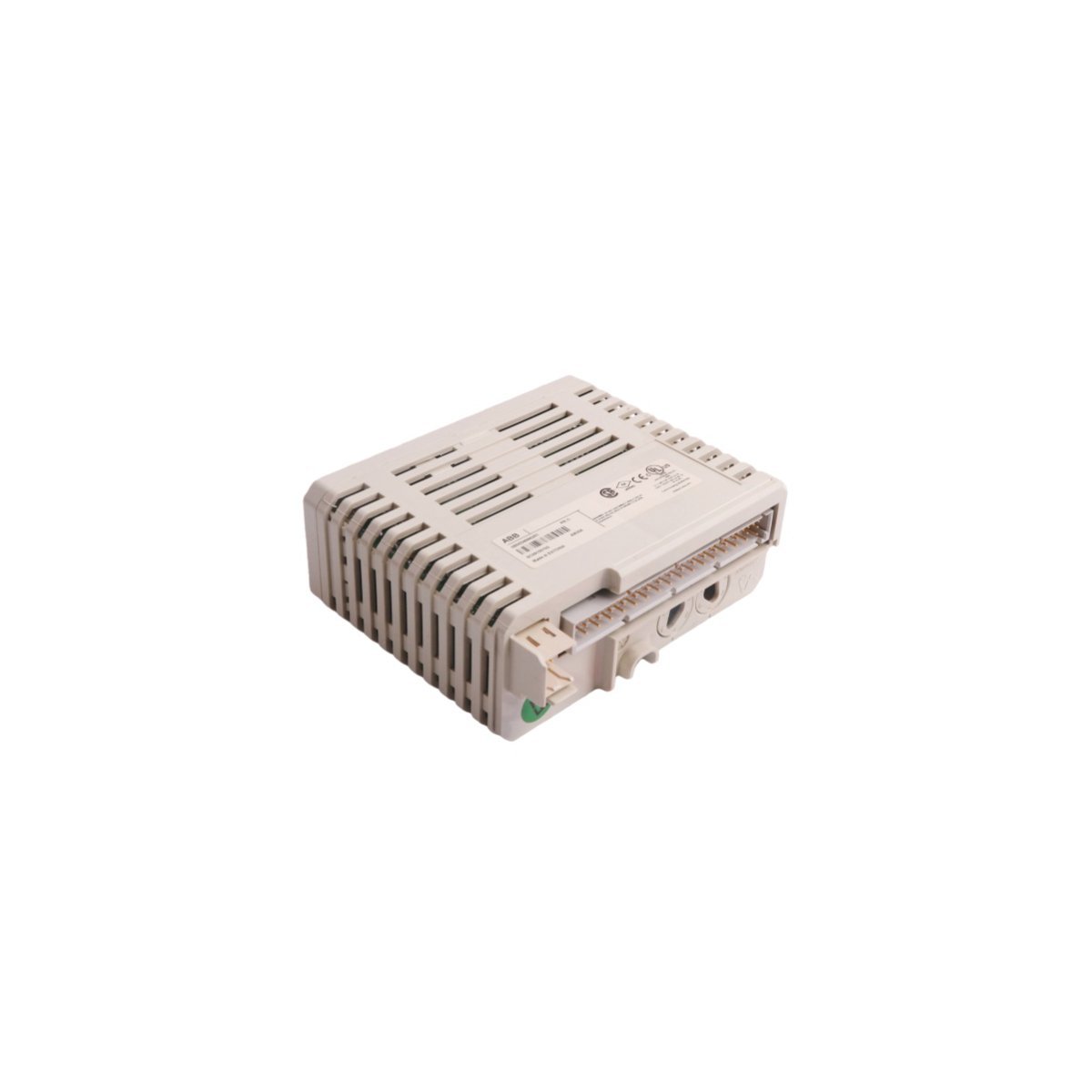

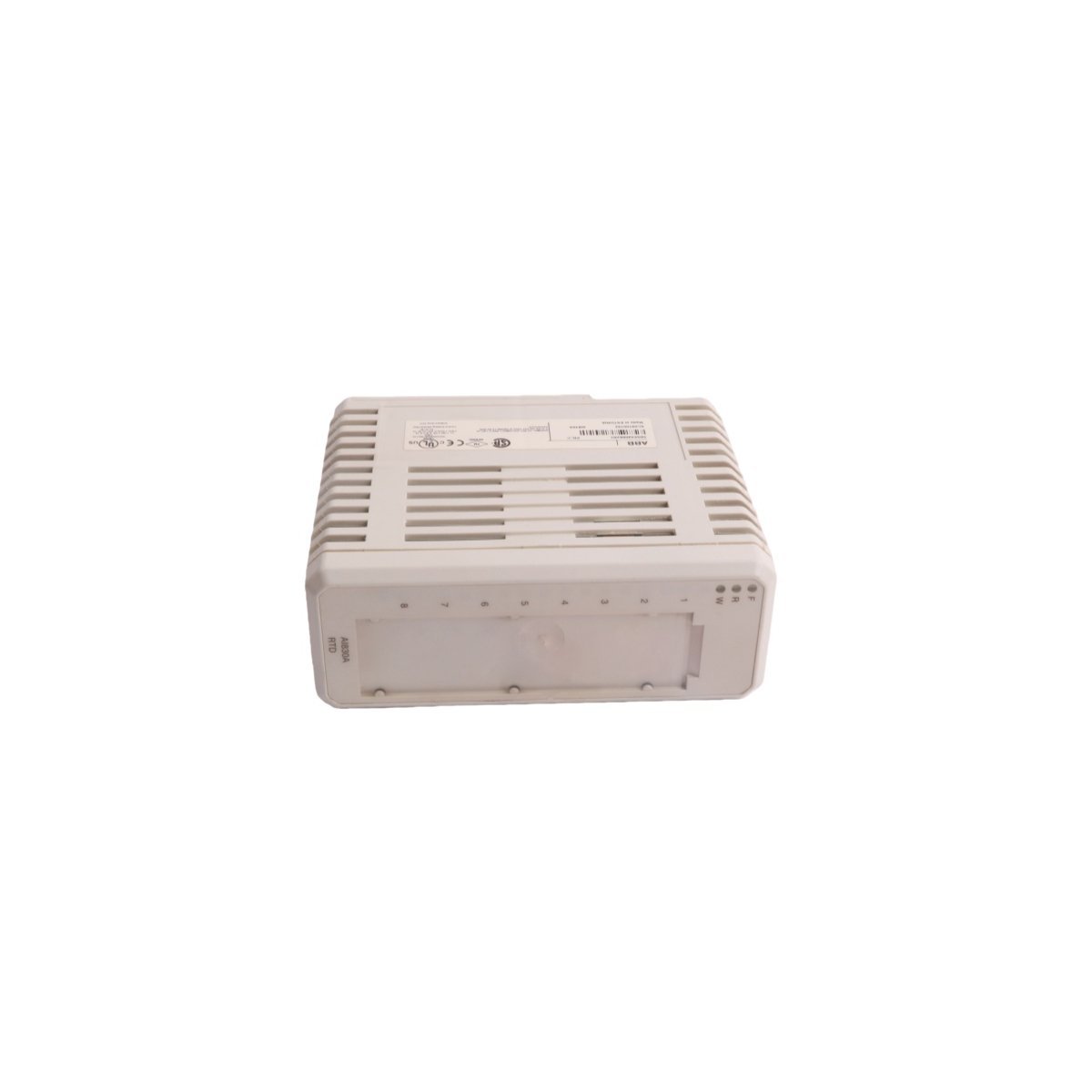

The ABB AI830A (3BSE040662R1) is a high-precision 8-channel analog input module designed for direct Resistance Temperature Detector (RTD) integration. It provides the S800 I/O system with accurate temperature monitoring capabilities across various sensor types, including Pt100 and Ni100.

​Product Description

The AI830A, identified by the part number 3BSE040662R1, serves as a specialized temperature acquisition interface within the ABB S800 I/O family. This module excels at converting low-level resistance signals from field-mounted RTDs into digital data for the Advant-800xA control system. By supporting 3-wire connection techniques, the unit effectively compensates for lead wire resistance, ensuring that temperature readings remain accurate even over significant distances. It integrates seamlessly with the TU830 or TU833 Extended Termination Units, which provide the necessary physical connection points and signal conditioning for industrial field wiring.

Multi-Channel Versatility and Sensor Support

This module offers extensive flexibility by supporting multiple sensor standards, including Pt100, Ni100, Ni120, and Cu10. This broad compatibility allows engineers to utilize the AI830A across diverse industrial applications without requiring specialized hardware for different sensor types. Furthermore, the 8-channel high-density design optimizes cabinet space. This concentration of inputs reduces the overall hardware footprint and simplifies the architecture of Distributed Control Systems (DCS), making it an ideal choice for large-scale temperature monitoring projects in power plants and chemical processing facilities.

Industrial Reliability and Data Integrity

ABB engineered the 3BSE040662R1 to maintain high performance in demanding environments characterized by electrical noise and temperature fluctuations. The module features internal diagnostics that continuously monitor channel status and hardware health, which proactively prevents data errors from reaching the controller. This robust construction, combined with its precise 14-bit resolution, guarantees process stability and minimizes unplanned downtime. Consequently, the AI830A stands as a foundational component for industries where accurate thermal regulation is paramount to safety and product quality.

Technical Specification Table
