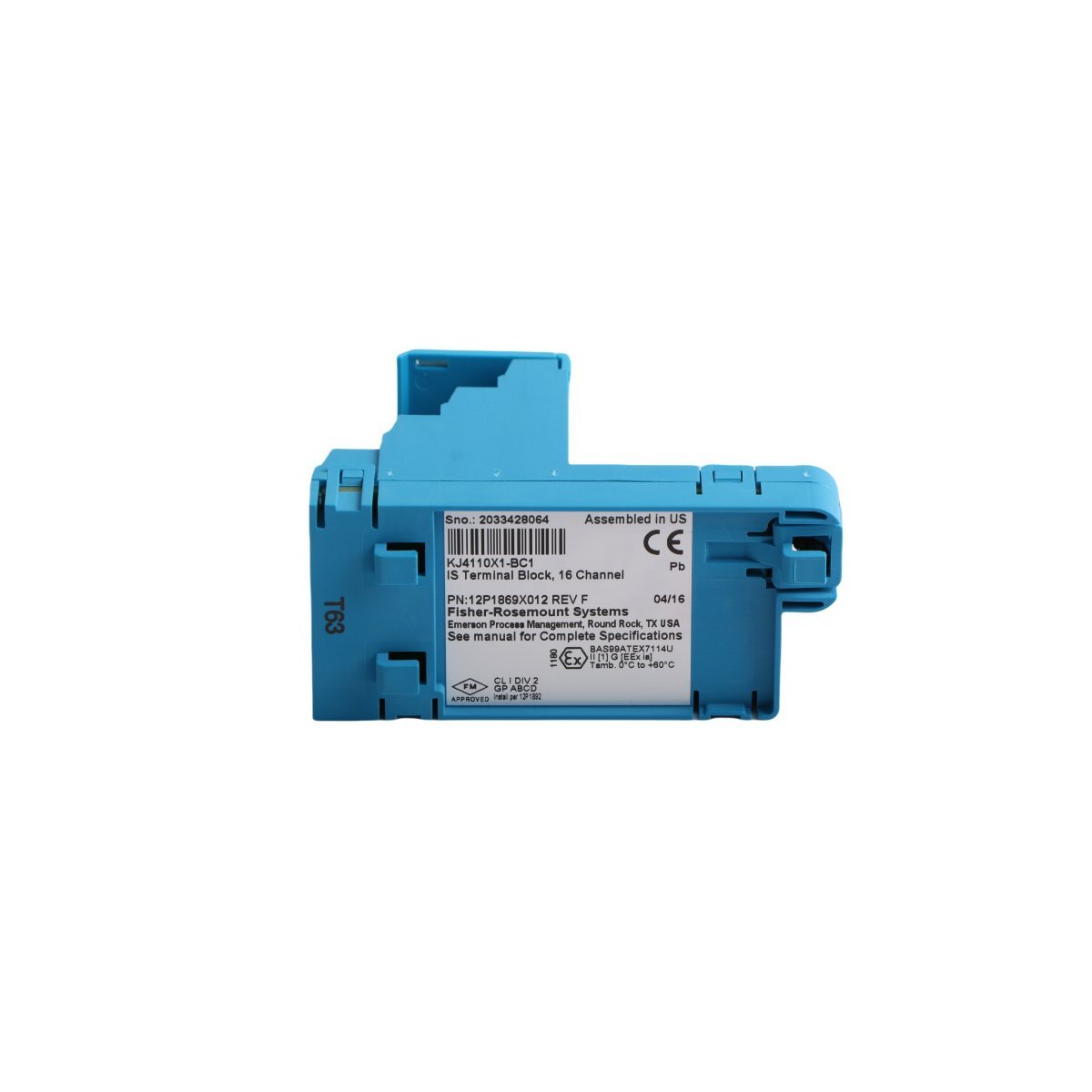

The Emerson KJ4110X1-BC1 (12P1869X012) is a high-density, 16-channel digital input terminal block engineered for the DeltaV™ M-series I/O subsystem. This component facilitates secure field wiring connections for discrete devices, ensuring accurate signal transmission to the Distributed Control System.

​Product Description

High-Density Field Interfacing

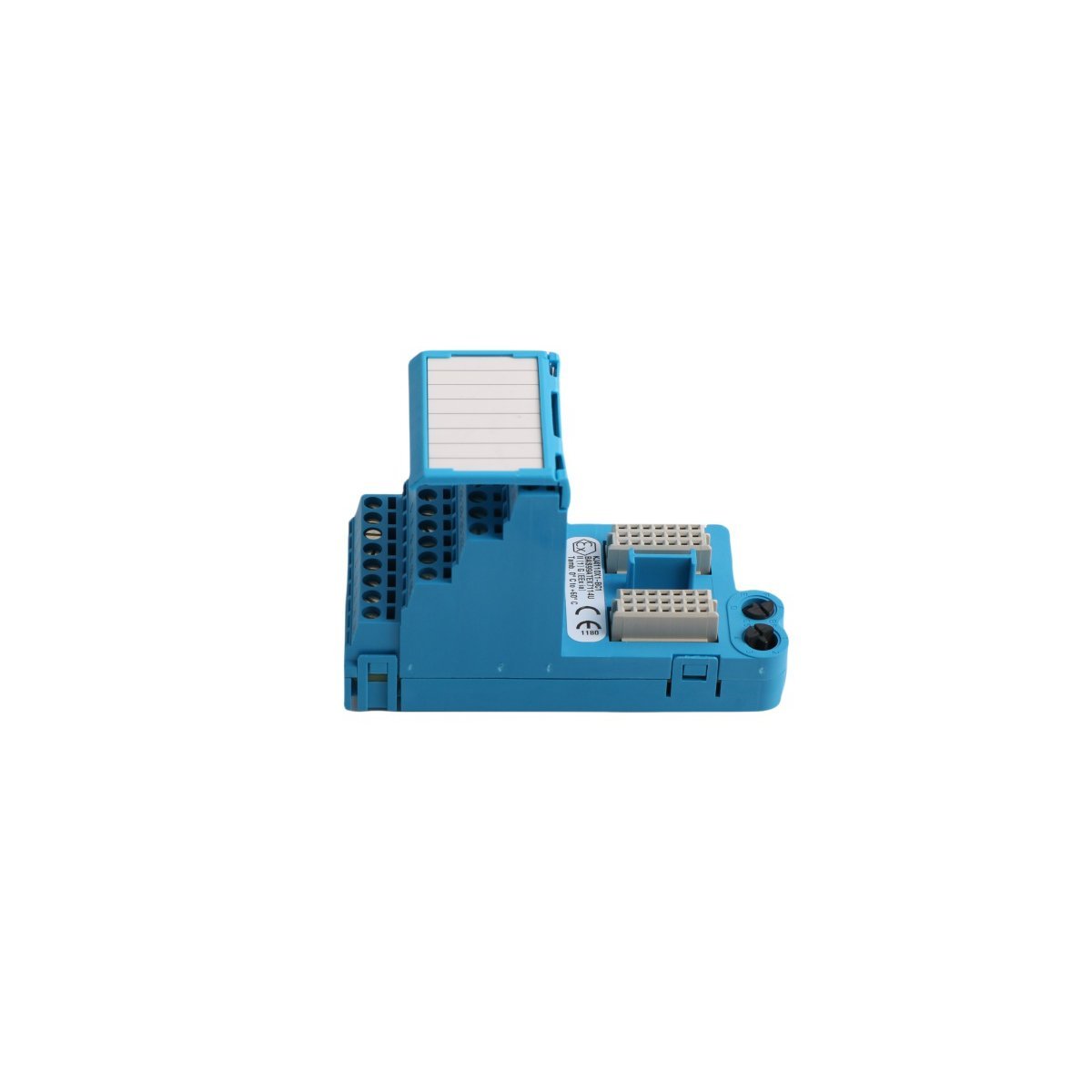

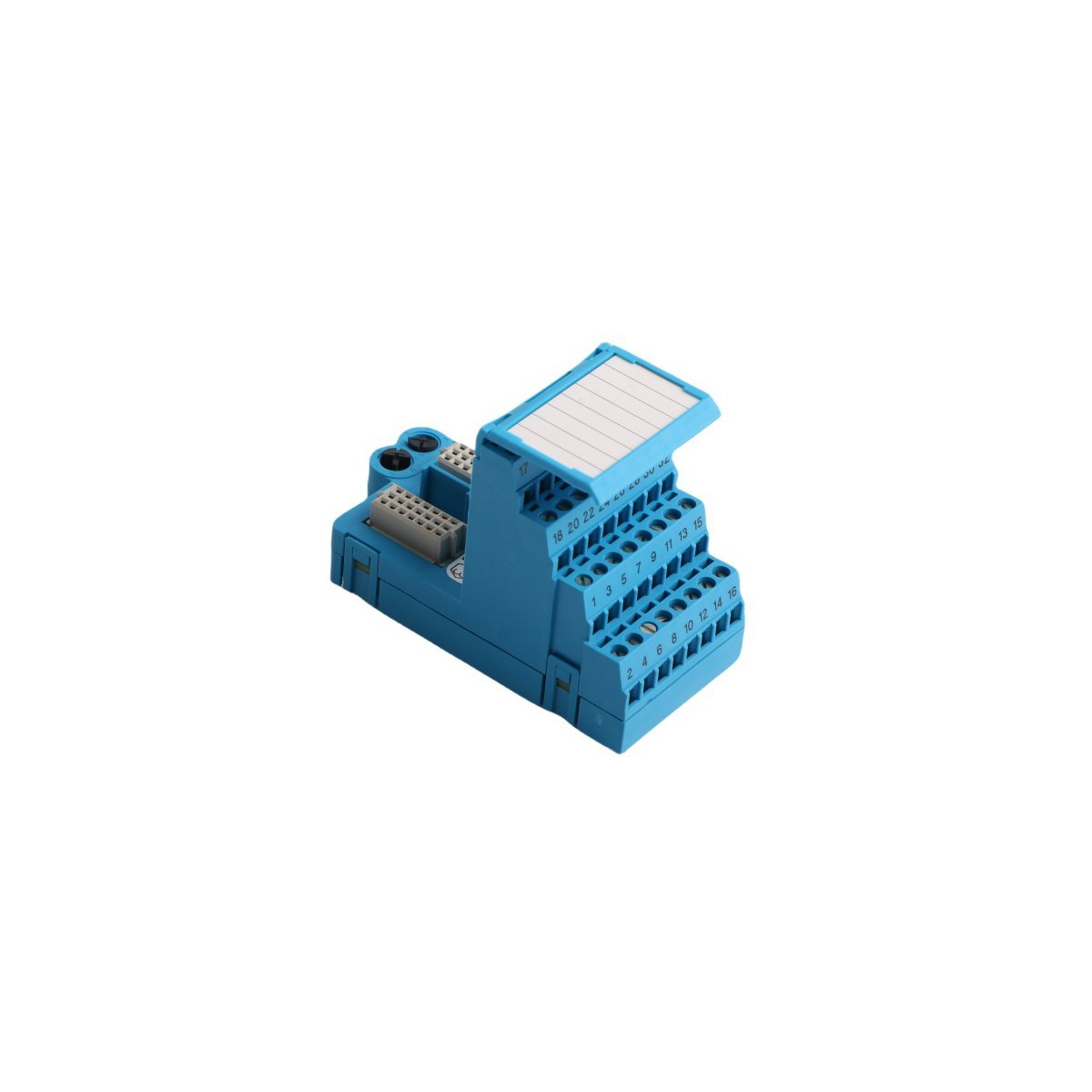

The Emerson KJ4110X1-BC1, also identified by part number 12P1869X012, serves as a fundamental interface between field instrumentation and the DeltaV™ DCS. This terminal block supports 16 discrete channels, allowing for the simultaneous connection of various digital devices such as limit switches, pushbuttons, and proximity sensors. By consolidating these connections into a single, modular footprint, the unit optimizes cabinet space while maintaining high signal integrity. The block effectively manages input signals, converting field data into actionable information for the M-series controller.

Industrial-Grade Reliability and Diagnostics

Emerson designed the 12P1869X012 to thrive in rigorous industrial environments. The hardware features a robust mechanical structure that resists the effects of vibration and ambient dust, which are common in heavy processing plants. Furthermore, the terminal block includes integrated diagnostic capabilities and LED status indicators. These visual tools allow technicians to verify channel activity and identify wiring faults instantly. Consequently, this transparency reduces troubleshooting time and enhances the overall availability of the process control loop.

Seamless System Integration

This terminal block functions as a native component of the DeltaV™ M-series I/O subsystem, ensuring total compatibility with DeltaV Explorer configuration tools. Operators can easily map I/O points and configure signal parameters through the software interface without requiring complex manual setup. Its versatile design handles multiple voltage levels, making it suitable for a broad spectrum of applications in oil and gas, chemical processing, and power generation. Because the module integrates directly into the Emerson safety and control architecture, it provides a stable and scalable solution for modernizing industrial automation.
