Description

Brief Product Description

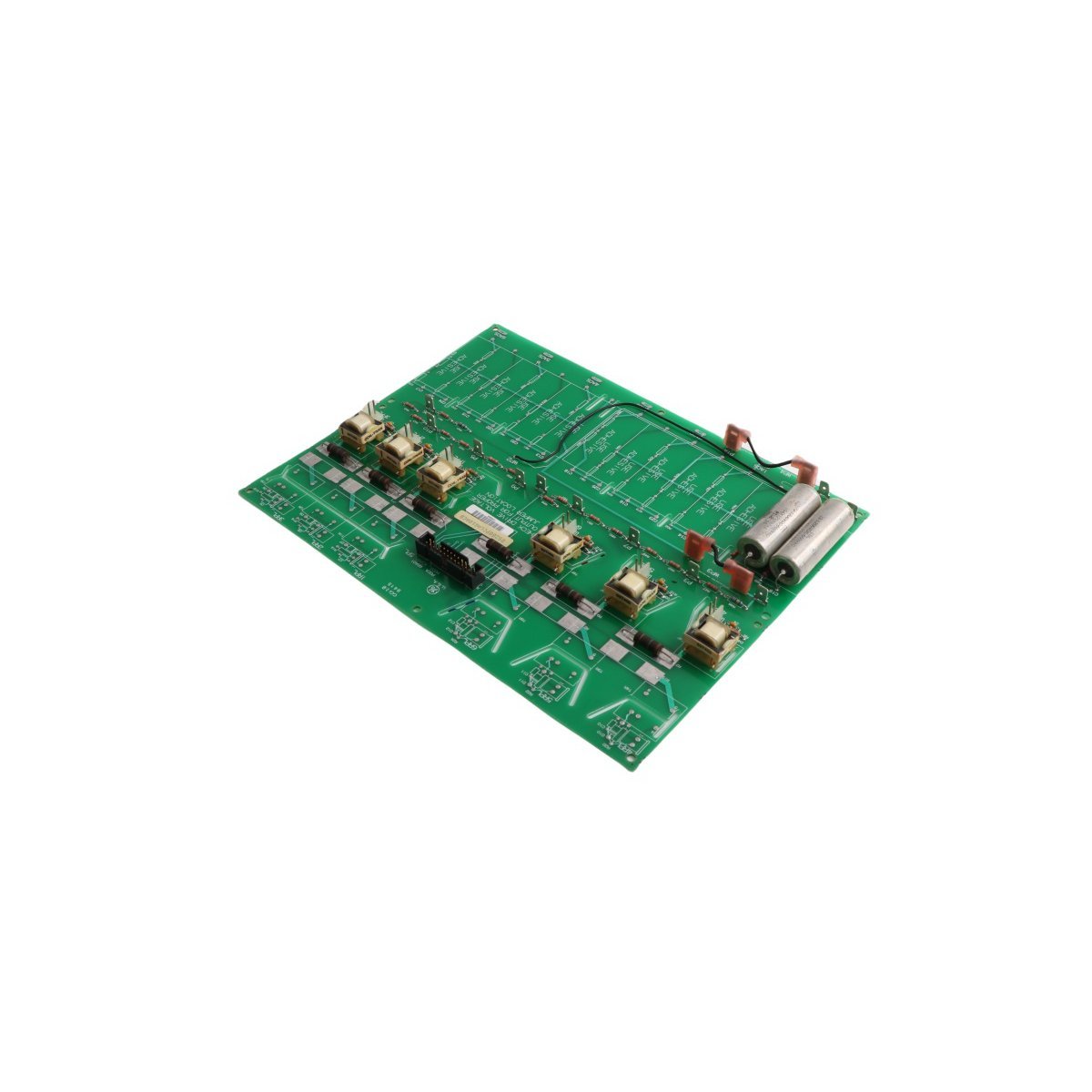

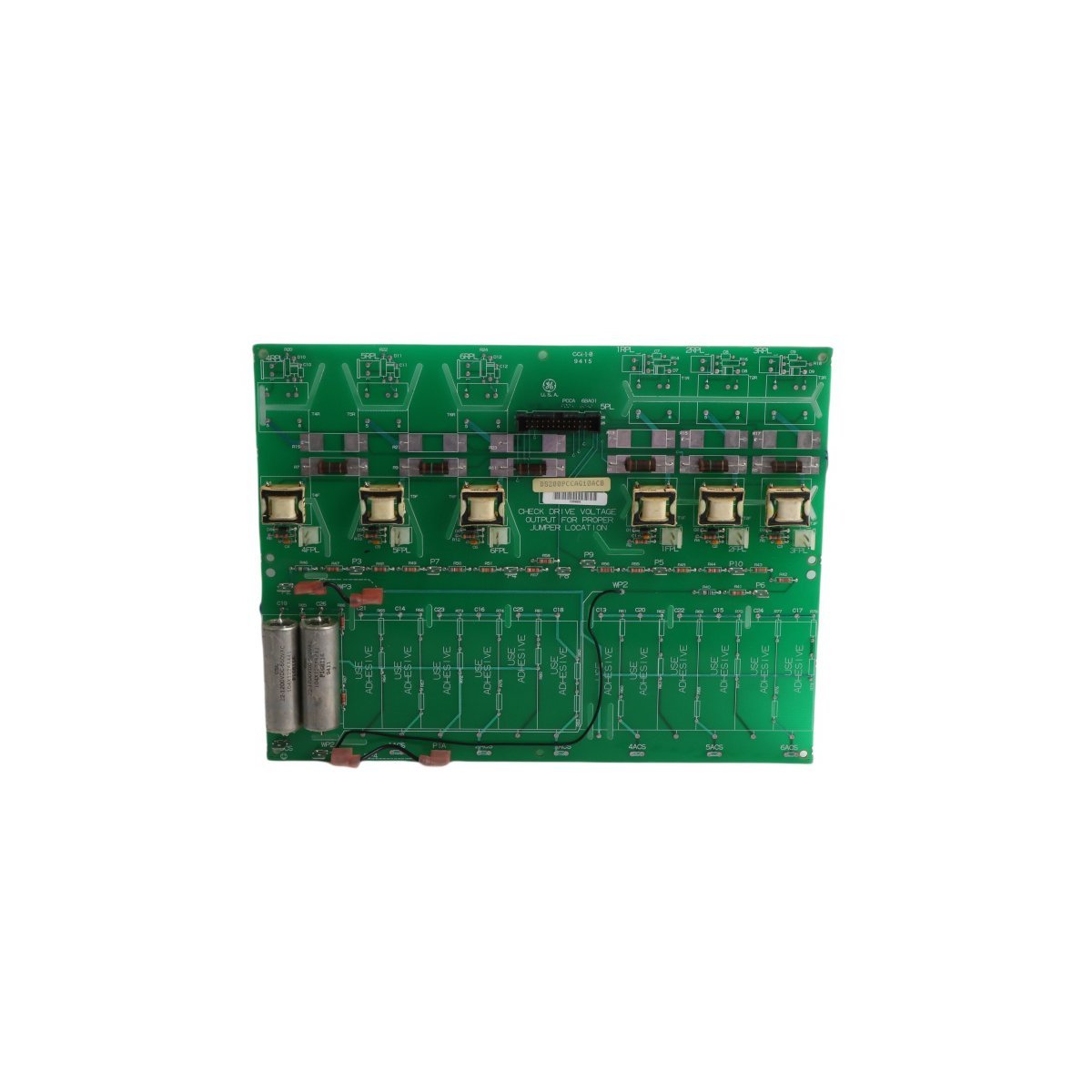

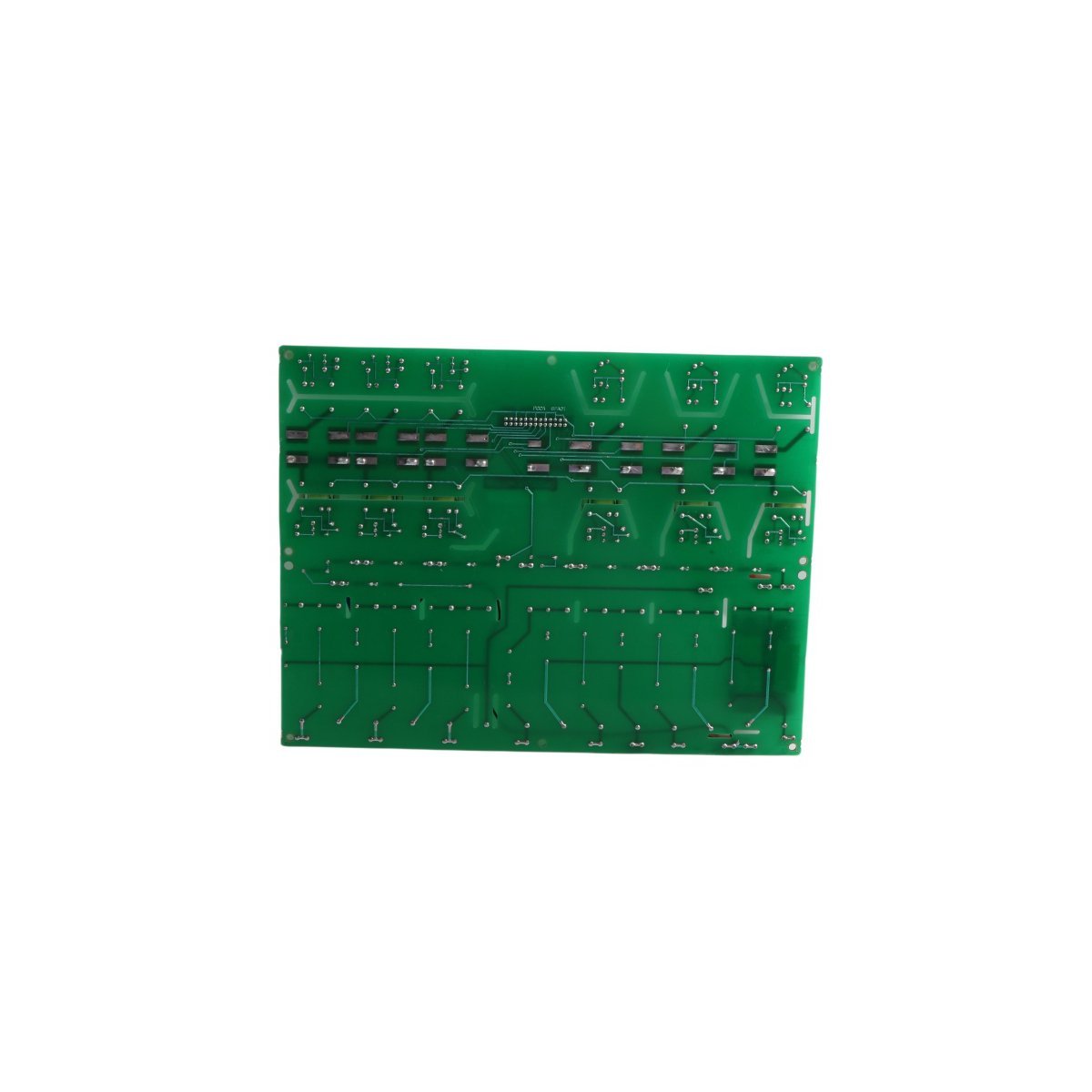

The GE DS200PCCAG10ACB is a sophisticated Power Connect Card designed for the Mark V Speedtronic turbine control system.¹ It serves as the primary electrical interface between the drive controller and the SCR power bridge, ensuring stable DC power distribution for steam and gas turbine assemblies.²

Product Description

High-Integrity Power Interfacing

The GE DS200PCCAG10ACB functions as a critical DC Power Connect Board within the legacy Mark V Speedtronic series.³ Specifically engineered for turbine control applications, this card facilitates the essential communication and power link between the drive logic and the Silicon Controlled Rectifier (SCR) power bridge.⁴ While the industry considers the Mark V series a legacy platform, the DS200PCCAG10ACB remains a vital component for maintaining gas, steam, and wind turbine drive assemblies. This high-performance PCB manages heavy-duty electrical loads while ensuring the precise regulation required for GE’s patented control technologies.

Advanced Technical Architecture

This specific revision, the DS200PCCAG10ACB, incorporates three significant engineering updates over the base model to improve compatibility within the DC2000 subseries. The board features eight specialized connectors that enable seamless integration with DCFB (Drive Control Feedback) boards. Additionally, the card includes a unique DC snubber circuit design, which effectively suppresses voltage transients to protect sensitive semiconductor components.⁵ These hardware enhancements allow the module to support a maximum AC voltage of 600V RMS, making it suitable for high-voltage industrial environments where electrical stability is paramount.

Installation and Operational Integration

Maintenance teams can integrate the GE Fanuc DS200PCCAG10ACB into J and M-style frames, often pairing it with SDCI power supply boards for comprehensive system coverage. When replacing a legacy unit, operators must strictly follow safety protocols, including the removal of three-phase power supply fuses to prevent electrical hazards. Once physically installed, the drive parameters are typically reconfigured by uploading or editing configuration files through a serial interface. This process ensures that the new Power Connect Card aligns perfectly with existing turbine operational profiles, minimizing commissioning time and maximizing uptime.

Technical Specifications
