Description

Brief Product Description

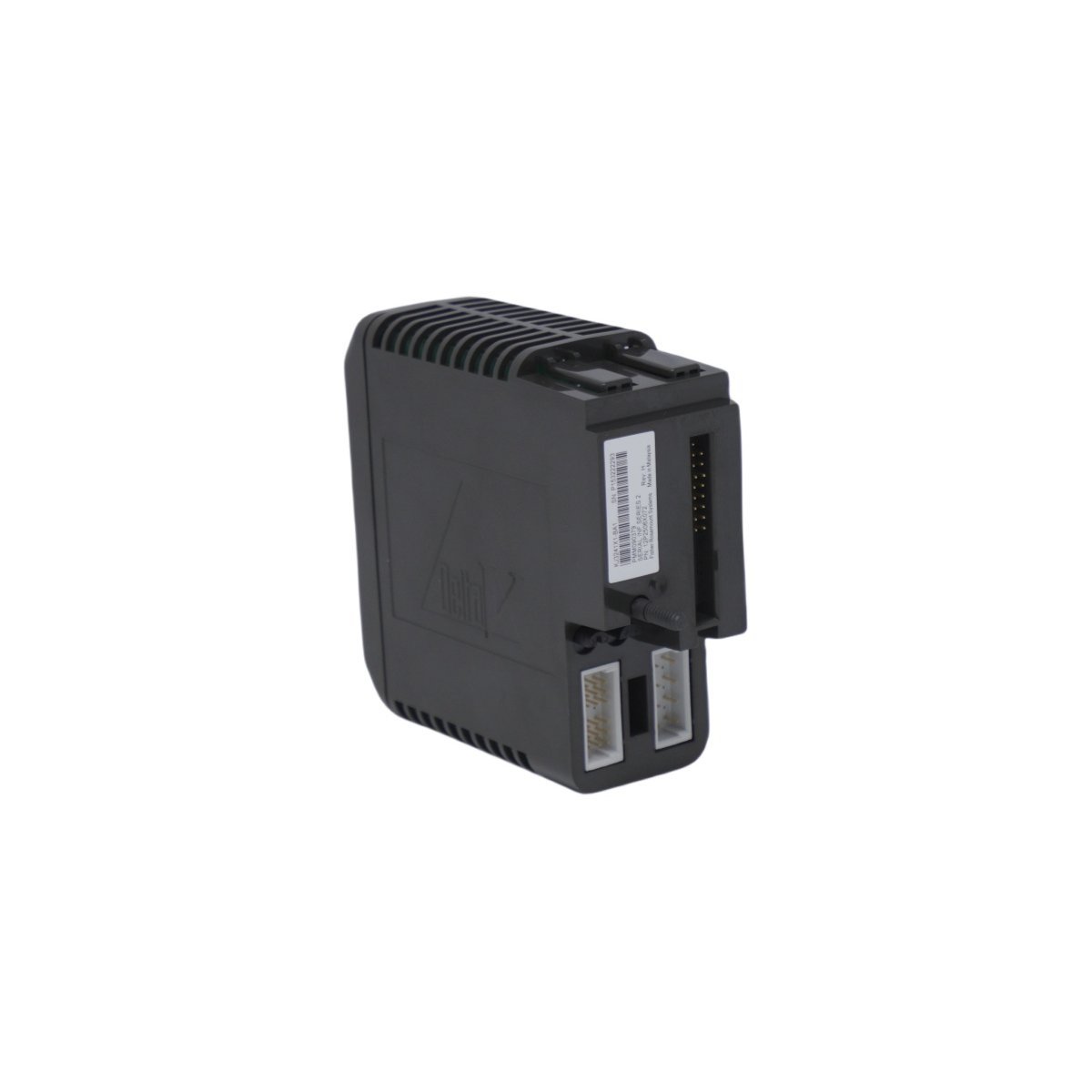

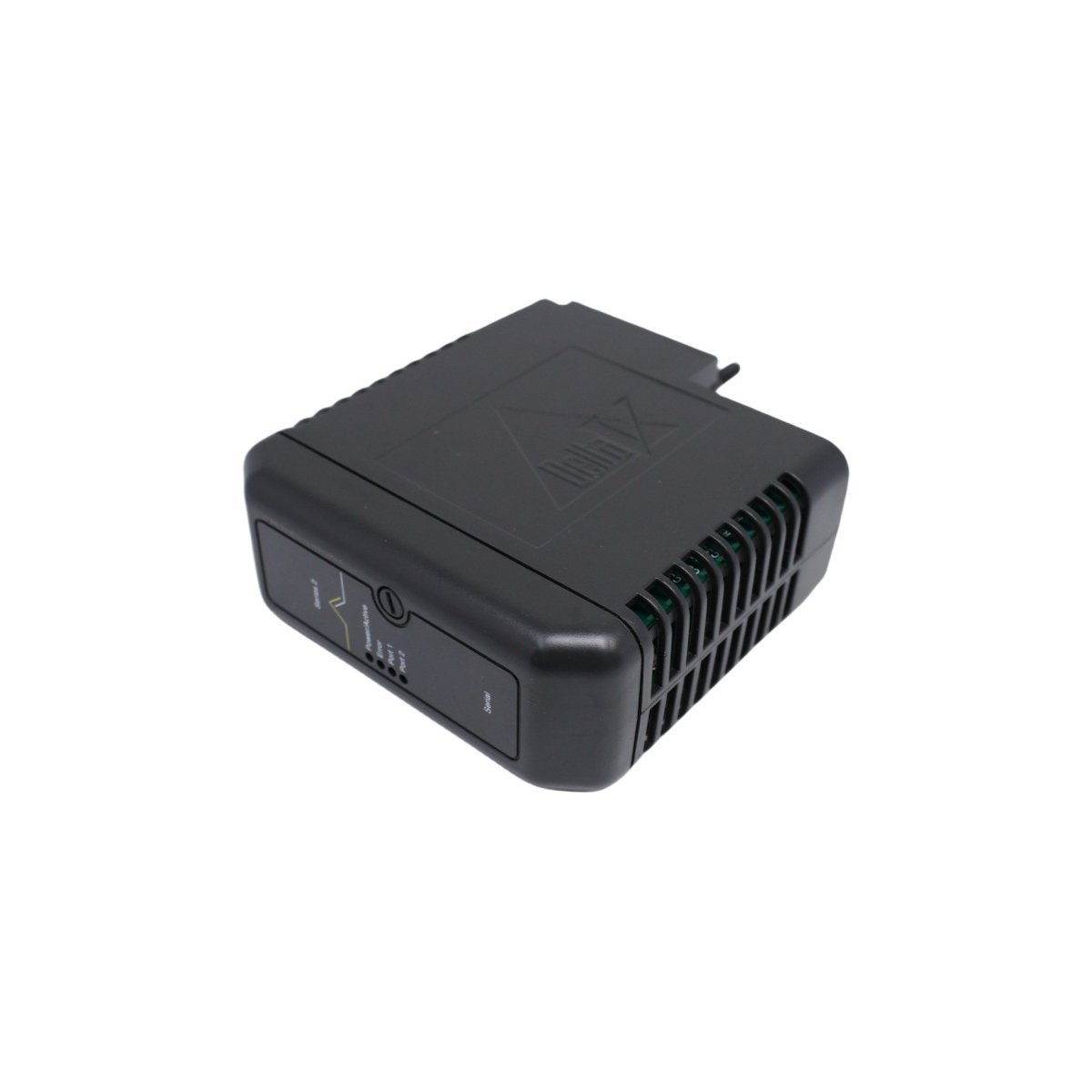

The Emerson KJ3241X1-BA2 is a high-performance PROFIBUS DP communication module designed for DeltaV™ M-Series 2 Plus control systems.¹ It provides a ruggedized interface for connecting distributed field devices to the central controller, ensuring high-speed data exchange in demanding industrial environments.²

​Product Description

Industrial Protocol Integration

The Emerson KJ3241X1-BA2 functions as a primary communication gateway, enabling DeltaV™ systems to interface directly with PROFIBUS DP networks. This Series 2 Plus M-Series card facilitates the seamless exchange of cyclic and acyclic data between the controller and diverse field instrumentation.³ By bridging these systems, the module ensures that process variables and diagnostic information flow accurately to the control logic. Furthermore, its specialized architecture supports high-speed serial transmission, which remains vital for time-critical automation tasks in sectors like oil and gas, chemical processing, and power generation.⁴

Built for Extreme Environments

Engineered to withstand the most rigorous plant conditions, the KJ3241X1-BA2 module operates reliably across an expansive temperature spectrum from -40°C to +70°C.⁵ Emerson utilizes advanced protective measures to ensure the card survives high-vibration scenarios and mechanical shocks up to 10g.⁶ Additionally, the hardware complies with ISA-S71.04 G3 standards, providing essential resistance against corrosive atmospheric contaminants.⁷ This level of environmental resilience, combined with a 95% non-condensing humidity tolerance, guarantees long-term hardware stability even when installed in remote or unconditioned cabinets.

Safety and Installation Integrity

The KJ3241X1-BA2 Serial Interface Card prioritizes system security through a mechanical rotary keying system, specifically utilizing the D4 terminal block key.⁸ This physical safeguard prevents the accidental insertion of the wrong module type, thereby protecting the I/O subsystem from electrical damage. While the module supports sophisticated diagnostic feedback via integrated LEDs, it also adheres to strict safety protocols regarding hot-swapping. Operators must ensure the area is non-hazardous or disconnect power before removal to maintain site safety. Ultimately, these features work in tandem to minimize downtime and simplify maintenance routines within the DeltaV SIS infrastructure.

Technical Specification Table
