Description

Brief Product Description

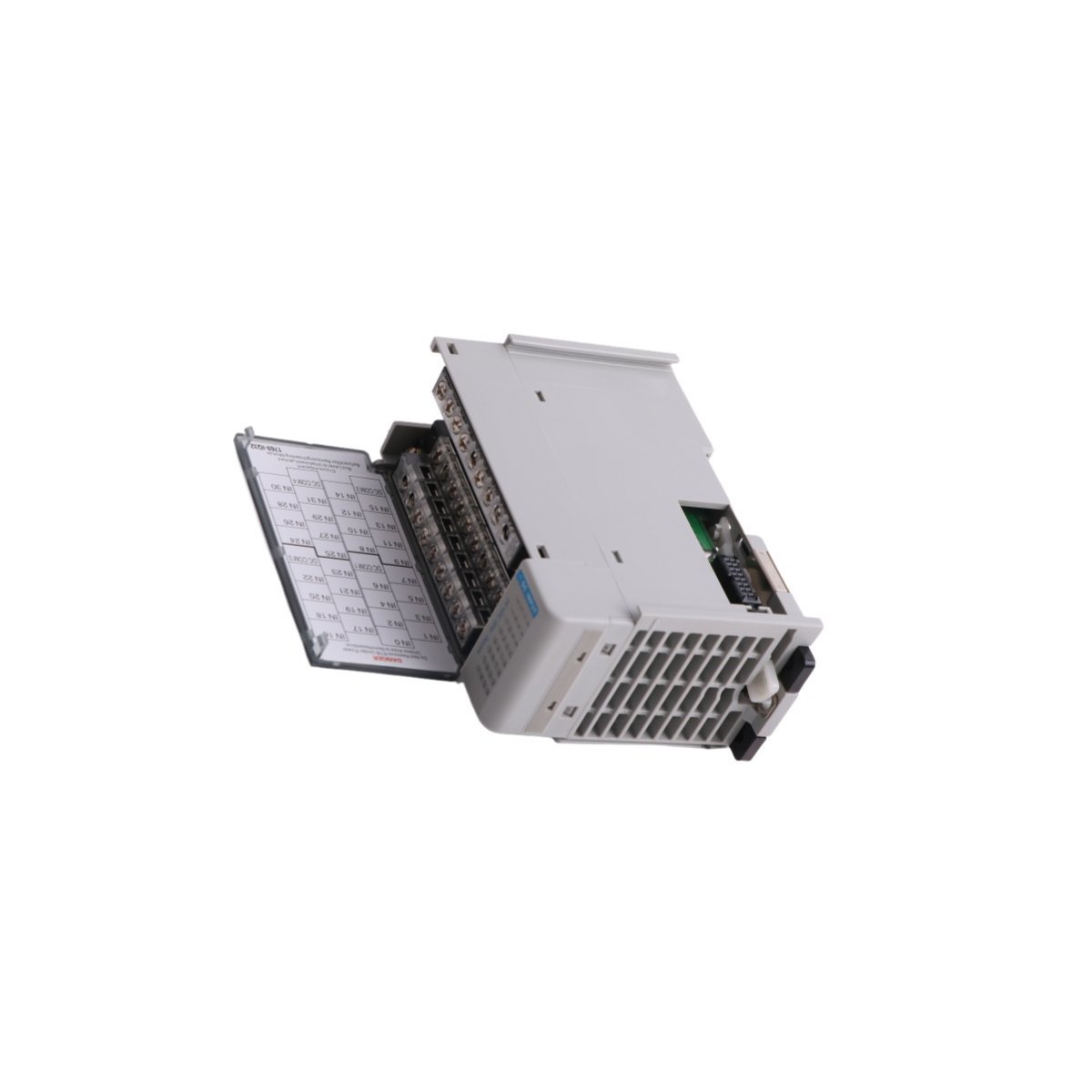

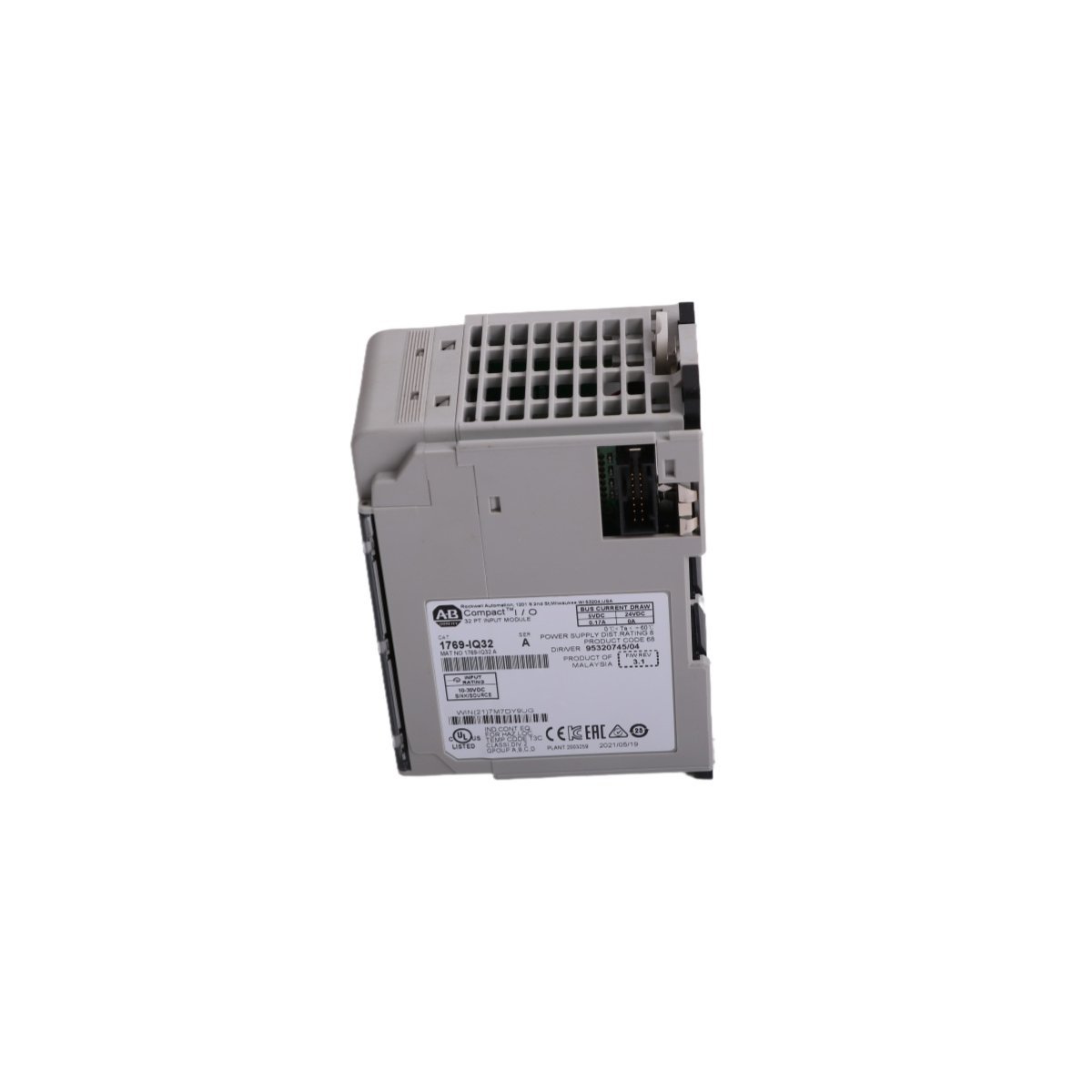

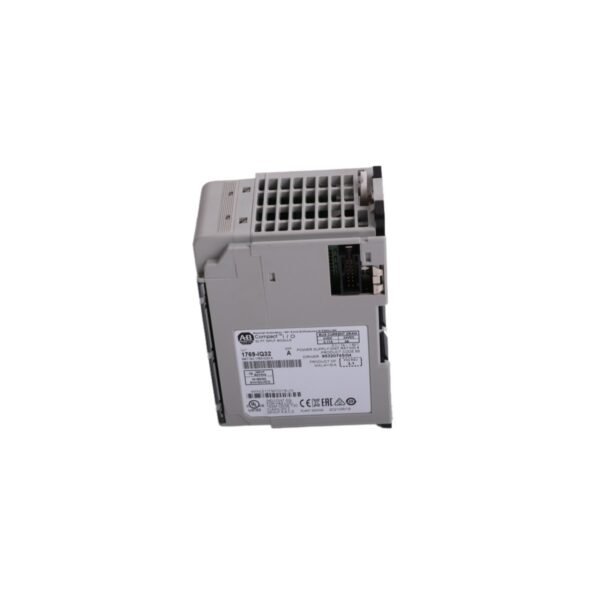

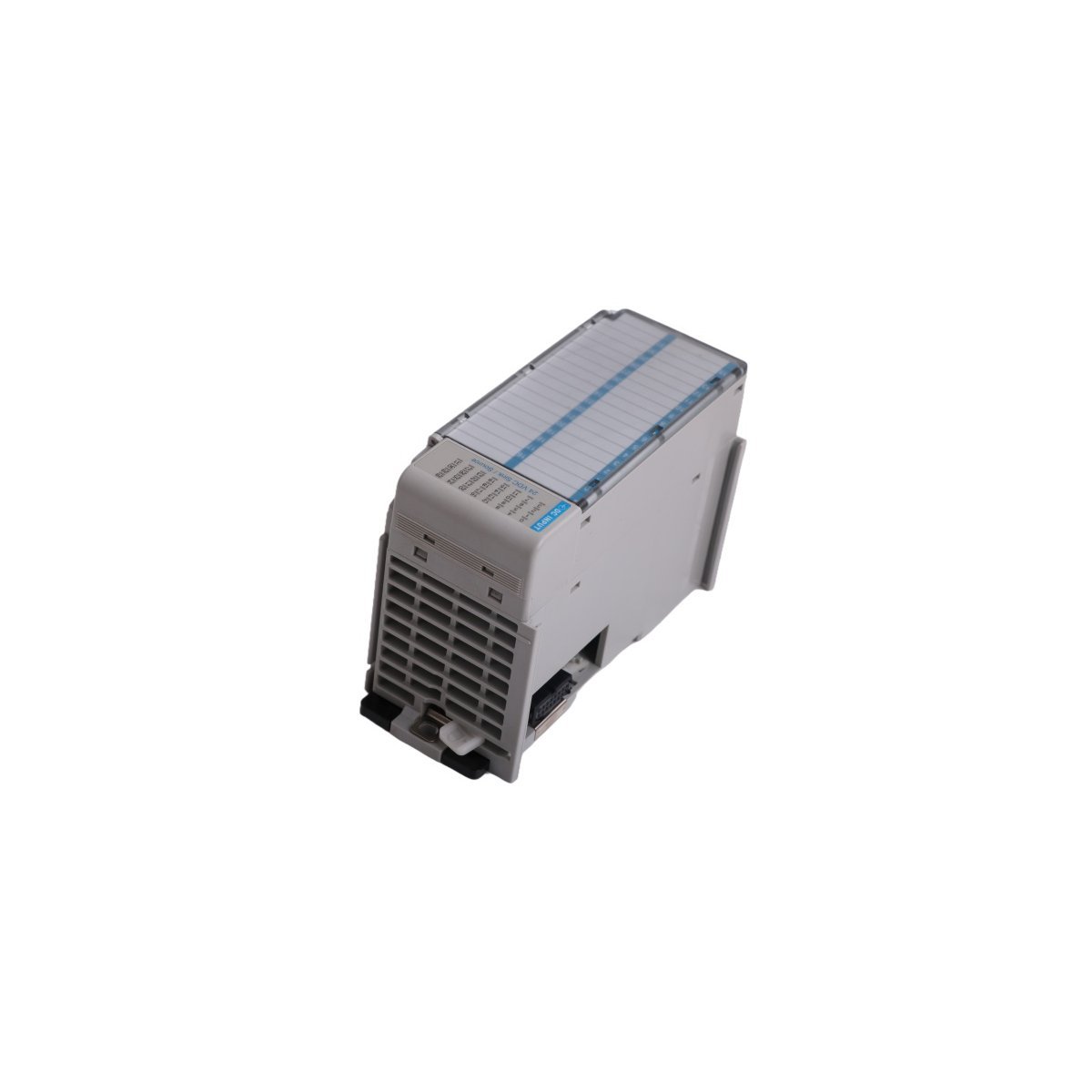

The Allen-Bradley 1769-IQ32 is a high-density digital input module that provides 32 discrete channels for CompactLogix and MicroLogix 1500 systems. It supports both sinking and sourcing wiring configurations at a nominal 24V DC to accommodate diverse industrial sensor types.

Product Description

High-Density Discrete Interface

The Allen-Bradley 1769-IQ32 significantly expands the monitoring capacity of a PLC system by providing 32 distinct digital input points in a single compact module. This high-channel density allows engineers to minimize panel space while managing a large array of field devices such as push buttons, limit switches, and proximity sensors. The module operates at a 24V DC nominal voltage and offers a versatile input circuit that supports both sinking and sourcing configurations. Consequently, users can integrate various sensor types without needing multiple hardware variants, streamlining the spare parts inventory.

Industrial Protection and Isolation

Reliability remains a priority for the 1769-IQ32, which features robust group-to-group isolation to protect the internal system logic from field-side electrical noise. The hardware includes reinforced insulation to ensure operator safety and prevent signal interference in high-voltage environments. Furthermore, the module is built to endure harsh industrial conditions, certified to operate at altitudes up to 2000 meters and within a temperature range of 0°C to 60°C. This resilience makes the unit suitable for heavy-duty applications, including manufacturing, material handling, and process control.

Installation and System Integration

System designers must install the AB 1769-IQ32 within eight slots of the system power supply to maintain the necessary backplane current levels. The module supports flexible mounting options, allowing for secure attachment to a standard DIN rail or direct panel mounting. To facilitate easy maintenance, the unit features a removable terminal block and clear LED indicators on the front panel that display the status of each input channel. These diagnostic lights enable technicians to perform rapid troubleshooting by visually confirming signal activity between the field equipment and the controller.

Technical Specifications
