Product Overview

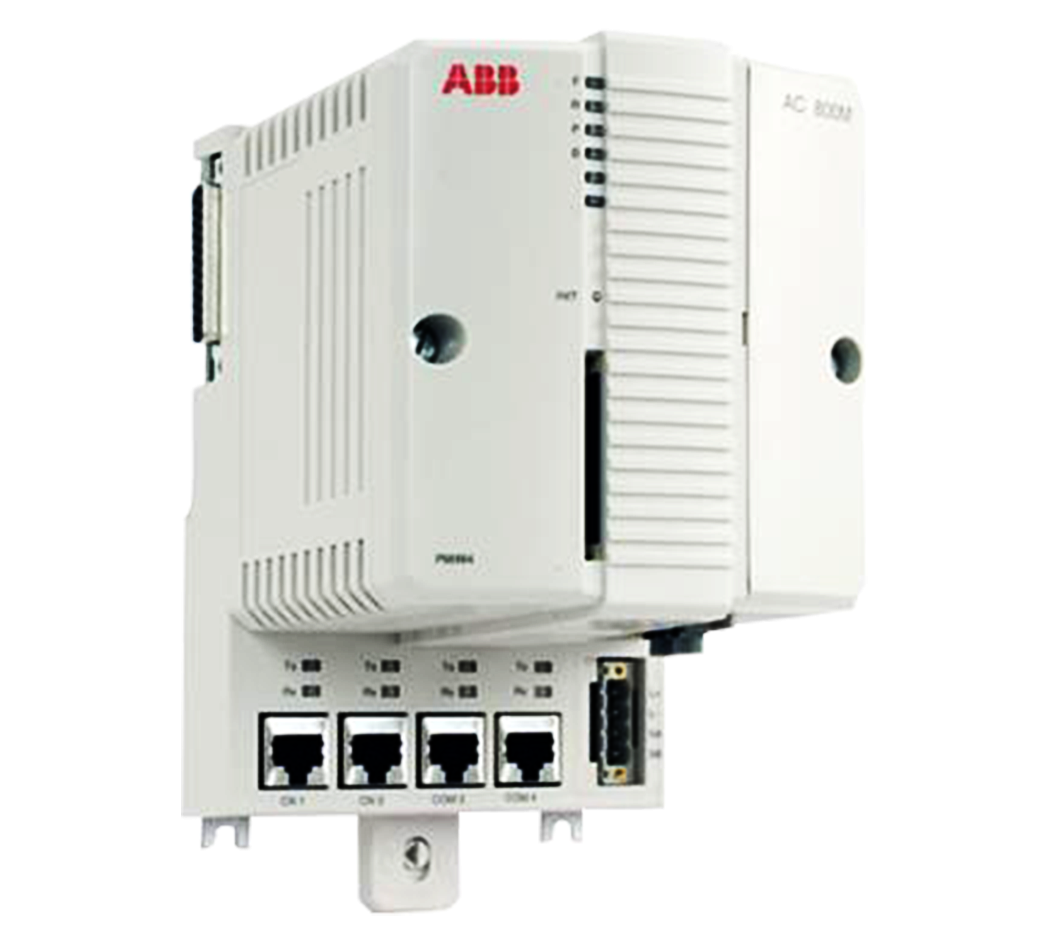

The ABB PM864AK01 3BSE018161R1 is a high-capacity MPC862-based processor designed for the AC 800M hardware platform within the Ability™ System 800xA environment. This unit provides the computational power necessary to manage complex control logic, extensive I/O data, and high-speed communication tasks in mission-critical industrial processes.

Advanced Computational Control

The PM864AK01 serves as the primary logic execution engine for the AC 800M controller family. By utilizing a 96 MHz MPC862 processor and 32 MB of onboard RAM, the module achieves exceptional performance in handling simultaneous control tasks. Consequently, it easily manages up to 32 different applications per controller, executing Boolean operations at a rate of approximately 0.15 ms per 1,000 instructions. This processing speed ensures that even the most complex batch or continuous process loops maintain high precision and responsiveness.

System Availability and Flexible Architecture

ABB engineered this processor unit to maximize facility uptime through a modular and scalable design. The architecture inherently supports both single and redundant configurations, allowing operators to tailor the level of fault tolerance to their specific process requirements. Furthermore, the unit facilitates seamless integration into existing “brownfield” sites, as it remains compatible with multiple generations of 800xA hardware. This backwards compatibility streamlines system migrations and hardware refreshes by reducing the need for extensive software re-engineering.

Communication and Peripheral Integration

The PM864AK01 features a robust connectivity suite that includes dual Ethernet channels for peer-to-peer communication and plant-level networking. Additionally, the processor supports the expansion of up to 12 CEX-Bus modules, enabling the integration of various communication protocols and specialized interfaces. Because the unit manages up to 96 I/O modules in a single-CPU setup, it provides sufficient density for large-scale automation projects. The inclusion of a dedicated backup battery further enhances reliability by ensuring that the application memory remains intact during unexpected power interruptions.

Technical Specifications
