Description

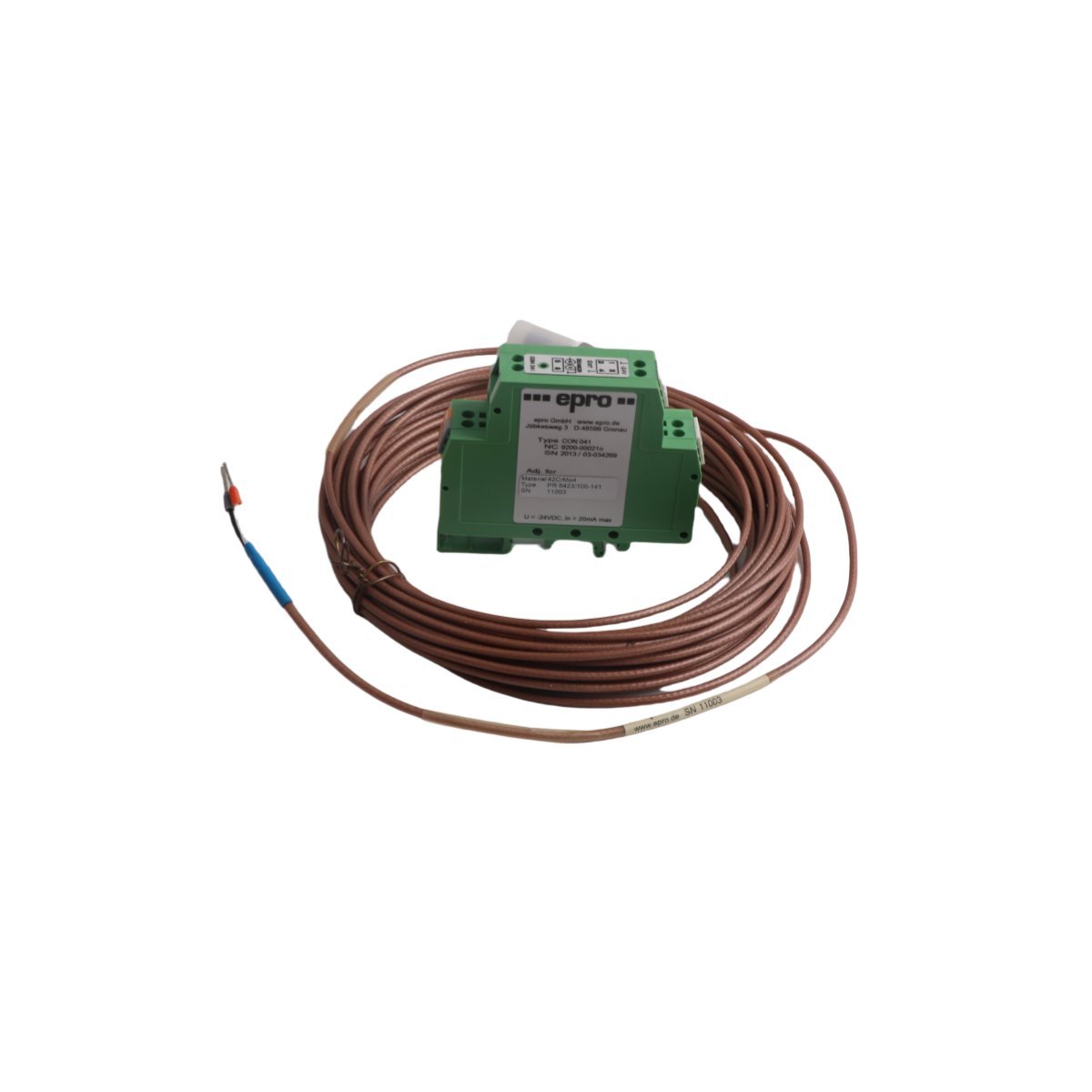

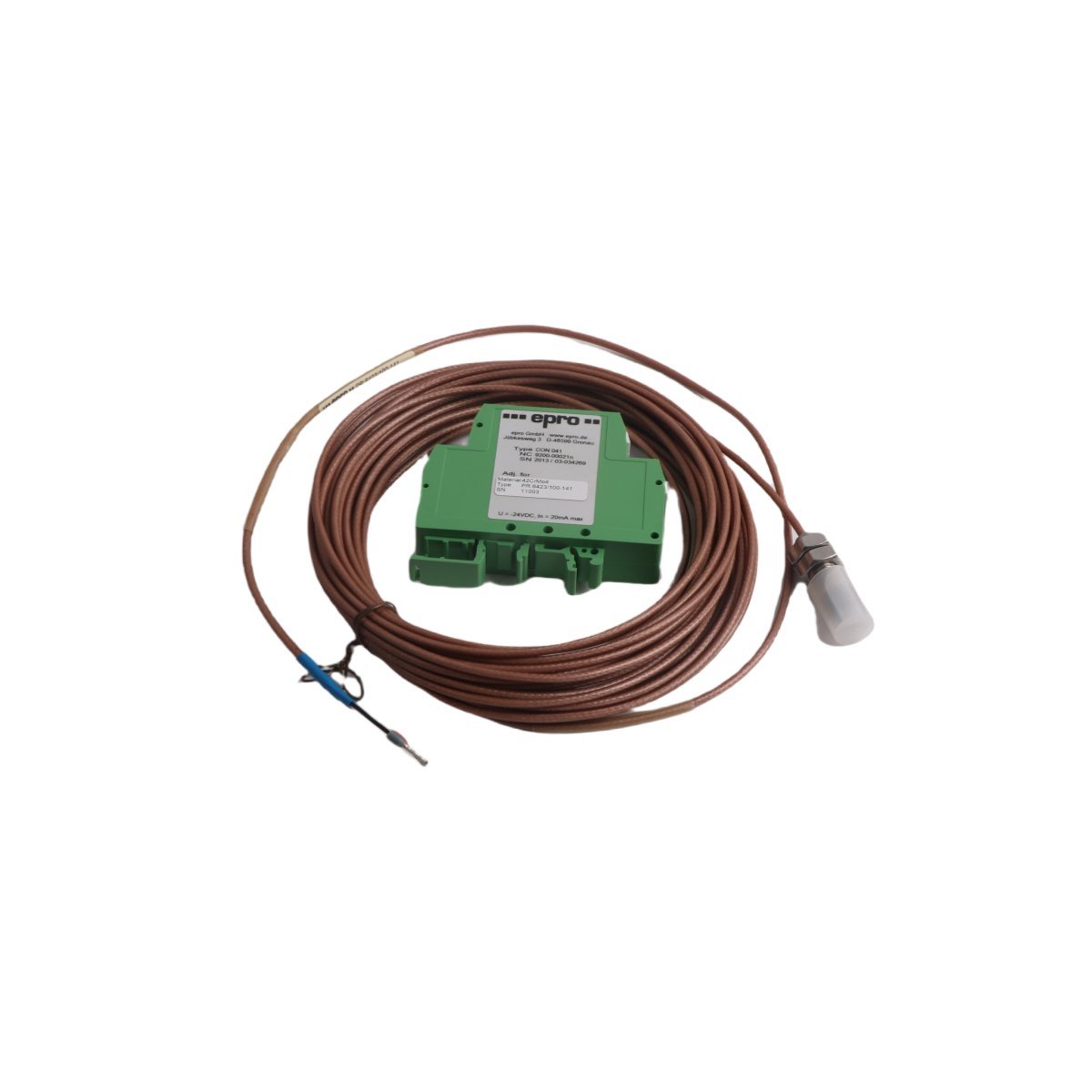

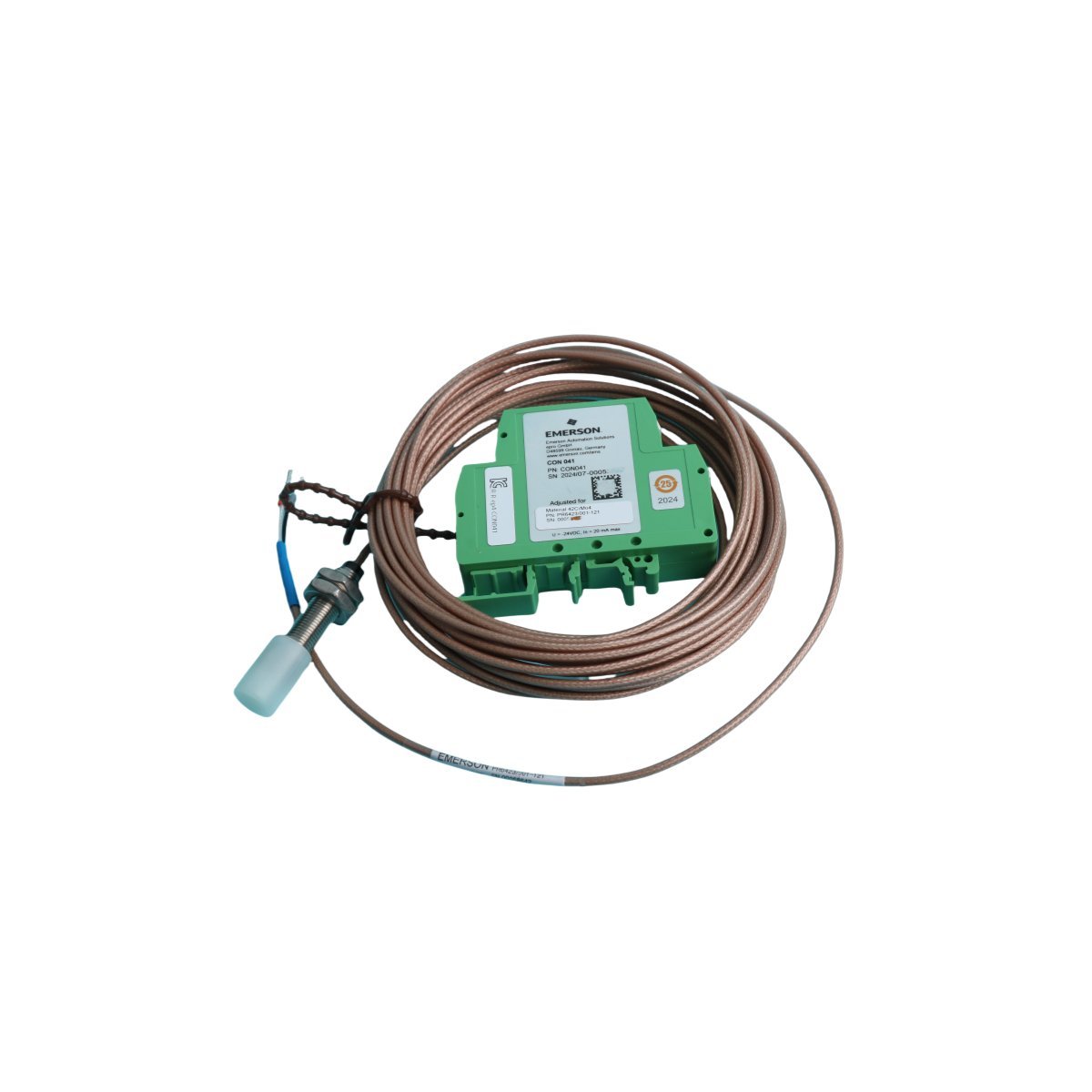

Configured for non-contact shaft displacement and relative vibration measurements in shaft machinery platforms, the Emerson PR6423/100-141 CON041, also cataloged as the PR6423/100-141 Eddy Current Sensor, provides direct physical/electrical execution.

Hardware Specifications

Process Control and Channel Isolation Metrics

The high-frequency electromagnetic field generated at the probe tip interacts with conductive target materials to produce measurable eddy current impedance shifts. The associated transmitter/converter converts proportional gap changes into standardized analog current and voltage output signals suitable for high-density input channels. High channel-to-channel isolation prevents ground loop interference across long signal cable runs, while temperature-compensated frontend electronics maintain signal linearity across broad operating ambient conditions.

Frequently Asked Questions

Q: How is signal cable shielding connected for the sensor to avoid ground loops?

A: The cable shield must be grounded at a single point, typically at the monitoring rack or safety barrier terminal, leaving the sensor-side shield isolated from the machine casing.

Q: What is the primary function of the CON041 signal converter in this assembly?

A: The CON041 driver conditions the high-frequency probe excitation signal and outputs an analog signal proportional to the gap distance between the probe tip and target shaft.

Field Installation Guidelines

1. Mount the eddy current probe rigidly using an appropriate bracket to prevent mechanical resonance or physical shifting during machine operation.
2. Ensure minimum target surface area requirements are met (typically at least 1.5 to 2 times the probe tip diameter) to avoid edge effect measurement distortions.
3. Verify mechanical clearance and calibrate zero-gap voltage using standard feeler gauges or a multimeter before final torquing.
4. Route signal cables inside grounded metallic conduits away from high-voltage motor power leads or frequency drive outputs to minimize electromagnetic interference.
