Description

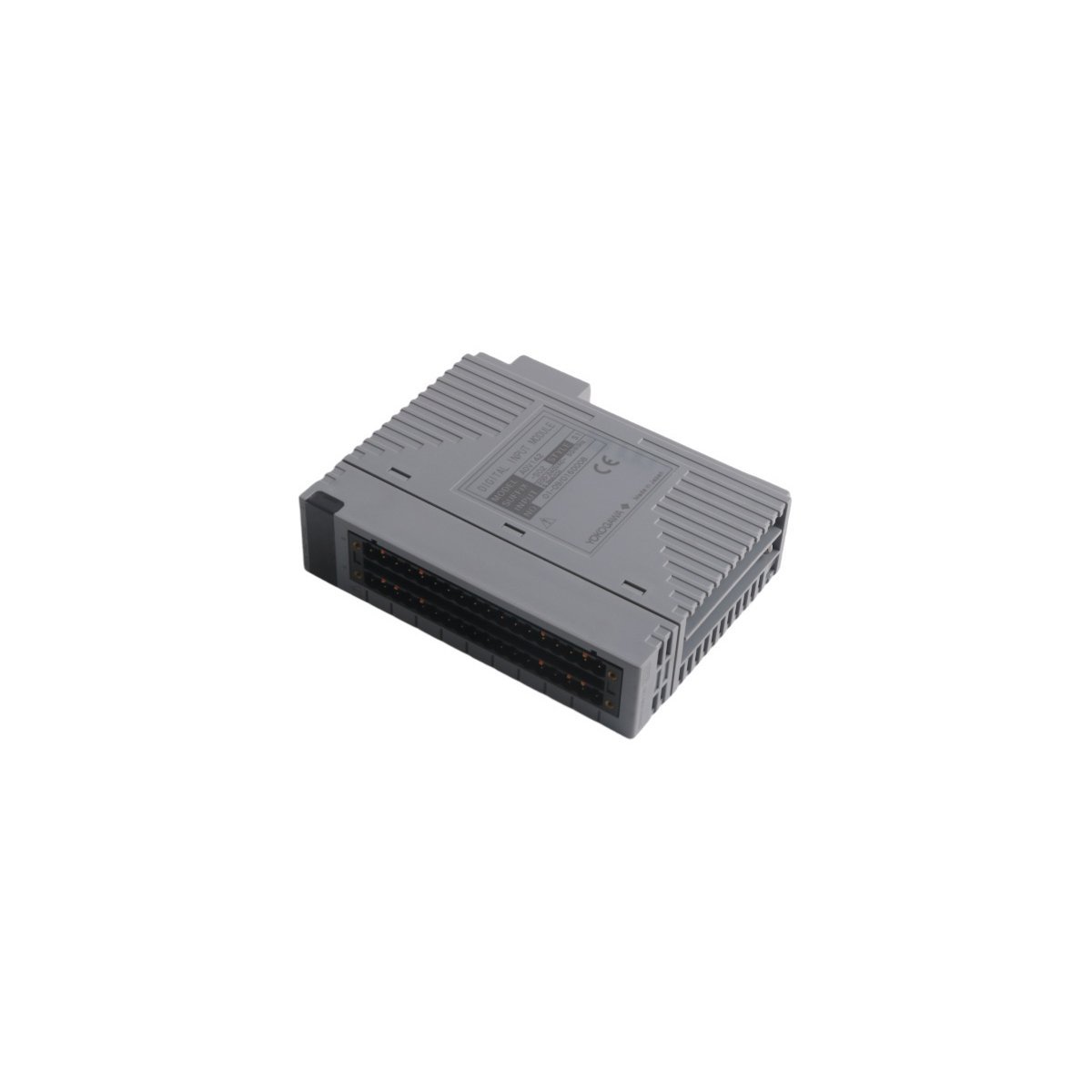

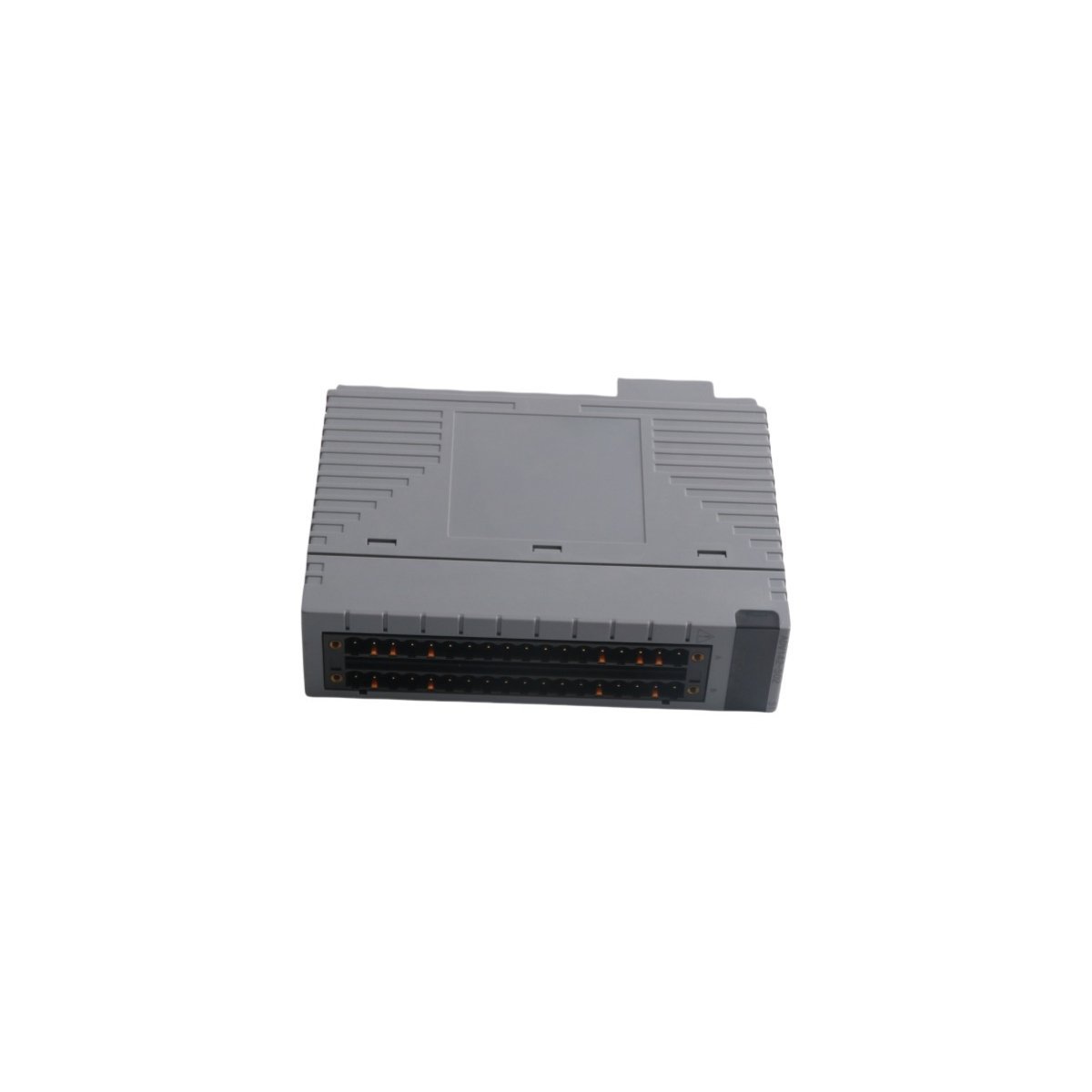

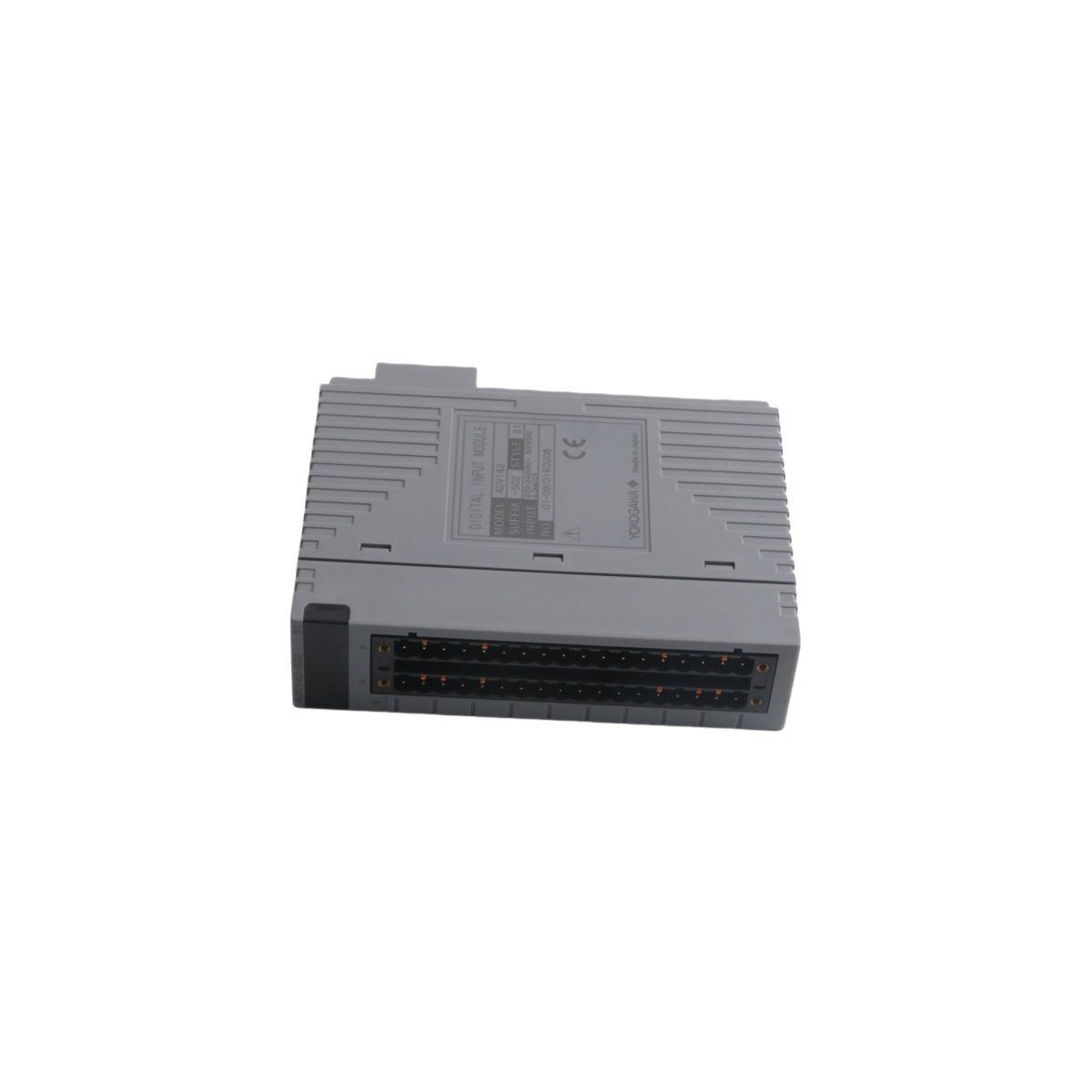

The Yokogawa ADV142-S02 S1 functions as a high-density discrete signal interface for the CENTUM VP system. This module captures field contact states and converts them into digital data for the controller. Consequently, it provides essential real-time feedback from equipment like switches and sensors. Its architecture prioritizes signal purity through integrated optical isolation. This protection prevents high-voltage transients from damaging the internal DCS bus. As a result, plant operators maintain stable control over complex automated processes.

Reliability remains a core feature of the ADV142-S02 S1 hardware design. The module handles 32 independent input channels within a single compact unit. Furthermore, the “S1” designation indicates optimized processing for modern high-speed industrial networks. This ensures that the system registers every state change with minimal latency. Each channel features robust noise filtering to eliminate false signals from nearby electrical interference.

Technical Characteristics and Specifications

• Brand: Yokogawa
• Model Number: ADV142-S02 S1
• Product Type: Digital Input Module
• Input Channel Count: 32 Channels
• Rated Voltage: 24V DC
• Module Bus: FIO (Field Interface I/O) compatible
• Weight: 0.26 kg
• Dimensions: 3.2 x 10.7 x 13 cm
• System Platform: CENTUM VP / CS 3000
• Isolation Type: Optical isolation for system protection
• Operating Temperature: -20 to 70°C
• Country of Origin: Japan

Integration and Environmental Resilience

The ADV142-S02 S1 features a rugged build to withstand harsh industrial climates. It operates effectively across a broad temperature spectrum without losing accuracy. Moreover, its compact dimensions optimize space utilization in dense control cabinets. The module supports hot-swapping to facilitate maintenance without interrupting active processes. This capability ensures continuous uptime for critical manufacturing or refining operations.

Beyond durability, the module offers extensive protocol compatibility for diverse automation needs. It integrates seamlessly with standard Yokogawa field wiring solutions. Furthermore, the unit provides visual diagnostic feedback via front-panel LED indicators. These lights allow technicians to verify input statuses during loop testing. Such transparency accelerates the commissioning phase and simplifies long-term troubleshooting efforts.

Operational Benefits

This digital input unit excels in demanding sectors like power and chemicals. It manages critical discrete signals for safety interlocks and motor control. Additionally, the high-density 32-channel design reduces the total hardware footprint. This efficiency lowers the overall cost of ownership for large-scale DCS installations. Therefore, it remains a trusted solution for professionals requiring precision and long-term hardware stability.
