Description

Product Overview

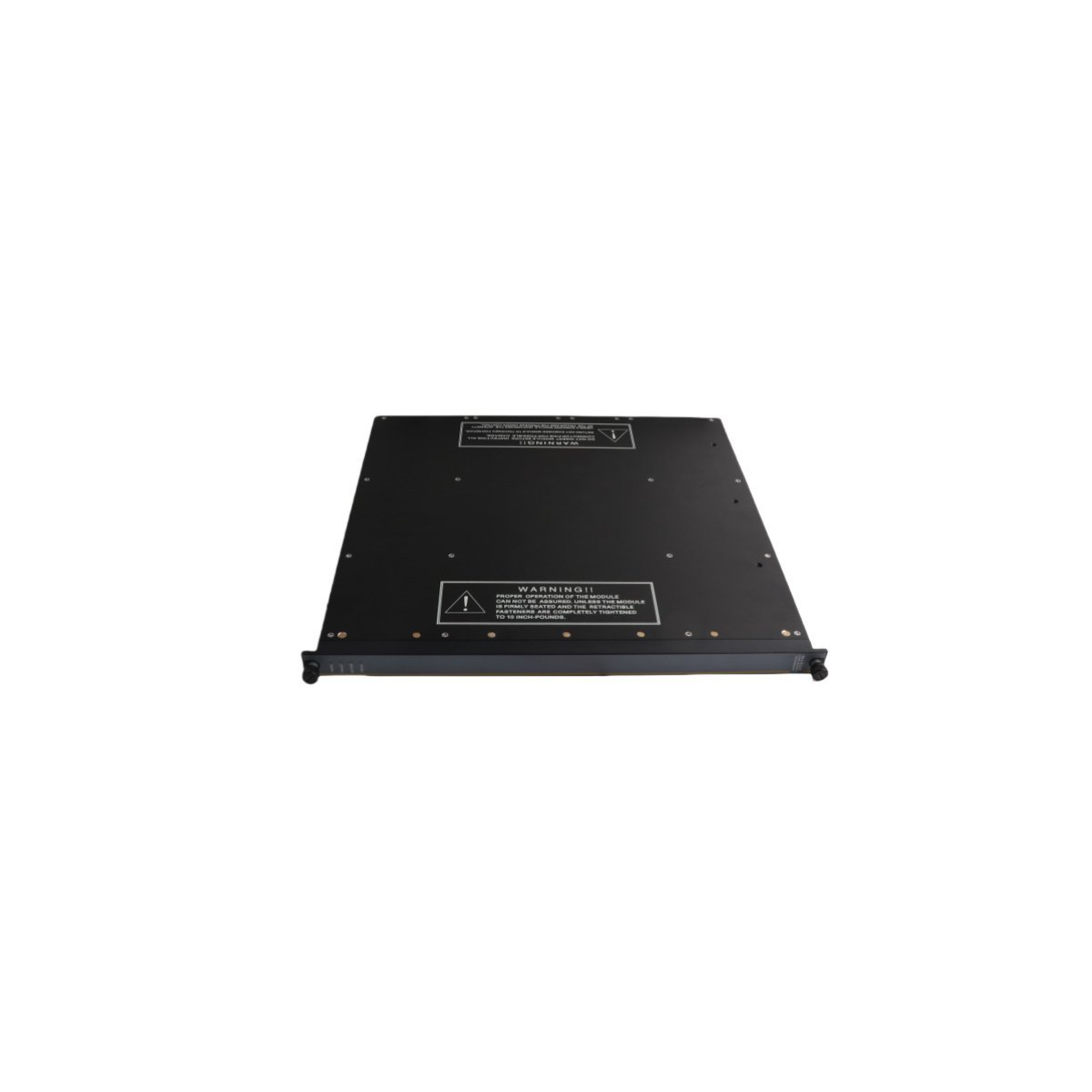

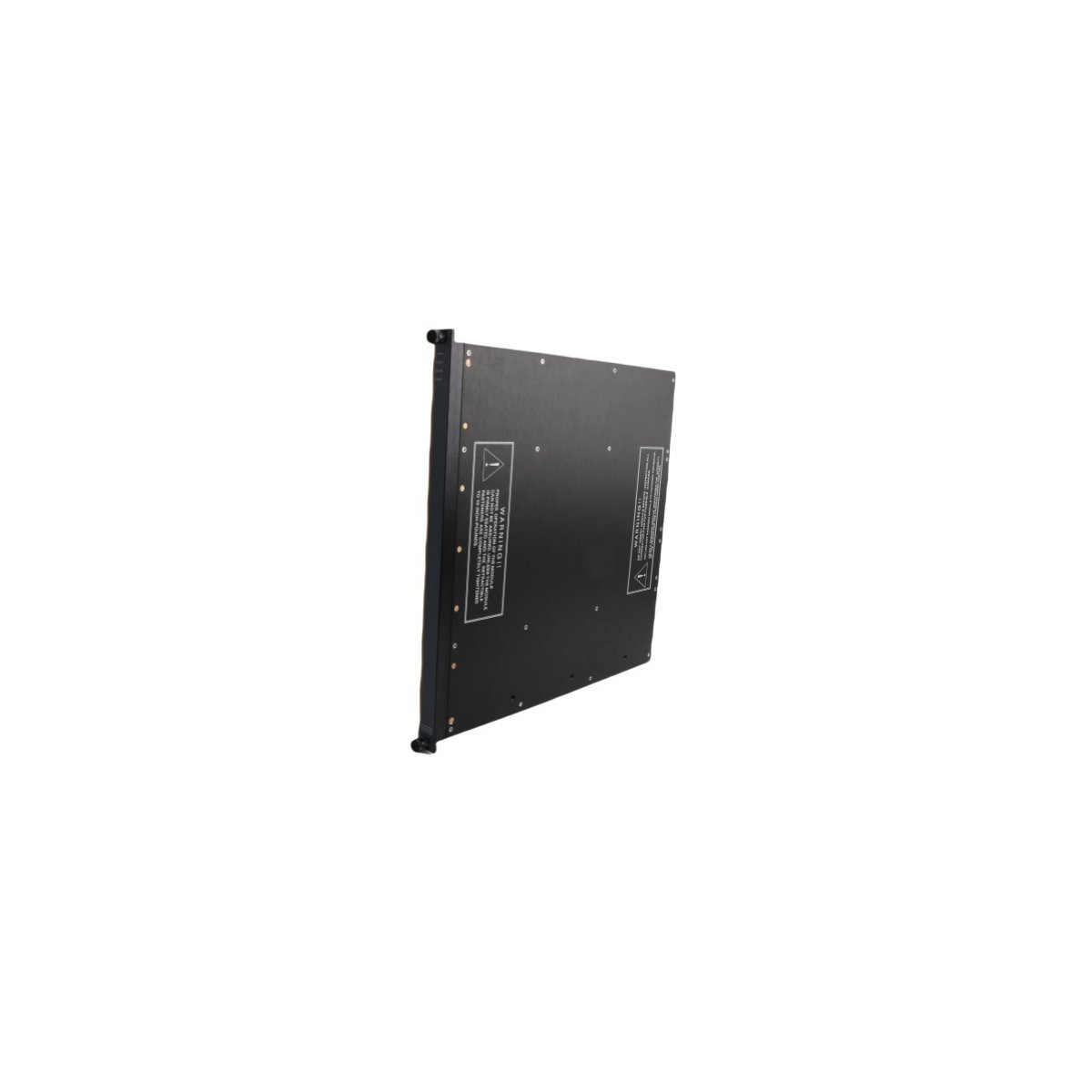

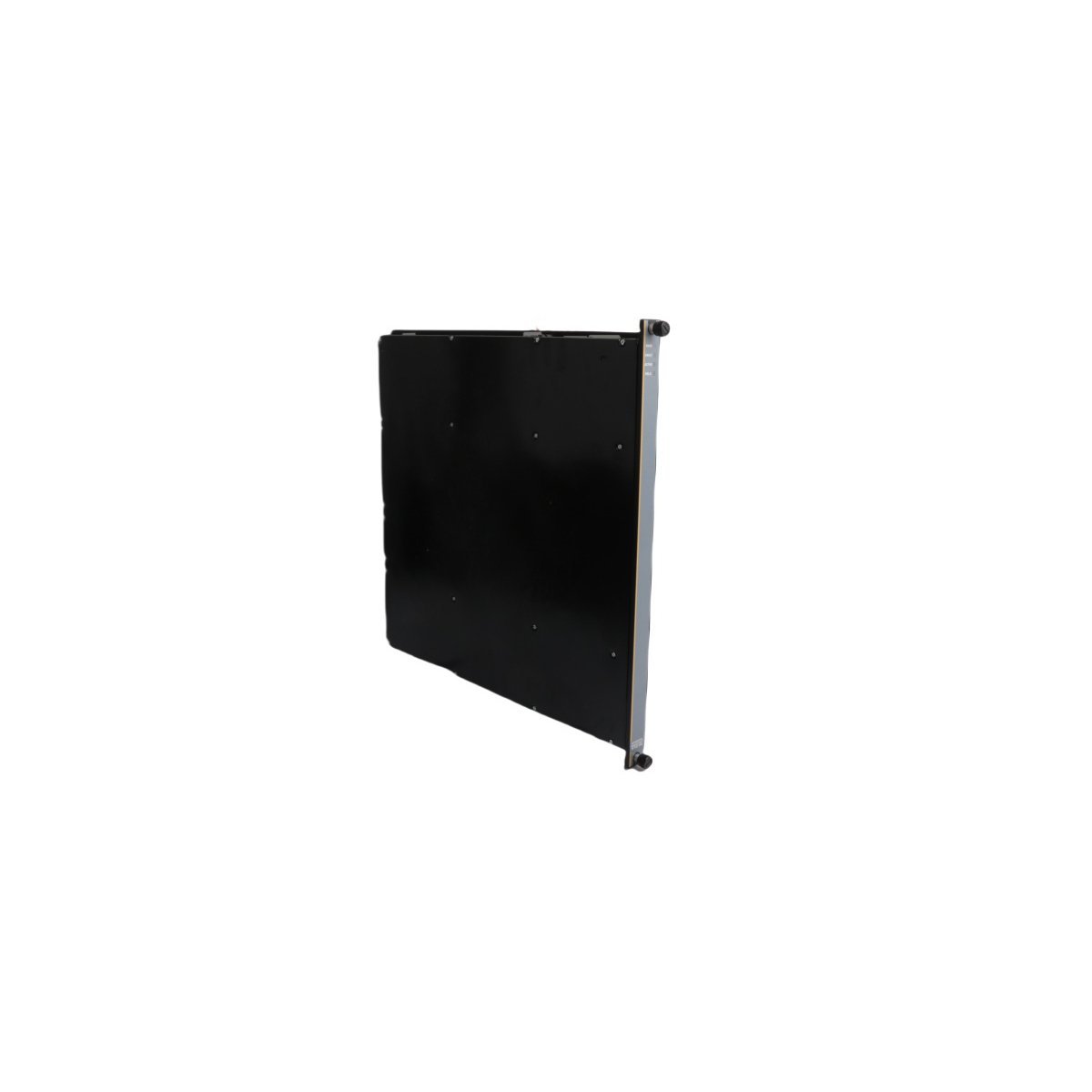

The Triconex 3721 is a high-reliability 32-channel analog input module designed for safety-critical environments requiring Triple Modular Redundant (TMR) hardware voting.¹ It provides precise measurement of 0-5 VDC signals, ensuring maximum system availability and fault tolerance for essential industrial processes.²

Precision TMR Signal Processing

The 3721 module utilizes advanced Triple Modular Redundant (TMR) technology to deliver superior data integrity for Safety Instrumented Systems (SIS).³ By employing three independent input channels, the module performs hardware-based voting on every signal, which virtually eliminates the risk of a single point of failure.⁴ This architecture allows the system to identify and isolate faults internally without interrupting the process. Consequently, the module provides high-accuracy readings for critical variables such as pressure, temperature, and flow transmitters, maintaining the safety loop’s reliability even if one processing branch encounters an error.

Industrial Hardening and Environmental Resilience

Engineered to withstand the most demanding conditions, the Triconex 3721 operates across a broad temperature spectrum, from -20°C to +70°C. The module features DC coupling and a specialized input filter that rejects high-frequency noise and electromagnetic interference, which are common in heavy industrial settings.⁵ Furthermore, its ruggedized construction protects internal electronics against vibration and humidity. Because the module complies with global standards including UL, CE, and CSA, operators can deploy it in high-risk zones such as oil refineries and chemical plants with full confidence in its regulatory compliance and safety performance.

Seamless Integration and Lifecycle Management

The 3721 module streamlines both installation and long-term maintenance through its modular, hot-swappable design.⁶ Technicians can replace faulty units while the system remains live, significantly reducing potential downtime and maintenance costs. The module integrates natively with Tricon v9 and v10 systems and supports communication via various protocols, including Modbus when used with appropriate communication modules. While Schneider Electric (Invensys) officially discontinued this model in late 2018, it remains a critical component for legacy system support, offering a scalable and proven solution for facilities looking to maintain or upgrade their existing Triconex infrastructure.

Technical Specifications
