Description

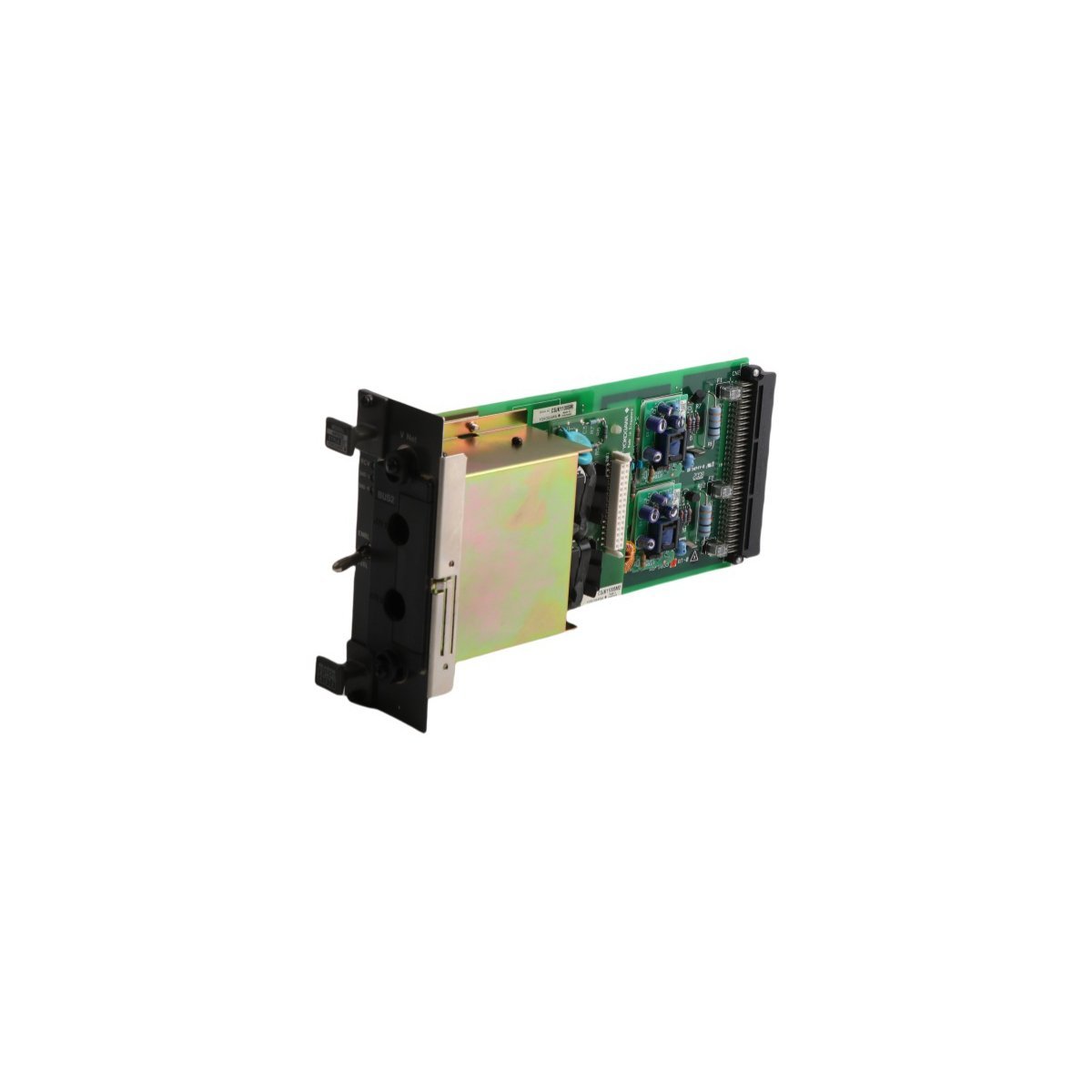

Configured for high-speed network bridging in CENTUM VP DCS platforms, the Yokogawa AIP502 S1 (AIP502 V-Net Coupler Module) provides direct physical data coupling and protocol conversion for V-Net control bus architectures.

Hardware Specifications

DCS Process Control Features

The AIP502 S1 facilitates seamless data exchange between DCS control stations via the V-Net bus, employing channel-to-channel isolation to protect internal logic from external electromagnetic interference. This coupler module supports deterministic data transmission necessary for real-time process control, ensuring low-latency communication across the distributed network. The interface circuitry is designed for high-density I/O handling, providing stable connectivity and signal synchronization within the CENTUM VP environment.

Frequently Asked Questions (FAQ)

Q: Can the AIP502 S1 be hot-swapped while the V-Net bus is active?

A: Module replacement must be performed in accordance with the specific node-level power-down procedures defined in the system manual to avoid bus communication errors or packet collisions on the V-Net network.

Q: How does this module manage protocol conversion between V-Net and external Ethernet networks?

A: The AIP502 S1 operates as a network bridge, encapsulating control data into packets compatible with V-Net repeater standards while maintaining signal integrity across the physical layer transition.

Q: What is the significance of the 2018 discontinuation date?

A: The December 31, 2018, status indicates the end of direct manufacturing support; replacements or service should utilize verified legacy stock, ensuring that firmware revisions match the existing network cluster configuration.

Field Installation Guidelines

• Before physical installation, inspect the V-Net cable connectors for contact oxidation to ensure low-resistance signal coupling.
• Subsequently, mount the module securely to the designated DCS cabinet rack, ensuring the grounding lug makes direct metal-to-metal contact with the cabinet frame.
• Furthermore, maintain a minimum separation distance of 300 mm between V-Net communication cables and high-voltage power lines to mitigate electromagnetic interference.
• In addition, use the manufacturer-approved shielded cable for all network connections, ensuring the shield is terminated to the cabinet entry ground bar.
• Finally, confirm all mounting hardware is torqued to specifications to prevent intermittent connectivity caused by operational cabinet vibration.
