Description

Brief Product Description

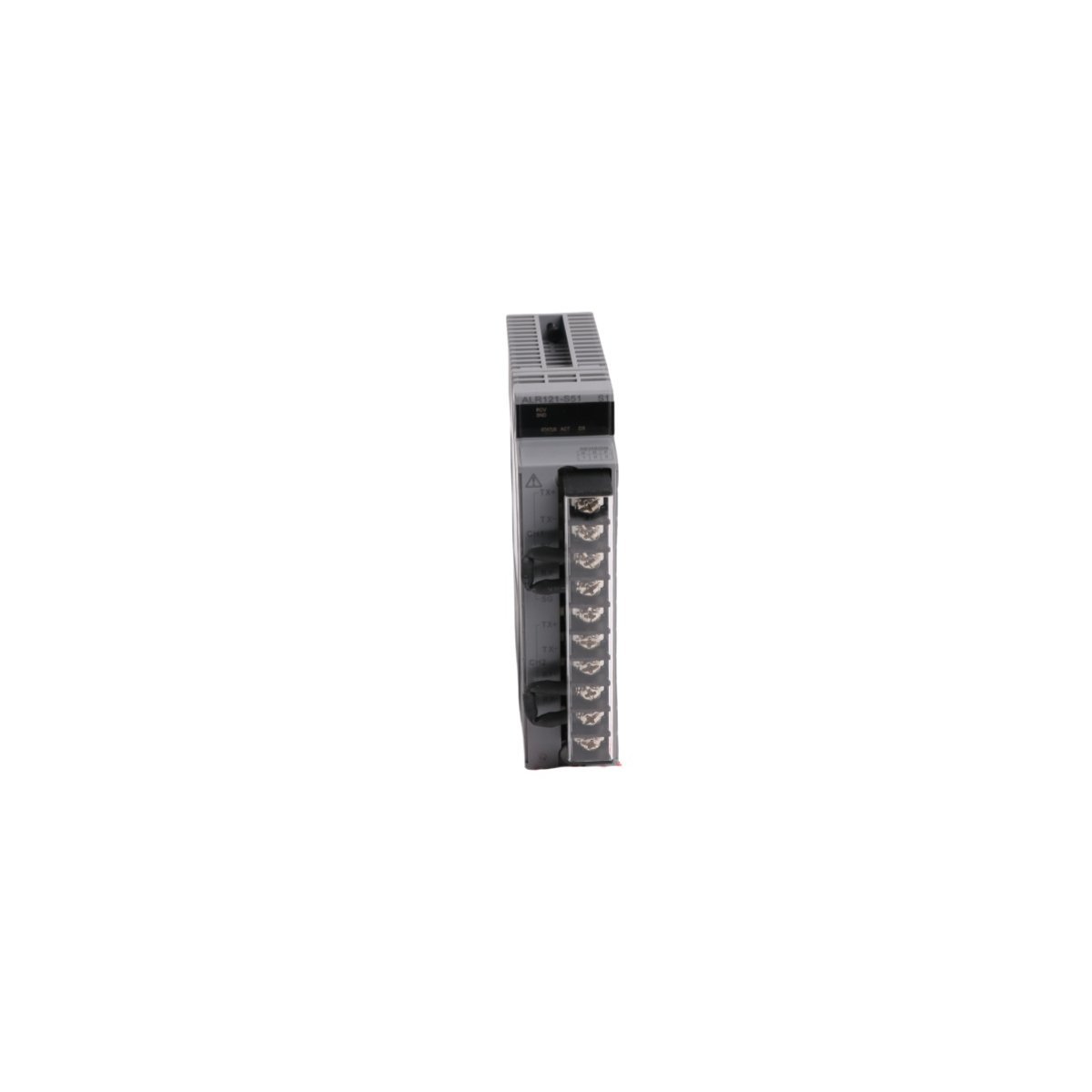

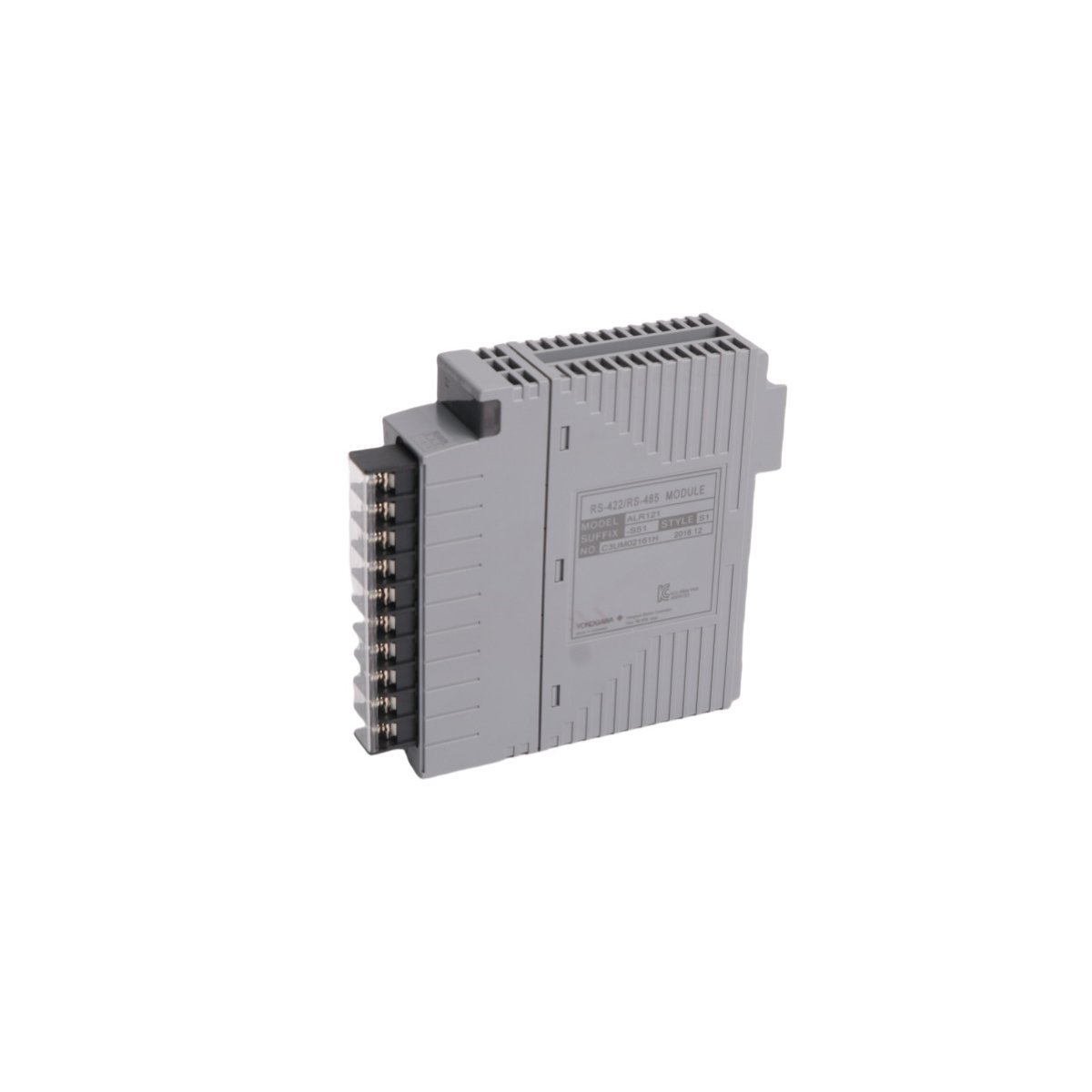

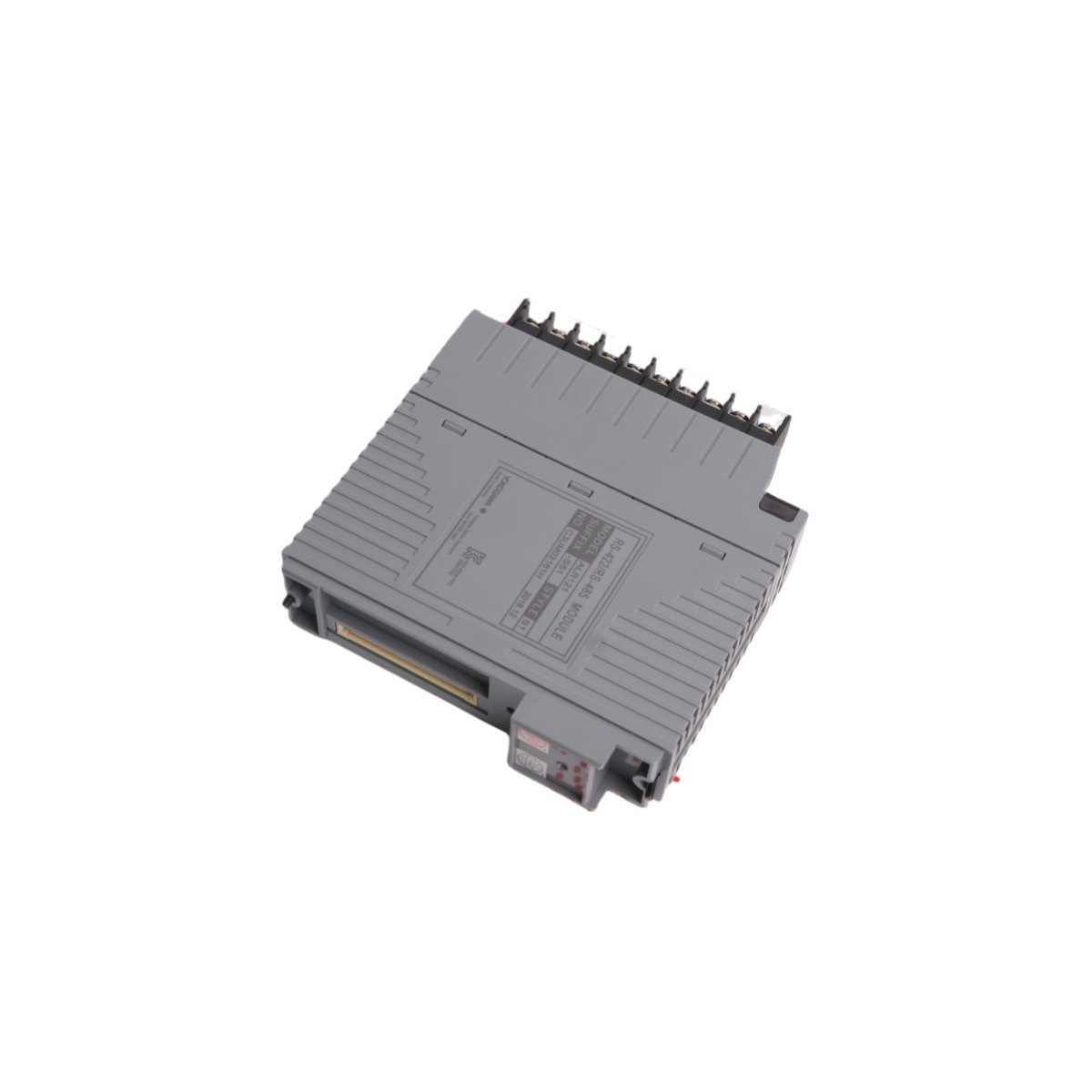

The Yokogawa ALR121-S51 is a high-performance serial communication module designed for integration with CENTUM Field Control Stations (FCS). It enables seamless data exchange between the DCS and subsystem devices via the RS-232C protocol, supporting both Modbus and custom communication requirements.

Product Description

High-Integrity Subsystem Data Integration

The Yokogawa ALR121-S51 functions as a dedicated gateway between Field Control Systems (FCS) and external subsystems. This module periodically collects data from serial-connected devices—such as PLCs, motor starters, or analytical instruments—and stores it within a protected I/O image area. Because the FCS accesses this data asynchronously through standard function blocks, the module ensures high-speed monitoring and control without taxing the main processor’s communication cycles. This architecture provides an efficient solution for integrating diverse third-party hardware into a unified Yokogawa DCS environment.

Fail-Safe Architecture and Safety Compliance

Engineering excellence defines the ALR121-S51, which supports high-reliability configurations to protect critical industrial processes. When used in safety-instrumented environments, the module coordinates with SIL3-certified relay logic to maintain fail-safe operation during subsystem communication. The unit features redundant relay contacts and a robust hardware design that operates effectively in ambient temperatures ranging from -20 to 60°C. Furthermore, integrated LED status indicators provide immediate visual diagnostics, allowing technicians to verify the operational health of serial links and internal module logic at a glance.

Flexible Installation and Industrial Durability

The physical design of the Yokogawa ALR121-S51 prioritizes ease of maintenance and long-term durability. It utilizes a compact form factor that mounts securely onto standard DIN rails, simplifying panel layout and installation. The module is specifically engineered to handle the rigorous electrical noise and vibration common in power plants, refineries, and burner management systems. By combining TÜV-certified safety standards with versatile serial interfacing, the ALR121-S51 remains a cornerstone for engineers requiring dependable data integration in emergency shutdown (ESD) and complex automation scenarios.

Technical Specifications
