Description

Brief Product Description

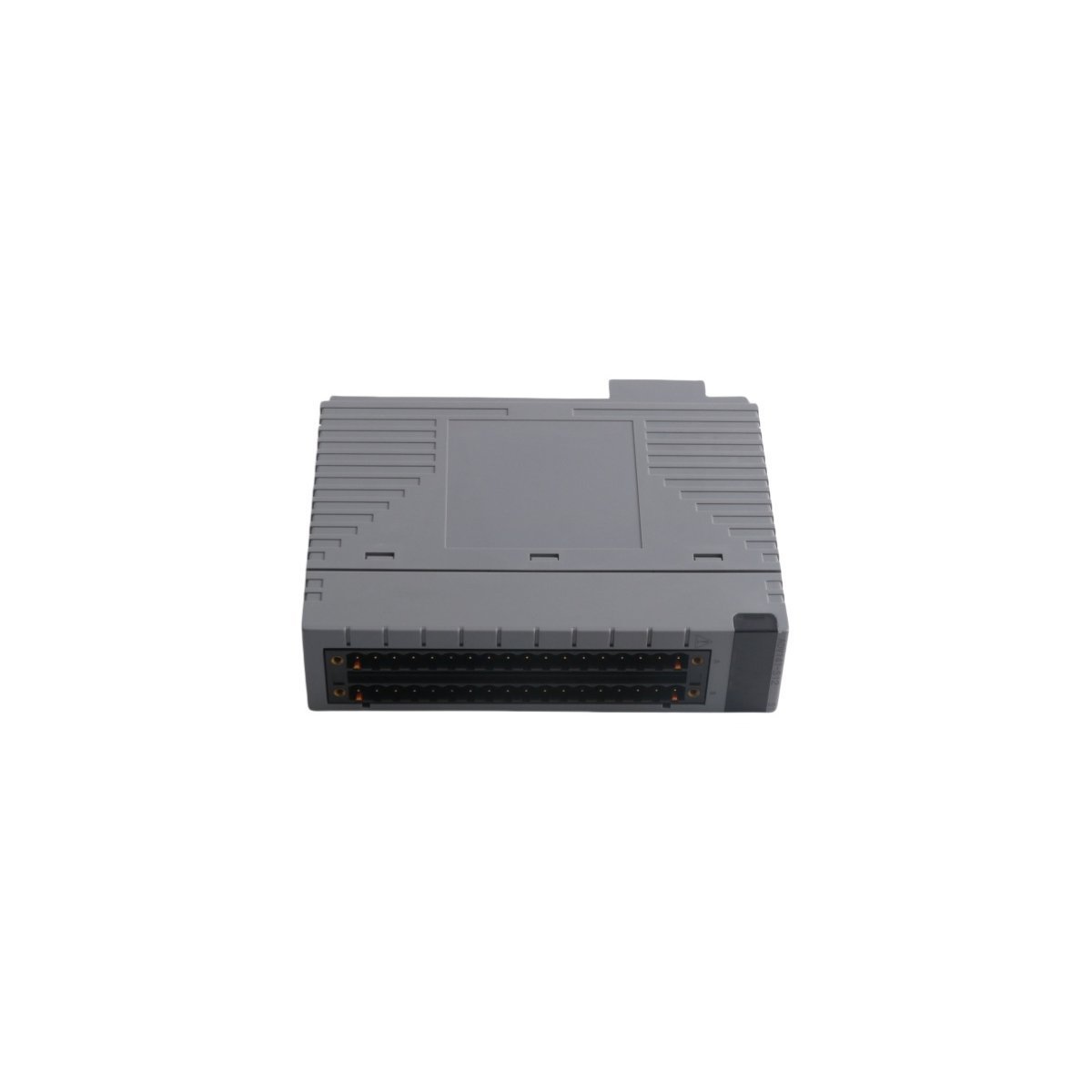

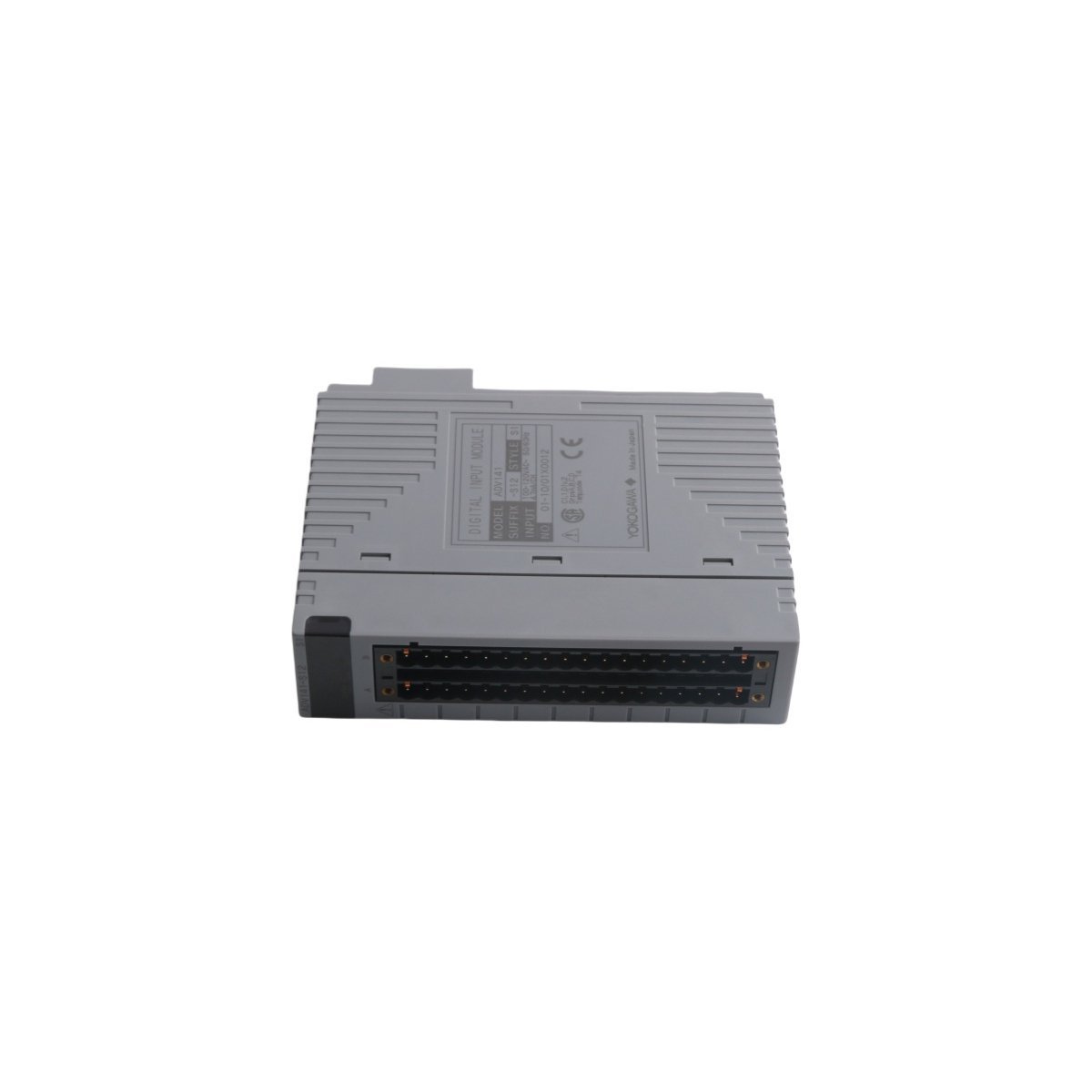

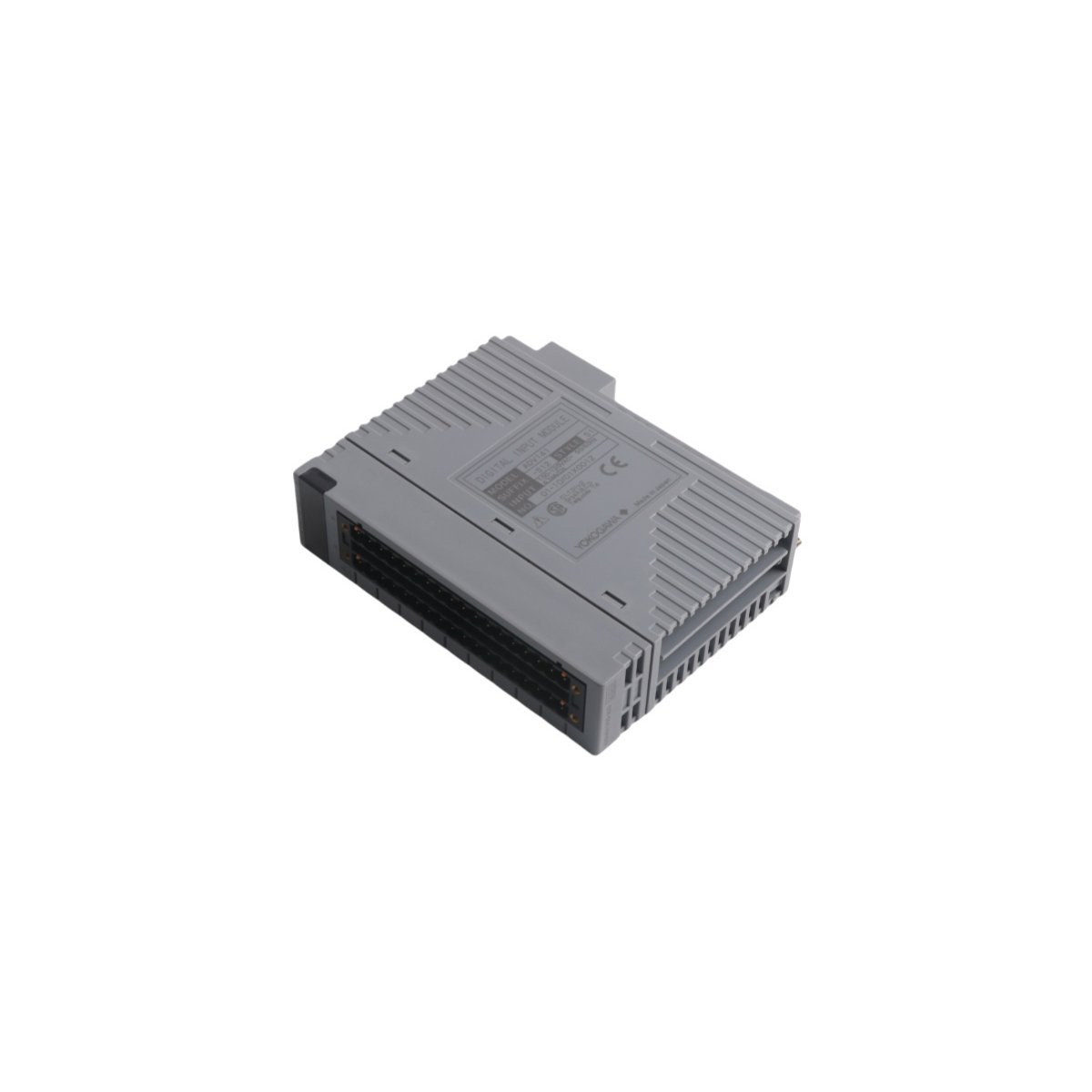

The Yokogawa ADV141-S12 S1 is a high-density 16-channel digital input module designed for the CENTUM VP distributed control system. It provides reliable signal acquisition from field contacts and switches, utilizing 24V DC logic to maintain precise process monitoring in industrial environments.

Product Description

High-Integrity Digital Signal Acquisition

The Yokogawa ADV141-S12 S1 functions as a critical interface within the CENTUM VP architecture, facilitating the accurate collection of digital states from field-mounted equipment. This module features 16 isolated input channels, allowing it to monitor multiple process conditions simultaneously. By converting physical switch positions and contact closures into digital data, it enables the Distributed Control System (DCS) to make real-time logic decisions. Consequently, this module serves as a primary link between field hardware and the central control logic, ensuring that operators receive instantaneous feedback on plant status.

Industrial Resilience and System Protection

Engineered for stability in demanding process sectors, the ADV141-S12 S1 module operates reliably across a broad temperature spectrum. It incorporates a robust isolation rating of 1000V AC, which effectively shields internal system electronics from external electrical noise and high-voltage transients. This protective layer prevents signal corruption and hardware damage, even in areas with significant electromagnetic interference. Furthermore, the unit’s low power consumption and compact footprint allow for high-density installation within standard Yokogawa I/O nests, maximizing cabinet space without compromising thermal performance.

Simplified Integration and Maintenance

Operational efficiency is a core benefit of the Yokogawa ADV141-S12 S1 interface. The module supports seamless integration with FIO (Field Interface I/O) bus structures, allowing for rapid data refresh rates and high-speed communication with Field Control Stations. Because it utilizes standardized 24V DC signal levels, it remains compatible with a vast array of industrial sensors, limit switches, and auxiliary relay contacts. Engineers value this module for its “plug-and-play” capability within the CENTUM VP environment, which simplifies both the initial commissioning phase and any necessary long-term maintenance cycles in chemical, power, and refining facilities.
