Description

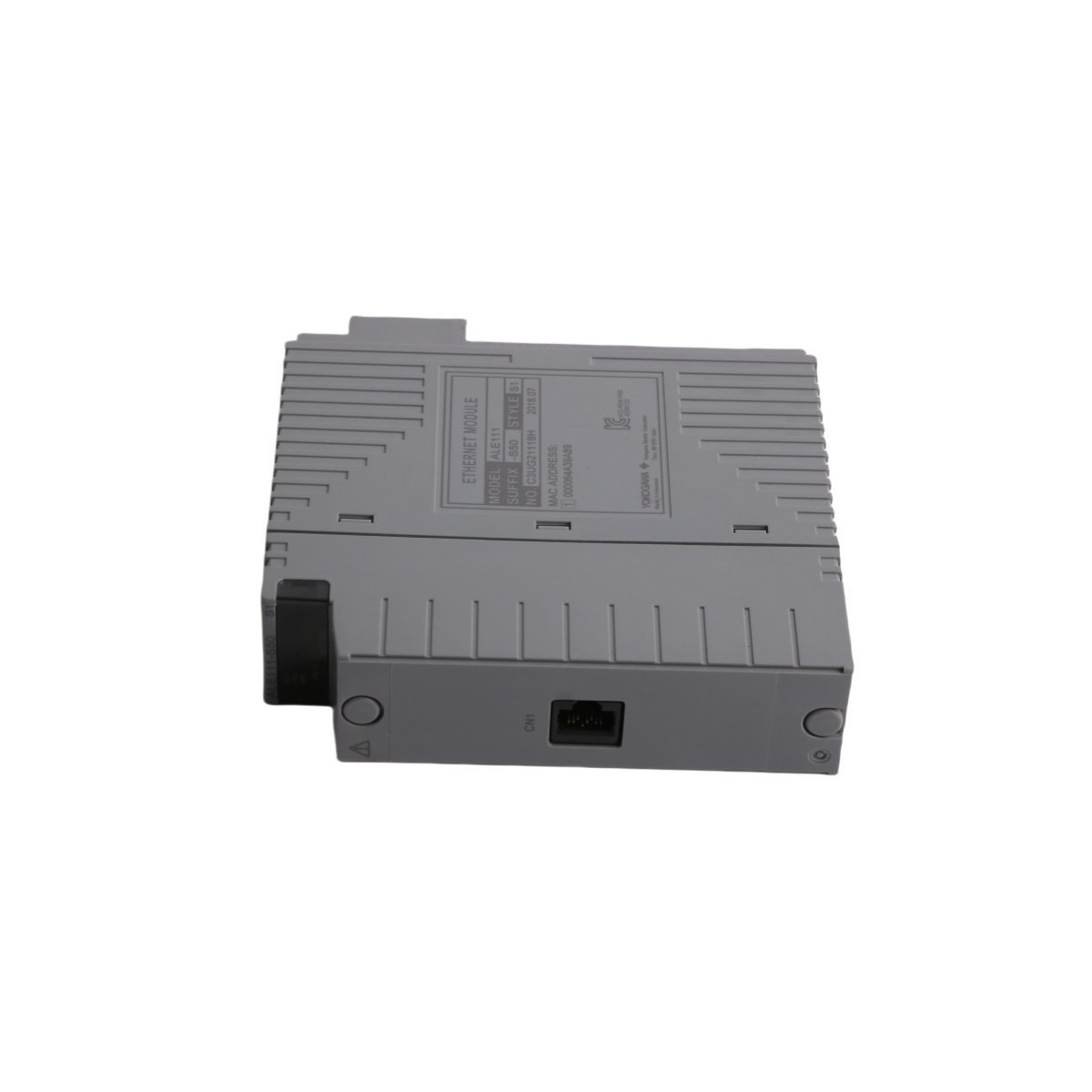

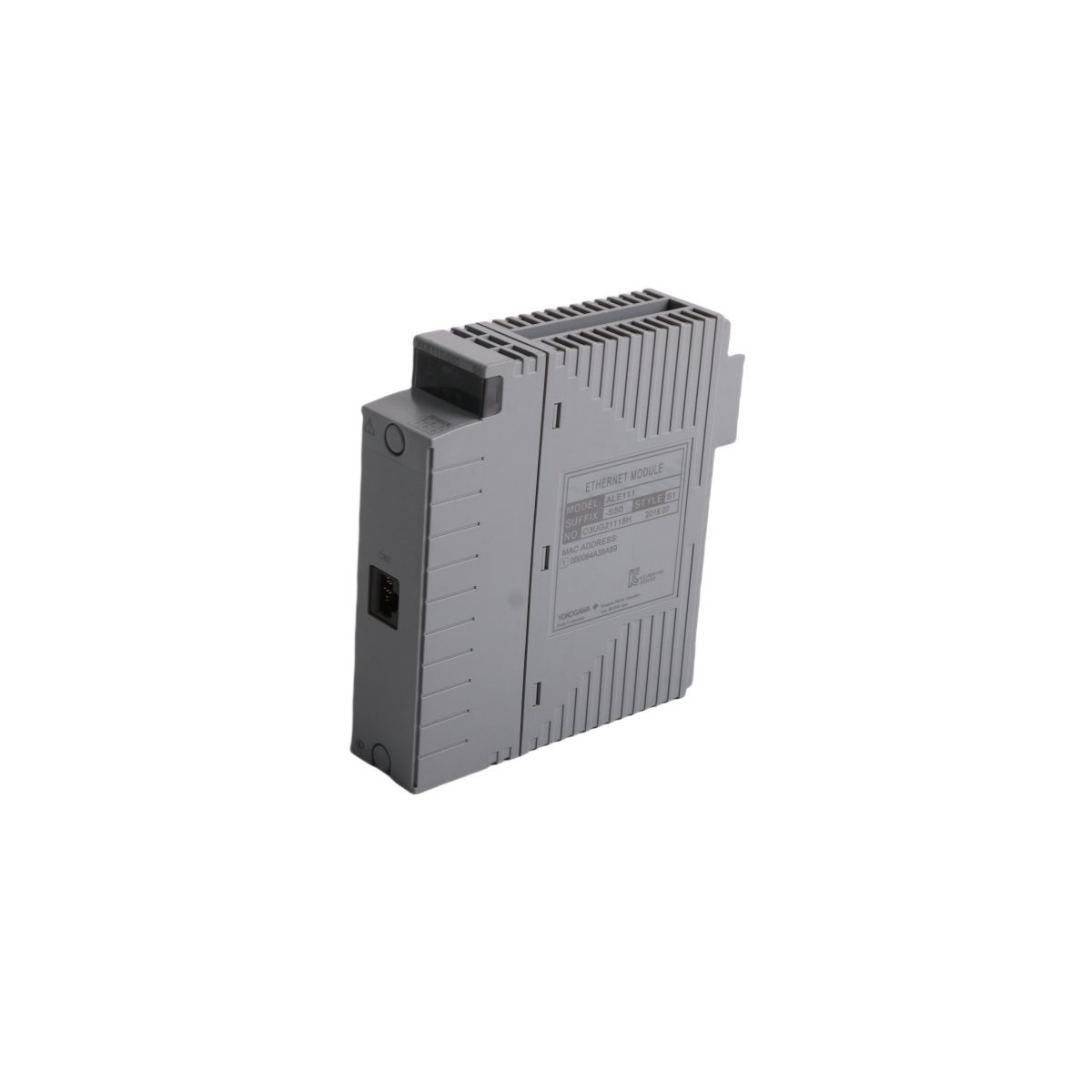

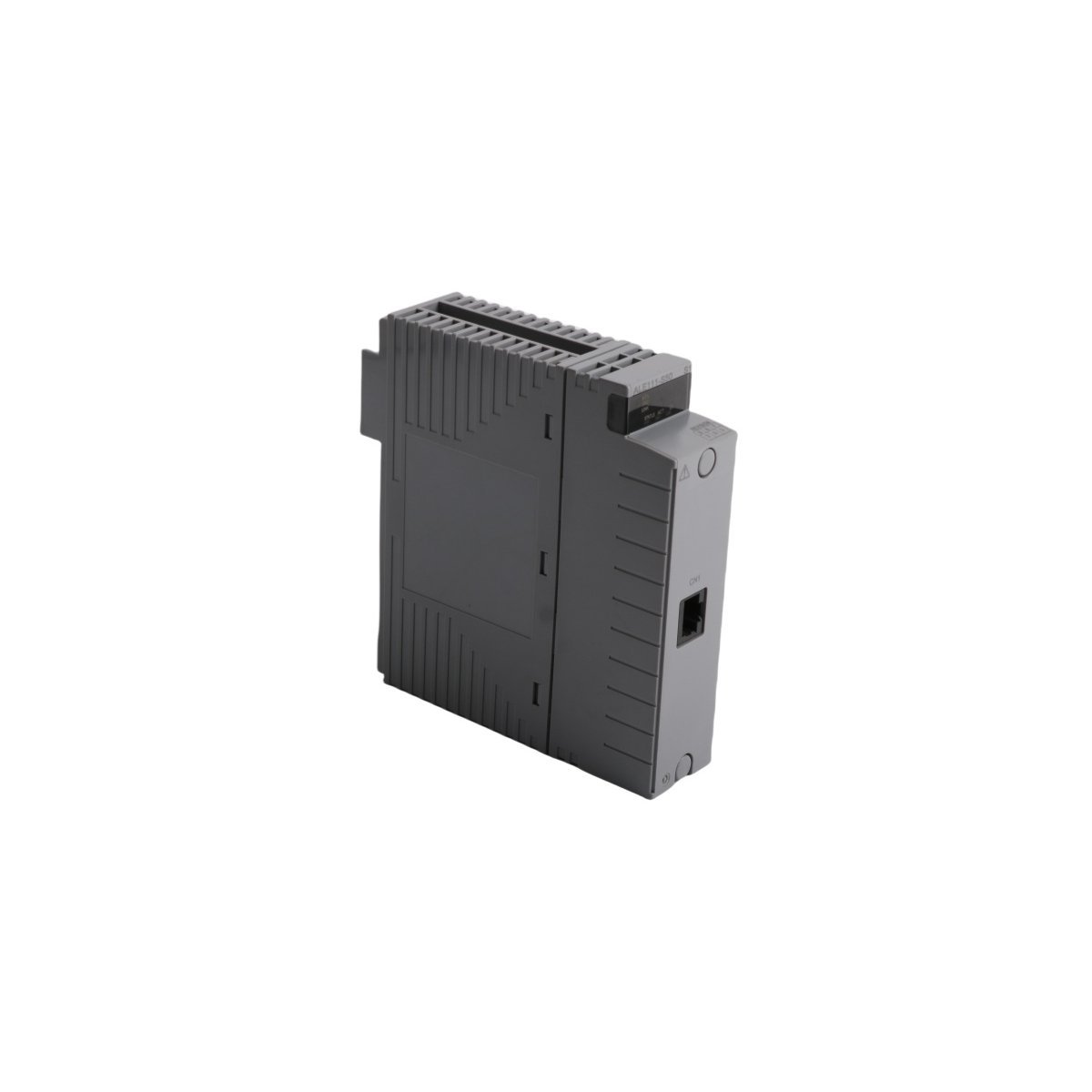

The Yokogawa ALE111-S50 S1 establishes high-speed data links between field control stations and external subsystems. This Ethernet communication module facilitates seamless interaction with FA-M3 controllers and various third-party devices. It manages complex protocol translations to ensure real-time data consistency across the network. Furthermore, the hardware supports stable information exchange within demanding industrial automation infrastructures. This capability allows operators to monitor and control remote processes with minimal latency. Consequently, it optimizes the overall responsiveness of the distributed control system.

Hardware Compatibility and Deployment

Engineers can deploy this versatile module across a wide range of Yokogawa field control units. Specifically, it fits the AFV30, AFV40, AFV10, and AFF50 series controllers. The module also integrates perfectly with ESB bus node units such as the ANB10 and ANB11. Additionally, it supports installation on ER bus node units like the ANR10. This broad compatibility offers significant flexibility for diverse system architectures. Therefore, users can standardize their communication hardware across multiple plant sections.

Reliability in Industrial Environments

Yokogawa engineered the ALE111-S50 S1 for continuous operation in rigorous manufacturing settings. The module maintains high signal integrity even in areas with significant electromagnetic interference. Its robust physical design handles the vibration and thermal demands of industrial control cabinets. Moreover, the unit provides dedicated Ethernet routing services for localized network management. This localized processing reduces the computational load on the main CPU. As a result, the entire control system achieves higher availability and improved fault tolerance.

Technical Specifications
