Description

Brief Product Description

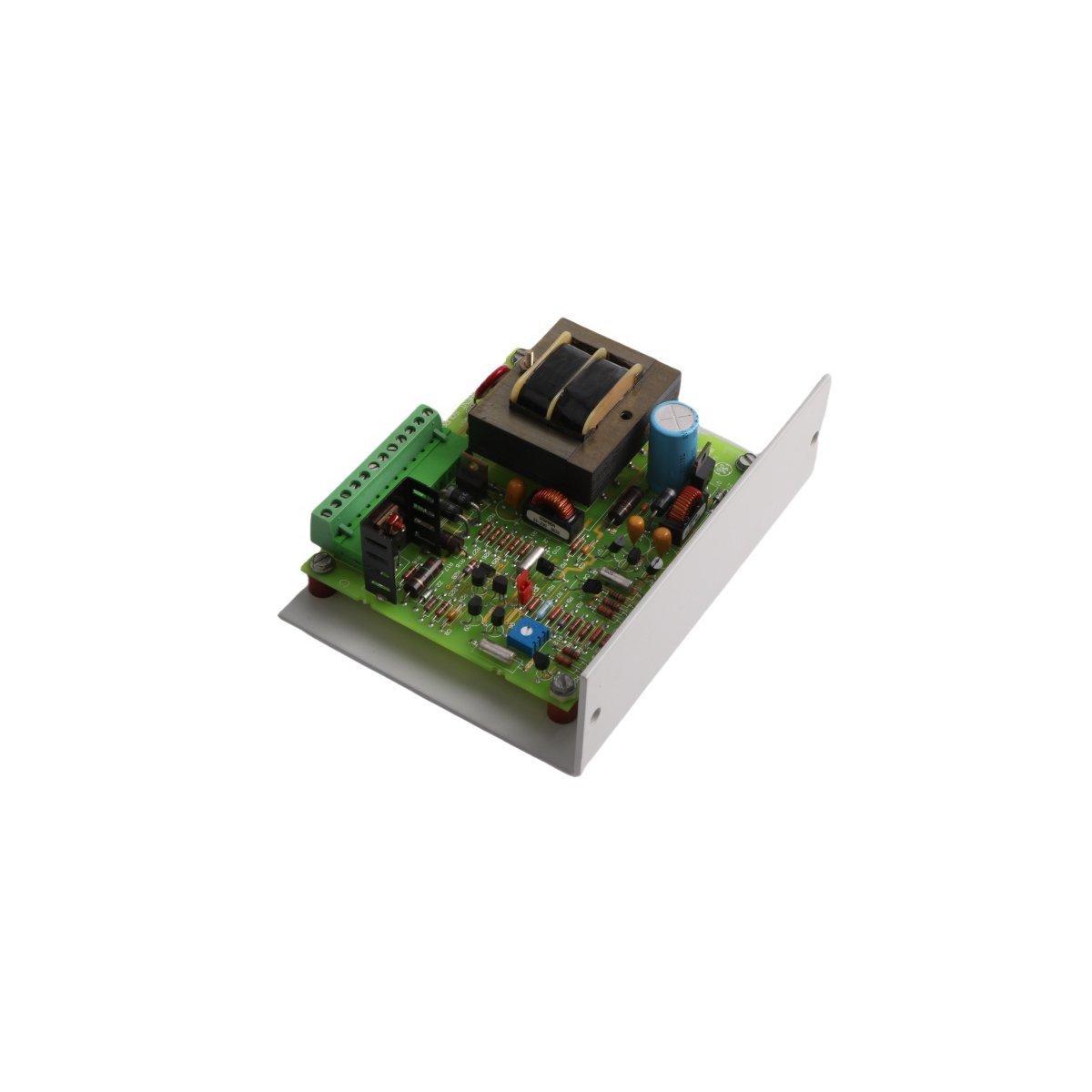

The GE 531X207LCSAMG1 is a dedicated LAN current source card designed to provide regulated 5 VDC and 15 VDC power to communication interfaces within the 531X drive series. It features a fuse-protected 115 VAC input and adjustable output parameters to ensure stable data transmission across industrial drive cabinets.

Product Description

Regulated Power for Network Communication

The General Electric 531X207LCSAMG1 functions as a primary power distribution hub for LAN communication boards within GE’s legacy drive and exciter ecosystems. This card converts a standard 115 VAC input into the precise 5 VDC and 15 VDC rails required for high-speed network logic. By stabilizing these voltages, the card prevents data corruption and communication dropouts that can occur due to fluctuations in the main power supply. Consequently, this module is vital for maintaining the synchronization of distributed drive systems in complex industrial environments.

Customizable Configuration and Protection

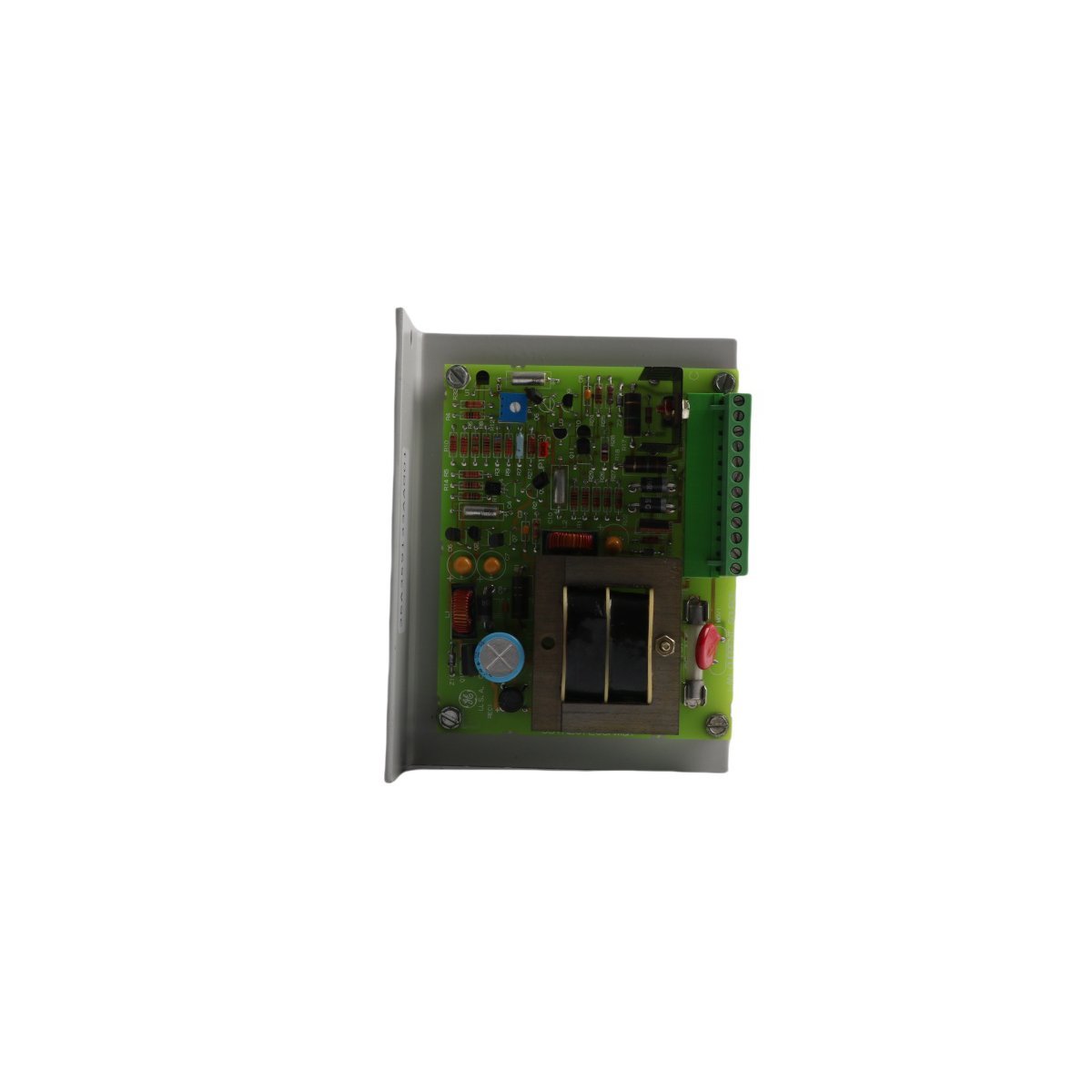

Engineered for versatility, the 531X207LCSAMG1 current source board incorporates several hardware-based adjustment tools. Specifically, the J1 jumper allows technical personnel to select between specific power supply configurations, while an onboard potentiometer provides fine-tuning capabilities for output voltage levels. To safeguard the sensitive LAN circuitry, the board includes integrated fuse protection that mitigates the risk of overcurrent damage. Furthermore, the 12-point terminal block facilitates straightforward signal relaying, making it easier for engineers to monitor power health and status directly from the card.

Installation and System Compatibility

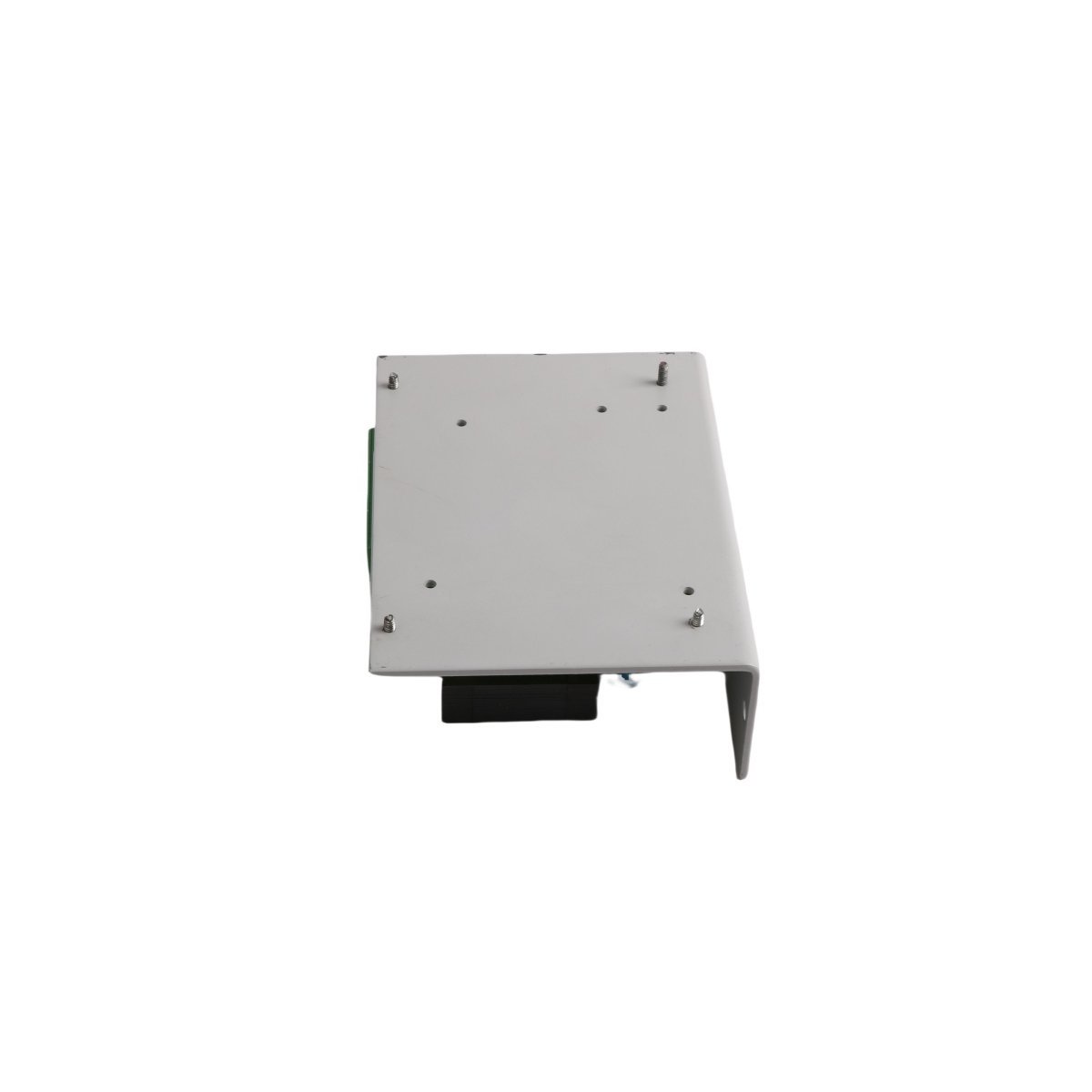

As part of the GE 531X replacement series, this board maintains a footprint compatible with standard drive cabinets and turbine control setups. Because the module handles live 115 VAC current, only qualified technicians should perform the installation and wiring. Proper adherence to the series manual ensures that the board operates within safe thermal and electrical parameters. By utilizing this authentic GE component, plant operators can extend the service life of their existing drive systems while ensuring that internal communication remains robust and reliable.

Technical Specifications
