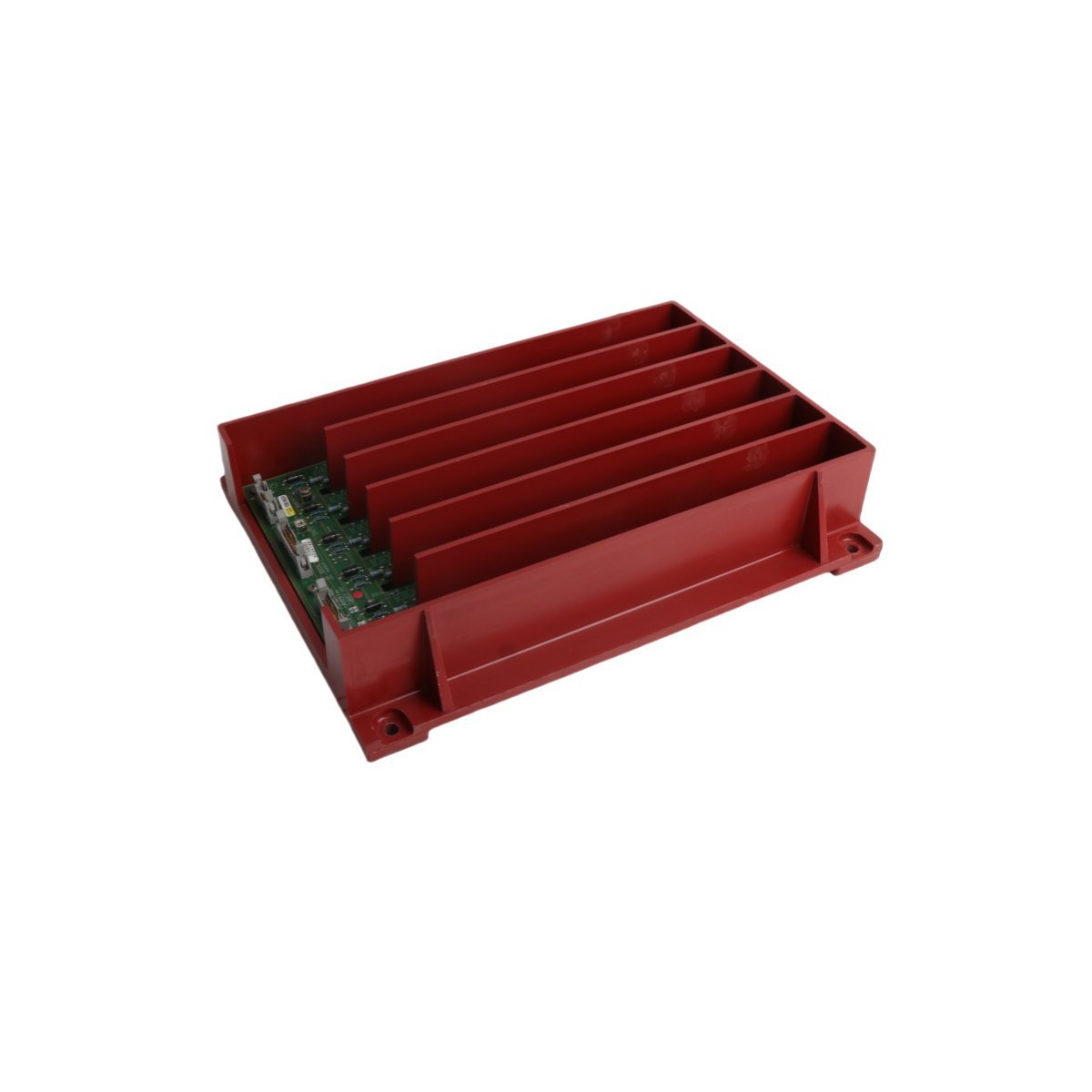

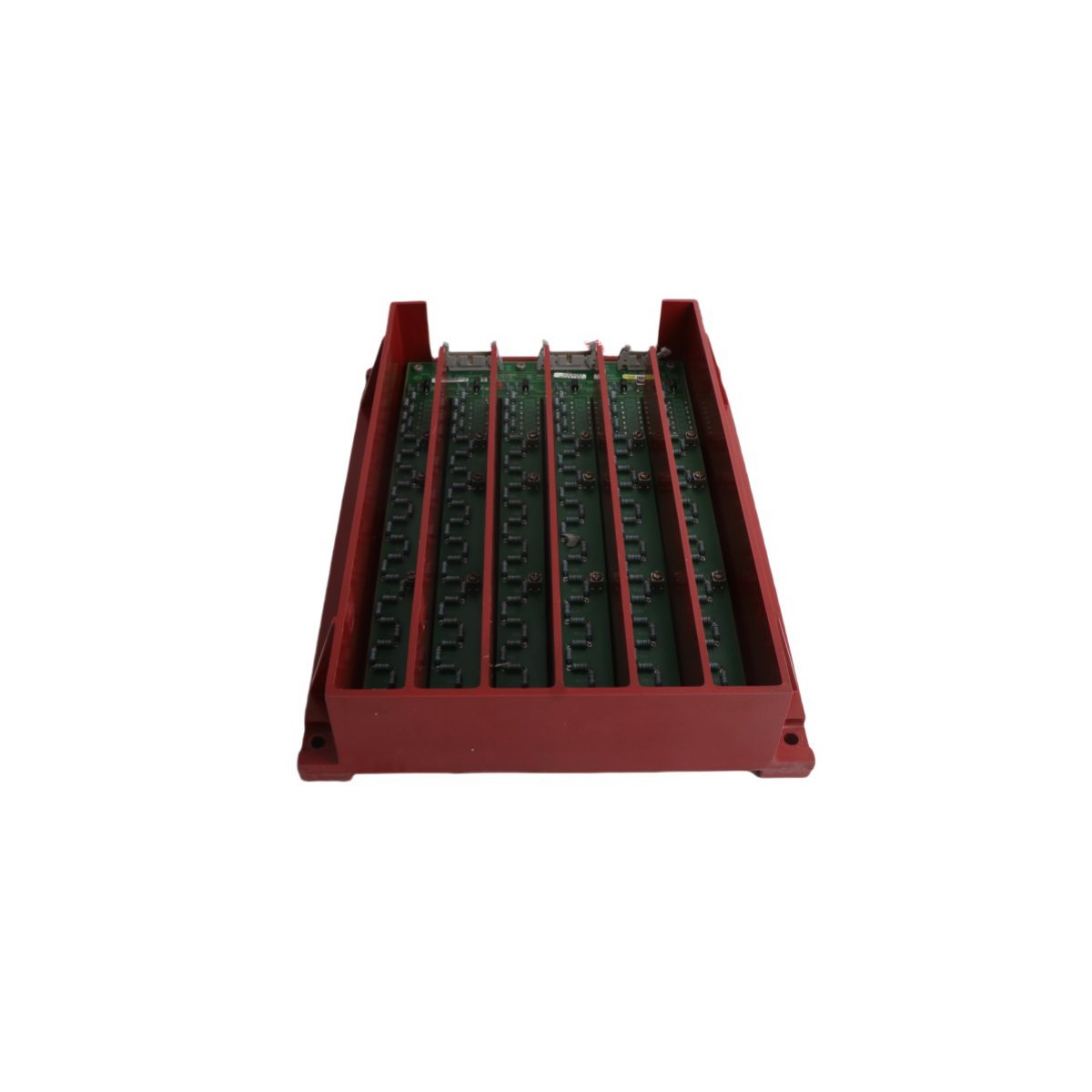

The Allen-Bradley 81000-199-53-R functions as a high-precision voltage feedback interface board, specifically engineered to optimize analog signal processing within complex industrial control frameworks. By bridging the gap between raw sensor data and machine control logic, this module enables operators to maintain rigorous oversight of system voltages. It effectively handles sensitive signal transitions while ensuring that the integrity of the data remains uncompromised by external electrical noise or circuit loading.

In addition to its primary processing capabilities, the 81000-199-53-R utilizes a high input impedance design to prevent signal degradation. This architectural choice allows the board to capture precise measurements without drawing excessive current from the source. Consequently, the board delivers a stable, buffered output that downstream PLC components can interpret with high confidence. Because it supports a wide frequency bandwidth, the module excels in dynamic environments where rapid voltage fluctuations require immediate and accurate detection.

Furthermore, this interface board simplifies integration into existing Allen-Bradley hardware setups. It operates efficiently on a standard 24V DC power supply and features a robust physical build designed to withstand the rigors of continuous industrial operation. By incorporating this board into a machine control strategy, facilities can achieve higher levels of accuracy in their feedback loops, ultimately leading to more consistent production outcomes and reduced system downtime.

Technical Characteristics

• Primary Function: Voltage Feedback and Analog Signal Interfacing
• Input Voltage Range: ±10V DC
• Input Impedance: 1 MΩ (Minimizes signal loading)
• Signal Resolution: 16-bit (Equivalent to 0.15mV increments)
• System Accuracy: ±0.1% of Full Scale
• Output Signal: 0-10V DC Buffered
• Frequency Bandwidth: 10 kHz at -3dB point
• Power Requirements: 24V DC (±10% Tolerance)
• Current Consumption: 50 mA Nominal
• Module Dimensions: 38.3 x 28.8 x 7.8 cm
• Net Weight: 3.6 kg
