Description

Product Overview

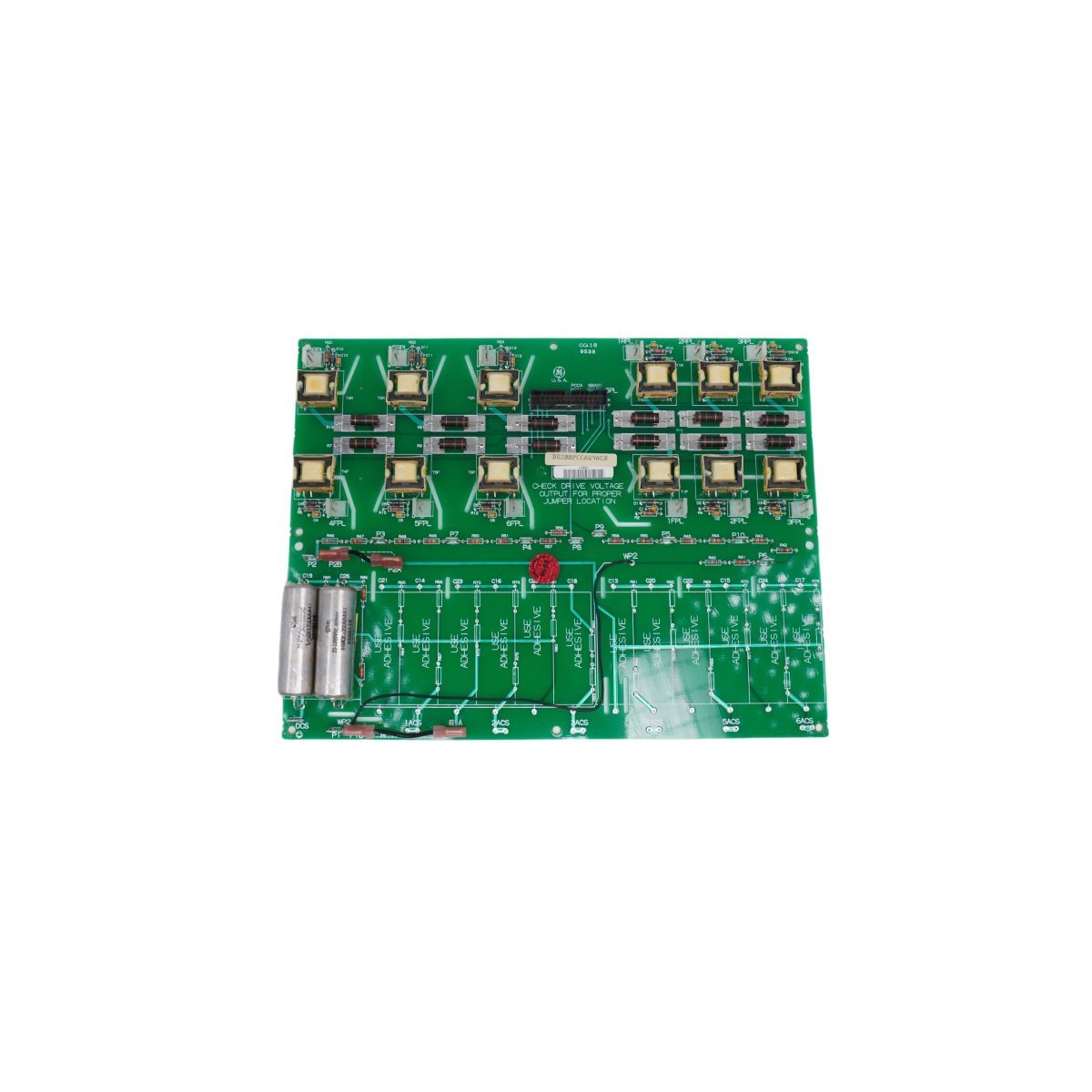

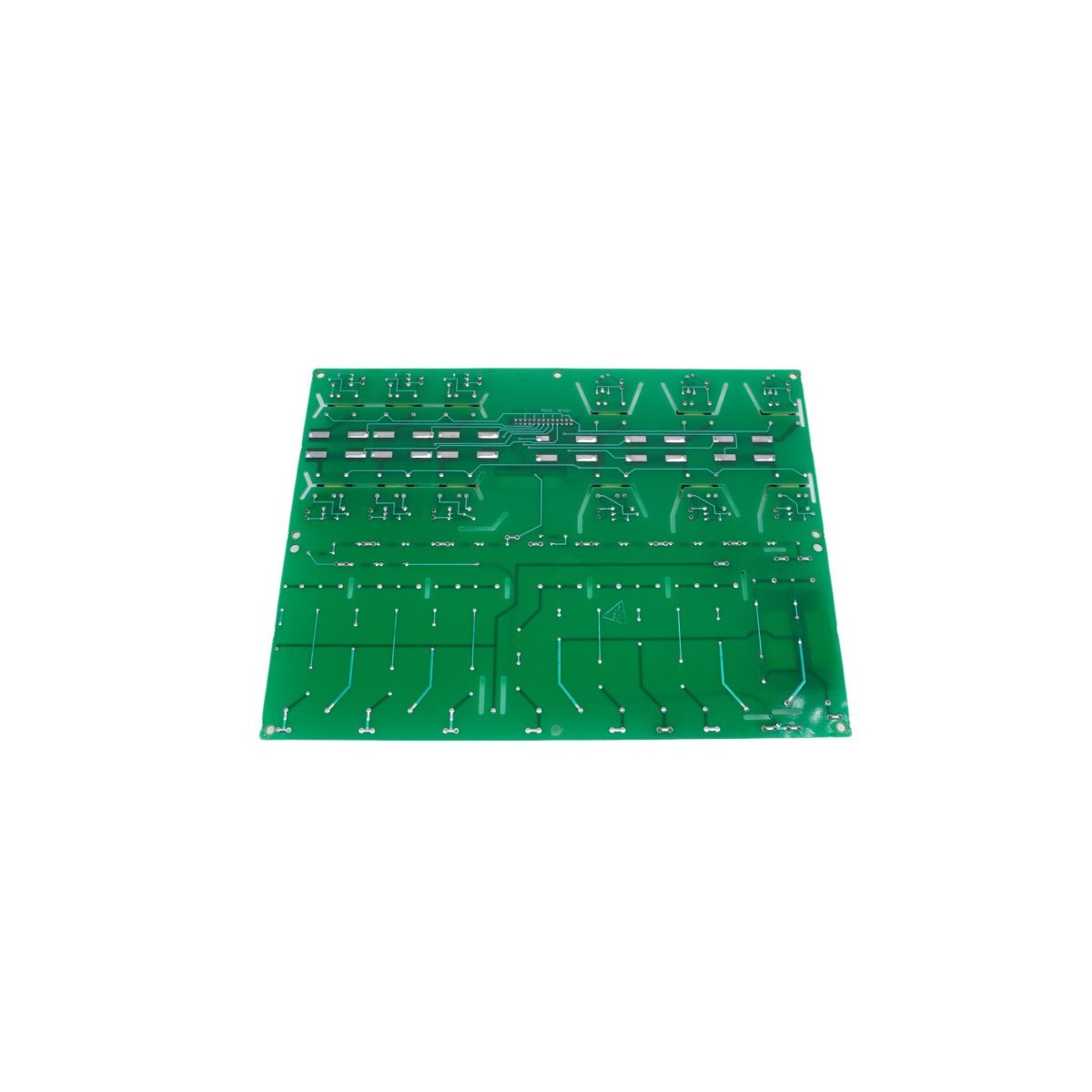

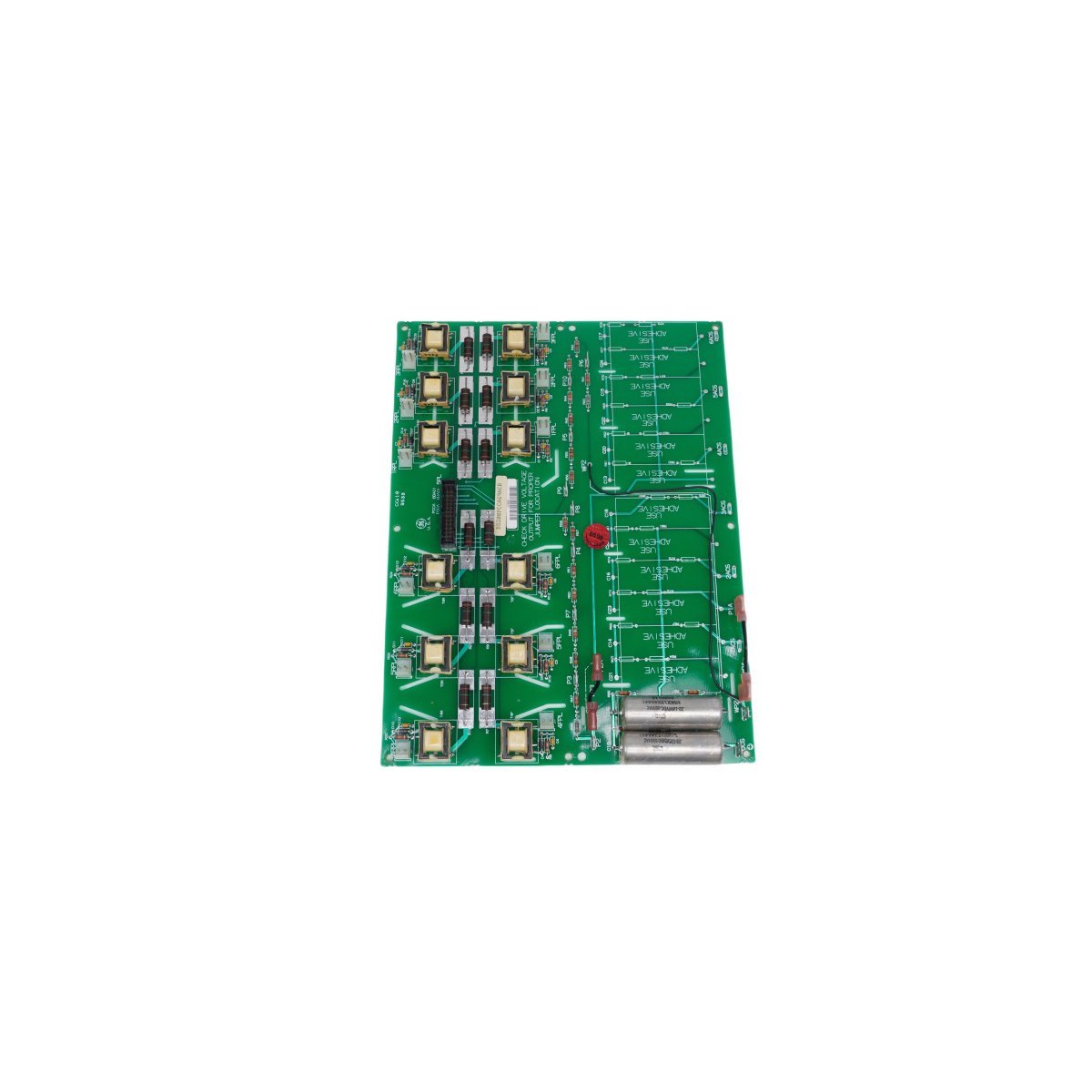

The General Electric DS200PCCAG9ACB is a high-voltage Power Connect Card Assembly (PCCA) engineered for the Speedtronic Mark V and EX2100 control systems. This Group 9 revision serves as a critical interface for power distribution and circuit protection, specifically optimized for regenerative drive applications.

High-Voltage Power Management

The DS200PCCAG9ACB manages electrical distribution within J and M-style frames, providing stable operation in demanding power environments. This assembly effectively handles regenerative modes at 630 volts and remains compatible with standard AC voltages of 600 V rms or lower. To ensure electrical stability during high-speed switching, GE integrated DC voltage snubbers directly into the board architecture. These components suppress voltage spikes and protect sensitive downstream logic from transient interference.

Integrated Safety and Hardware Architecture

This power connect card prioritizes hardware protection by incorporating both a leg fuse and a leg reactor into its primary assembly. While the leg fuse provides immediate overcurrent protection, the leg reactor limits the rate of current rise, thereby shielding the thyristors or power bridges from damage. The board utilizes the SDCI Mark V Series power board standard, ensuring seamless communication with the rest of the drive’s control rack. Furthermore, the design supports flexible power input configurations, allowing engineers to implement either separate or common bus transformers depending on the specific site requirements.

System Versatility and Maintenance

As a versatile component of the GE Speedtronic line, the DS200PCCAG9ACB plays a vital role in both Excitation Control and industrial DC drives. The module features a robust physical build to withstand the thermal stresses common in high-voltage cabinets. When performing maintenance or system upgrades, technicians can refer to the GEH-6005 manual for specific group differences and jumper settings. This documentation ensures that the Group 9 revision is correctly matched to the existing system parameters, maintaining the long-term reliability of the Mark V turbine control environment.
