Description

Brief Product Description

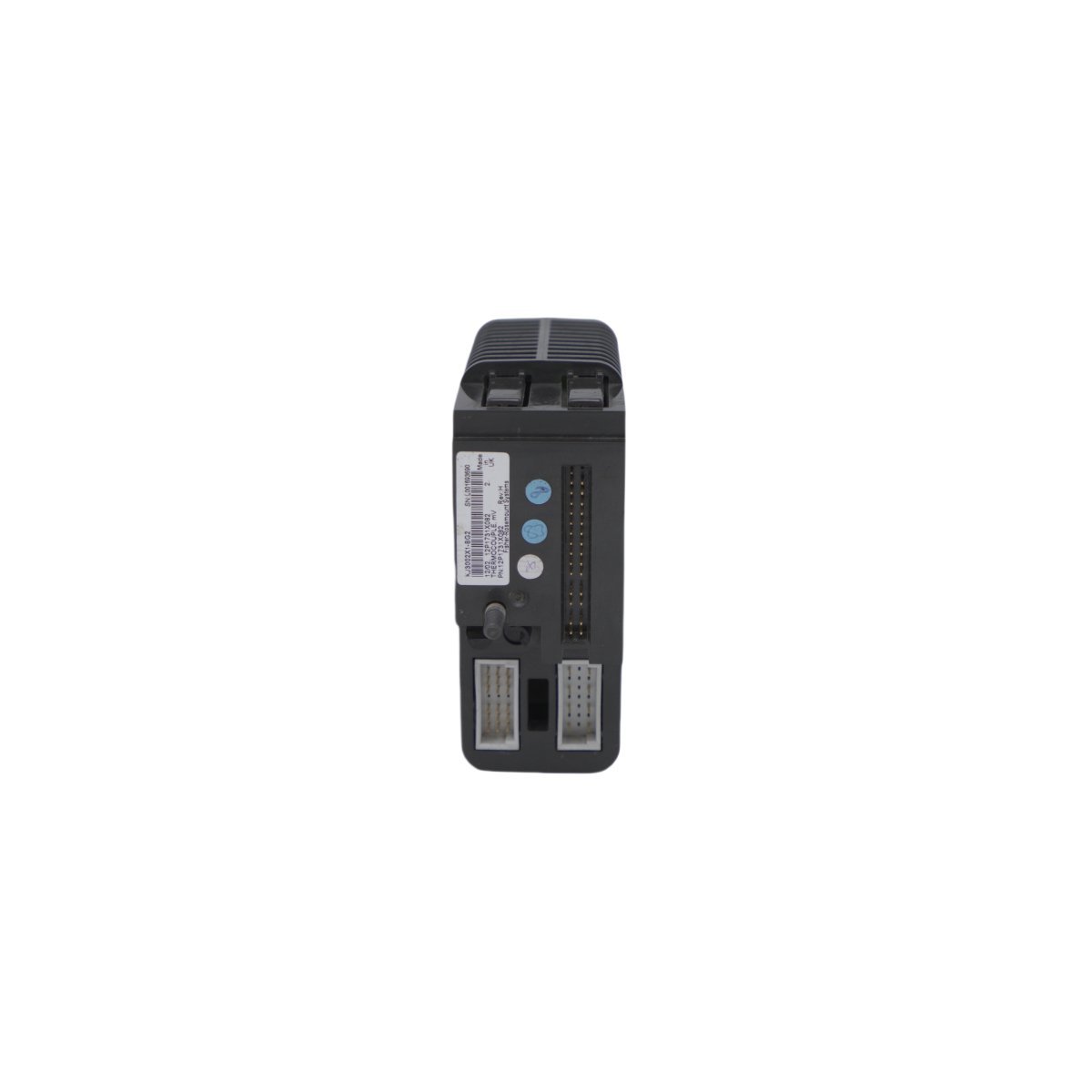

The Emerson KJ3002X1-BB1 (VE3006 / 12P0683X092) is a specialized terminal power block engineered for the DeltaV M-series I/O subsystem. It facilitates secure electrical connections and power distribution for high-precision thermocouple and analog signal processing modules.

Product Description

Integrated Power and Signal Routing

The Emerson KJ3002X1-BB1 acts as a critical interface within the DeltaV Distributed Control System (DCS). This terminal power block provides the necessary electrical infrastructure to support M-series I/O cards, ensuring that field devices receive consistent power while maintaining signal purity. By centralizing power distribution at the base of the I/O module, the VE3006 streamlines cabinet wiring and reduces the complexity of field terminations. Consequently, this design allows engineers to implement robust temperature monitoring and process control strategies with higher density and reduced footprint.

Precision for Thermocouple and Analog Applications

Specifically optimized for sensitive low-voltage measurements, the KJ3002X1-BB1 12P0683X092 supports the exacting requirements of thermocouple and analog modules. The block features high-quality termination points that minimize contact resistance and thermal gradients, which are essential for accurate temperature data acquisition. Furthermore, the unit incorporates built-in signal isolation and electromagnetic noise suppression. These protective measures ensure that critical process variables—such as flow, pressure, and level—remain stable even when the system operates in electrically noisy industrial environments.

Scalable Architecture and Maintenance Efficiency

The modular nature of the Emerson VE3006 terminal block empowers operators to scale their control systems alongside growing production needs. Because it integrates seamlessly with the DeltaV M-series I/O subsystem, users can easily add or replace modules without overhauling the existing wiring architecture. Additionally, the block features advanced diagnostic access points, which allow technicians to identify potential power issues or signal interruptions quickly. This proactive diagnostic capability significantly lowers Mean Time to Repair (MTTR) and enhances the overall availability of the industrial process.

Technical Specifications
