Description

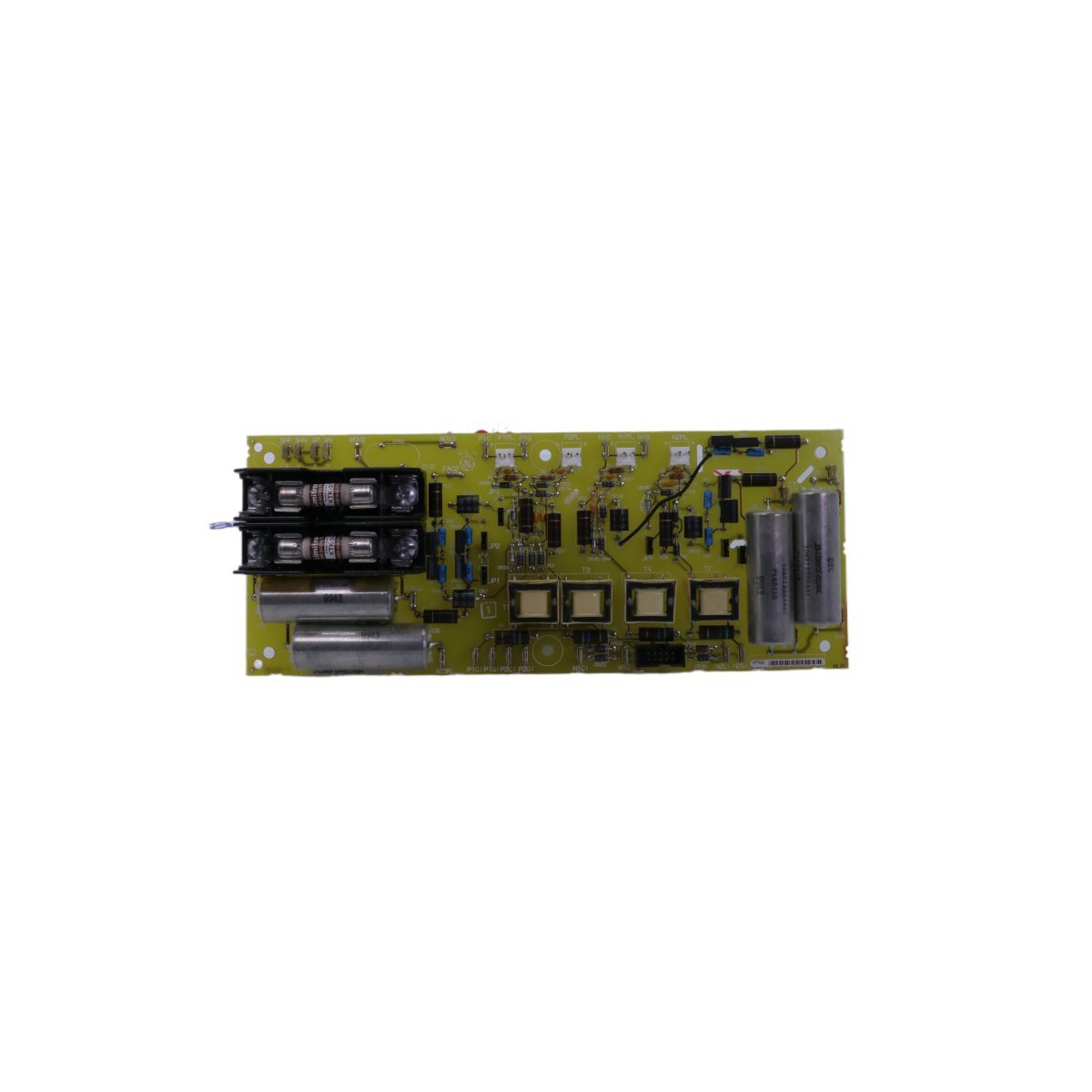

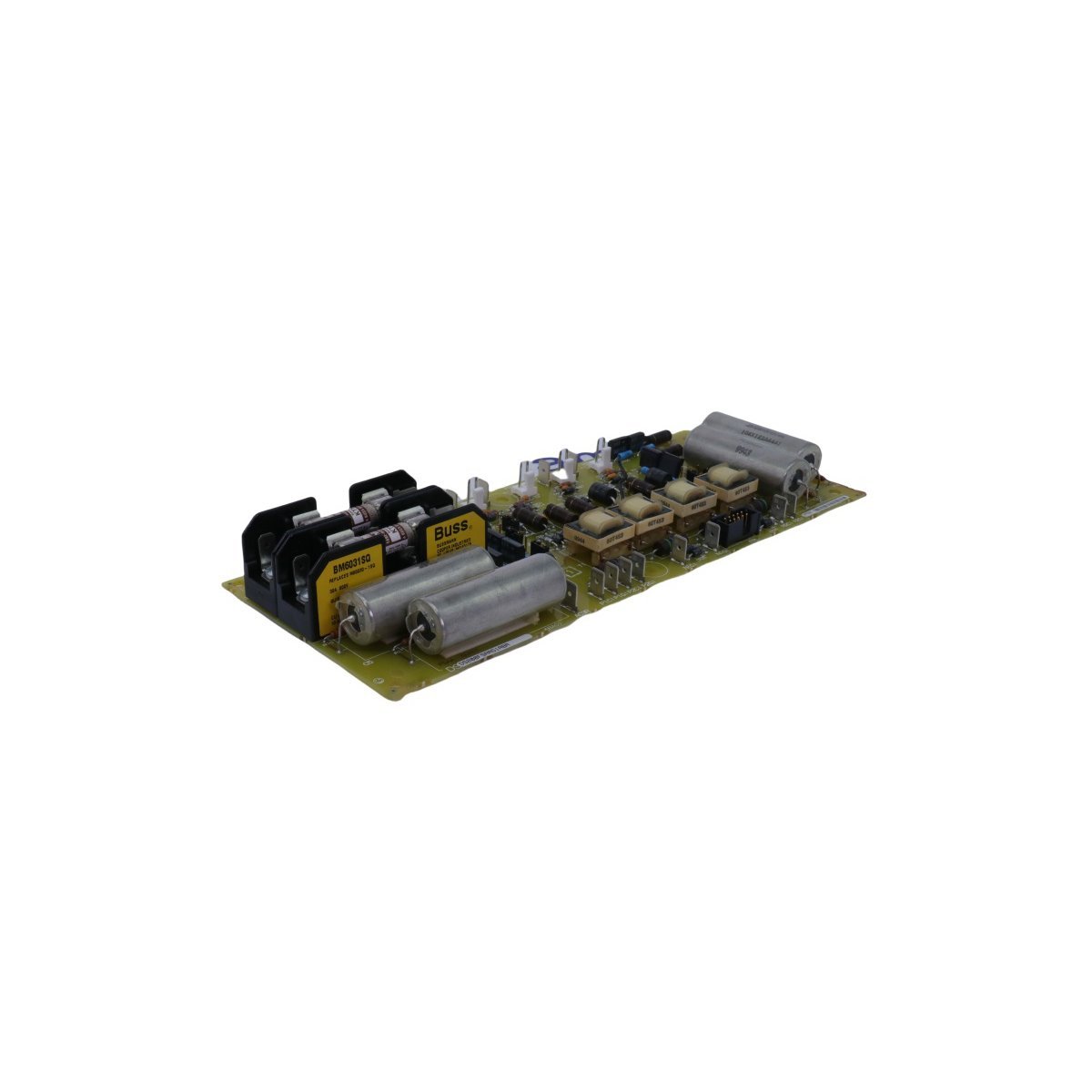

The GE DS200FSAAG2ABA, also cataloged as the DS200FSAAG2ABA Field Supply Gate Amplifier Board, operates as a dedicated hardware component for gate pulse amplification and excitation current regulation within Speedtronic Mark V turbine control systems.

Hardware Specifications

Profinet / EtherNet/IP deterministic networks

The module interfaces within the rack backplane to manage deterministic command propagation. High-speed gate drive signals are processed through onboard semiconductor switches to control thyristor firing angles in the static exciter circuit. Backplane bus communication velocity licences ensure synchronized data exchange across processor boards and local I/O nodes without frame dropping.

Frequently Asked Questions

Q: What precautions are necessary when replacing jumpers JP1 through JP6 on the board?

A: Power must be completely removed from the rack before adjusting any manually movable jumpers to prevent transient voltage spikes on the gate drive circuitry.

Q: How do the onboard fuses protect the internal circuit paths?

A: The dual fast-acting fuses rated at 30 A and 60 V provide immediate thermal and electrical interruption during an overcurrent event within the field supply excitation loop.

Field Installation Guidelines

Ensure the rack slot is de-energized prior to inserting or extracting the printed circuit board. Align the PCB edges with the designated backplane guide rails and apply firm, even pressure until the edge connectors engage fully. Verify that all multi-pin connectors and ribbon cables are secured and shielded to mitigate electromagnetic interference in high-voltage industrial environments.
