Product Description

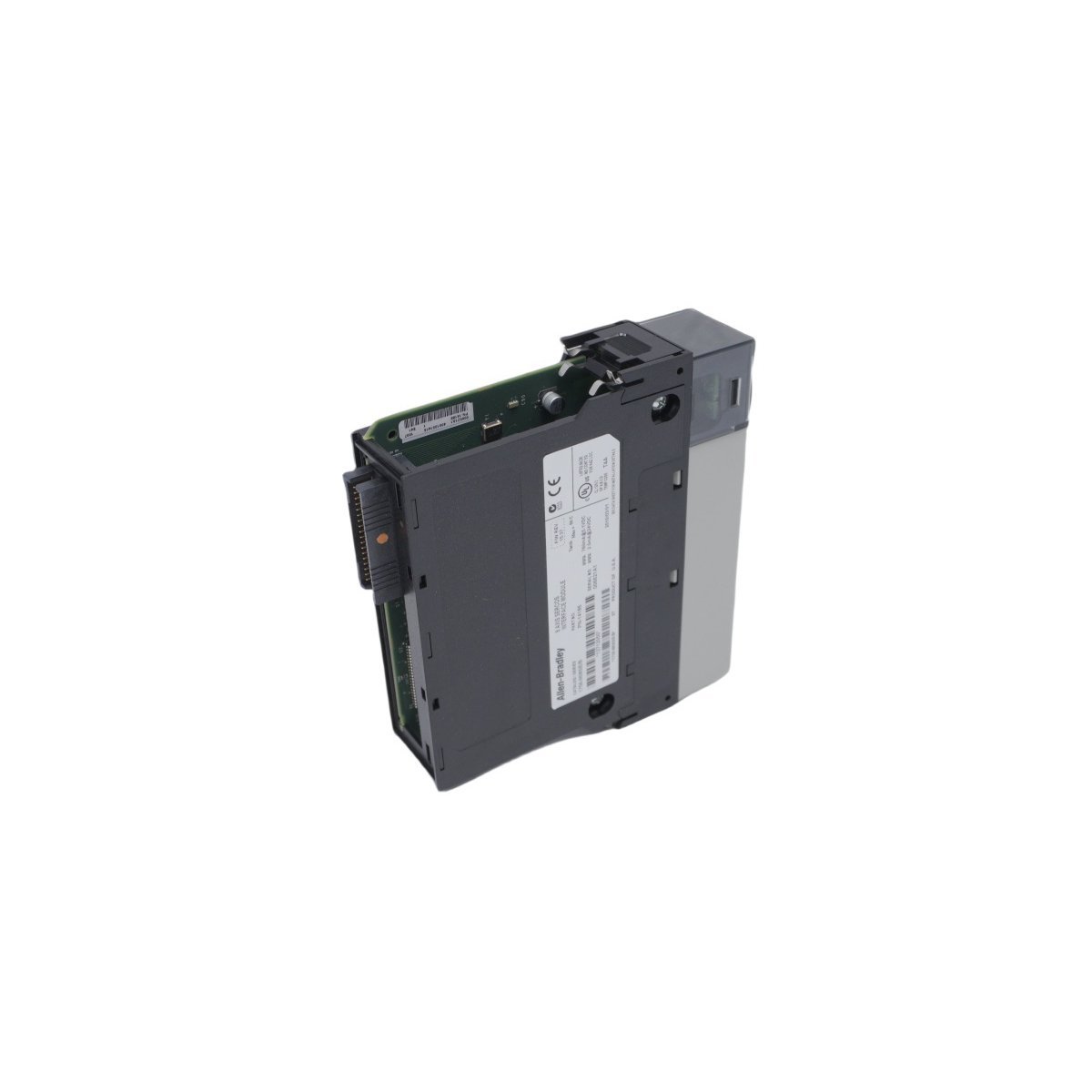

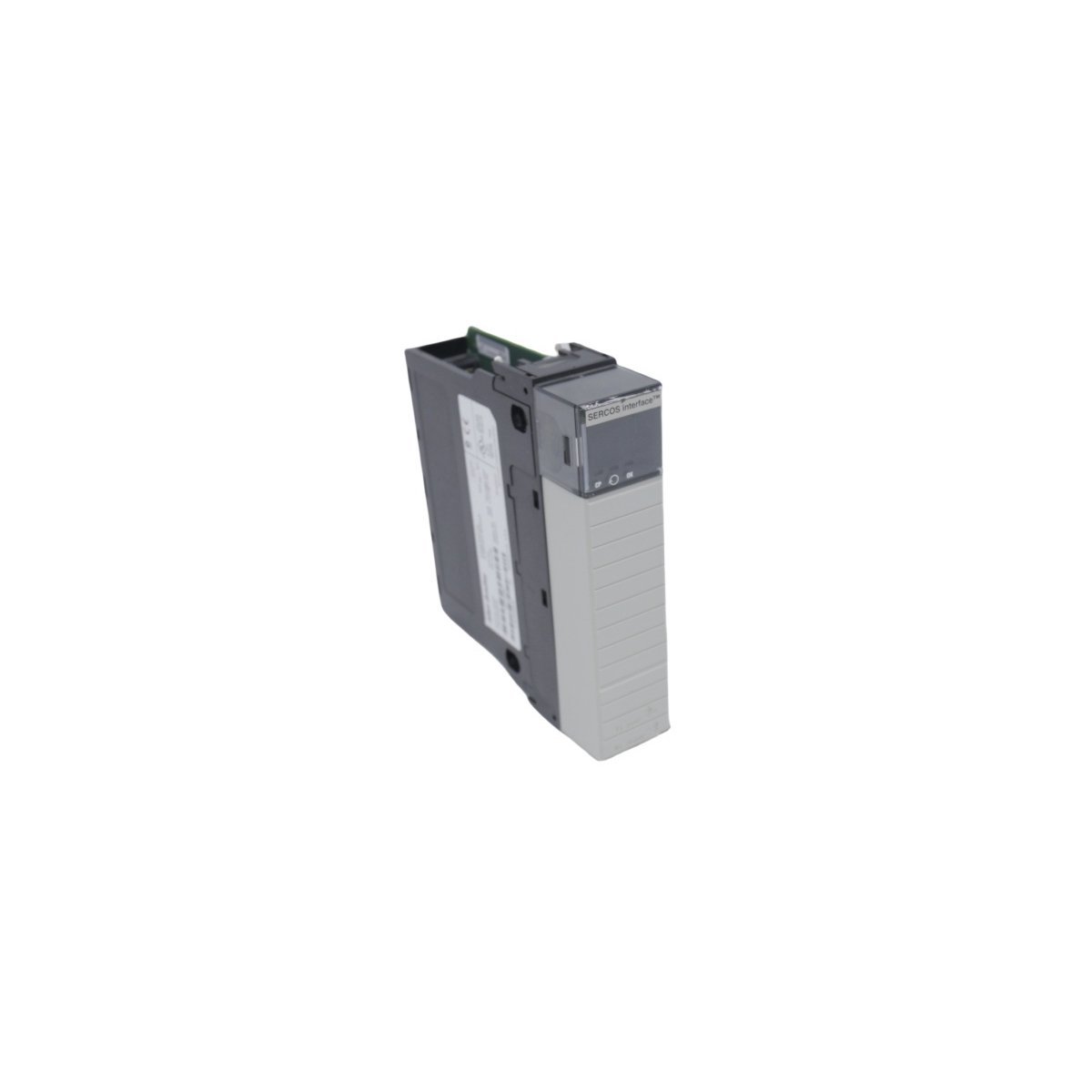

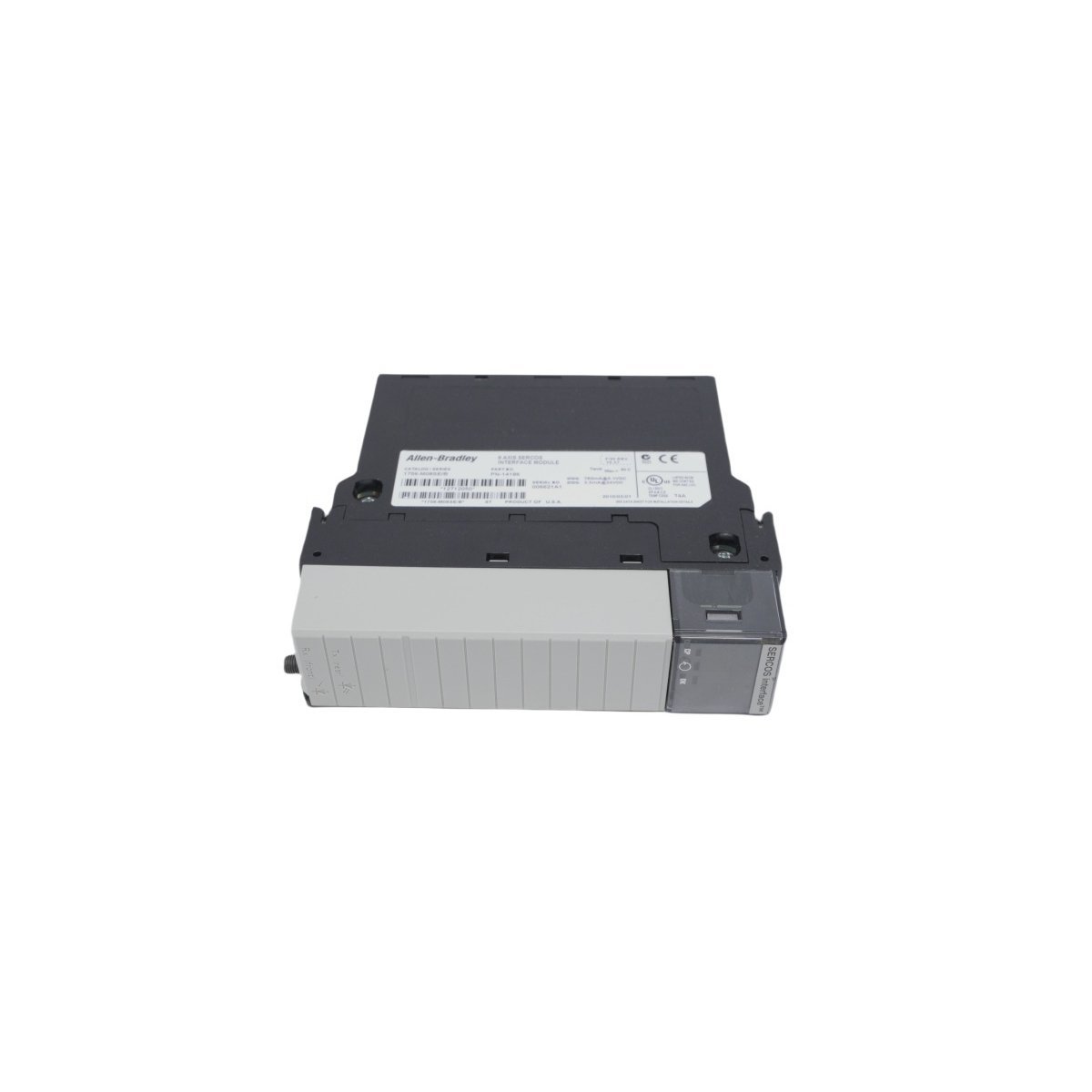

The Allen-Bradley 1756-M08SE functions as a high-performance motion link within the ControlLogix platform, providing a dedicated fiber-optic interface for multi-axis servo control. By utilizing the SERCOS (Serial Real-time Communications System) digital interface standard, this module eliminates the need for complex analog wiring and significantly reduces electrical noise interference. It enables precise coordination of up to eight independent axes, allowing engineers to manage sophisticated motion profiles including position, velocity, and torque loops directly from the Logix5000 controller environment.

This interface module effectively bridges the gap between the controller and the drive power structure. It supports seamless integration with various Rockwell Automation motion assets, specifically the Kinetix 2000, 6000, 7000, and Ultra3000 SERCOS drive families. Because the module uses digital communication via fiber optics, it maintains high signal integrity over longer distances compared to traditional copper-based solutions. Furthermore, the 1756-M08SE simplifies system diagnostics by allowing the controller to read detailed drive status and fault information across the SERCOS ring.

Performance scalability remains a core advantage of the 1756-M08SE. Users can configure the communication rate at either 4 Mbps or 8 Mbps to optimize cycle times based on the total axis count. For instance, at the 8 Mbps setting, the module achieves a rapid 1 ms update rate for all eight axes, ensuring high-speed responsiveness for demanding packaging, assembly, and material handling applications. The hardware fits into any standard 1756 chassis slot, providing the flexibility needed for both centralized and distributed motion control architectures.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Module Type: SERCOS Interface Servo Module
• Axis Capacity: Up to 8 axes of motion
• Communication Rates: 4 Mbps and 8 Mbps
• Update Times: 0.5 ms (up to 4 axes at 8 Mbps) / 1.0 ms (8 axes at 8 Mbps)
• Fiber Optic Interface: Plastic Cable (up to 32m) or Glass Cable (up to 200m)
• Backplane Current: 1.2A @ 5.1V DC; 2.5 mA @ 24V DC
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
