Description

Product Overview

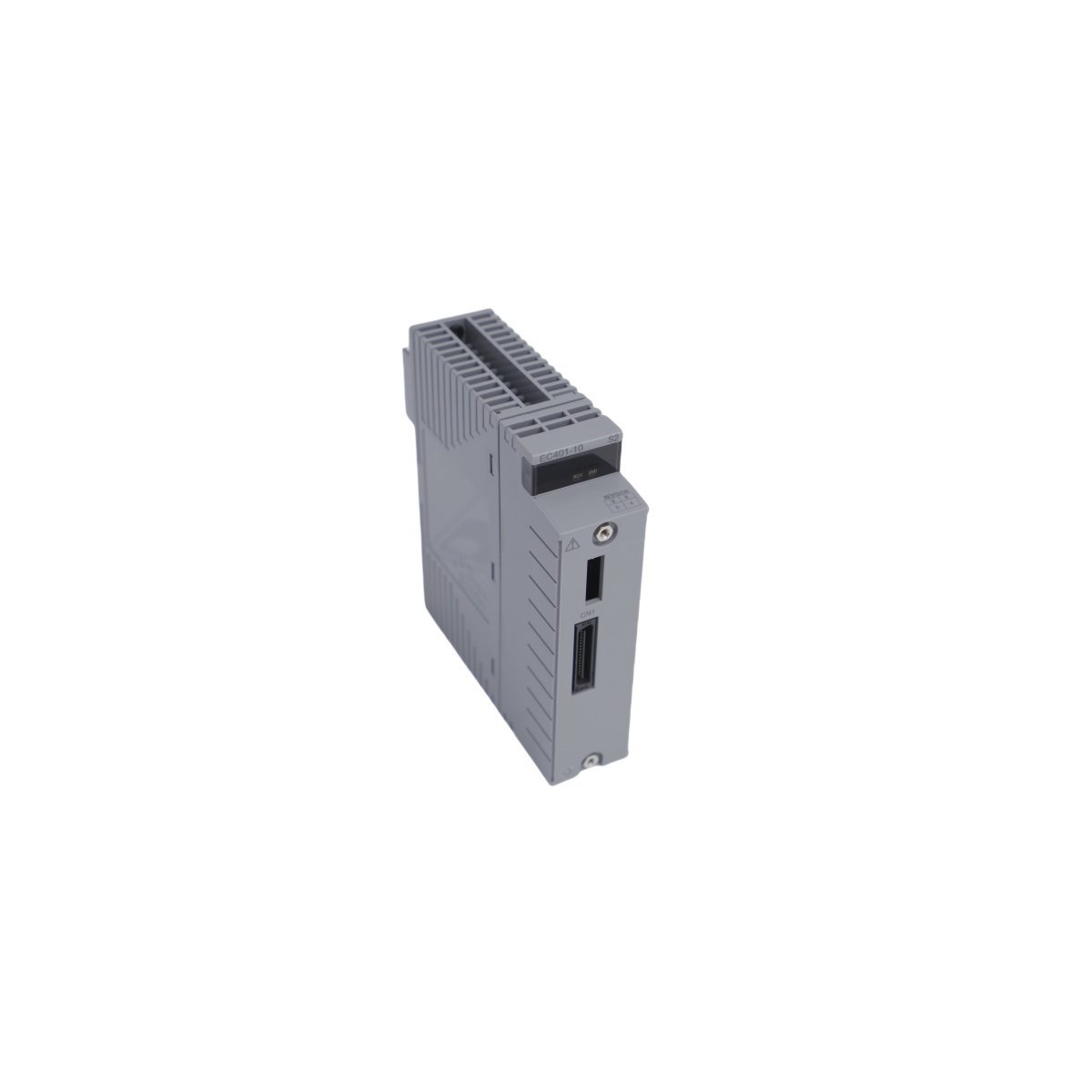

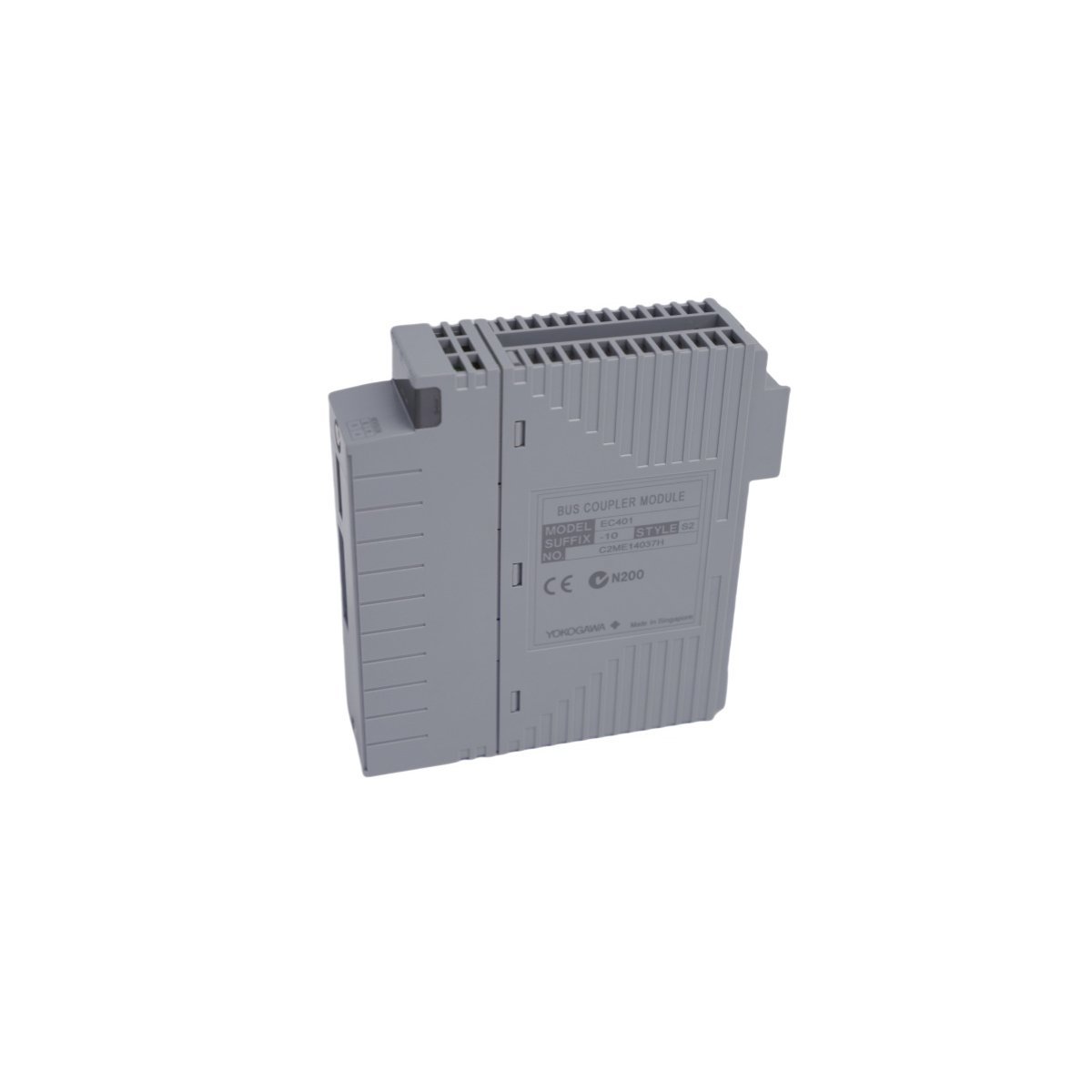

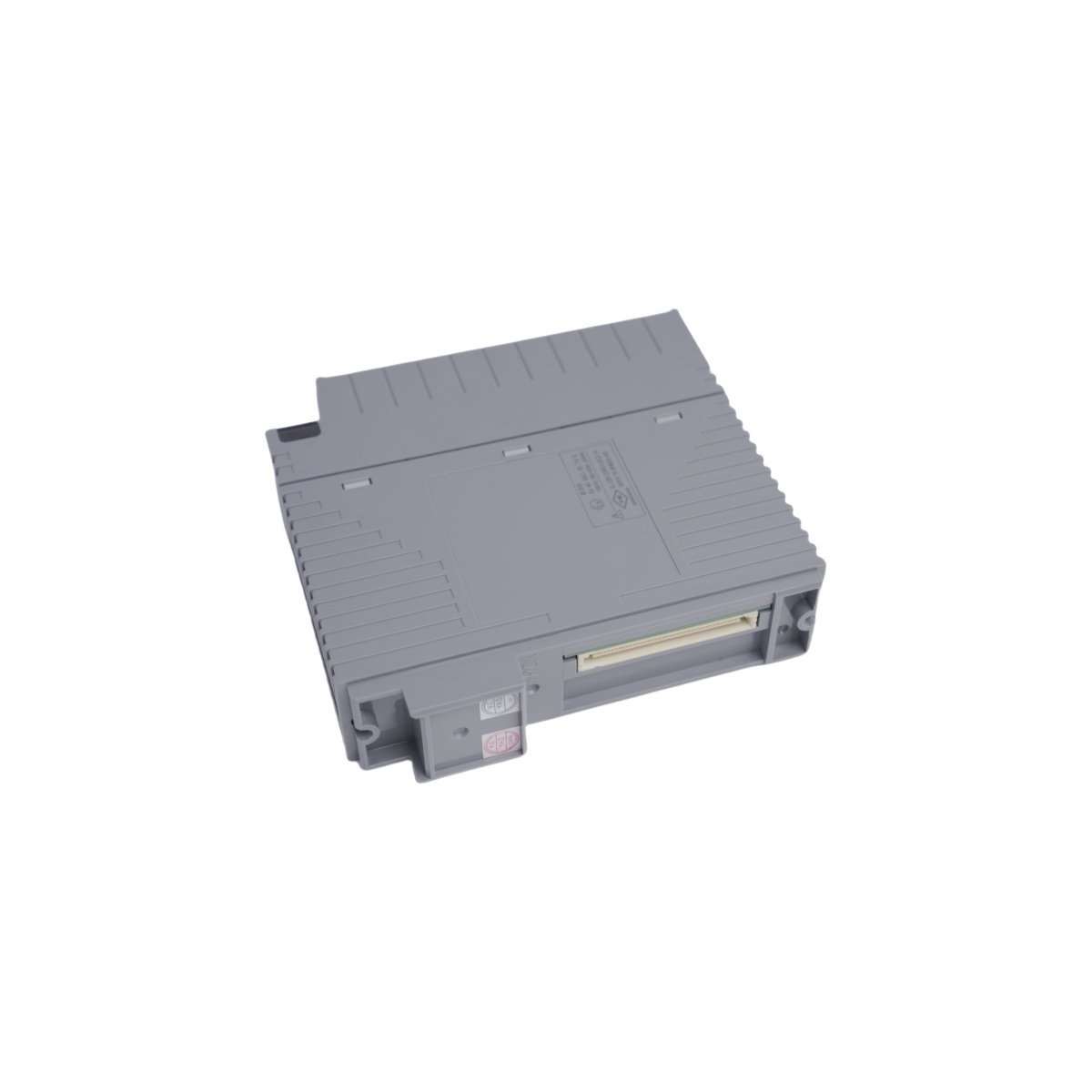

The Yokogawa EC401-50 functions as a critical interface component within the Extended Single Bus (ESB) architecture of the CENTUM VP and other distributed control systems. This module establishes reliable communication pathways between Field Control Units (FCUs) and remote Node Units. By utilizing high-speed digital signal transmission, the EC401-50 ensures real-time data synchronization across expansive process automation networks, thereby maintaining system-wide control consistency.

Technical Characteristics

• Integration: Enables seamless connectivity with FIO (Fieldbus I/O) units, supporting various control station configurations including AFV30S and AFV40D series

• Signal Integrity: Incorporates advanced galvanic isolation to protect internal circuitry against electrical noise, transient surges, and ground loop interference

• Environmental Durability: Engineered to maintain operational stability within a wide temperature range, allowing for deployment in demanding industrial settings

• Structural Design: Features a compact, modular form factor suitable for standard DIN-rail mounting, which optimizes limited cabinet space

• Compliance: Adheres to international safety and quality standards, ensuring rigorous performance metrics in mission-critical applications

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: EC401-50

• Product Category: ESB Bus Coupler Module

• System Compatibility: Yokogawa CENTUM Series

• Dimensions: 3.1 cm x 12.5 cm x 13 cm

• Weight: 0.2 kg

• Harmonized System (HS) Code: 8537101190

• Operating Status: Active

Operational Application

Control engineers deploy the EC401-50 to bridge the gap between primary controllers and secondary I/O nodes. Because the module manages complex data packets efficiently, it effectively reduces latency in control loops, which is essential for precise process management in chemical, petrochemical, and power generation sectors. Furthermore, its robust design facilitates straightforward maintenance, as the unit allows for quick identification of communication faults. By installing this module, facilities significantly enhance the reliability of their distributed architecture while simultaneously ensuring long-term operational continuity.
