Description

Technical Overview and Functional Utility

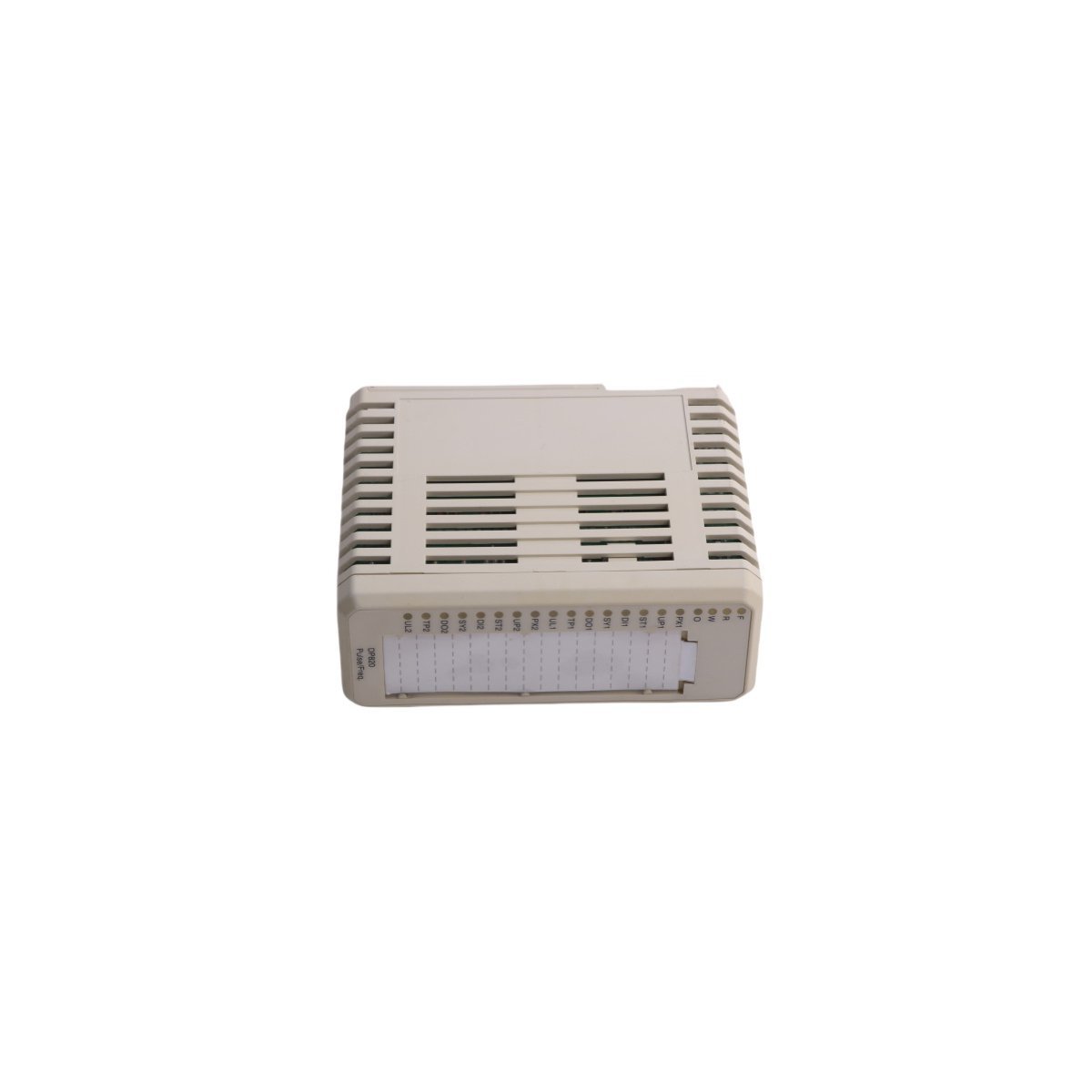

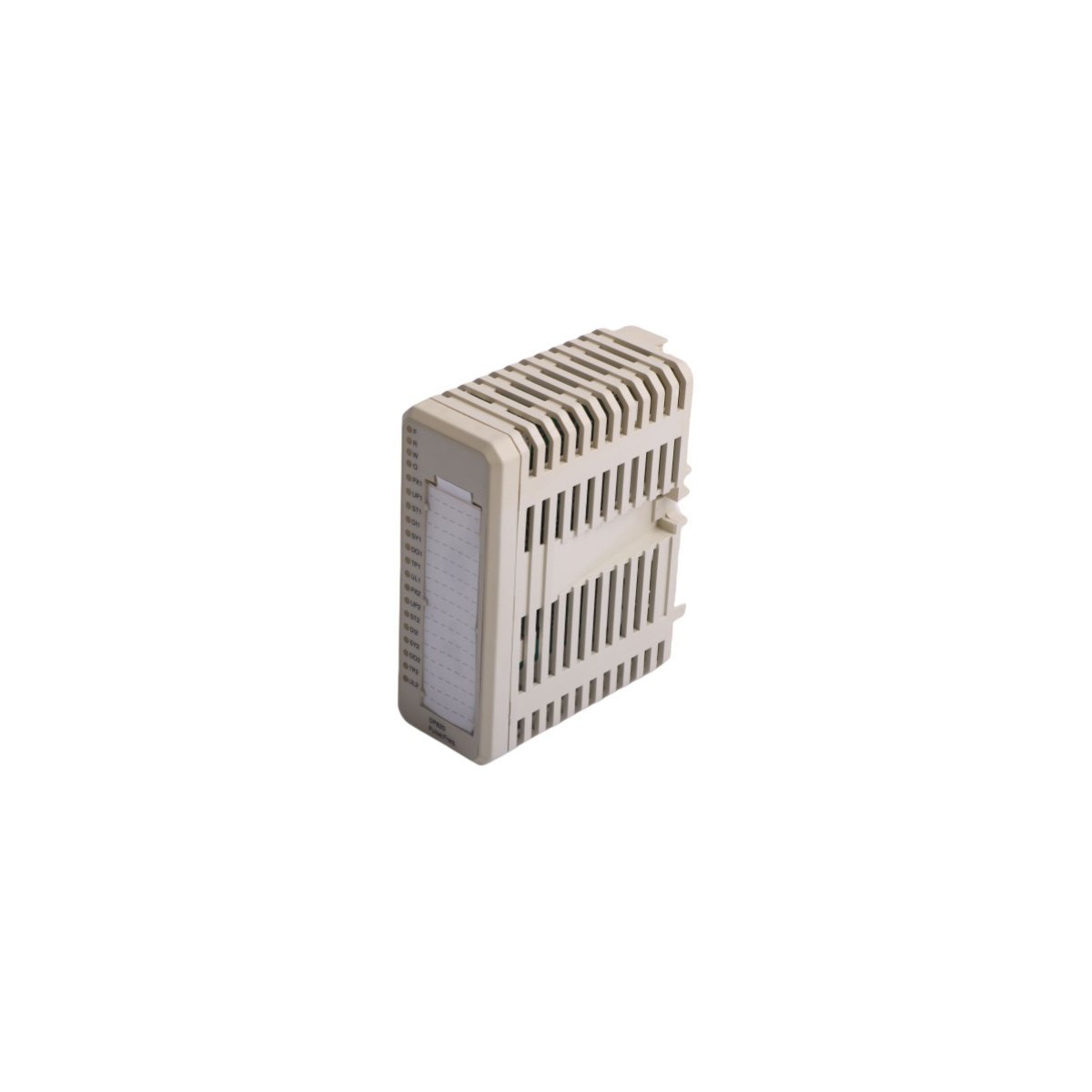

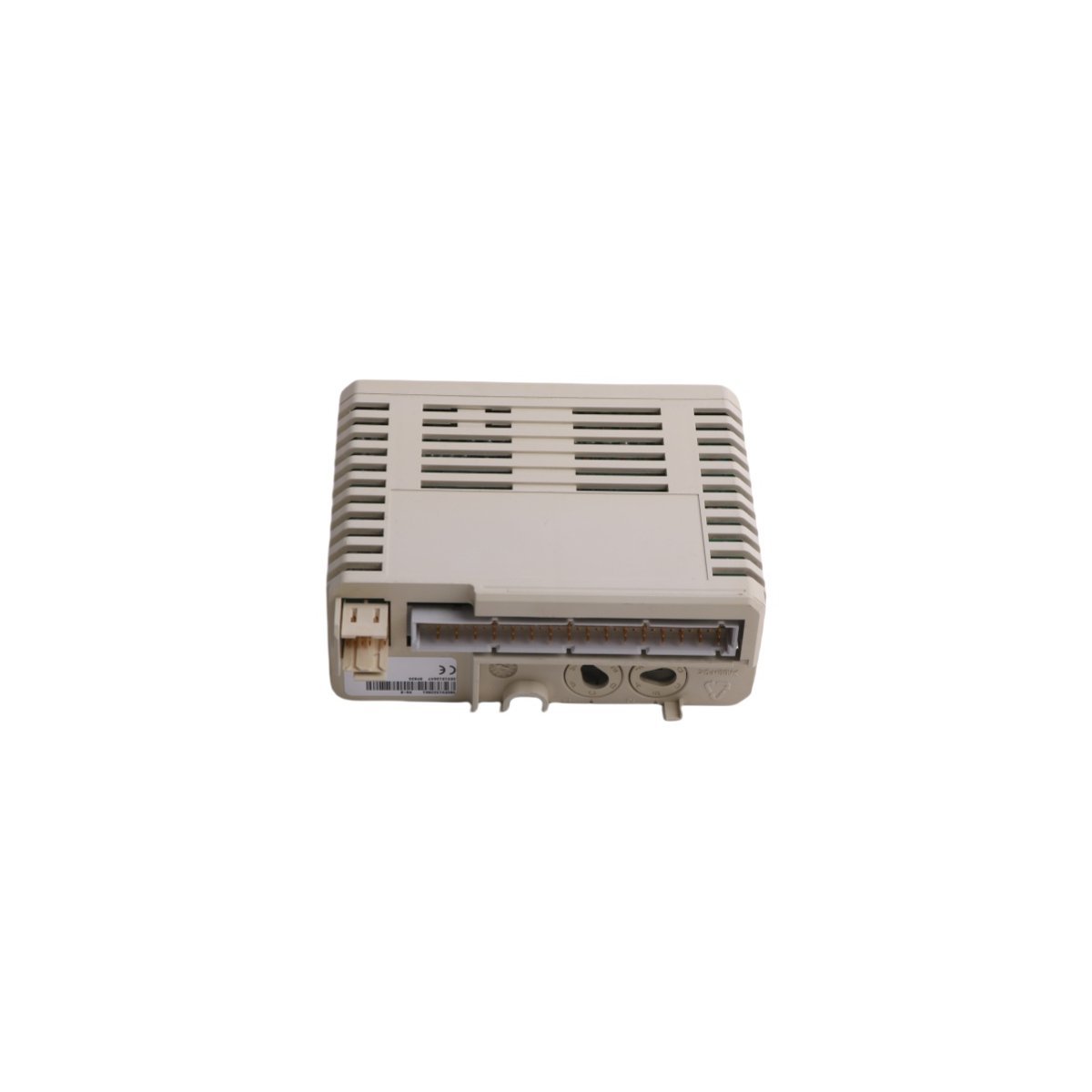

The ABB DP820, designated by part number 3BSE013228R1, serves as a high-speed pulse counting interface within the S800 I/O family. This module specifically targets applications requiring precise position sensing and frequency measurement by processing differential signals via the RS-422 standard. Because it supports two independent counter channels, the unit efficiently monitors quadrature encoders or high-frequency pulse trains from flow meters and speed sensors. Furthermore, the hardware performs internal signal filtering to eliminate electrical noise, ensuring that the central controller receives only accurate, debounced data. Consequently, engineers rely on the DP820 to maintain tight synchronization in motion control and process monitoring systems.

Hardware Architecture and Environmental Resilience

ABB constructs the DP820 with a compact, modular form factor that snaps directly onto a DIN rail via the appropriate terminal base. This design allows for high-density cabinet layouts while simplifying the wiring process. Beyond its physical convenience, the module features robust galvanic isolation between the field inputs and the internal system bus. This protection prevents high-voltage transients from damaging the broader DCS network. Additionally, the unit operates reliably across a broad temperature spectrum, which makes it suitable for decentralized installation in harsh industrial environments. Therefore, the DP820 significantly reduces the risk of hardware failure and extends the overall maintenance intervals of the automation suite.

System Integration and Operation

The DP820 integrates seamlessly into the ABB Ability™ System 800xA and other DCS architectures through the standard ModuleBus interface. Once installed, the system software automatically recognizes the module, which streamlines the configuration of counting modes, such as up/down counting or period measurement. Moreover, the RS-422 differential interface provides superior noise immunity over long cable runs compared to single-ended signals. As a result, this module acts as a vital bridge between high-speed field instruments and the logic layer. By providing real-time feedback with minimal latency, the DP820 optimizes resource utilization and boosts the productivity of automated production lines.

Core Specifications

• Manufacturer: ABB
• Series: S800 I/O
• Model Number: DP820
• Order Code: 3BSE013228R1
• Interface Standard: RS-422 (Differential)
• Number of Channels: 2 Channels
• Maximum Frequency: Typically up to 1.5 MHz
• Weight: 0.16 kg
• Dimensions: 4.3 cm x 10.5 cm x 11.8 cm
• Country of Origin: Sweden
