Description

Functional Capabilities and System Role

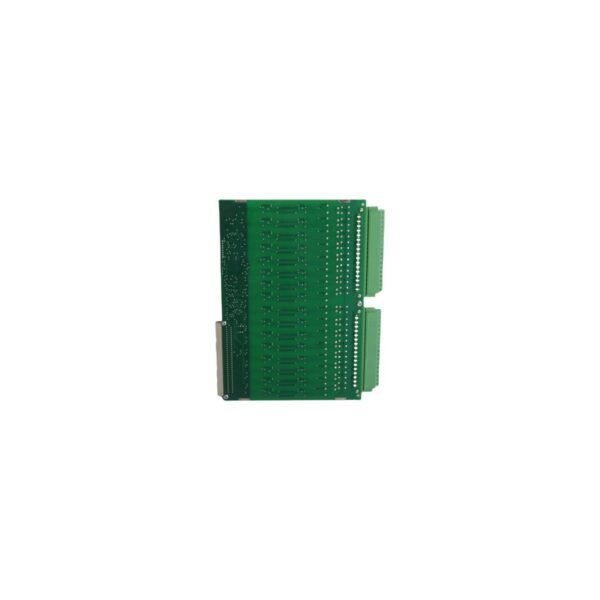

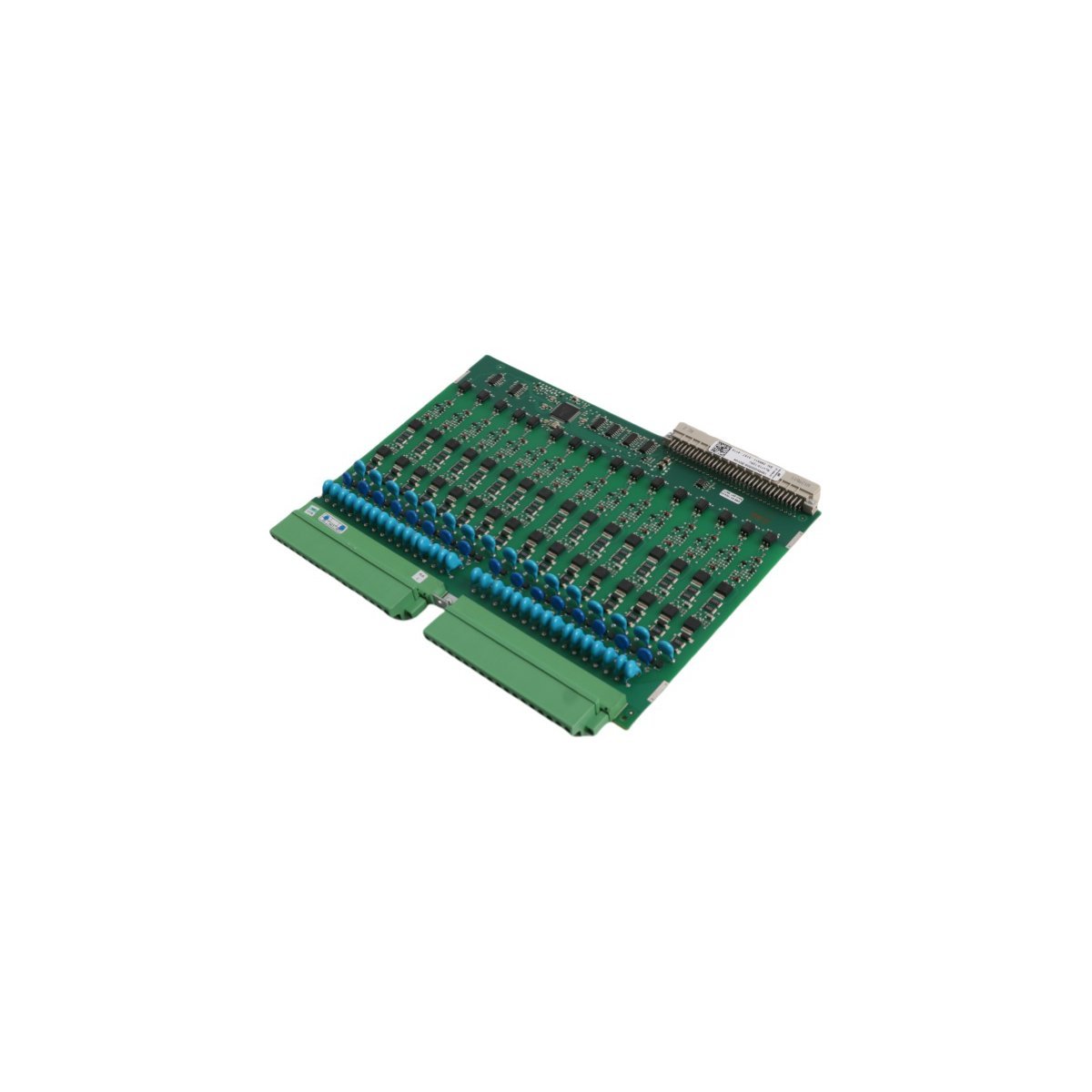

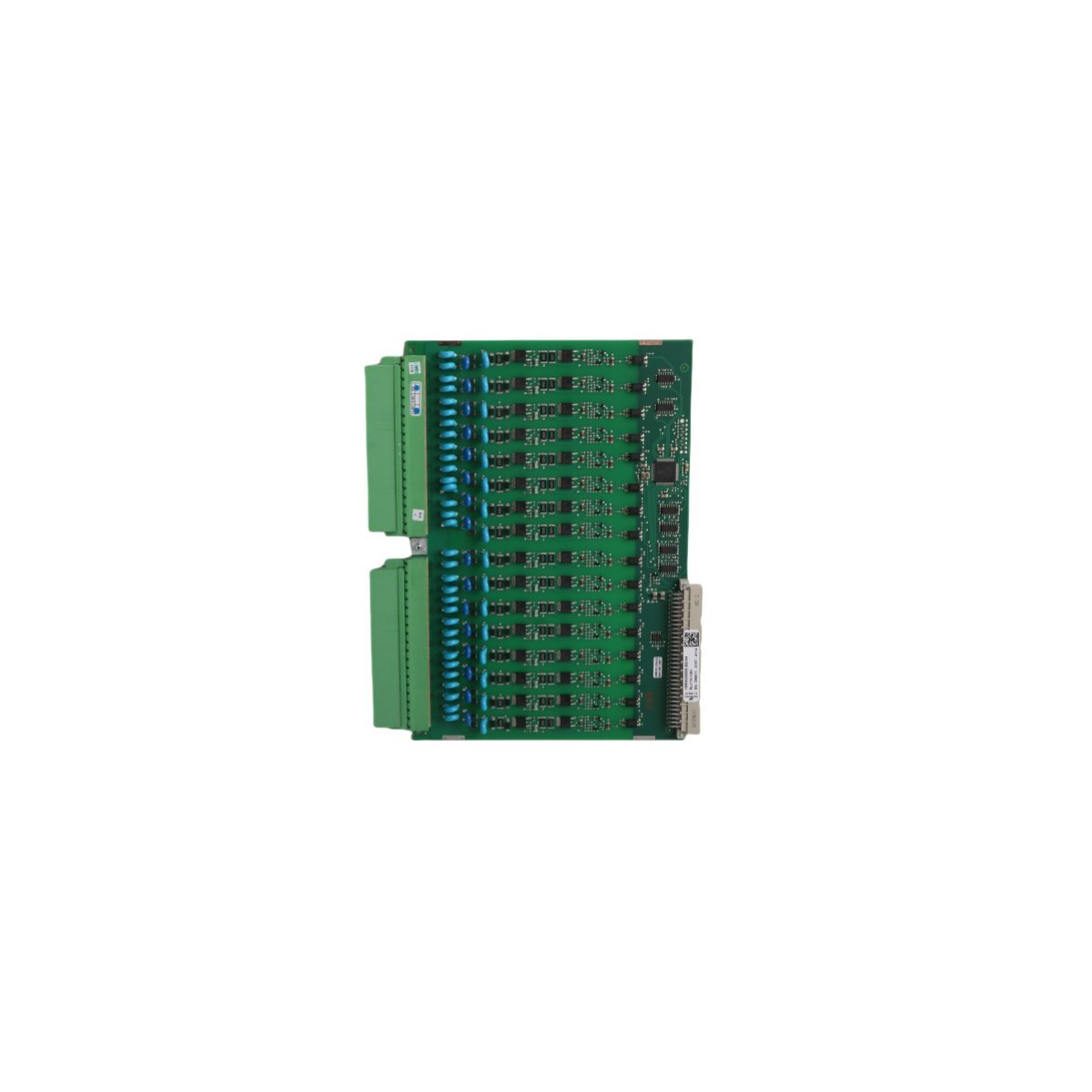

The ABB 1MRK000508-BDR04 functions as a high-tier Advanced PC Board specifically developed for Bay Control Systems and Distributed Control System (DCS) architectures. This module acts as a critical interface for binary signal processing, allowing the system to monitor and capture up to 32 distinct digital inputs with extreme precision. By utilizing a high-speed logic circuit, the board achieves a response time of less than 1ms. Consequently, this rapid processing capability ensures that protective relays and control logic receive real-time data, which is essential for maintaining grid stability and equipment safety.

Technical Design and Environmental Durability

Engineered to operate in demanding power generation and industrial environments, the 1MRK000508-BDR04 features a robust hardware build that withstands significant thermal stress. The unit maintains full operational integrity across a temperature gradient from -25°C to +60°C. Furthermore, the board utilizes a low-power architecture, consuming a maximum of only 1.5W during peak operation. This efficiency minimizes heat generation within the control cabinet, thereby extending the MTBF (Mean Time Between Failures) for adjacent electronic components. The aluminum-reinforced chassis and secure terminal block connections also simplify the integration process while providing superior mechanical protection against vibration.

Integration and Application Scope

Because this module supports a versatile input voltage range of 12V to 24V DC, it integrates seamlessly into a variety of legacy and modern automation frameworks. The 1MRK000508-BDR04 communicates via standardized backplane protocols, often serving as a bridge for Ethernet router services and complex substation automation tasks. Moreover, the board’s design prioritizes easy maintenance, allowing technicians to perform diagnostics or wiring adjustments with minimal system downtime. These features make it an indispensable asset for utility providers and large-scale manufacturing plants that require localized bay control and reliable binary input management.

Technical Specifications

• Brand: ABB
• Model Number: 1MRK000508-BDR04
• Module Type: Advanced PC Board / Binary Input Module
• Application: Bay Control Systems / DCS
• Input Capacity: 32 Channels
• Logic Response Time: < 1ms
• Operating Voltage: 12 – 24V DC
• Power Consumption: 1.5W Maximum
• Weight: 0.46 kg
• Dimensions: 23.2 cm x 18.8 cm x 2 cm
• Manufacturing Origin: Sweden
