Description

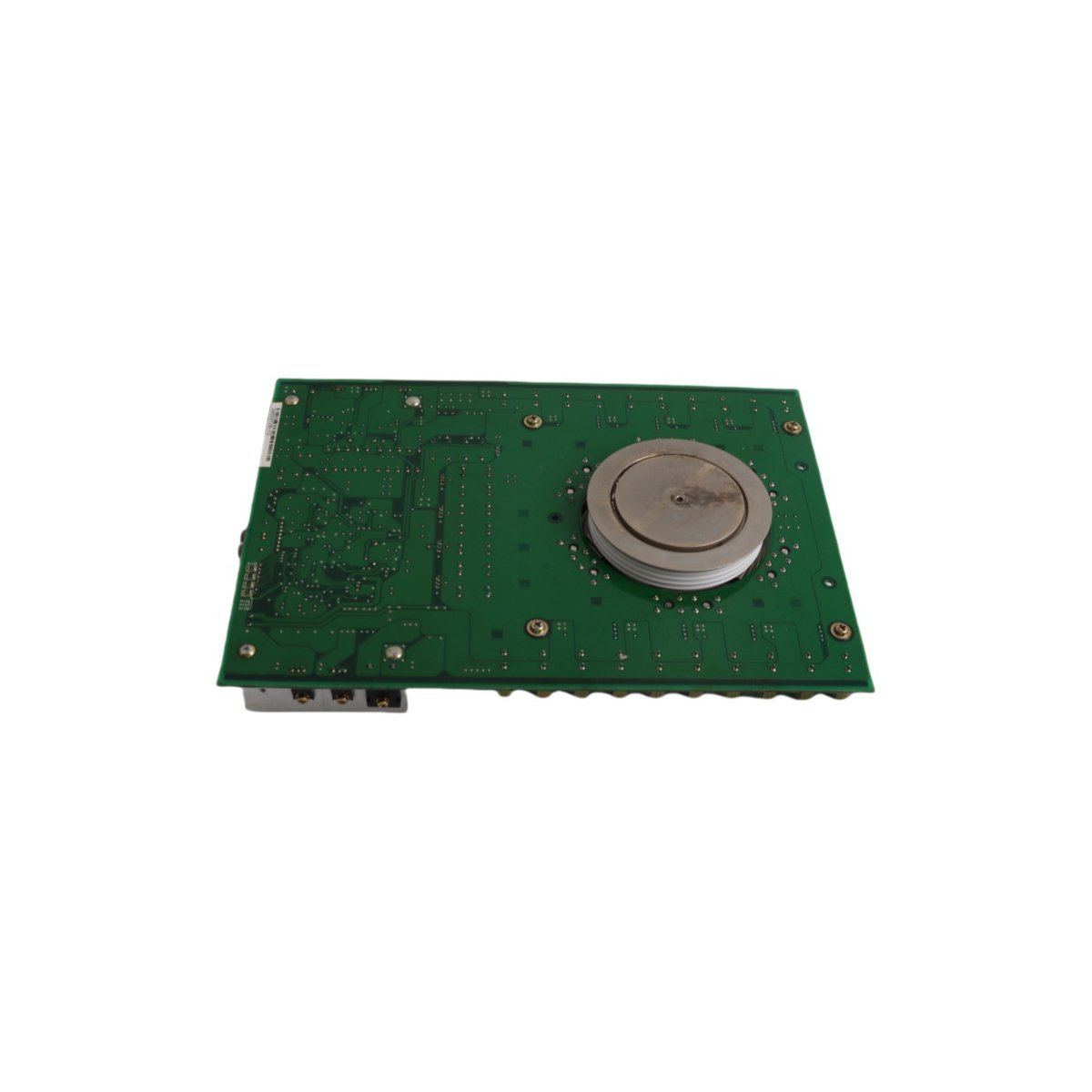

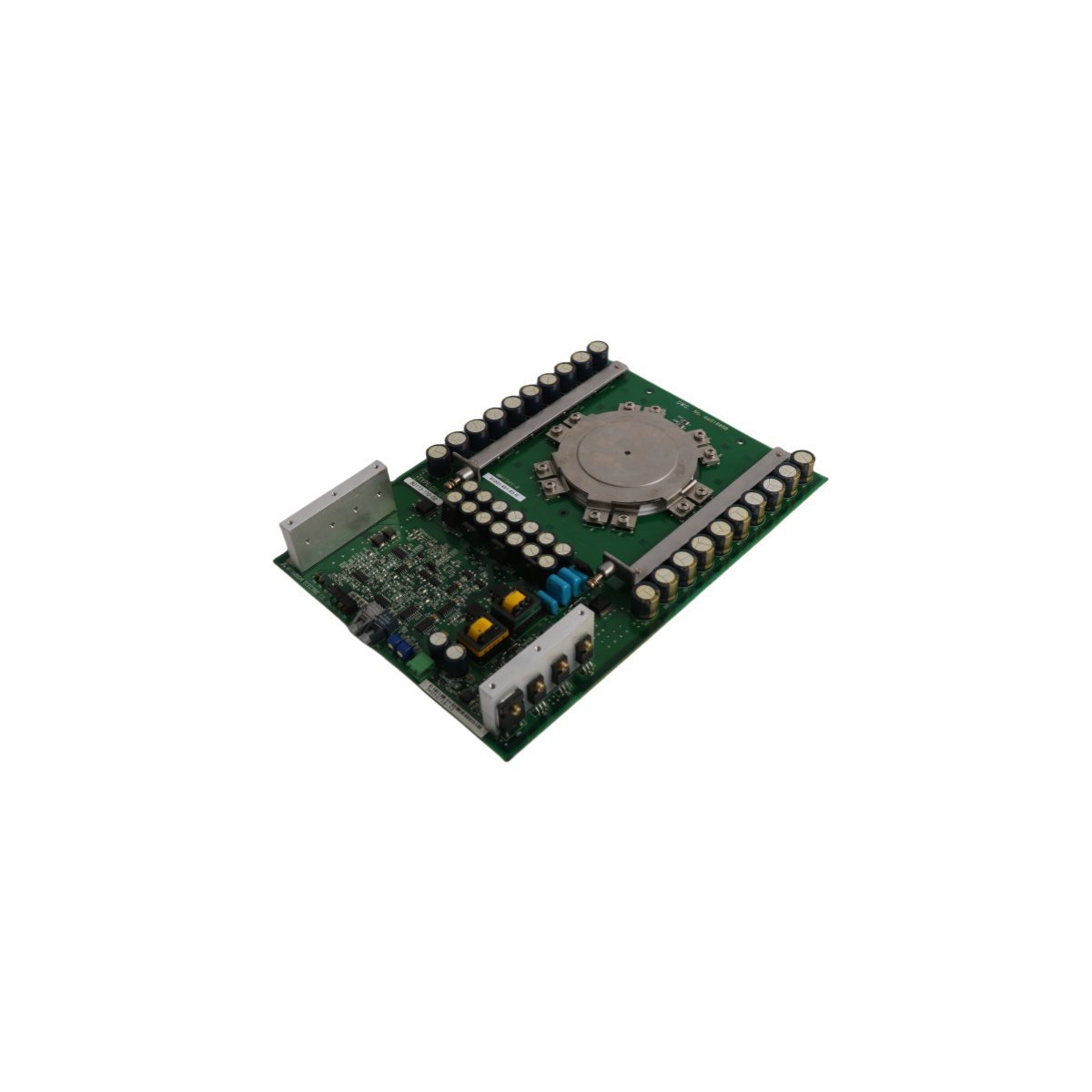

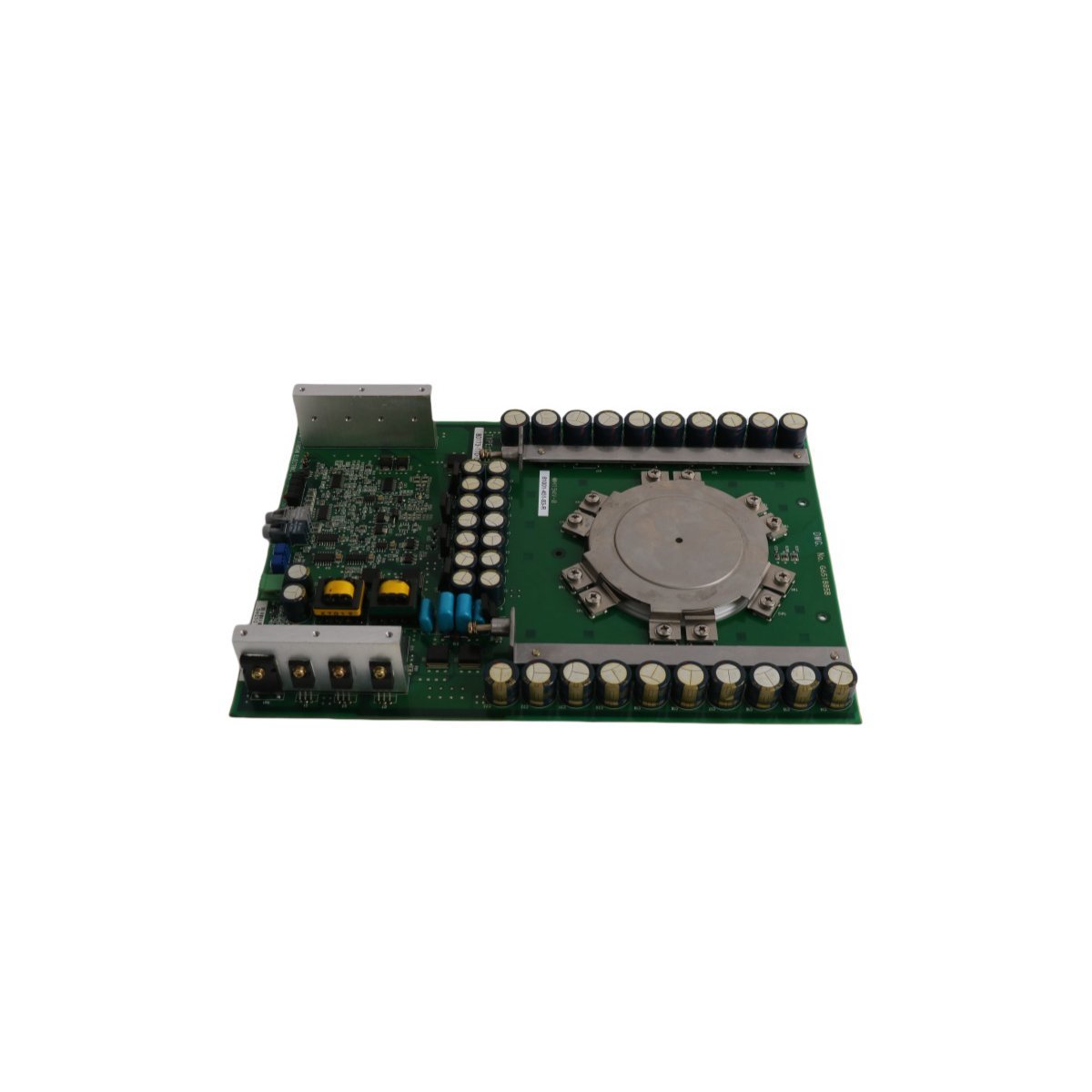

The Allen Bradley 81001-451-62-R, also cataloged as the 81001-451 1500 Amp SGCT Matched Set, operates as a dedicated hardware component for high-power semiconductor switching and current commutation within medium voltage drive power structures.

Hardware Specifications

Deterministic Drive Control & Firmware Synchronization

The Allen Bradley 81001-451-62-R matched gate-commutated thyristor set is matched to maintain precise turn-on and turn-off conduction profiles across medium voltage drive power bridges. Operating within EtherNet/IP deterministic networks and high-speed control loops, the semiconductor assembly relies on exact switching synchronization to protect the main power bus against phase imbalance. Backplane bus communication velocity and matched gate characteristics ensure zero delay during high-current pulses, maintaining I/O density scaling and firmware flash compatibility across drive controller revisions.

Frequently Asked Questions

Q: Why must SGCT components be installed as a factory-matched set?

A: Matched sets share identical forward voltage drops and gate trigger threshold dynamics, preventing unequal current distribution and thermal runaways across parallel power paths.

Q: What precautions should be taken regarding gate driver connection integrity?

A: Low-impedance gate connections must be securely fastened to prevent gate voltage drop or signal noise, which can result in incomplete turn-on or misfiring during high 1500 A conduction cycles.

Field Installation Guidelines

• Surface Preparation and Thermal Compound Application: Thoroughly clean all semiconductor heatsink mounting surfaces with isopropyl alcohol. Apply a thin, uniform layer of thermal conductive compound across the contact surface to ensure optimal heat dissipation into the drive heatsink assembly.
• Clamping Force and Mechanical Assembly: Use a calibrated torque wrench or specialized spring clamp mechanism to apply the exact clamping force specified by the drive manufacturer. Uneven pressure distribution can damage internal silicon wafers or cause thermal failure under full load.
• Gate Wiring Isolation and Routing: Route gate drive control leads separately from main 1500 A power conductors. Ensure gate wiring is twisted and shielded to suppress electromagnetic interference from neighboring high-power switching circuits.
