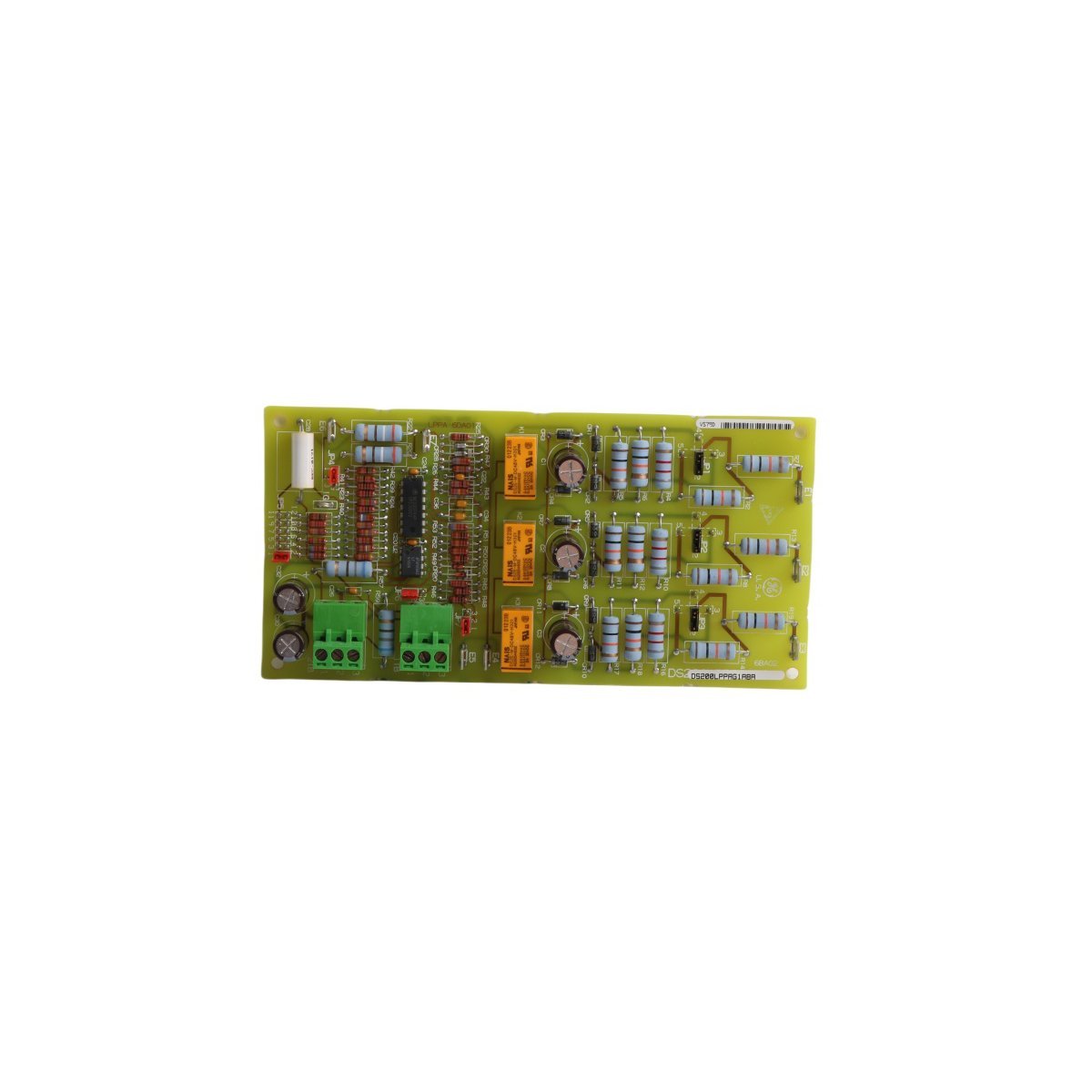

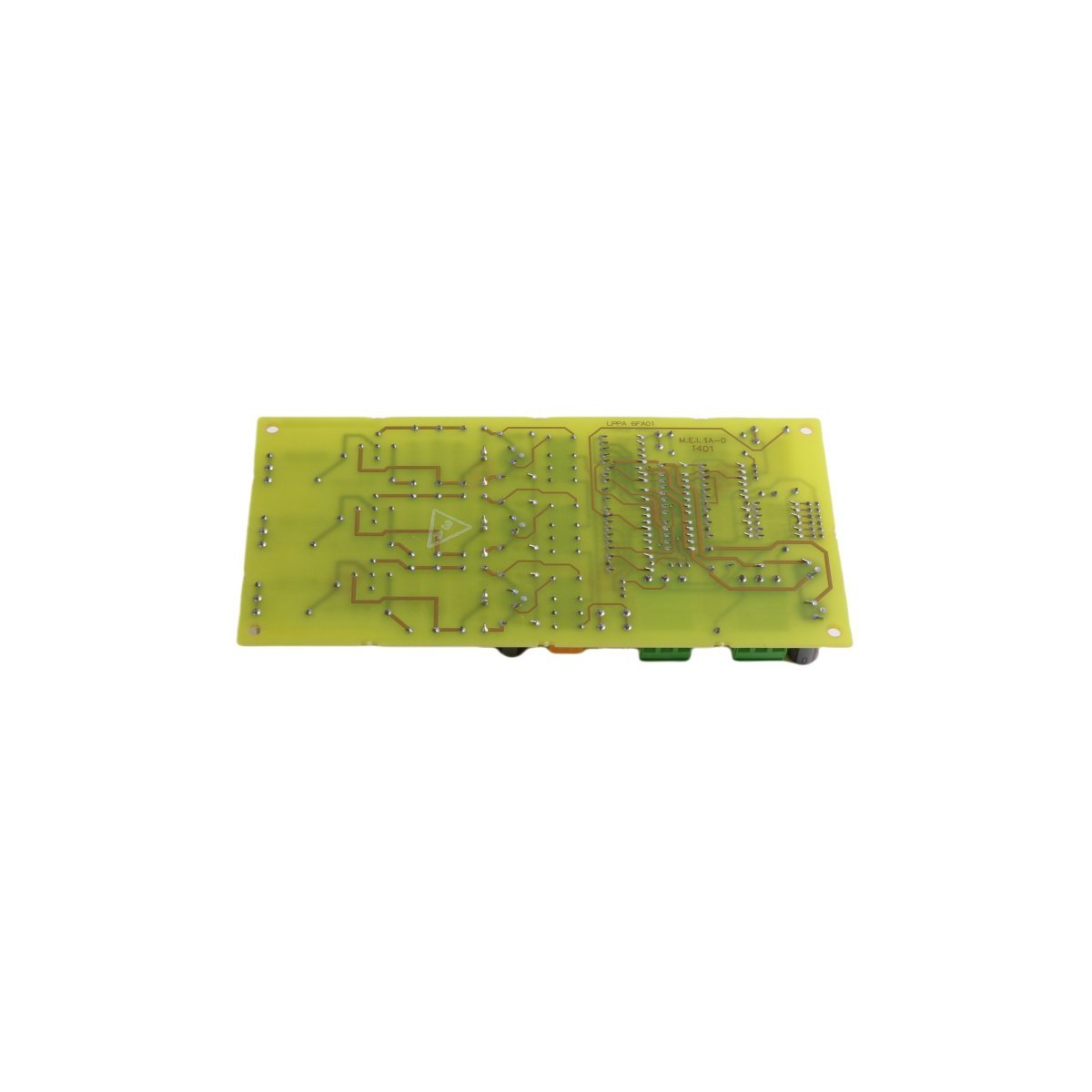

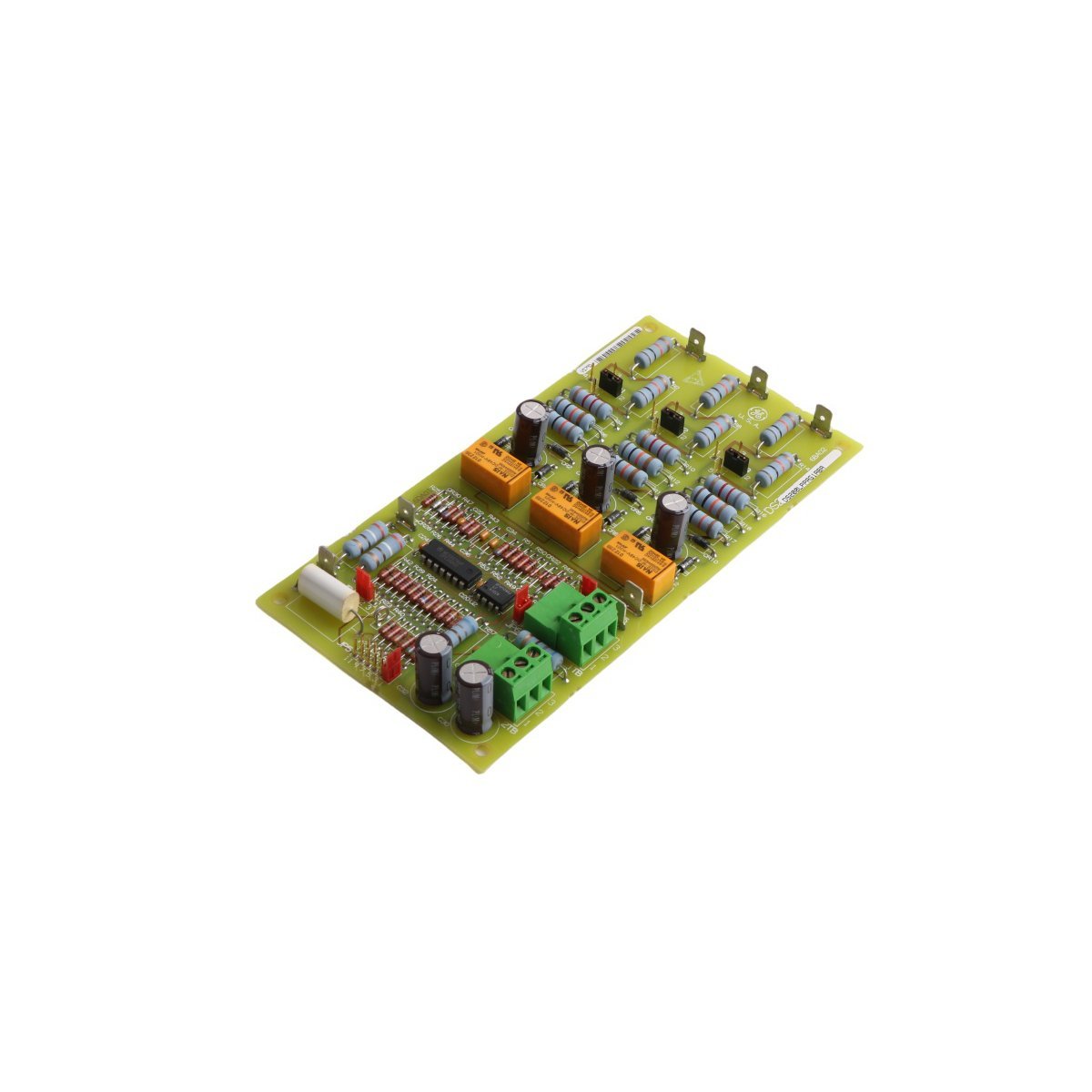

GE Fanuc DS200LPPAG1A Mark V Line Protection Card
Description
Configured for power line surge suppression and signal isolation in Mark V turbine control systems, the GE Fanuc DS200LPPAG1A (DS200LPPAG1) Line Protection Card provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200LPPAG1A |
| Brand | GE Fanuc |
| Product Series | Mark V |
| Module Type | Line Protection Card |
| Origin | USA |
| Weight | 0.14 kg |
| Dimensions | 17.7 x 8.8 x 2.5 cm |
| Power Consumption | Passive transient protection board |
| Operating Temp | 0 to 60 deg C |
| Functional Revision | Revision A (A-rated) |
| HS Code | 8537101190 |
Deterministic Signal Protection and Backplane Compatibility
The DS200LPPAG1A integrates passive suppression networks consisting of diodes, capacitors, and jumper blocks (JP1 through JP7) to attenuate overvoltage spikes and high-frequency noise transients before they enter primary control circuitry. The board maintains signal isolation without degrading backplane bus communication velocity or interfering with real-time turbine control execution loops.
The protective conformal coating on the board assembly shields underlying surface-mount traces against moisture and particulate buildup, sustaining electrical isolation thresholds across adjacent processing nodes in the Mark V rack assembly.
Frequently Asked Questions
Q: What function do jumpers JP1 through JP7 perform on the DS200LPPAG1A board?
A: Jumpers JP1 through JP7 configure circuit routing and hardware scaling options for line protection and test point signal taps across the board.
Q: Is the DS200LPPAG1A a direct replacement for the base DS200LPPAG1 card?
A: Yes. The DS200LPPAG1A incorporates an A-rated functional revision, providing backward compatibility with the base DS200LPPAG1 board layout within Mark V control cabinets.
Field Installation Guidelines
- Power down the Mark V cabinet power distribution bus and disconnect main feed breakers before servicing the card.
- Wear a grounded wrist strap attached to the metal enclosure frame to prevent electrostatic discharge (ESD) damage during handling.
- Remove the existing board by unthreading the retaining screws from the insulated mounting standoff holes.
- Align the DS200LPPAG1A over the standoffs and secure it using standard mounting screws, ensuring the insulating rings remain intact.
- Verify jumper settings JP1 through JP7 match the original circuit configuration before reconnecting terminal block wiring.
Additional information
| Weight | 0.14 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 17.7 x 8.8 x 2.5 cm |
