Description

Product Overview

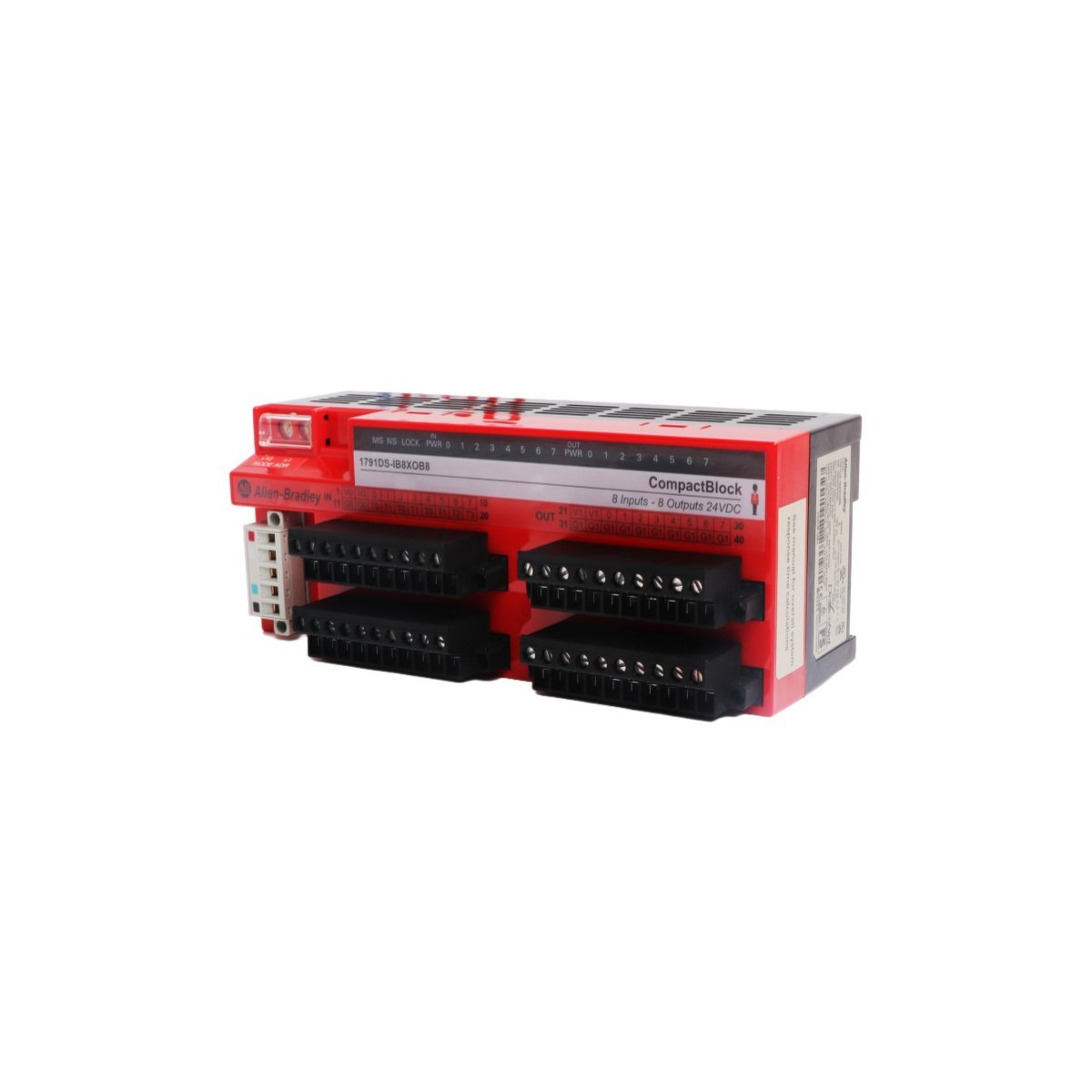

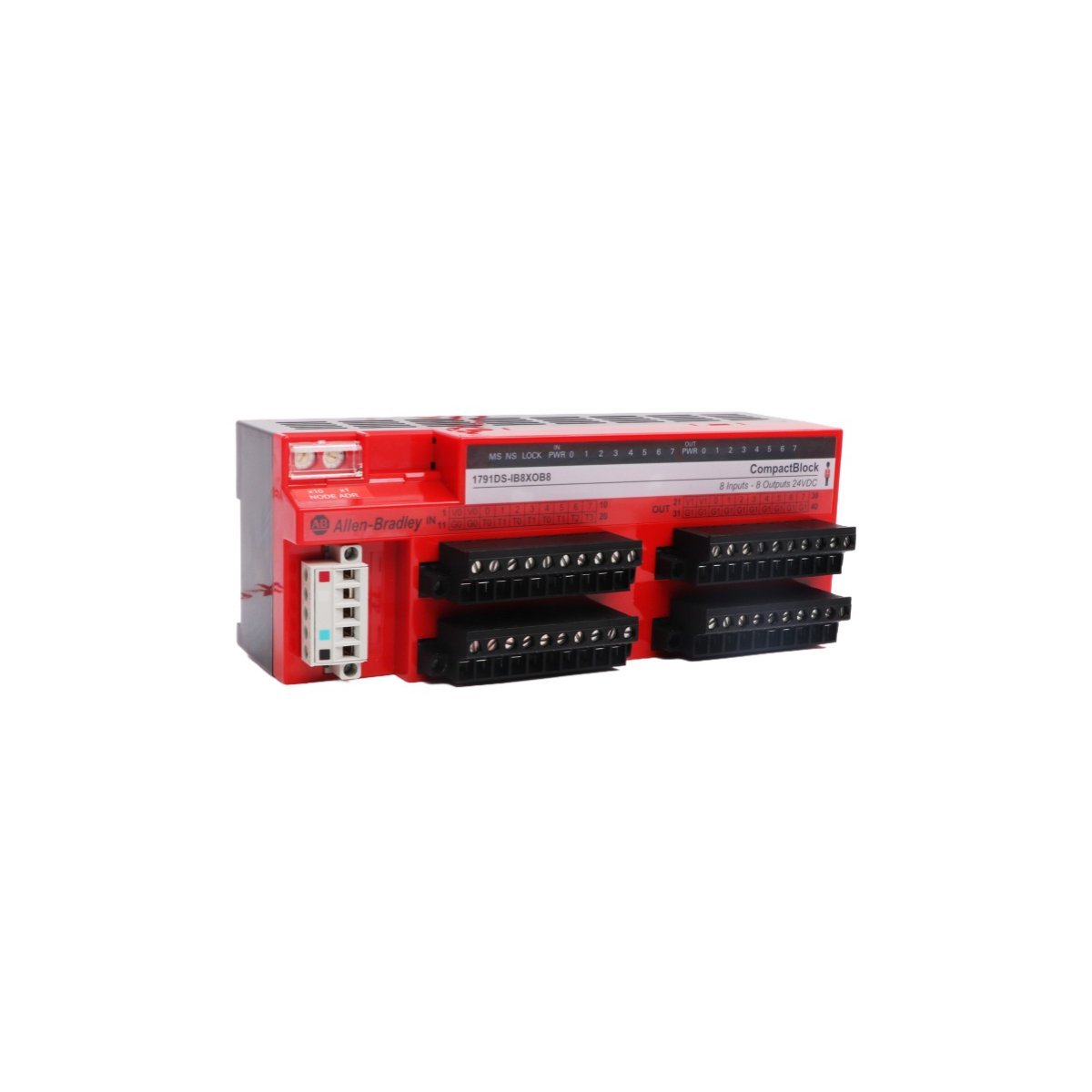

The Allen-Bradley 1791DS-IB8XOB8 serves as a critical component in safety-instrumented systems, providing decentralized safety I/O via the DeviceNet network. This compact combination module integrates 8 safety-rated digital inputs and 8 safety-rated digital outputs alongside 4 pulse test outputs. Because it complies with SIL 3, PLe, and Category 4 safety standards, engineers specify this module for high-risk applications where machine monitoring and fault detection are essential. The module facilitates seamless communication between safety controllers and field devices, ensuring that safety logic executes reliably across the industrial network.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Model Number: 1791DS-IB8XOB8
• Input Points: 8 Safety Inputs (Sinking)
• Output Points: 8 Safety Outputs (Sourcing, Solid-State)
• Test Outputs: 4 Pulse Test Outputs (used for cross-fault detection)
• Operating Voltage: 24V DC (Range: 20.4–26.4V DC)
• Output Current: 0.5A per point (Sourcing)
• Network Protocol: DeviceNet Safety
• Safety Certification: SIL 3 (IEC 61508), Category 4 (EN 954-1)
• Protection Rating: IP20
• Dimensions: 80 x 196 x 77 mm
• Weight: 0.2 kg

Advanced Safety and Diagnostic Features

The 1791DS-IB8XOB8 utilizes a dual-channel architecture to monitor safety inputs and manage outputs, which allows the system to detect internal and external hardware failures. To enhance fault tolerance, the module includes four test outputs that perform pulse testing on input wiring; this process identifies short circuits and cross-channel faults instantly. Furthermore, the solid-state outputs incorporate overcurrent and short-circuit protection. Because the module performs continuous self-diagnostics, it can transition to a “safe state” immediately upon detecting a discrepancy, thereby protecting personnel and equipment from unpredictable machine behavior.

Environmental Design and Installation

Designed to operate in demanding industrial conditions, this Guard I/O module maintains performance in temperatures ranging from -10°C to +55°C. Its robust housing withstands vibrations up to 5G, making it suitable for mounting directly on or near moving machinery. The module supports standard DIN rail mounting, which simplifies installation in space-constrained electrical cabinets. Additionally, a built-in configuration lock prevents unauthorized modifications to safety parameters, ensuring that the safety system remains tamper-resistant and compliant with local regulatory standards.
