Product Overview

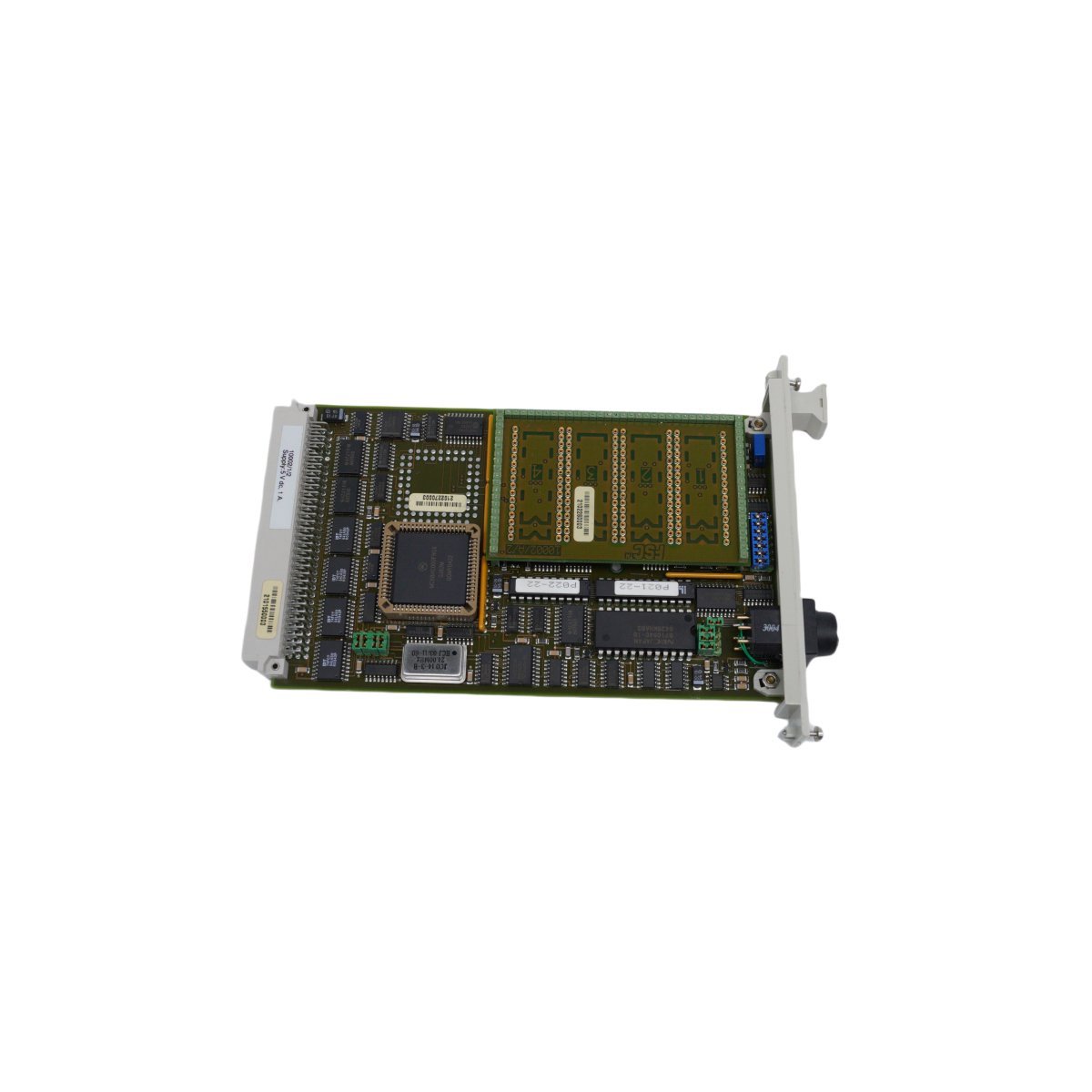

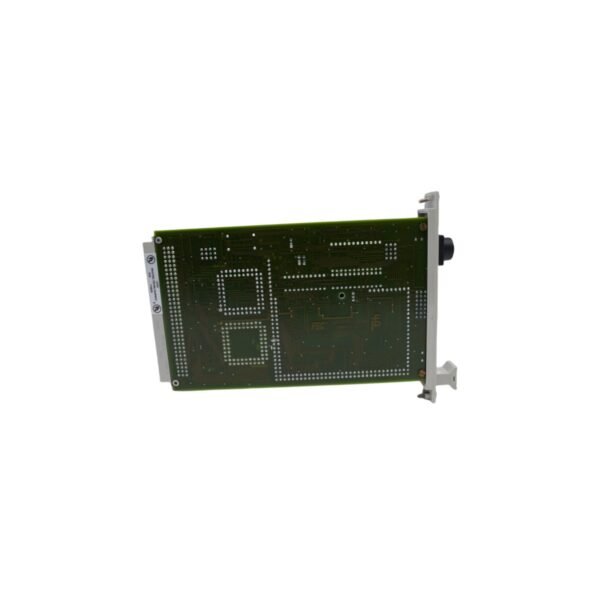

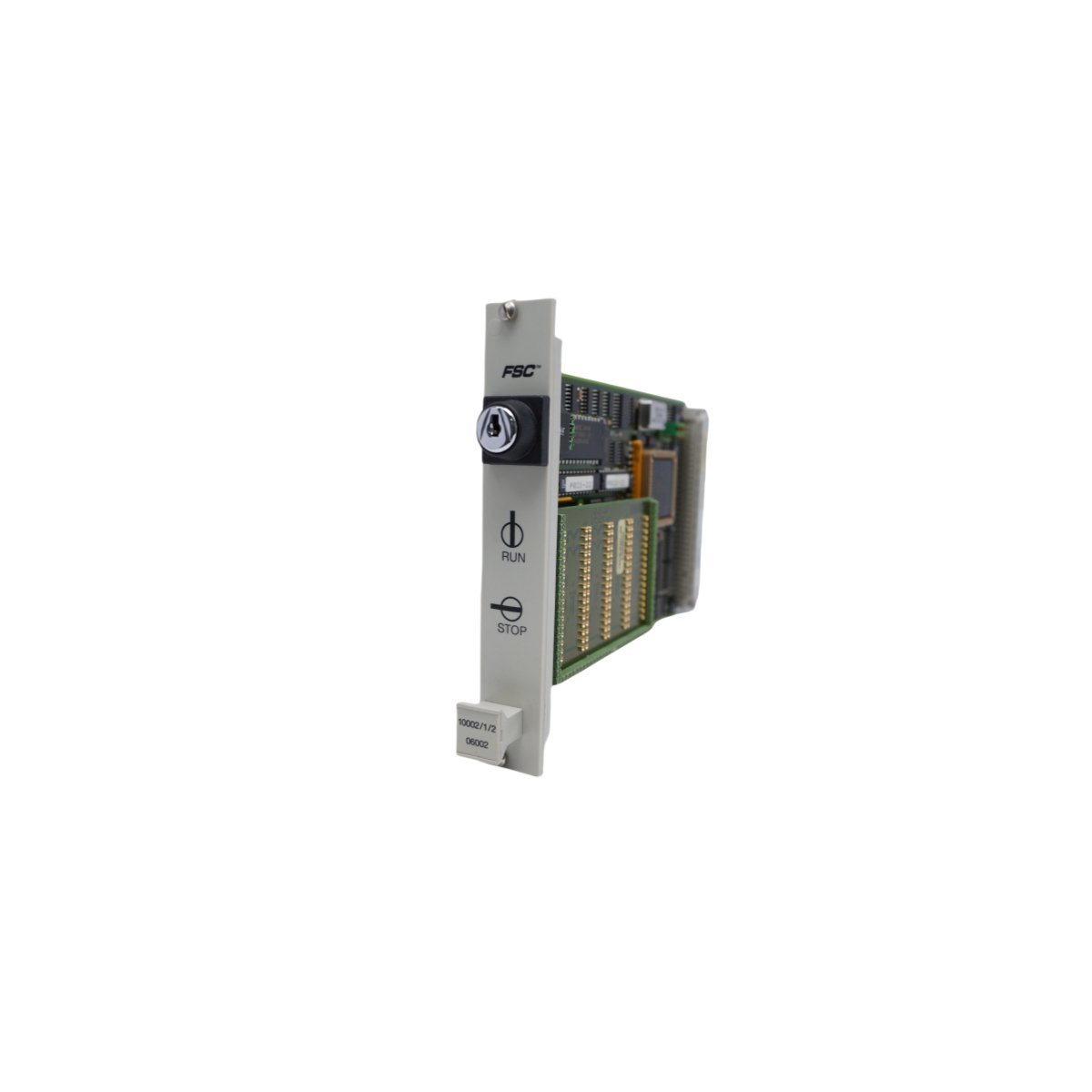

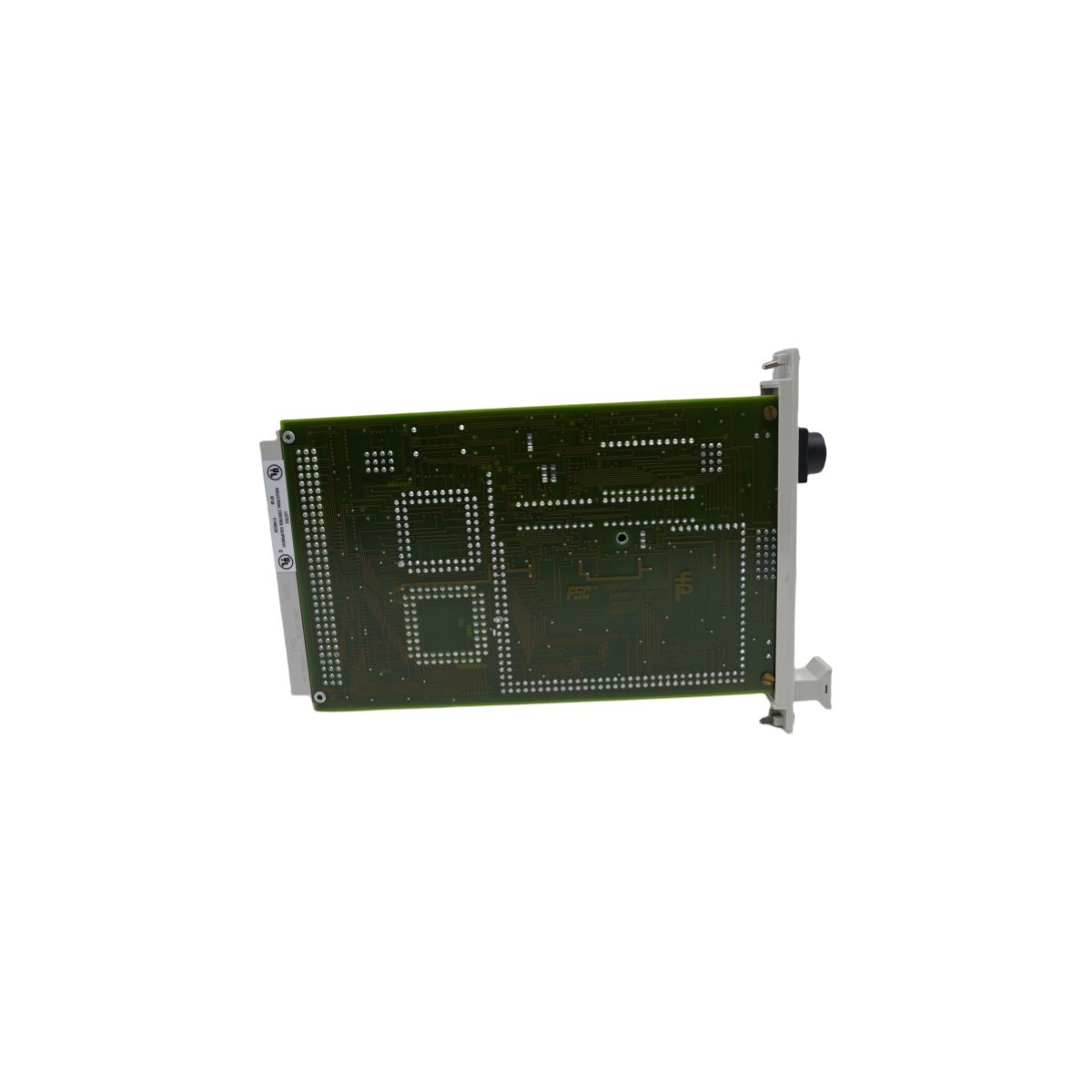

The Honeywell 10002/1/2 is a security-keyed Run-Stop interface designed for the Fail Safe Control (FSC) system. This critical hardware component provides authorized personnel with manual control over system operational states, ensuring that process overrides or halts occur only under strictly regulated conditions.

Security-Driven Operational Control

The 10002/1/2 module functions as a physical security layer for industrial safety systems. By requiring a specific physical key to toggle between “Run” and “Stop” modes, the assembly prevents unauthorized or accidental changes to the logic execution of the Fail Safe Control (FSC) processor. This manual interface remains indispensable during commissioning, emergency shutdowns, and maintenance procedures where software-based commands may be insufficient or restricted. Because the module integrates directly into the FSC rack, it provides a high-integrity signal that the central processor recognizes instantly, allowing for immediate transition into a safe state when the “Stop” position is engaged.

Enhanced System Diagnostics and Reliability

Beyond simple switching, the 10002/1/2 incorporates robust internal circuitry that maintains signal consistency even in electrically noisy environments. The module facilitates real-time status feedback to the Distributed Control System (DCS), enabling operators to monitor the physical position of the key from a remote human-machine interface (HMI). Furthermore, the ruggedized construction of the keyed switch assembly ensures it can withstand the mechanical wear associated with frequent use in manufacturing plants and refineries. This durability minimizes the risk of mechanical failure during critical safety events, reinforcing the overall reliability of the facility’s Emergency Shutdown (ESD) protocols.

Seamless FSC System Integration

Engineered specifically for the legacy and updated versions of the FSC architecture, the 10002/1/2 features a compact form factor that simplifies installation within standard safety racks. The module supports a variety of communication links to the CPU, ensuring that the keyed state is broadcast across the safety network without latency. Transitioning to this keyed solution allows facilities to comply with stringent safety standards that mandate physical lockout/tagout capabilities for control processors. Additionally, the assembly’s design facilitates rapid replacement during maintenance cycles, effectively reducing the time a safety system remains in a bypassed or vulnerable state.

Technical Characteristics
