Description

Brief Product Description

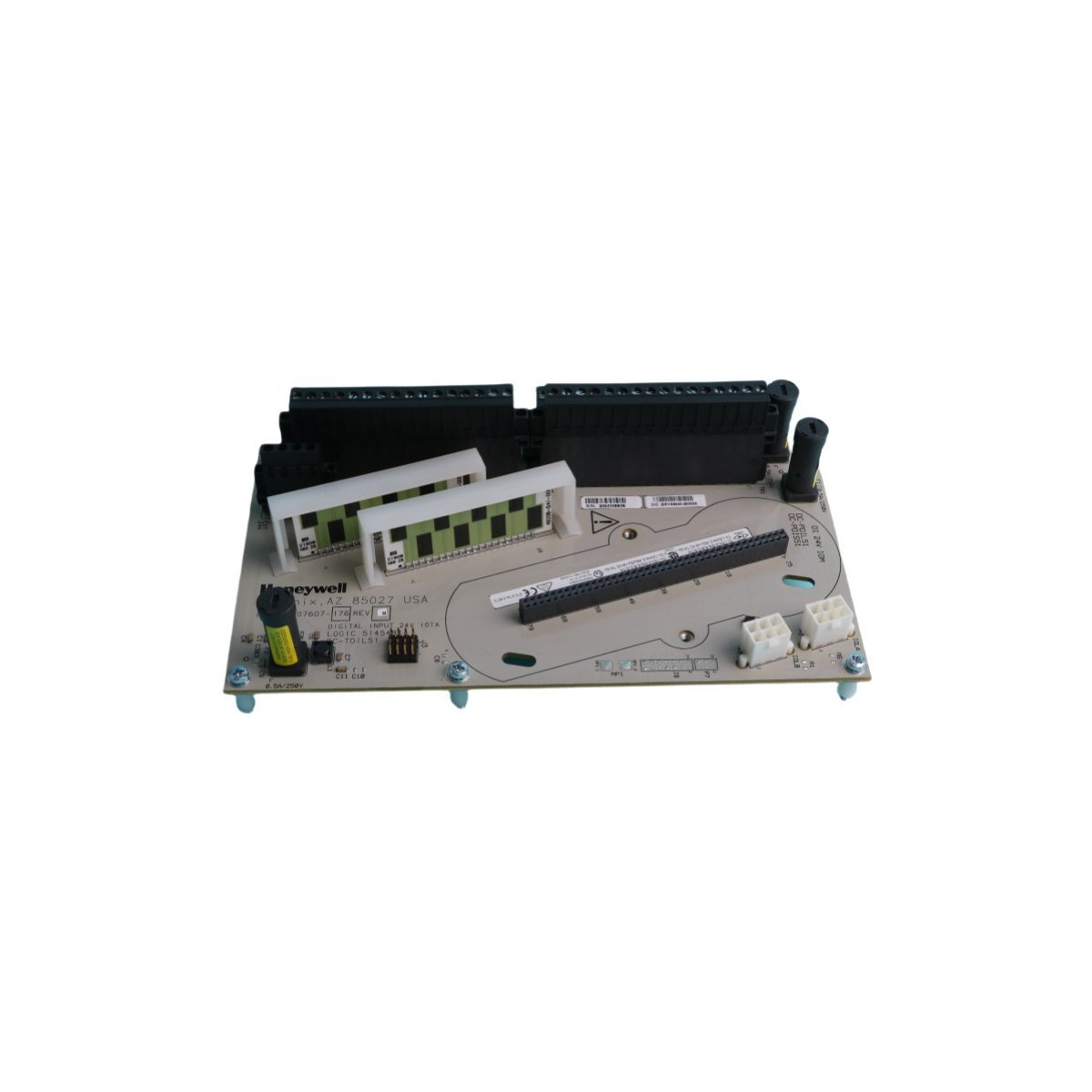

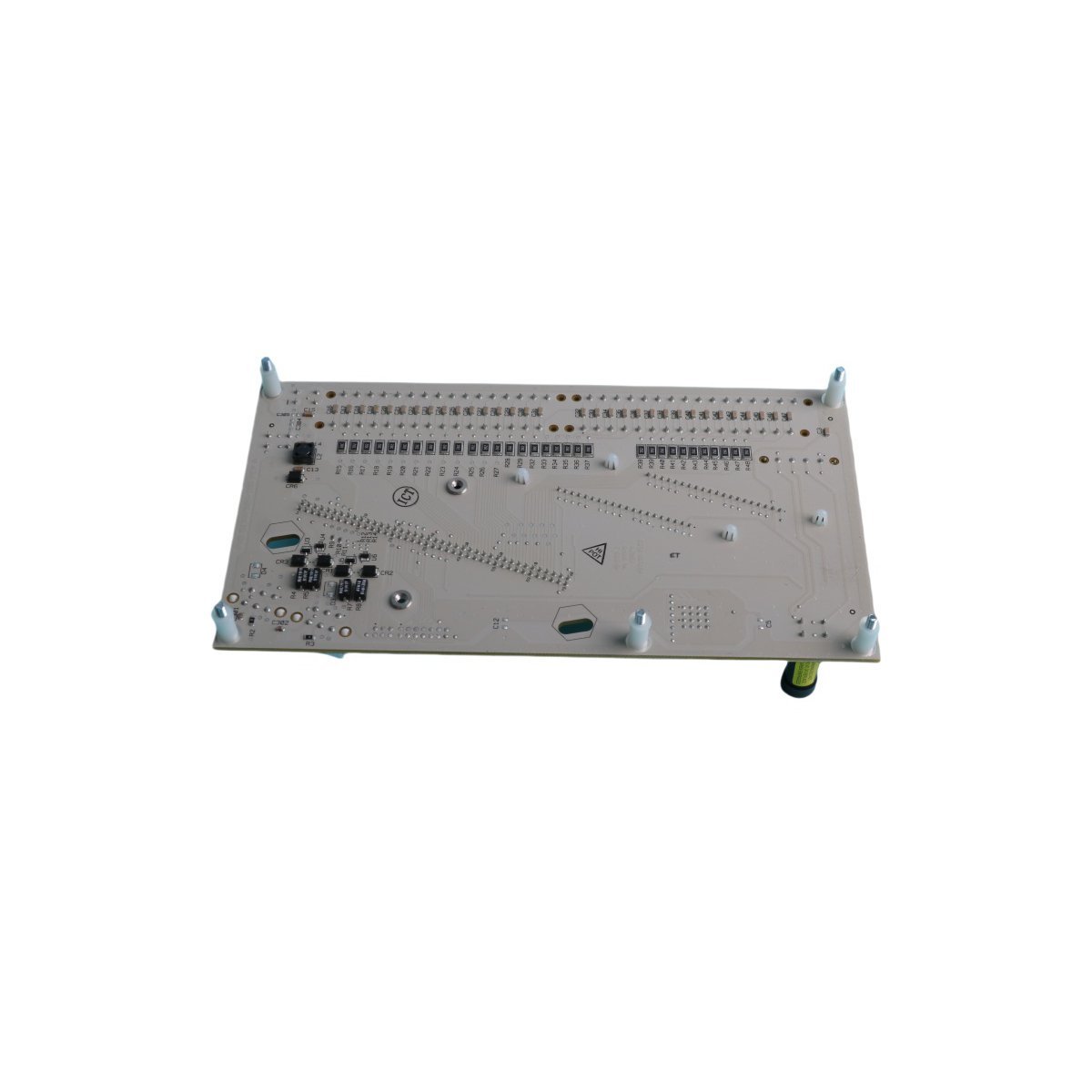

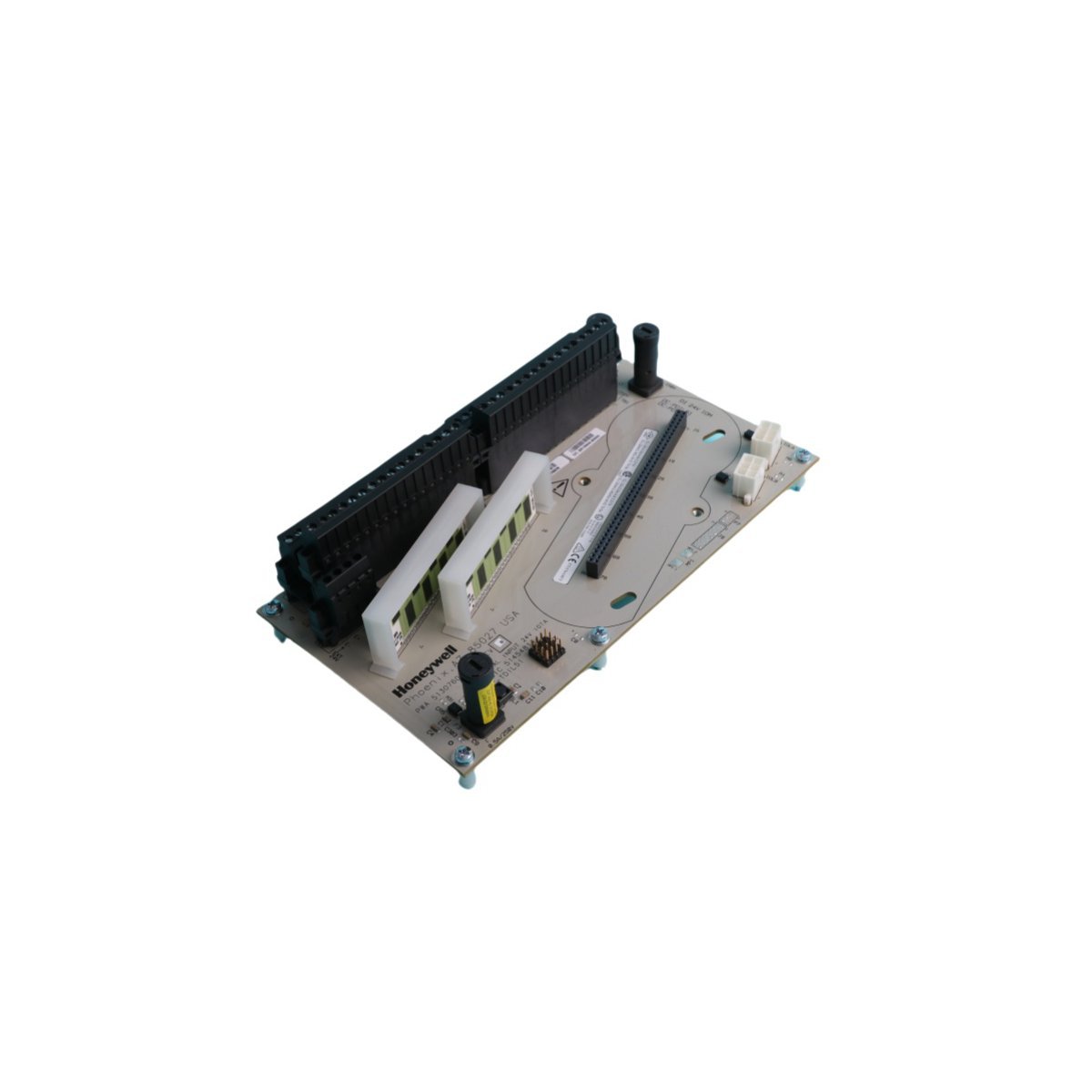

The Honeywell DC-TDOB01 is a high-density 32-channel digital output module for the Experion PKS Series C system, featuring galvanically isolated relay contacts and jumper-selectable Form-A/B configurations. It provides reliable switching for industrial actuators and indicators with integrated EMF protection and high-speed response times.

​Product Description

The Honeywell DC-TDOB01 functions as a high-density control interface within the Experion® PKS (Process Knowledge System) architecture. This module provides 32 channels of digital output, utilizing galvanically isolated dry contacts to drive field devices across both low and high-voltage circuits. By integrating advanced relay technology, the DC-TDOB01 allows for precise command execution in critical environments such as chemical refining, power generation, and oil and gas processing.

Selectable Output Logic and Protection

A significant advantage of the DC-TDOB01 is its internal flexibility, as users can select between Form-A (Normally Open) or Form-B (Normally Closed) relay configurations via hardware jumpers. To ensure longevity and signal stability, Honeywell equipped each channel with EMF snubbing circuits that neutralize inductive kicks from solenoids and motors. Furthermore, the module delivers a standard 24V output at 0.5A per channel, maintaining a rapid 10ms switching speed to support time-sensitive automation sequences.

Innovative Series C Architecture

The DC-TDOB01 adopts the Series C mechanical design, which eliminates the need for separate chassis components by combining module electronics with field termination assemblies. This “tilt-designed” form factor significantly optimizes cabinet space, allowing for higher I/O density without sacrificing thermal management. Because the module mounts vertically, it facilitates natural heat dissipation, ensuring stable performance in ambient temperatures ranging from -40°C to +70°C. Additionally, the system supports redundant configurations, which enhances plant safety by allowing a secondary module to take control instantly if a fault is detected.

Simplified Installation and Maintenance

Maintenance teams benefit from the DC-TDOB01’s user-centric design, which includes socketed relays for easy individual replacement and high-visibility LED status indicators for real-time troubleshooting. The unit utilizes two-level detachable terminal blocks, which drastically reduce wiring complexity and minimize downtime during hardware swaps. Moreover, the module receives necessary field power directly through the IOTA (Input Output Termination Assembly) interface, streamlining the electrical layout and reducing the requirement for external power distribution hardware.

Technical Specification Table
