Description

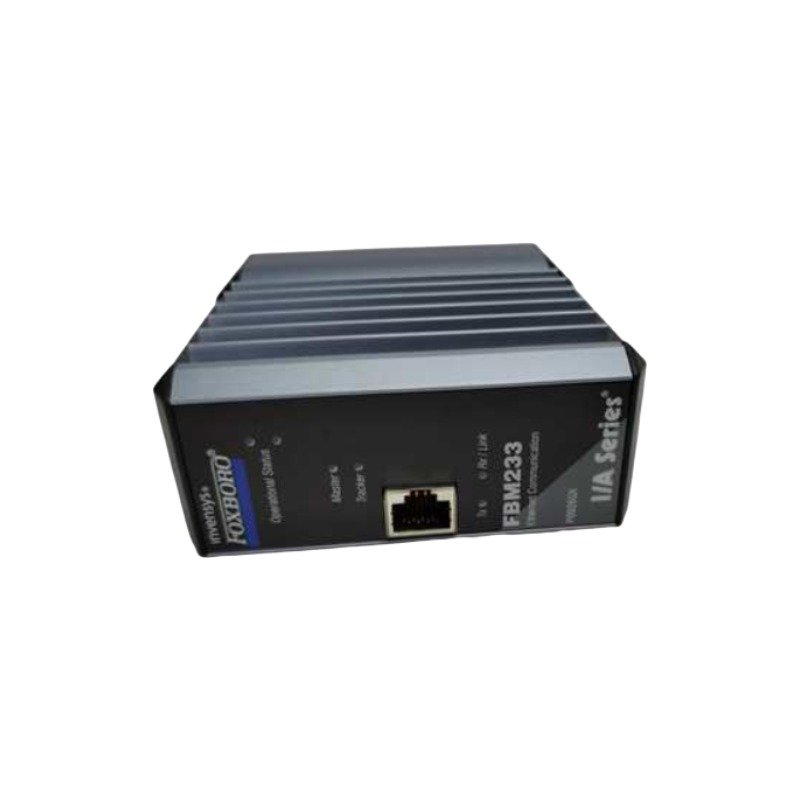

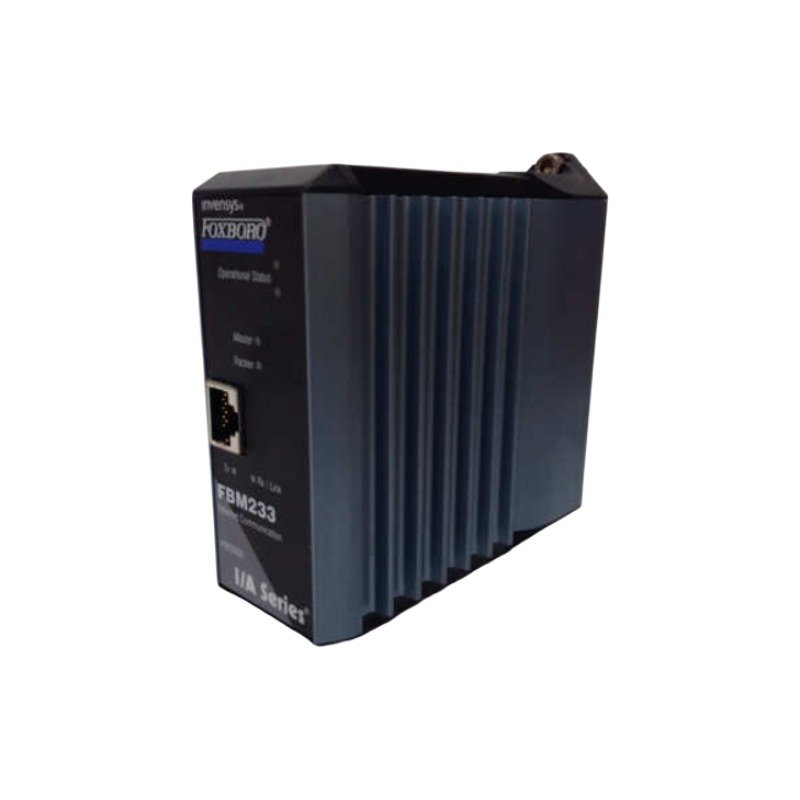

Configured for Ethernet signal interface and protocol integration in EcoStruxure Foxboro DCS networks, the Foxboro FBM233 (FBM233 redundant field device system integrator module) provides direct physical/electrical execution. The module connects single- or dual-port Ethernet field devices to the DCS backplane via a front-facing RJ-45 copper port (10/100 Mbps). Operating in a paired master and tracker redundant configuration, the hardware updates control station input points and executes automated role switches upon detecting network or device heartbeat failures.

Hardware Specifications

Process Control & Digital Communication Dynamics

The Foxboro FBM233 integrates digital device telemetry into the Foxboro DCS database via dedicated Ethernet network architectures. By loading protocol-specific software drivers, the unit supports direct 4-20 mA HART loop protocol translation layer bridging as well as native digital device structures. Operating across up to 2000 DCI block connections, internal signal isolation barriers protect backplane logic from line noise, ensuring deterministic cyclic execution across all 64 connected field device loops.

Frequently Asked Questions

Q: How does the master and tracker redundancy model execute during a communication loss?

A: When paired in a redundant configuration, the master FBM233 processes input updates while both master and tracking modules write device output points. If the active driver detects an operational fault (such as a lost device heartbeat), an automatic role switch transfers master execution to the tracker module.

Q: What physical Ethernet interface is provided on the module front panel?

A: The module features a single RJ-45 copper Ethernet port supporting auto-negotiating 10/100 Mbps network communication speeds.

Q: What is the maximum field device capacity supported per FBM233 module?

A: The module communicates with up to 64 external field devices via an Ethernet switch or hub connection.

Field Installation Guidelines

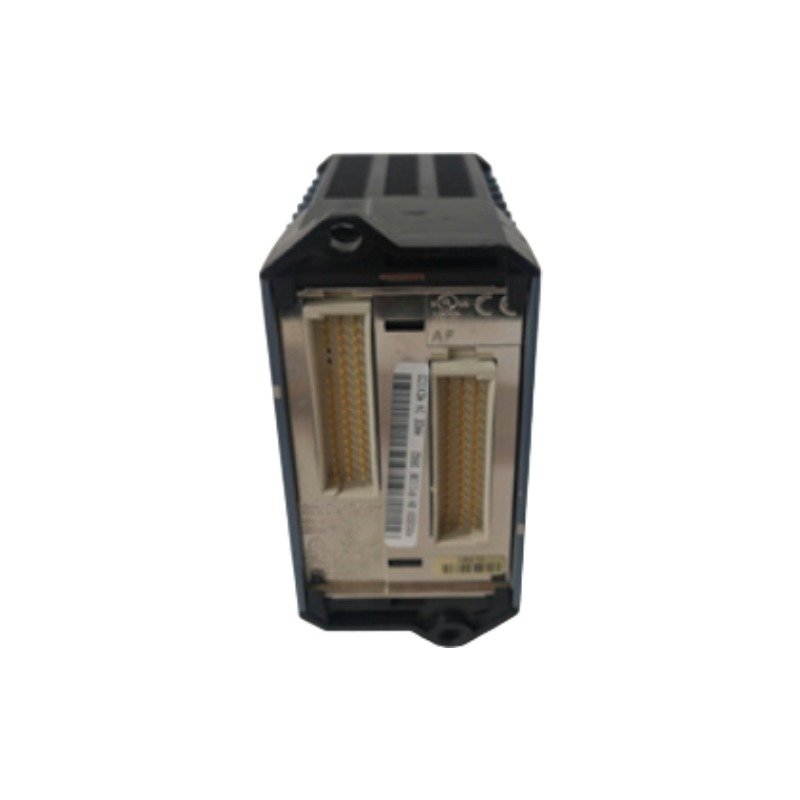

Mount the Foxboro FBM233 onto its assigned slot on the Foxboro I/A Series modular baseplate. Prior to insertion, verify that the baseplate card guide slots are free from environmental contaminants. Align the module circuit board card edge with the baseplate connector and push firmly until the retention latch locks into the rack frame.

Connect Ethernet network cabling to the front RJ-45 port using shielded Category 5e (or higher) cables. Ground all cable drain shields at a dedicated earth grounding terminal block in the enclosure to suppress electromagnetic interference. Maintain physical separation between Ethernet communication lines and high-voltage AC power wiring to ensure data transmission integrity across G3 rated operating environments.
