Description

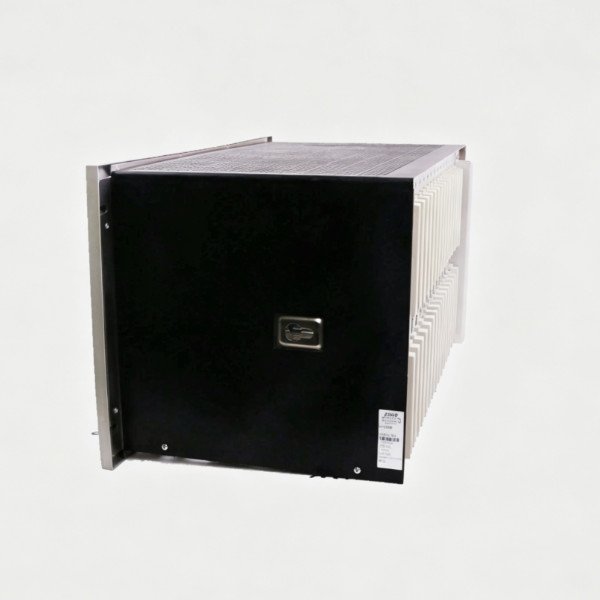

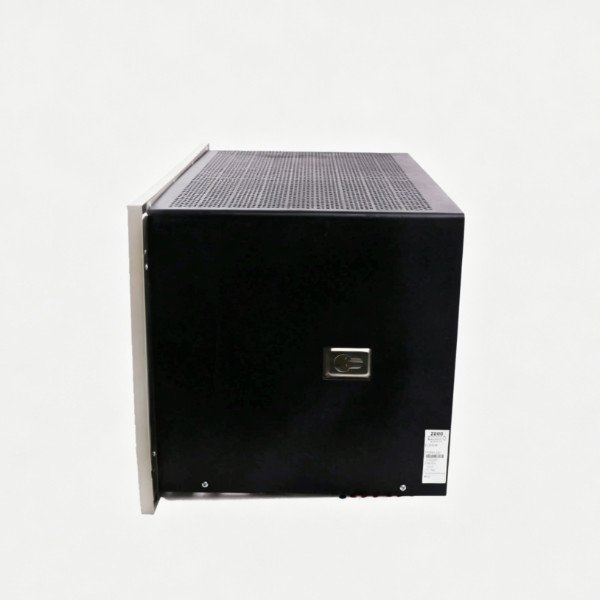

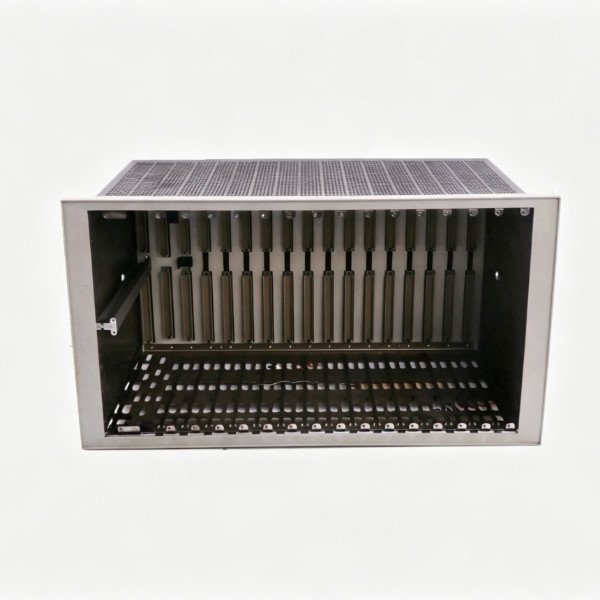

The Bently Nevada 3500/05-02-04-01-00-00, also cataloged as the 3500/05 System Rack, operates as a dedicated hardware component for physical module housing and backplane signal distribution within 3500 Series machinery protection platforms. It provides the electrical interface and power bus necessary for the operation of monitor modules, power supplies, and rack interface modules, ensuring high-speed data transfer across the internal backplane.

Hardware Specifications

Gap Voltage Validation and Signal Integrity

Effective monitoring within the 3500 system necessitates rigorous gap voltage validation to ensure eddy-current probe scaling accuracy. This rack configuration supports the maintenance of -10 VDC targets for Proximitor sensors, preventing DC offset drift that can compromise rotor dynamics data. The backplane architecture is designed with specific shielding traces to facilitate cross-talk suppression between high-speed transient data channels and steady-state vibration signals, preserving the phase accuracy required for complex vector analysis.

Frequently Asked Questions

Q: Does this rack configuration support redundancy for the internal power supply units?

A: Yes, the 02 option code designates a configuration designed for redundant power supplies, allowing the system to remain operational if a single power source or module fails.

Q: Can modules be hot-swapped while the 3500/05 rack is energized?

A: Monitoring modules are designed for hot-swap capability within this rack; however, the Rack Interface Module (RIM) should only be removed following established safety protocols to avoid temporary loss of communication with the host software.

Field Installation Guidelines

• Mounting Stability: Secure the rack using all four EIA mounting points. Ensure the 19-inch rails are structurally capable of supporting the full weight of the rack when populated with 14 monitor modules and dual power supplies.
• Grounding Requirements: A dedicated, low-impedance system ground must be connected to the rack’s ground lug. This is critical for maintaining the -10 VDC reference for proximity probes and reducing common-mode noise.
• Wiring Separation: Route transducer input wiring (field side) through separate conduits or cable trays away from high-voltage AC power lines to minimize electromagnetic interference.
• Thermal Management: Maintain at least 50 mm (2 inches) of unobstructed space above and below the rack to allow for natural convection cooling of the internal modules.
