Description

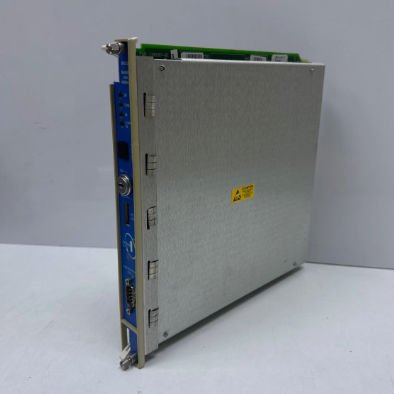

Configured for cross-talk suppression in 3500 Series Machinery Protection Systems, the Bently Nevada 138607-01 (138607-01 Internal Termination I/O Module) provides direct physical/electrical execution. This hardware component processes transient dynamic signals from proximity probes without inserting phase errors or amplitude distortion. The module interfaces the internal monitor backplane with field wiring connections, establishing point-to-point electrical paths for sensor inputs while maintaining common-mode rejection performance across the specified frequency spectrum.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Integrity

The 138607-01 maintains precise eddy-current probe scaling during critical rotor dynamics events. The internal circuitry enforces strict cross-talk suppression protocols to prevent high-frequency carrier interference between adjacent transducer channels sharing a common routing conduit. For proper gap voltage validation, the hardware ensures the -10 VDC targets for linear proximity sensor calibration remain stable within a 0.33 mm to 2.23 mm operating range. This voltage monitoring capability allows the monitoring system to accurately assess sub-synchronous vibration vectors and shaft centerlines without inducing phase lag or DC bias drift.

Frequently Asked Questions

Q: Does the 138607-01 support online hot-swap insertion within an energized 3500 rack?

A: Yes. The module is engineered with power-limiting circuitry that allows hot-swap removal and insertion into a live chassis without interrupting the backplane bus communication or corrupting adjacent monitor channel data.

Q: How does the module handle a sudden loss of transducer power from the proximity sensor?

A: The hardware detects the open circuit instantly, driving the channel output to a dedicated Not OK status register within 15 milliseconds, disabling trip multiplication to prevent false machinery shutdowns.

Field Installation Guidelines

• Shield Grounding Protocol: Terminate all coaxial sensor shields directly at the 138607-01 chassis ground strip. Do not loop or daisy-chain the shield wires; maintain a single-point ground topology to mitigate ground loops.
• Terminal Wiring Torque: Secure all field wiring terminal screws to a torque specification of 0.56 Nm. Over-tightening risks fracturing the internal printed circuit board traces.
• Chassis Slot Alignment: Insert the module vertically into the rear slot of the 3500 rack until the injection/ejection levers engage with the chassis frame. Ensure the guide pins are completely seated before locking the screws.
• Conduit Separation: Route all 4-20 mA and dynamic transducer input lines in dedicated, grounded metal conduits separated from high-voltage AC power lines by a minimum distance of 30 cm.
