Description

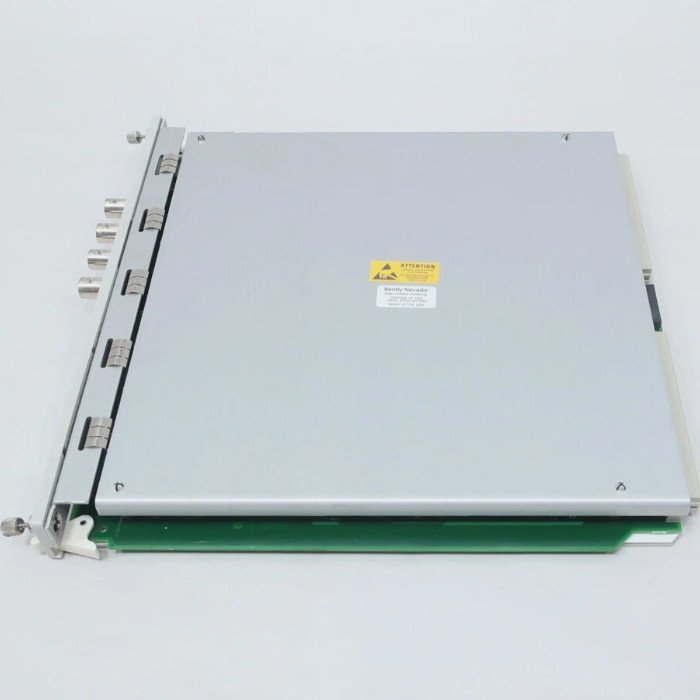

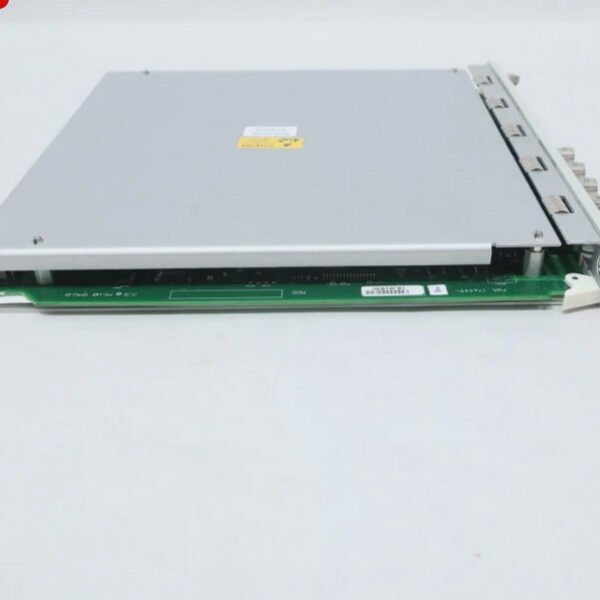

The Bently Nevada 176449-02, also cataloged as the 176449-02 Proximitor Monitor I/O Module, operates as a dedicated hardware component for interfacing proximity transducer signals with the 3500 Monitoring System backplane within 3500/60 and 3500/61 rack configurations.

Hardware Specifications

Transducer Signal Validation and Scaling

The 176449-02 utilizes precision signal conditioning to maintain eddy-current probe scaling accuracy across the full linear range of the transducer. During commissioning, technicians must perform gap voltage validation to ensure the Proximitor output remains within the linear region, typically targeting a -10 VDC static voltage for standard 8 mm probes. The module hardware is designed with high-impedance inputs to ensure cross-talk suppression between adjacent channels, preventing false vibration readings or phase interference in high-density rotor dynamics monitoring applications.

Frequently Asked Questions

Q: Does the 176449-02 support hot-swapping while the rack is powered?

A: Yes, the 176449-02 is designed for hot-insertion and removal. However, removing the I/O module while the monitor is active will cause a “Not OK” status and may trigger associated relay alarms if not bypassed.

Q: How does this module handle internal termination compared to external termination versions?

A: This specific -02 variant utilizes internal terminal blocks for direct field wiring. It does not require an external Terminal Block (ETB) or a separate interface cable, reducing the total footprint in the cabinet but requiring all field wiring to be routed directly to the rear of the 3500 rack.

Field Installation Guidelines

• Shield Grounding: Ensure that transducer shields are grounded at the 3500 rack only. Do not ground the shield at the transducer end to avoid ground loops that degrade signal integrity.
• Wiring Clearance: Maintain a minimum of 50 mm clearance between signal wiring and high-voltage power cables to minimize EMI interference.
• Torque Specifications: Terminal block screws should be tightened to a maximum of 0.56 N-m (5 in-lb) to prevent damage to the PCB-mounted headers.
• Probe Clearance: Ensure the eddy-current probe is calibrated for the specific target material (e.g., 4140 steel) before finalizing the 3500/60 configuration settings.
