Description

Advanced Industrial Visualization and Interface

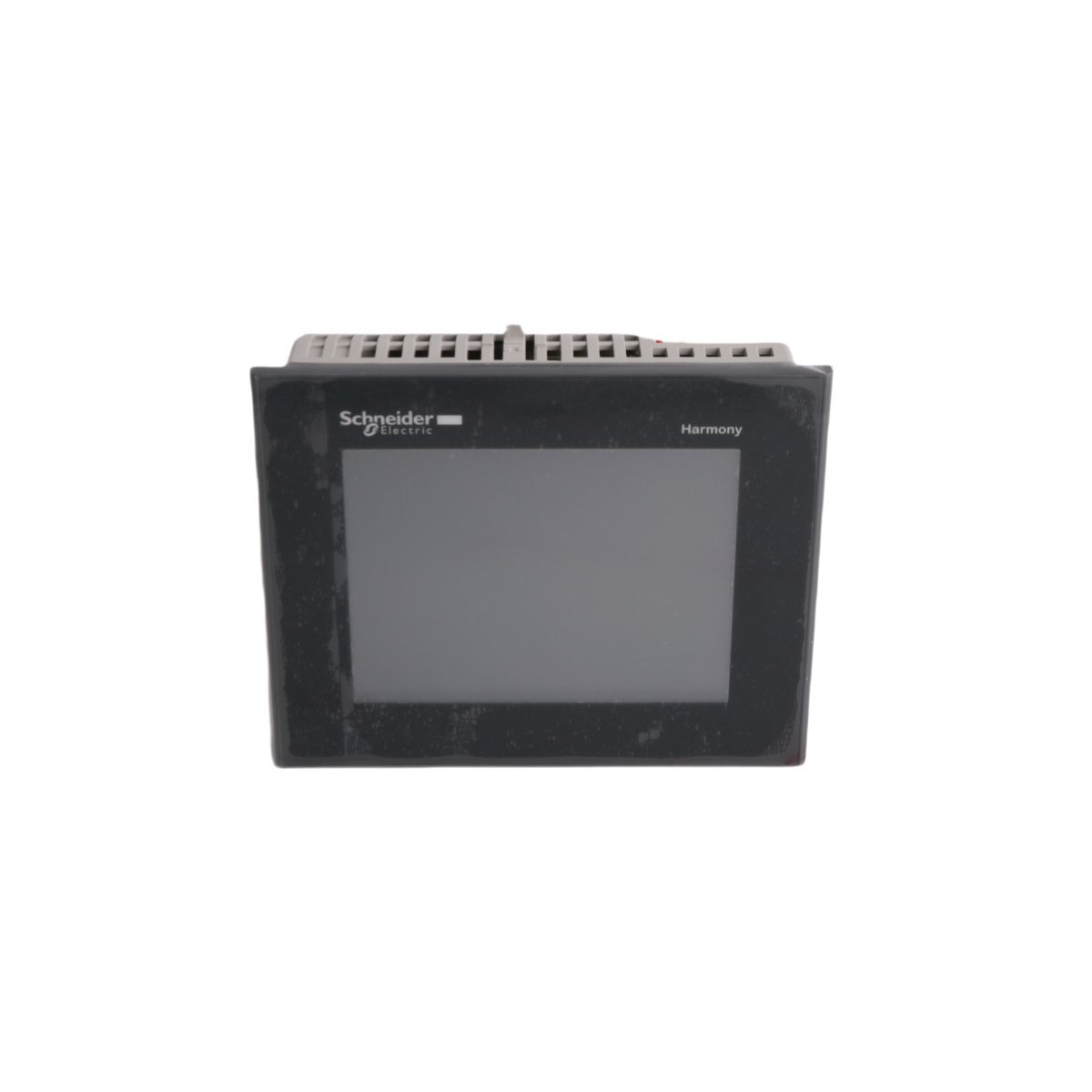

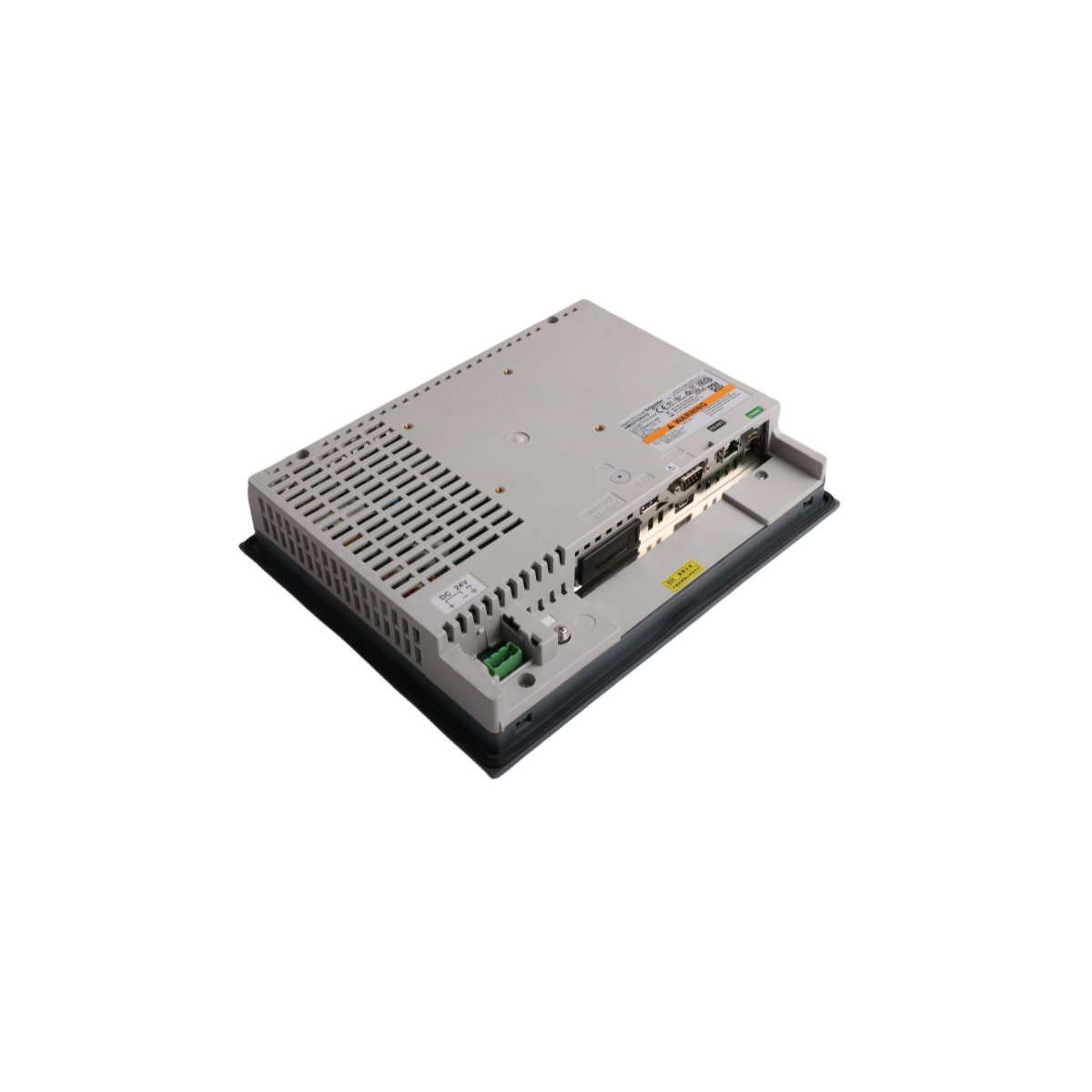

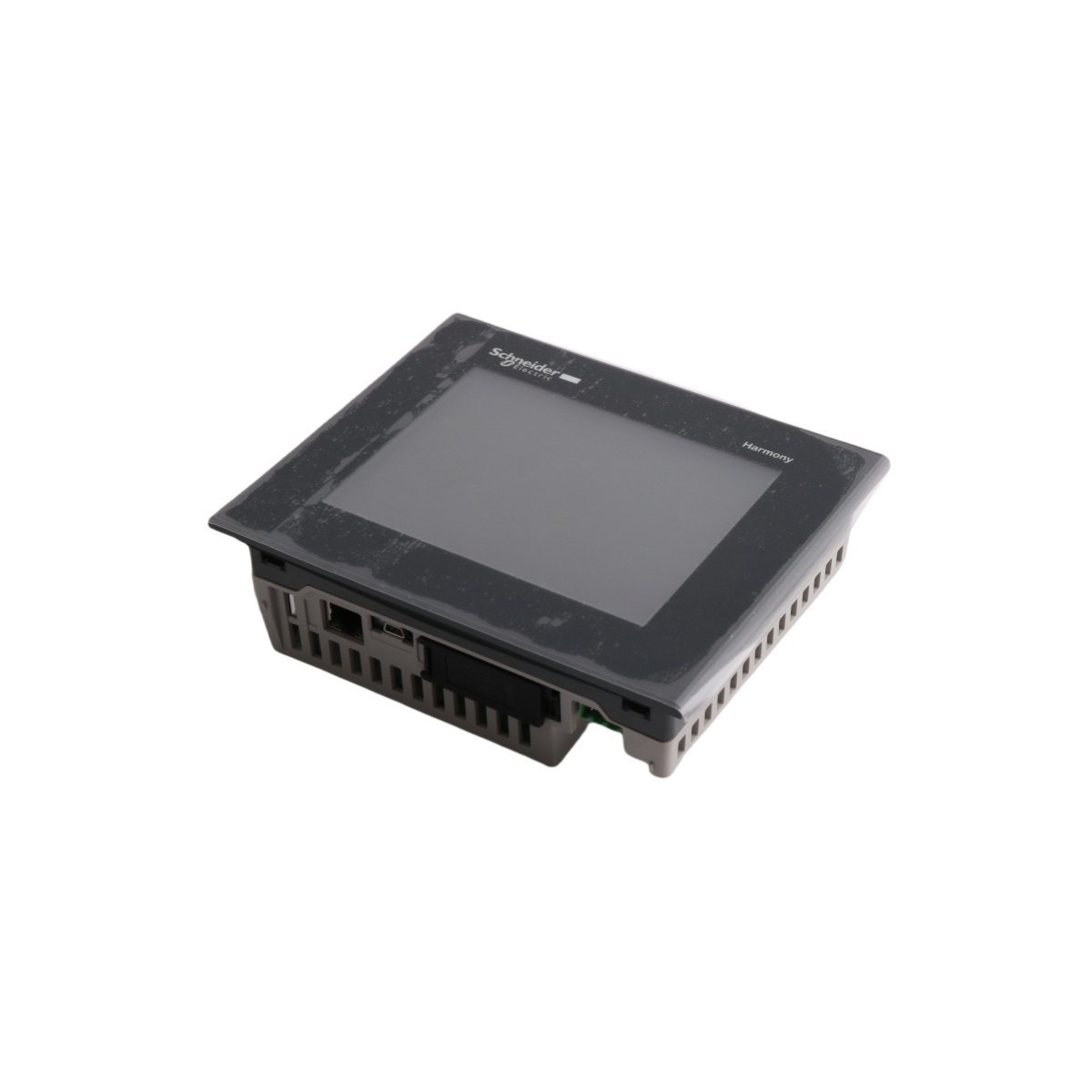

The Schneider Electric HMIGTO6310 serves as a premium human-machine interface (HMI) within the Harmony GTO range, offering a high-resolution 12.1-inch TFT color display. This SVGA panel delivers a resolution of 800 x 600 pixels and supports up to 65,536 colors, ensuring that complex process graphics and data trends remain sharp and legible. By incorporating a high-precision resistive touch zone of 1024 x 1024, the unit allows operators to execute commands with extreme accuracy, even while wearing industrial gloves. Consequently, this HMI acts as the primary control hub for sophisticated PLC systems, bridging the gap between machine logic and human oversight.

Data Management and Processing Power

To handle demanding automation scripts and extensive graphical libraries, the HMIGTO6310 features 96MB of Flash EPROM for application storage. Furthermore, the internal architecture includes 512KB of SRAM dedicated to data backup, which a specialized lithium battery protects for up to 100 days during power loss. Because the unit operates on a 24V DC power supply, it integrates perfectly into standard industrial control circuits. To manage high-speed communication, the panel supports a wide array of industrial protocols, including Modbus, Uni-Telway, and EtherNet/IP, thereby allowing it to function as an Ethernet router for connected field devices.

Rugged Engineering for Harsh Environments

Engineered to withstand the rigors of heavy-duty manufacturing, the HMIGTO6310 maintains stable operation in temperatures ranging from 0°C to 55°C. The mechanical design prioritizes durability, featuring a chassis that resists industrial vibrations and mechanical shocks. Moreover, the front panel provides a high level of protection against dust and moisture ingress, making it suitable for food and beverage, chemical, and energy sectors. By utilizing Vijeo Designer configuration software, system integrators can rapidly develop intuitive user interfaces that enhance operational efficiency and reduce the likelihood of human error on the factory floor.

Technical Specifications

• Brand: Schneider Electric
• Model Number: HMIGTO6310
• Product Range: Harmony GTO
• Display Type: 12.1-inch TFT Color LCD
• Resolution: 800 x 600 pixels SVGA
• Touch Panel: Multi-touch resistive (1024 x 1024 zone)
• Memory: 96 MB Flash (Internal) / 512 KB SRAM (Backup)
• Supply Voltage: 24V DC (19.2 to 28.8V)
• Communication Ports: Ethernet TCP/IP, RS-485, RS-232C, USB 2.0
• Weight: 2.5 kg
• Dimensions: 31.5 cm x 24.1 cm x 5.6 cm

Strategic System Integration

Industrial facilities utilize the HMIGTO6310 to centralize control over diverse machinery and process loops. Since the device supports multiple languages and advanced alarm management, it empowers operators to respond quickly to system deviations. In addition to its visual capabilities, the SD card slot allows for easy data logging and project transfers, which simplifies the maintenance of large-scale automation fleets. Ultimately, choosing this authentic Schneider Electric HMI ensures long-term availability of parts and adherence to global cybersecurity and safety standards.
