Description

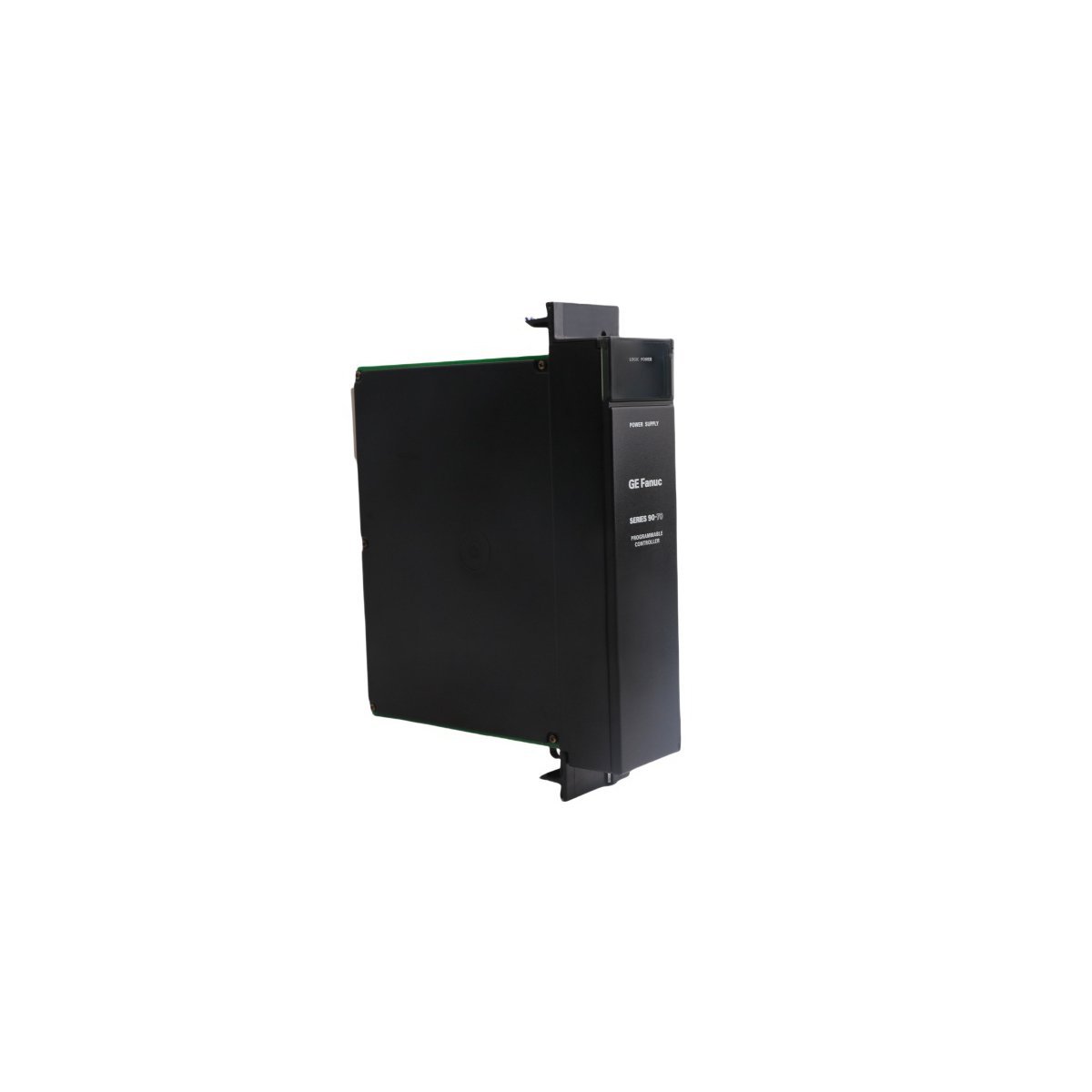

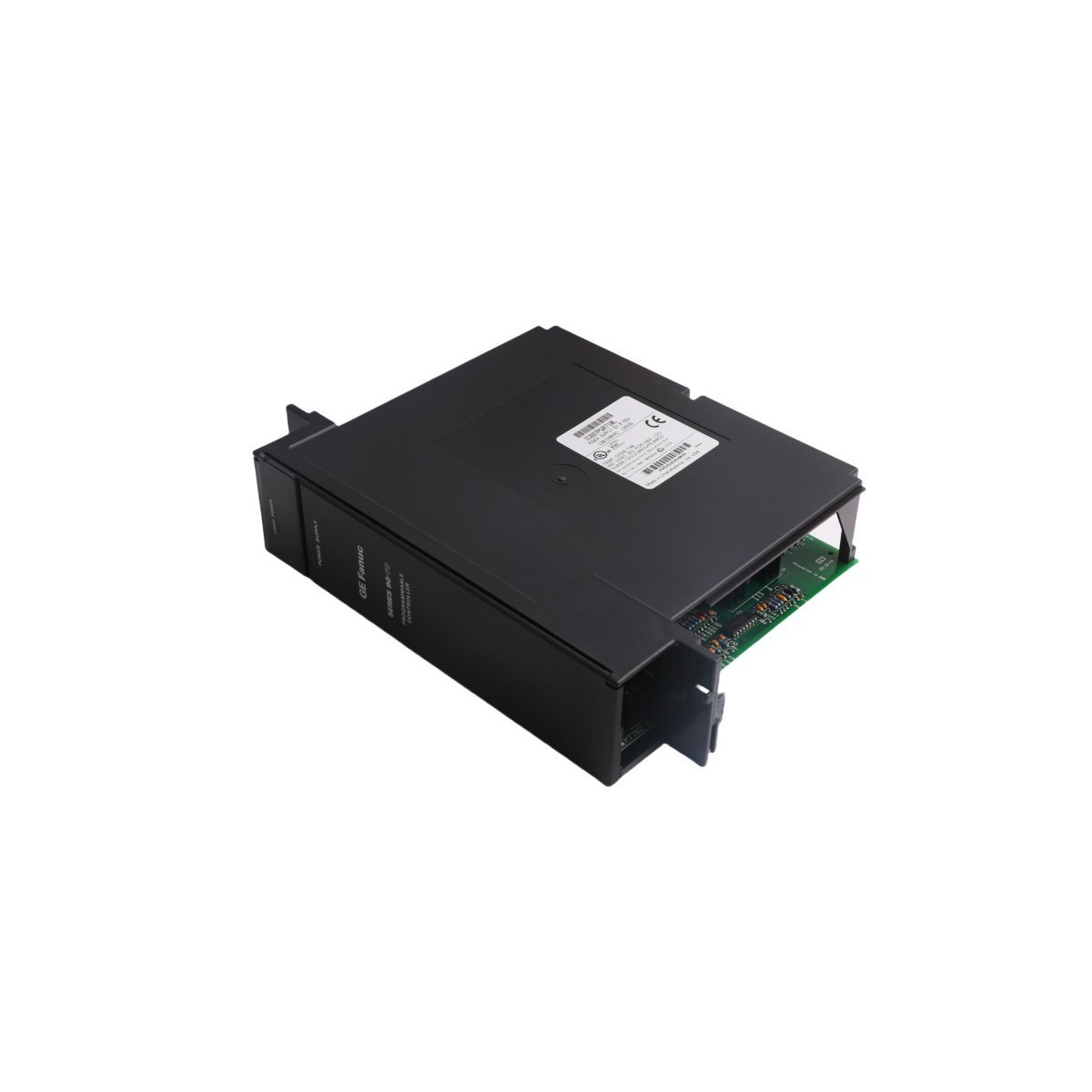

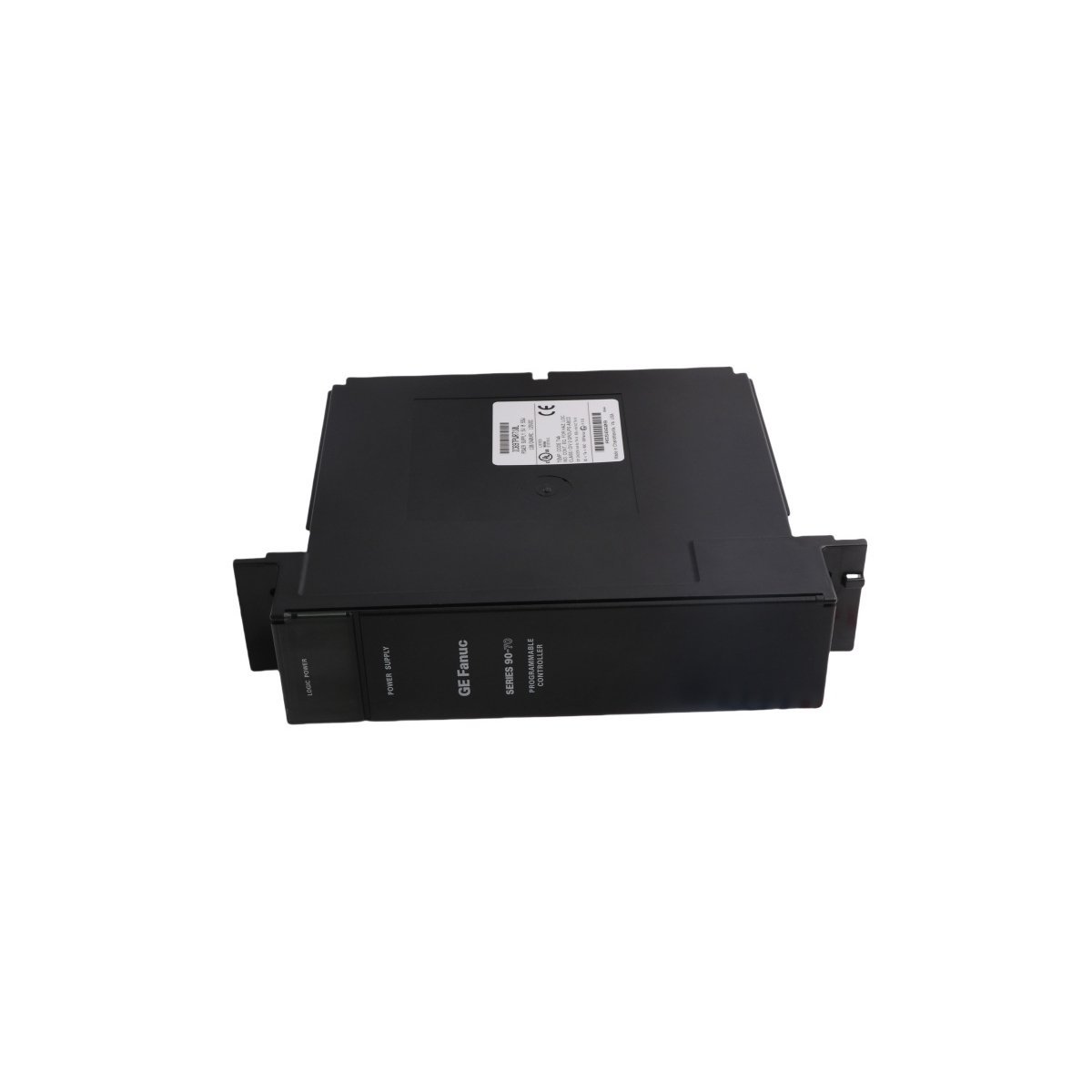

Configured for power conversion tasks in Series 90-70 platforms, the GE IC697PWR710 (IC697PWR710 Converter Board) provides direct physical electrical execution.

Suffix Breakdown & Model Matrix

• IC697PWR710: Standard power supply module engineered for Series 90-70 rack-mounted controller architectures supporting dual input ranges.
• IC697PWR710-F: Revision variant referencing updated transformer windings and enhanced transient suppression circuitry.

Hardware Specifications

Backplane Bus Communication Velocity Licences

The hardware architecture governs internal backplane bus communication velocity licences to coordinate power distribution across mounted CPU and I/O cards. High-speed switching regulators regulate the secondary outputs while communicating status registers back to the main processor via internal diagnostic lines. Firmware flash compatibility ensures that operational telemetry, thermal monitoring alerts, and input voltage thresholds are accurately reported to system-level diagnostics without timing degradation.

Frequently Asked Questions

• Q: Does the IC697PWR710 support live insertion into an energized VME rack?

  A: No. Input power must be completely disconnected prior to installing or removing the module from the rack slot to prevent electrical arcing and backplane damage.

• Q: What is the required wire gauge for the protective earth terminal connection?

  A: The ground terminal requires a minimum of AWG #12 or 3.3 mm squared wire securely fastened to a low-impedance functional earth.

• Q: How does the module handle temporary AC input voltage drops?

  A: The unit integrates a 21 ms ride-through time capability to maintain regulated output rails during brief mains power interruptions.

Field Installation Guidelines

• Mount the module exclusively in the leftmost designated power supply slot of a standard Series 90-70 baseplate or VME integrator rack.
• Ensure adequate top and bottom clearance of at least 50 mm to allow proper convective airflow across the heatsink profile.
• Connect incoming AC or DC supply lines to the terminal block securely, verifying that voltages remain within 90-264 VAC or 100-150 VDC.
• Fasten all captive mounting screws to specified torque limits to guarantee proper chassis bonding and mechanical stability.
