Description

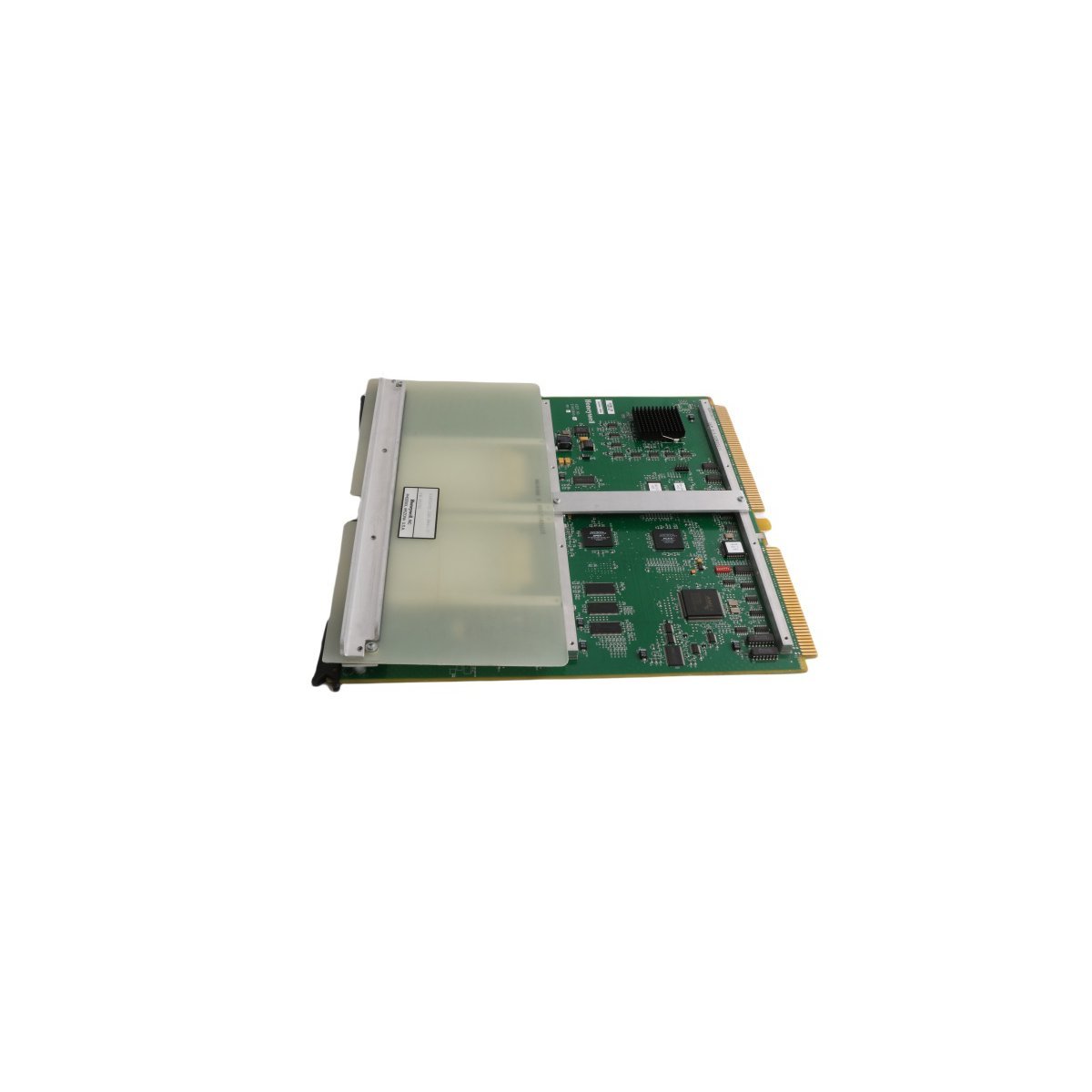

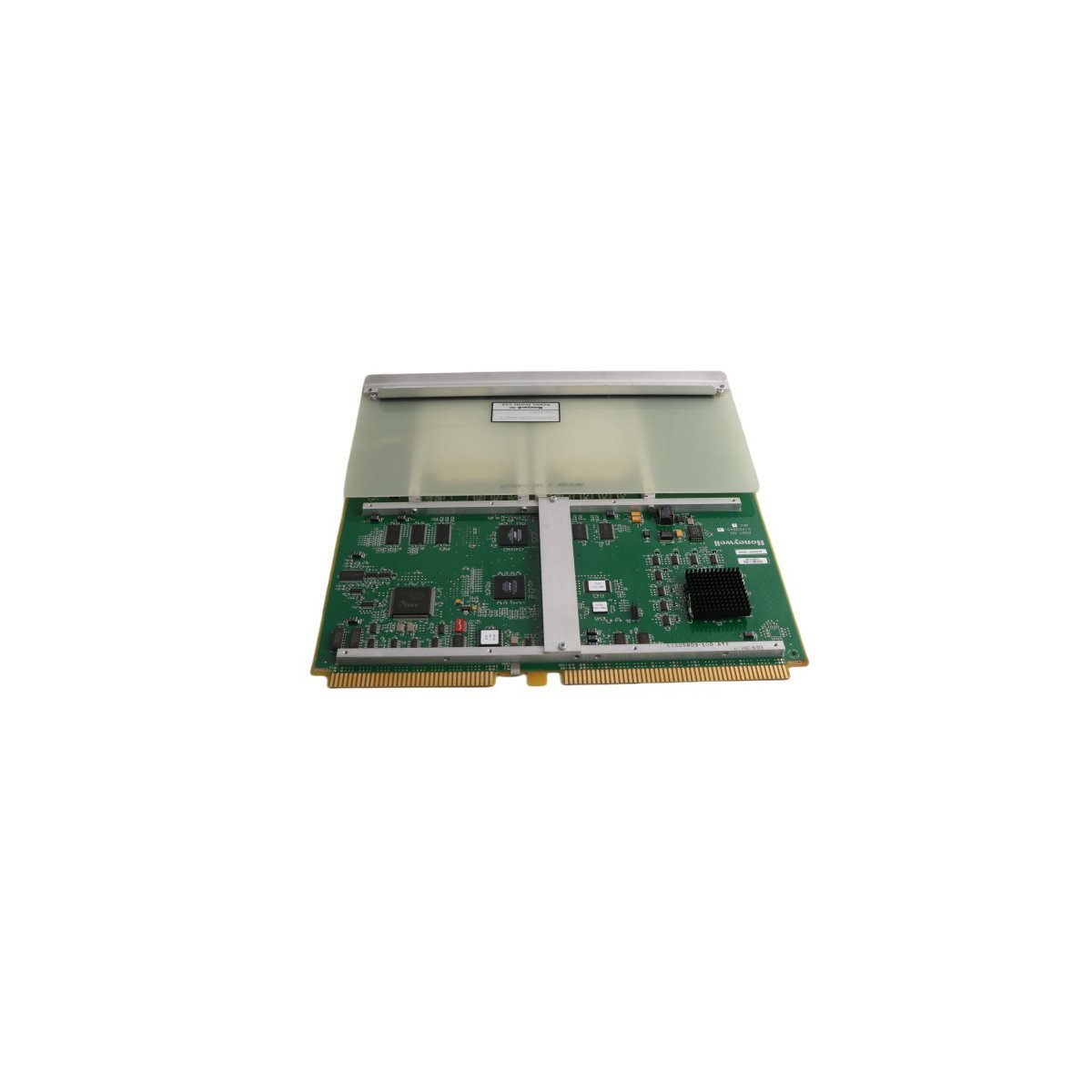

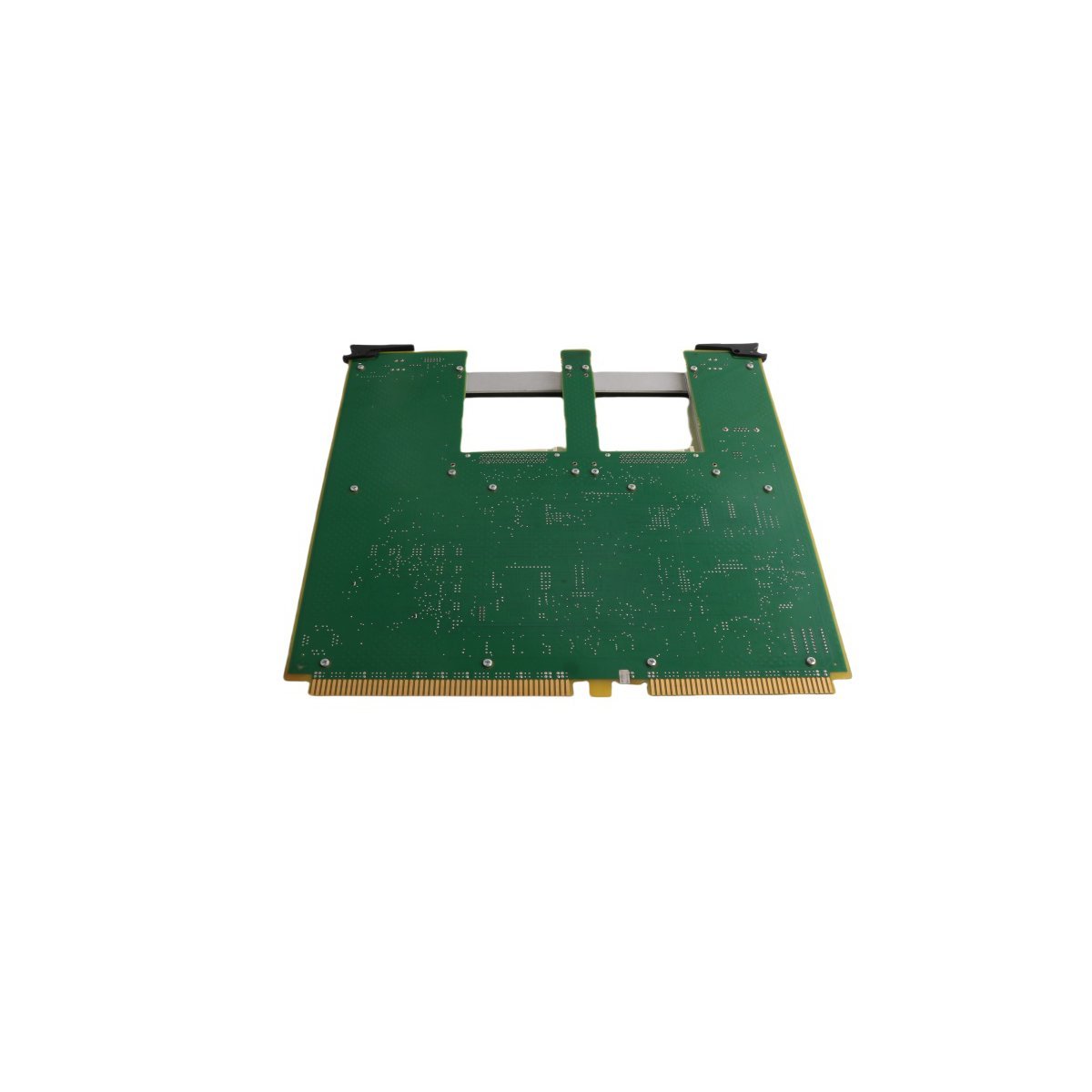

The Honeywell 51403645-100, also cataloged as the 51403645-100 Single Board History Module, operates as a dedicated hardware component for high-capacity event logging, alarm archiving, and trend buffer processing within Honeywell Experion PKS and DCS network platforms.

Hardware Specifications

Process Control and Communication Interface Characteristics

• Configured to interface directly with 4-20 mA HART loop protocol backplanes, allowing synchronization of field instrument diagnostics without load interference.
• Provides channel-to-channel isolation parameters to prevent ground loop noise from corrupting historical data logs.
• Integrated dynamic cold junction compensation (CJC) routing ensures precision temperature processing from field thermal sensors.
• Features high-density onboard memory structures designed for zero data loss during high-burst alarm sequence-of-events (SOE) cycles.

Frequently Asked Questions

Q: Does the 51403645-100 module support online hot-swapping during active DCS operation?

A: Yes, the module can be removed or inserted into an active Series 8 chassis slot under power, provided proper ESD grounding protocols are observed and the system backplane dynamic bus is stable.

Q: How is ground isolation maintained across analog loop channels connected to the module housing?

A: Channel-to-channel isolation circuits are built into the board trace architecture, isolating signal reference points up to 500 VDC to eliminate common-mode potential differences across field wiring networks.

Field Installation Guidelines

• Verify backplane power distribution is stable before slot insertion; ensure alignment guides on the Series 8 rack engage smoothly without force.
• Grounding drain wires from field instrument cables must terminate directly to the system earth grounding bar rather than the module faceplate to prevent noise coupling.
• Maintain a minimum clearance of 50 mm around top and bottom ventilation slots to allow passive convection cooling within standard cabinet enclosures.
