Description

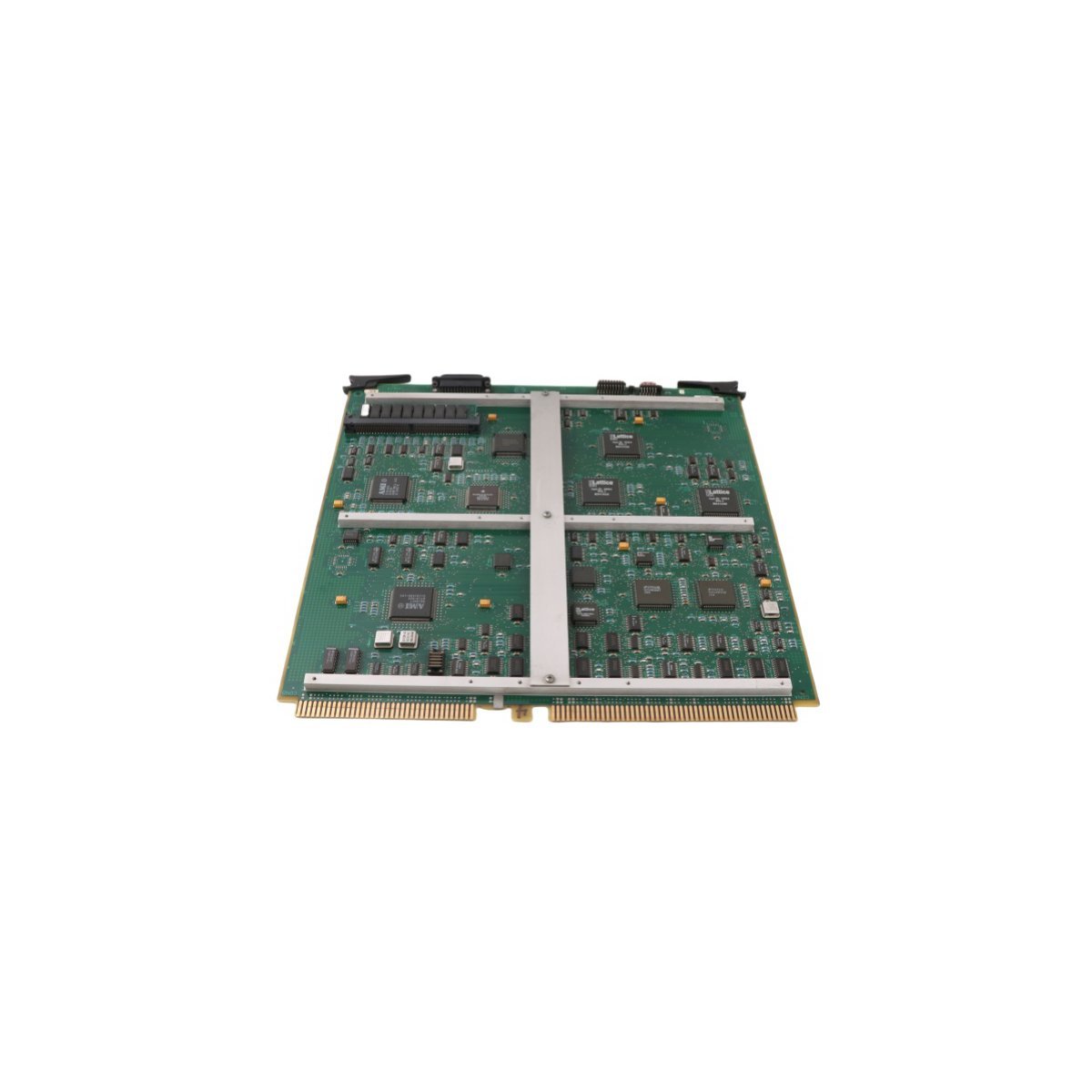

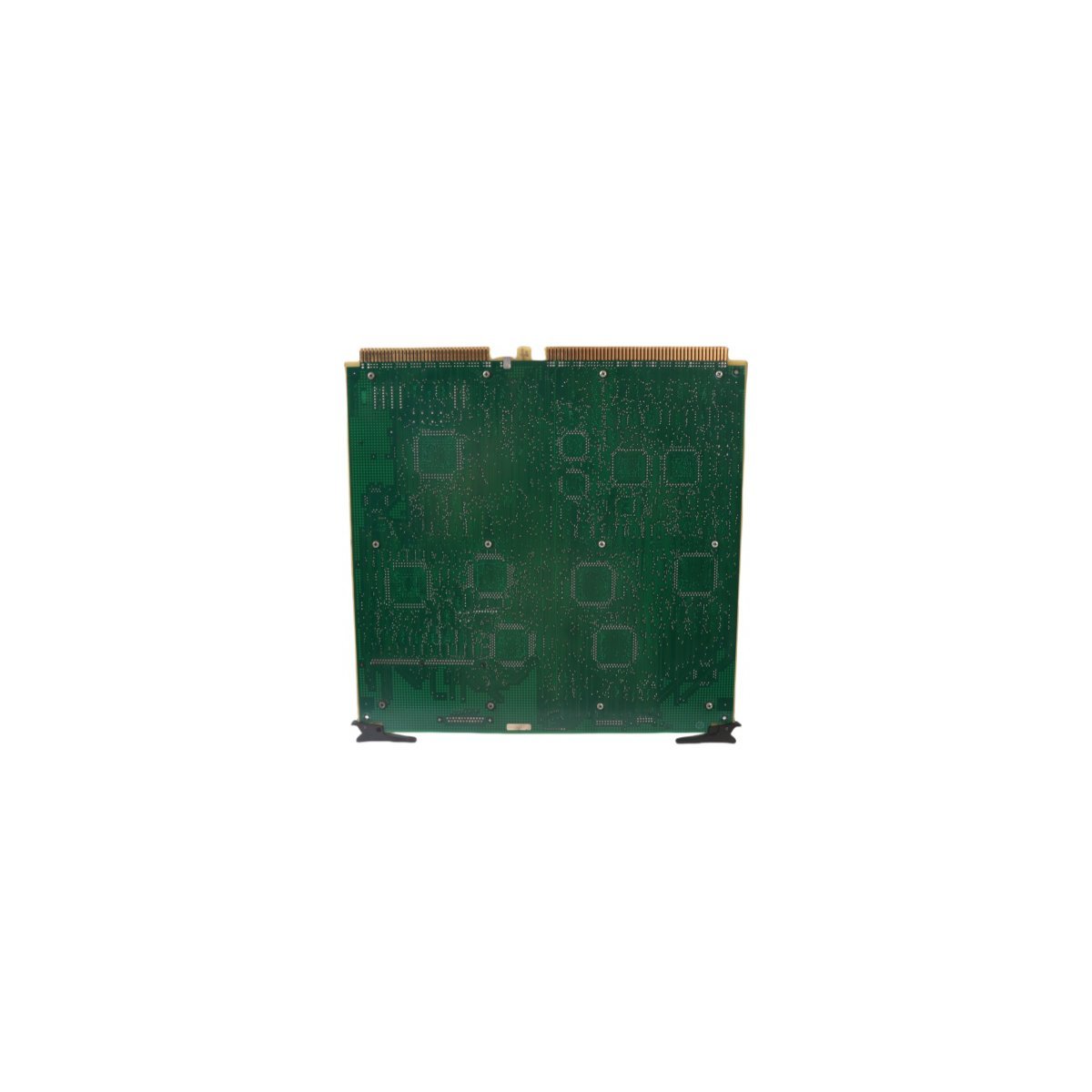

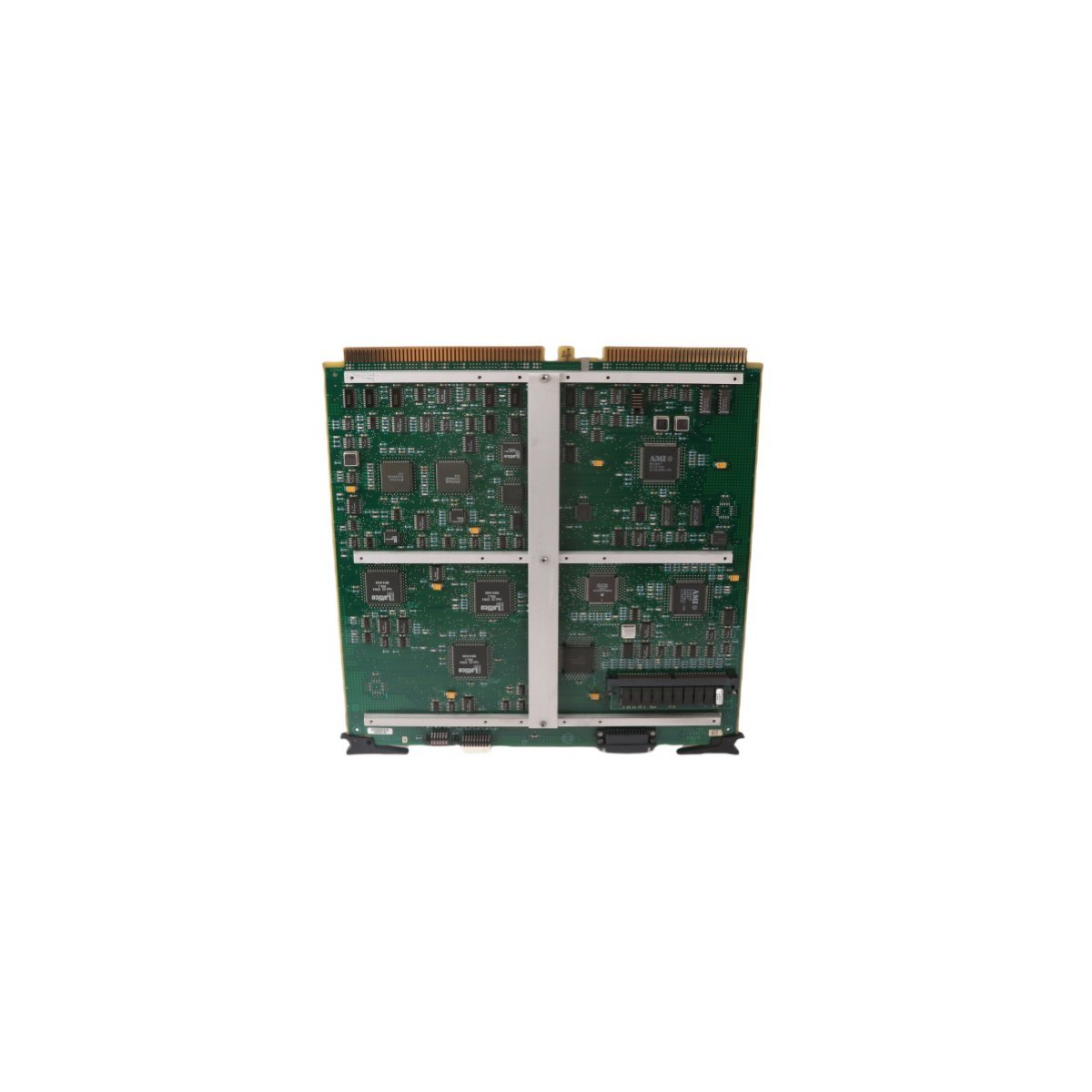

Configured for local control network interfacing and high-density memory execution in TDC 3000 systems, the Honeywell K2LCN-4 51402615-400 (51402615-400 PCB Card) provides direct physical/electrical execution.

Hardware Specifications

Process Control and DCS Connectivity

• Operates with 4-20 mA HART loop protocol subsystem buses for field device signal routing and digital parameter management.
• Provides high-grade channel-to-channel isolation across circuit pathways to eliminate ground potential interference in DCS nodes.
• Integrates cold junction compensation (CJC) reference paths for stable processing of field-side temperature sensor inputs.
• Engineered with a 4-megaword memory architecture to handle continuous real-time data storage and local control network communication frames.

Frequently Asked Questions

Q: What precautions are necessary regarding static discharge during installation of the 51402615-400 card?

A: Technicians must wear a grounded wrist strap attached to the cabinet ground frame before handling or inserting the card into the TDC 3000 rack chassis.

Q: How does the module maintain signal integrity in high-noise DCS environments?

A: The card incorporates embedded channel-to-channel isolation circuits and ground-plane noise suppression layers directly within its multi-layer PCB design.

Field Installation Guidelines

• Verify that the rack card slot is free of debris and power down the card cage before inserting or removing the assembly.
• Ensure all card edge connectors align precisely with the backplane sockets; apply firm, even pressure along the card edges until locking tabs engage.
• Maintain proper ground bonding from the chassis frame to the main earth bus bar to ensure shield effectiveness and surge protection.
