Product Description

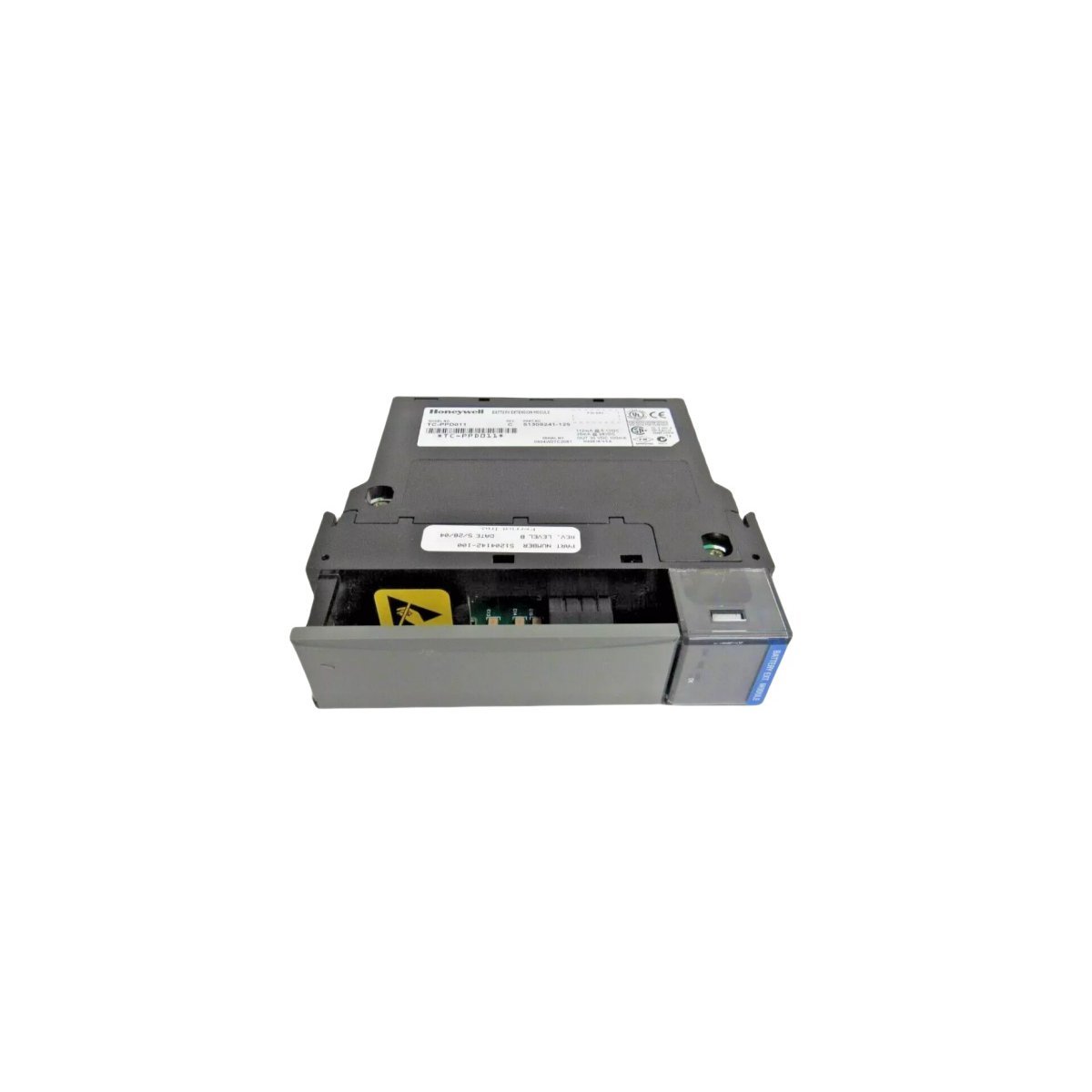

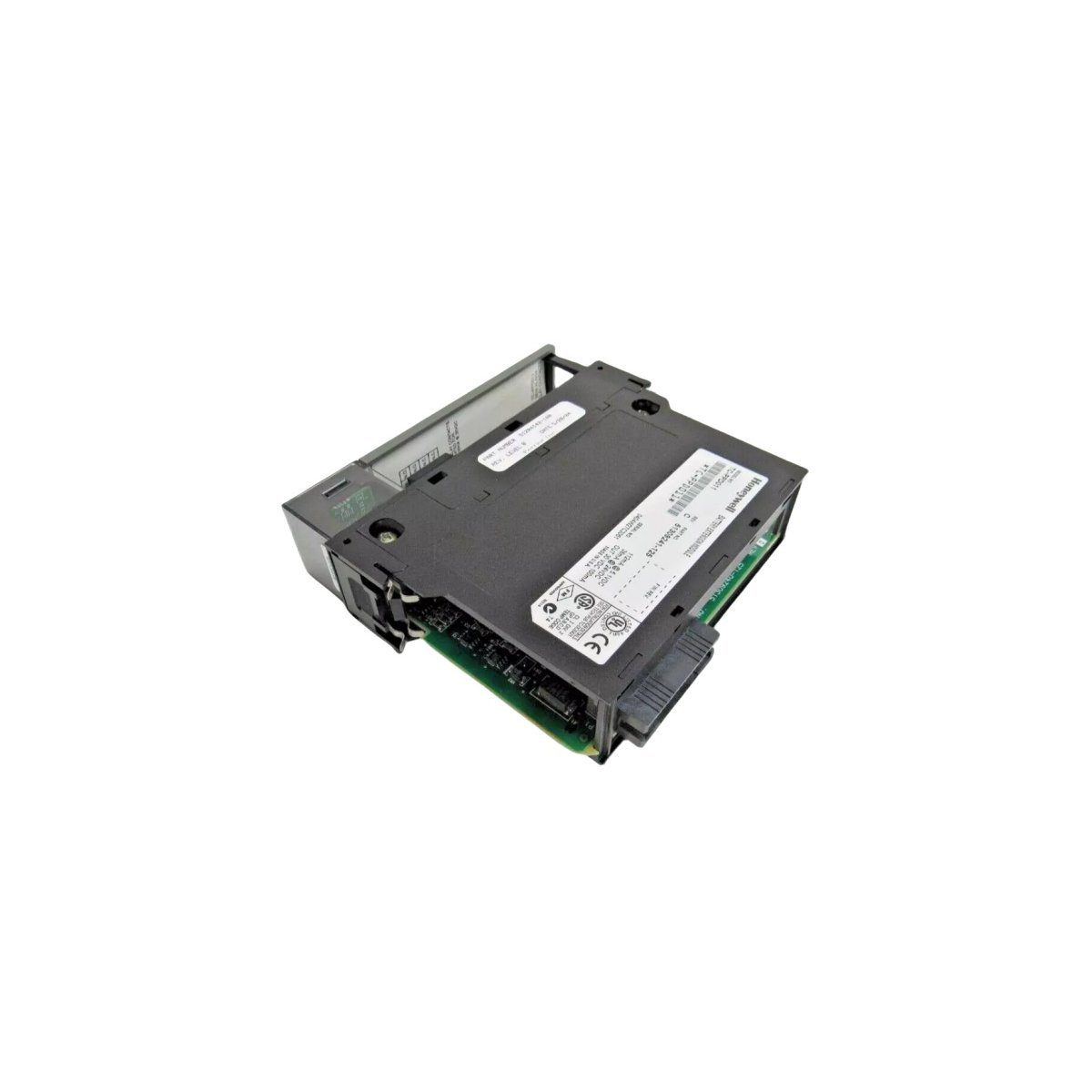

The Honeywell TC-PPD011, identified by part number 51309241-125, serves as a specialized Battery Extension Module within the Experion LS Distributed Control System (DCS) ecosystem. This hardware component is engineered to provide critical backup power support, ensuring that volatile memory and system configurations remain intact during primary power interruptions. By extending the autonomous operational window of the controller, this module mitigates the risk of data loss and facilitates a controlled system response during electrical fluctuations.

Constructed for high-reliability industrial environments, the module utilizes high-energy-density lithium-ion technology. This choice of chemistry allows for a compact physical footprint while maintaining a robust energy profile suitable for long-term deployment. The unit excels in diverse climates, maintaining functional integrity across a broad thermal spectrum. Furthermore, the modular architecture of the TC-PPD011 allows for rapid integration into existing Experion LS racks, simplifying both initial commissioning and subsequent hardware lifecycle management.

Technical Specifications

• Manufacturer: Honeywell
• Series: Experion LS DCS
• Model Reference: TC-PPD011
• Part Number: 51309241-125
• Primary Function: Extended Power Backup for PLC/DCS Controllers
• Battery Chemistry: Lithium-Ion (High Energy Density)
• Operating Voltage: 24 Vdc / 5 Vdc
• Current Consumption (24 Vdc): 0.036 Amps
• Current Consumption (5 Vdc): 0.112 Amps
• Operating Temperature: -20°C to +60°C
• Dimensions: 17.8 cm x 10.0 cm x 5.2 cm
• Net Weight: 0.5 kg
• Installation Type: Rack Mount / Modular Integration
