Description

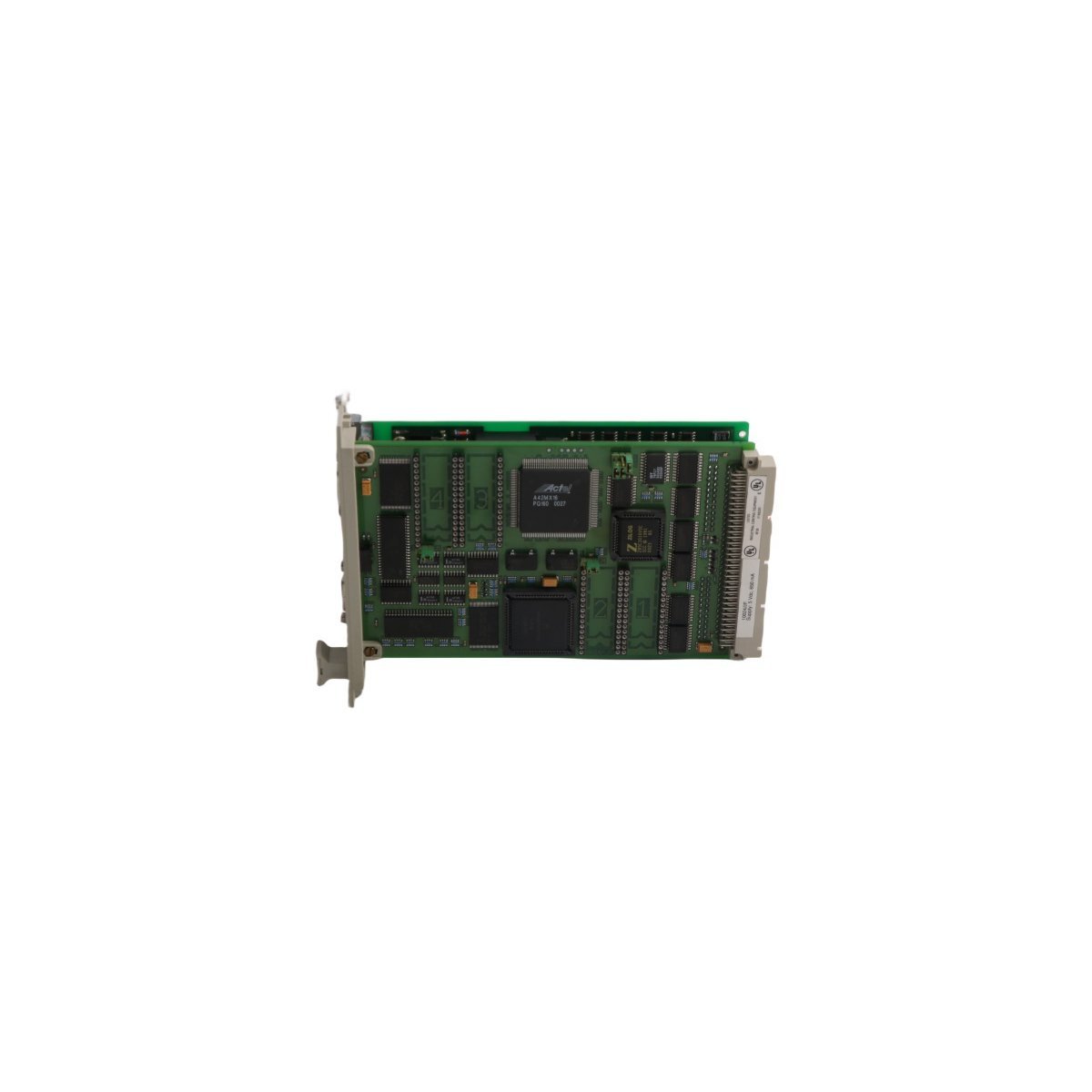

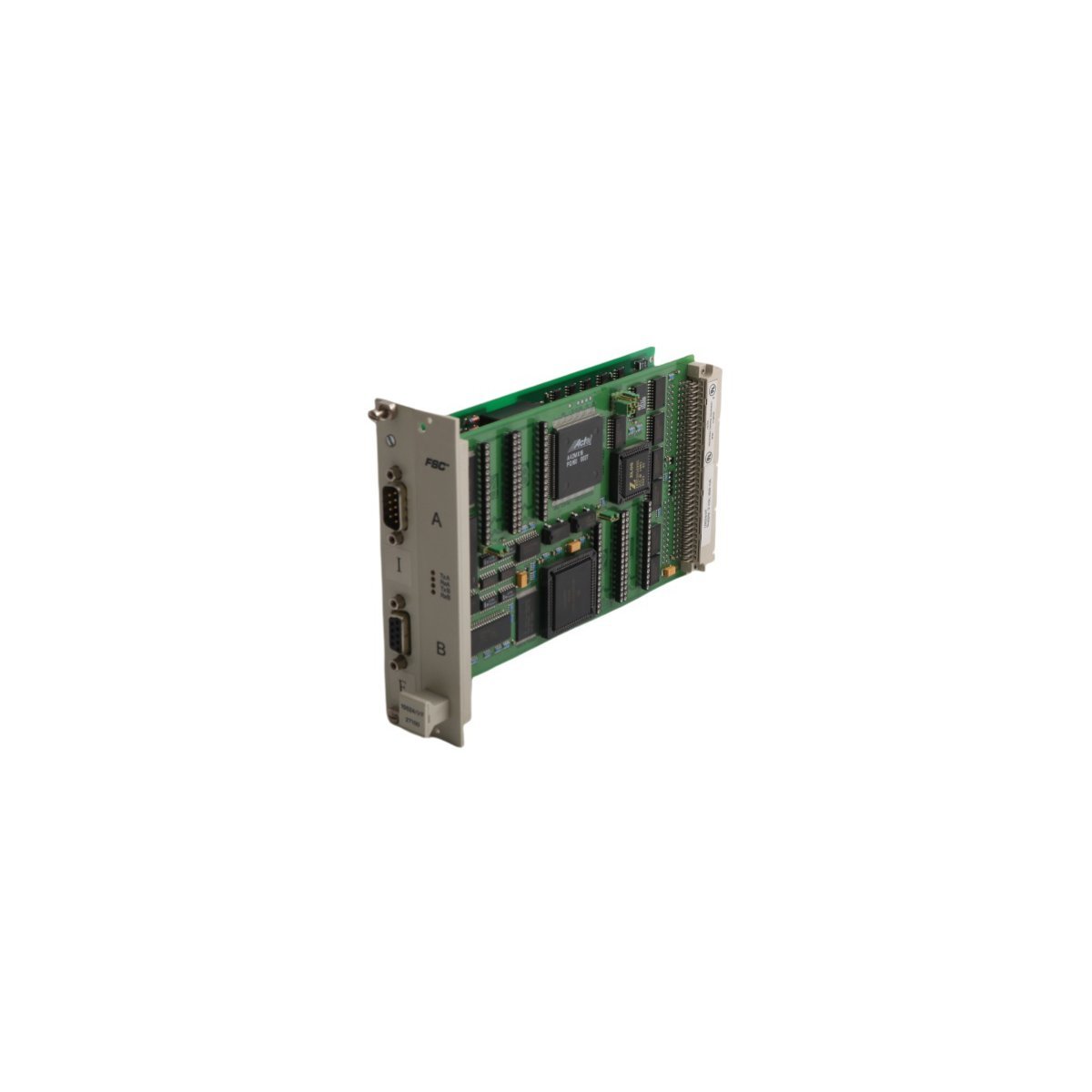

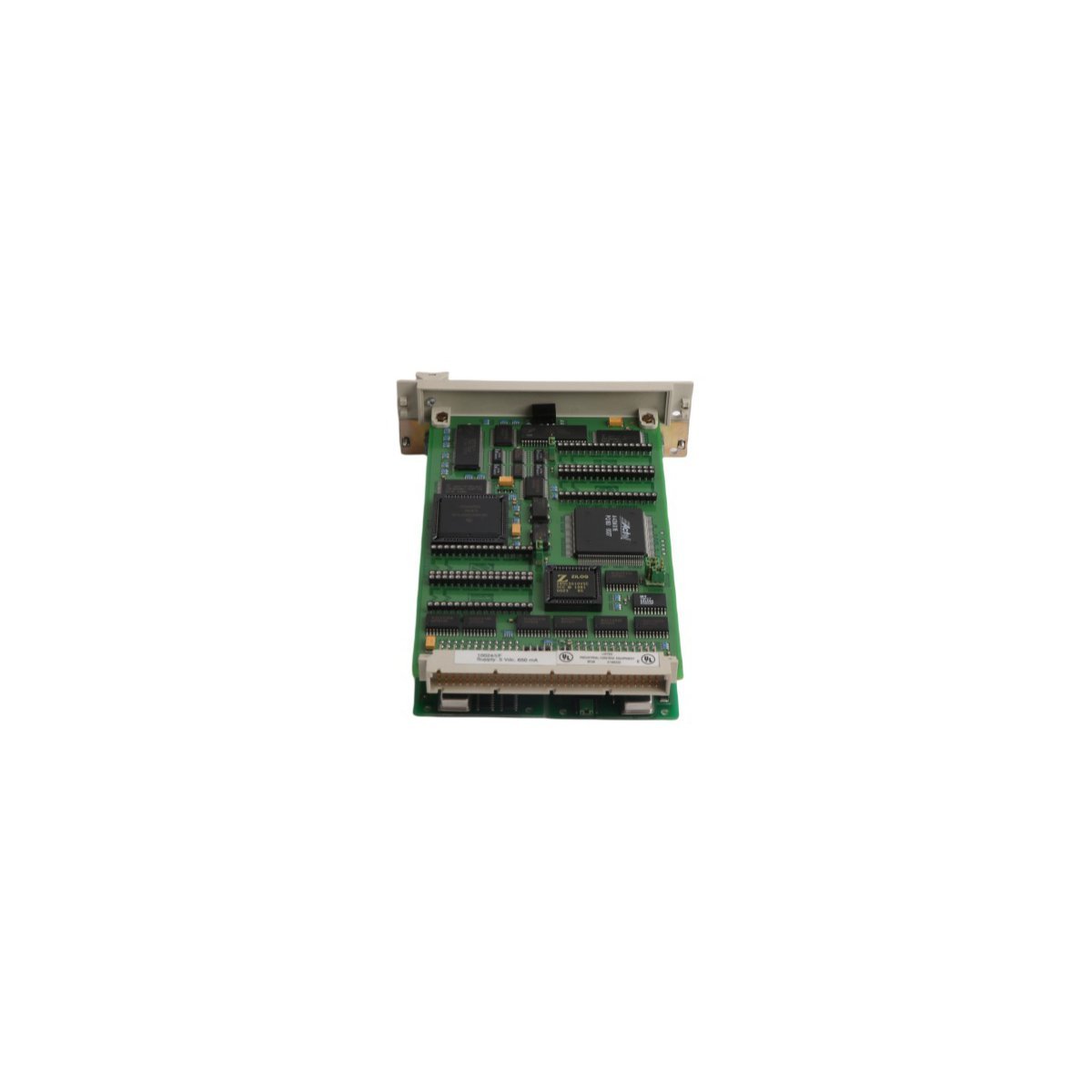

The Honeywell 10024/I/F serves as a high-performance Enhanced Communication Module within the Fail Safe Control (FSC) system architecture. This module facilitates critical data exchange between the safety system and external networks. It provides a robust gateway for Ethernet-based routing in Distributed Control System (DCS) environments. Engineers utilize this module to bridge the gap between process safety logic and plant-wide monitoring systems. The unit ensures high-speed data integrity while maintaining the strict isolation required for safety-instrumented functions.

Technical Specifications

• Manufacturer: Honeywell
• System Compatibility: FSC (Fail Safe Control)
• Module Function: Enhanced Communication / Ethernet Router
• Physical Weight: 0.28 kg
• Dimensions: 40 mm x 185 mm x 128 mm
• Country of Origin: USA
• HS Classification: 8537101190
• Lifecycle Status: Legacy (Discontinued Dec 31, 2018)

Key Technical Characteristics

The 10024/I/F module features an optimized hardware design that supports multiple industrial communication protocols. This flexibility allows for seamless integration with diverse third-party hardware and software platforms. The internal circuitry handles high-volume traffic without increasing the load on the main safety processor.

The rugged construction enables the hardware to function in demanding industrial settings. It operates reliably under fluctuating temperatures and high humidity levels. The low power consumption profile reduces heat dissipation within the cabinet, which extends the overall lifespan of adjacent safety components.

Industrial Applications

This module primarily operates within safety-critical sectors such as oil and gas, chemical processing, and power generation. It acts as a primary communication link for emergency shutdown systems and fire and gas monitoring. By providing a stable Ethernet interface, it allows for real-time diagnostics and sequence-of-events reporting to the DCS operator stations.
