Description

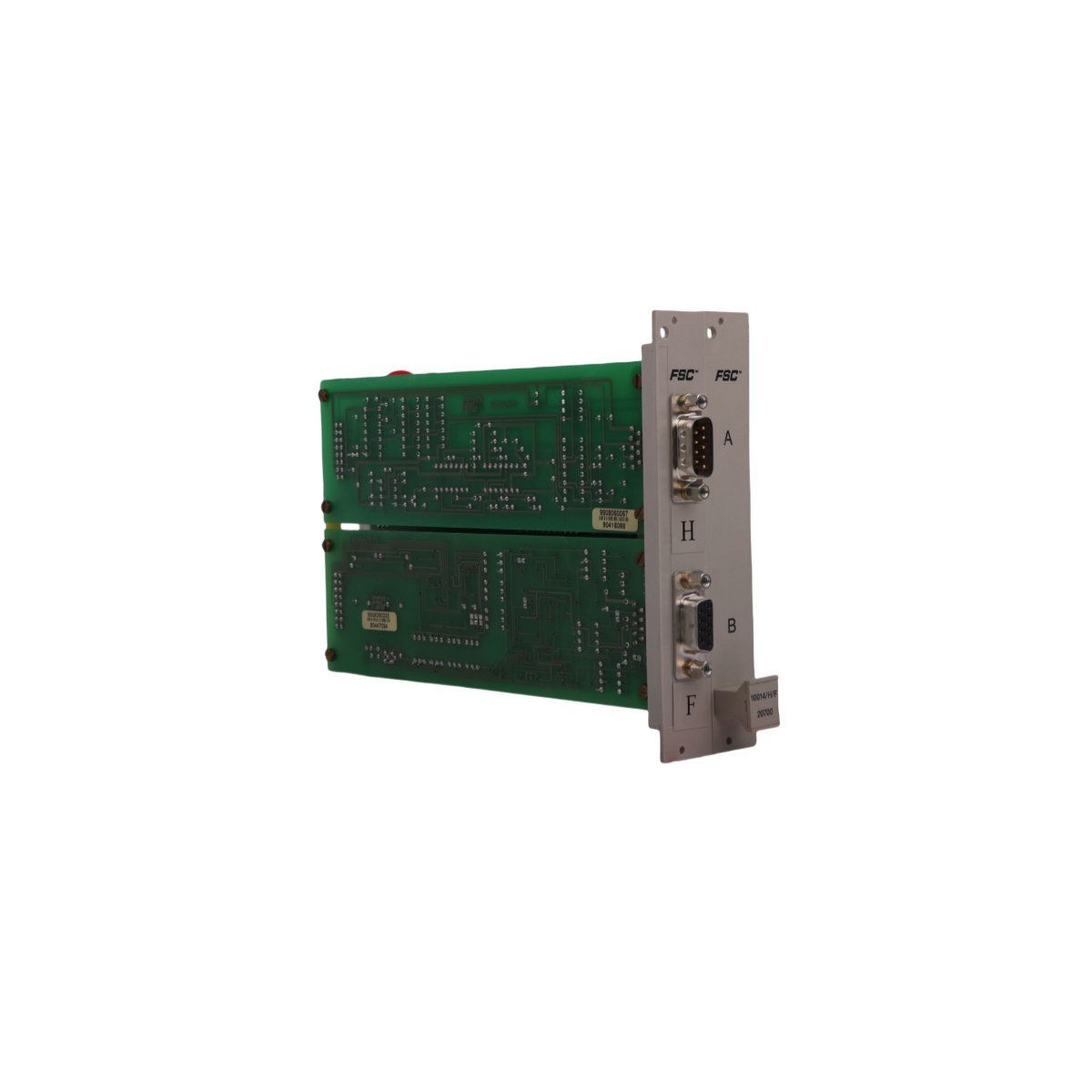

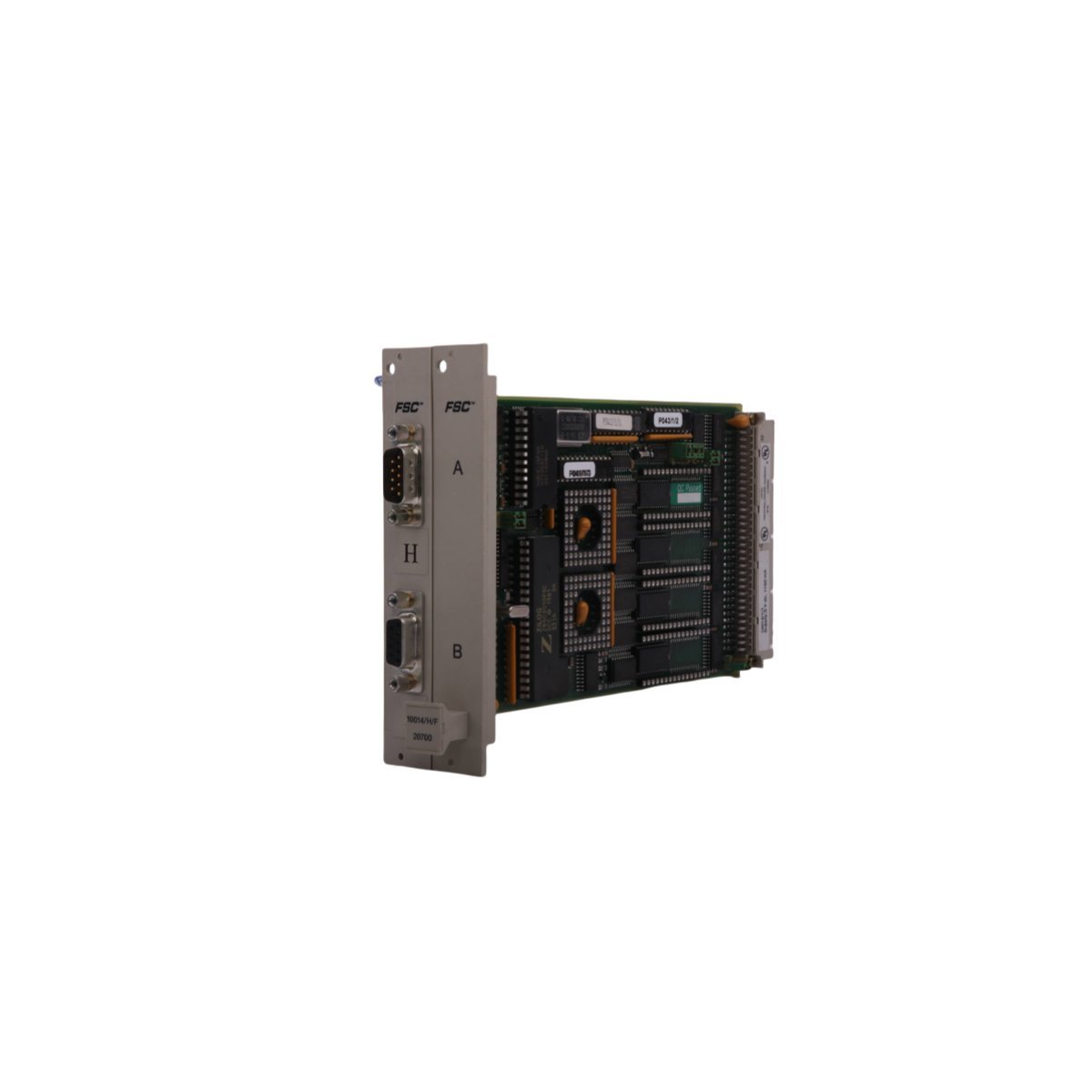

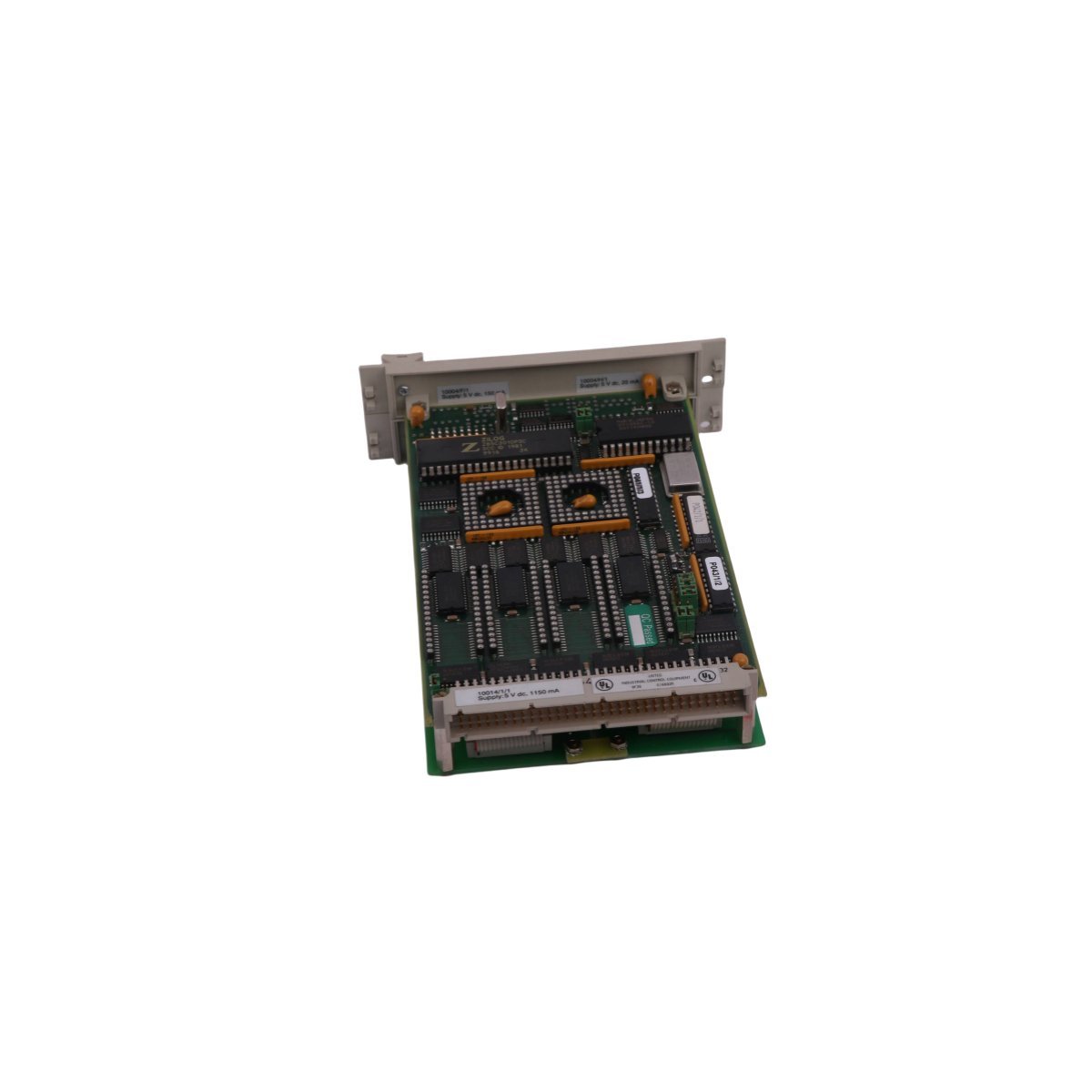

The Honeywell 10014/H/F serves as a high-performance communication interface within the Fail Safe Control (FSC) system. This hardware facilitates rapid data exchange between the safety controller and the plant network. It operates primarily as a specialized Ethernet router for Distributed Control Systems (DCS). Consequently, it bridges critical safety logic with high-level monitoring stations. The module ensures consistent signal accuracy while managing complex field device communications.

Technical Specifications

• Brand: Honeywell
• Model Number: 10014/H/F
• Product Range: FSC (Fail Safe Control) System
• Primary Function: Ethernet Communication Router
• Net Weight: 0.3 kg
• Hardware Dimensions: 4.1 cm x 18.6 cm x 12.9 cm
• Manufacturing Origin: United States
• Tariff Code: 8537101190
• Status: Legacy (Discontinued since December 2018)

Key Technical Characteristics

Engineers utilize the 10014/H/F to maintain seamless connectivity in safety-instrumented environments. The module features integrated diagnostic tools for real-time health monitoring. These internal checks allow operators to identify network faults quickly. Furthermore, the compact design enables efficient installation in standard safety racks. The hardware architecture minimizes latency during critical sequence-of-events reporting. It maintains high compatibility with other legacy Honeywell automation components.

Industrial Applications

This communication module supports vital safety functions in high-risk industrial sectors. Common deployments include emergency shutdown systems and fire protection monitoring. It also excels in gas detection networks within oil and gas facilities. The unit ensures data integrity even in harsh electromagnetic environments. By stabilizing the link between safety logic and HMI, it reduces unplanned plant downtime significantly.
