Description

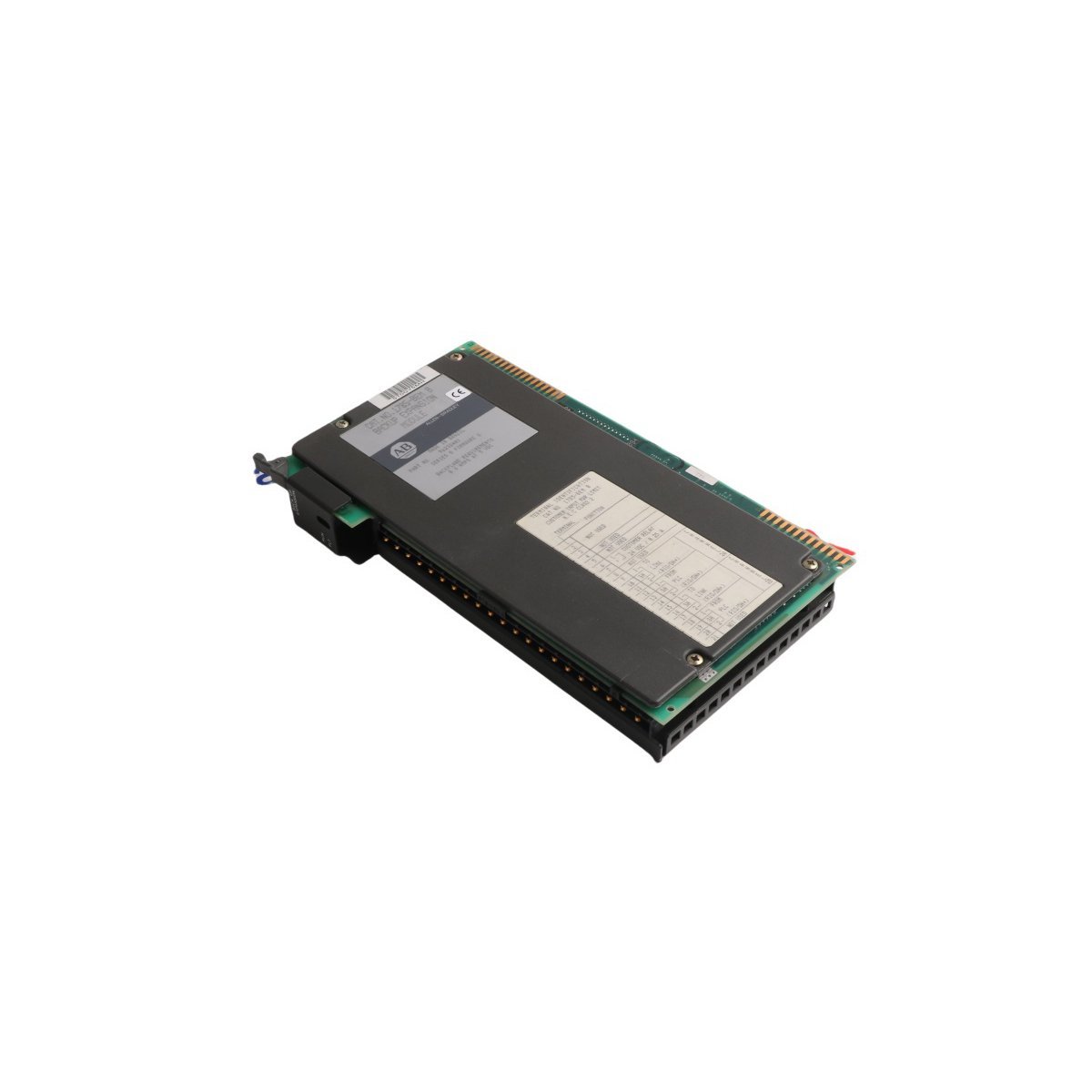

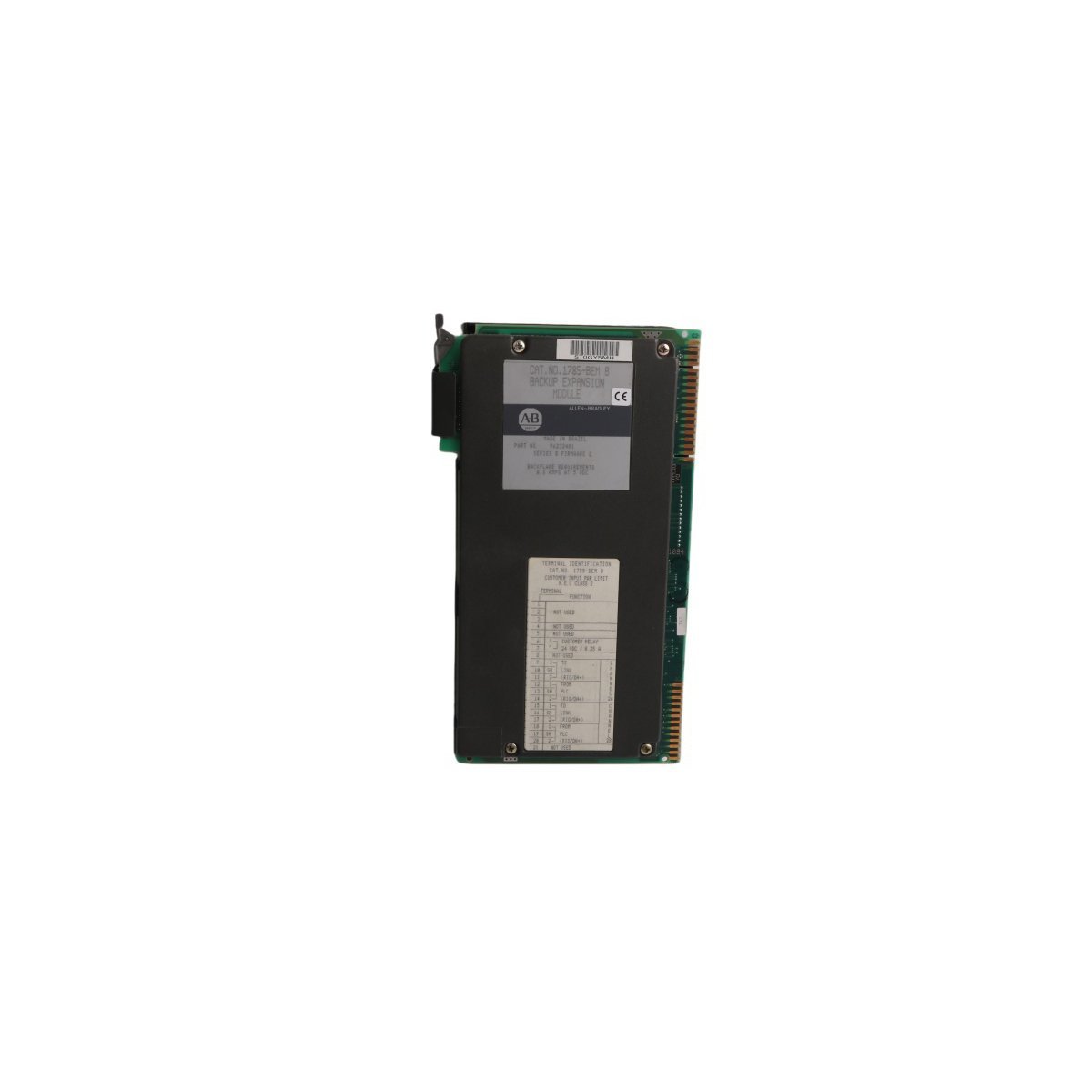

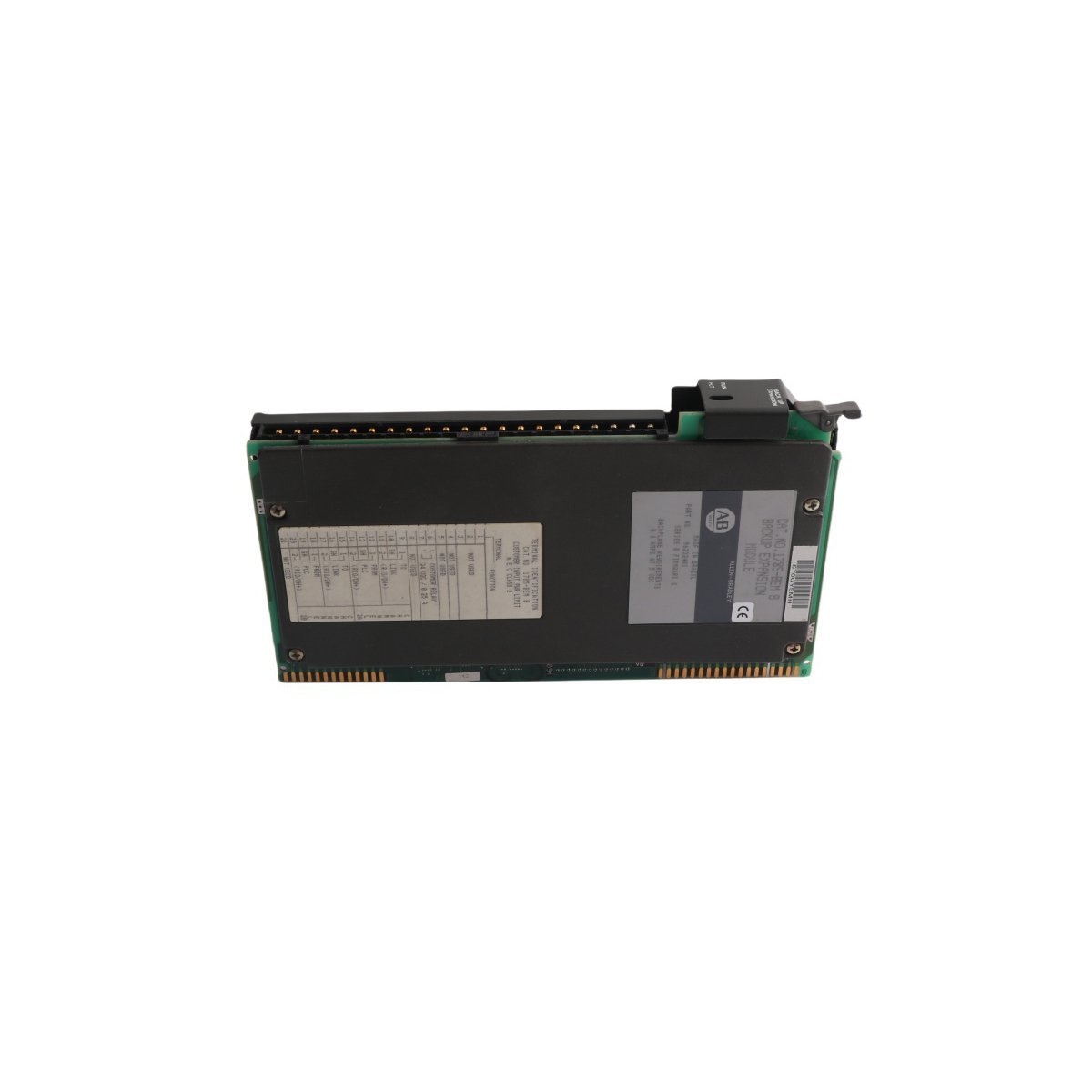

The Allen-Bradley 1785-BEM provides critical redundancy for industrial automation systems using PLC-5 processors. This expansion module facilitates high-speed data synchronization between primary and secondary controllers. Consequently, it protects the system against data loss during hardware failures. It occupies a single slot within a standard 1771 I/O chassis. The hardware enables high availability for mission-critical manufacturing processes. It effectively bridges communication between redundant processor pairs.

Key Technical Specifications

Redundancy and Data Integrity Features

The 1785-BEM manages the transfer of the processor image table between redundant units. It supports 32-bit input capabilities to enhance overall processing efficiency. Furthermore, the module utilizes a 1771-CD cable for robust network linking. This specialized connection handles both Data Highway Plus and Remote I/O protocols. Integrated backplane keying prevents incorrect module insertion into the chassis. These safety measures ensure stable performance in complex control architectures.

Configuration and Diagnostic Capabilities

Technicians configure the module using a four-position switch assembly on the circuit board. These switches allow for quick adjustments to communication parameters. Moreover, the front panel includes clear indicators for real-time status monitoring. These lights signal processor health, force conditions, and active communication. The module also features a factory-installed relay for auxiliary signaling. This hardware remains compatible with broad industrial standards like CE, UL, and CSA.

Industrial Applications and Environmental Resilience

This module excels in large-scale plants where downtime causes significant financial losses. It withstands extreme storage temperatures ranging from -40°C to 85°C. The 1785-BEM remains a vital component for maintaining legacy PLC-5 systems. While Rockwell discontinued this specific model in 2011, it still serves many active production lines. Its durable construction ensures reliable data bridging in high-vibration environments. It represents a cost-effective solution for extending the life of existing automation assets.
