Description

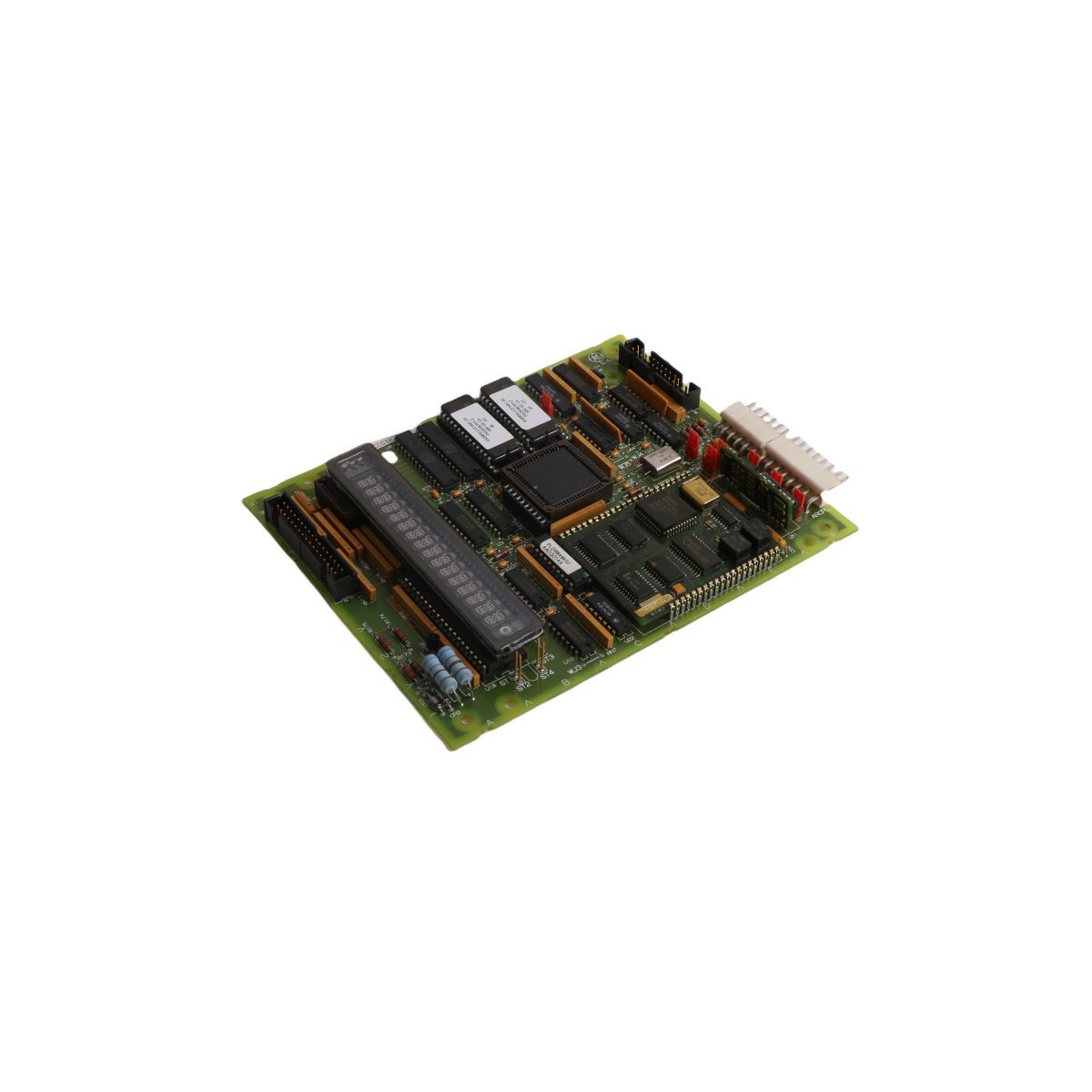

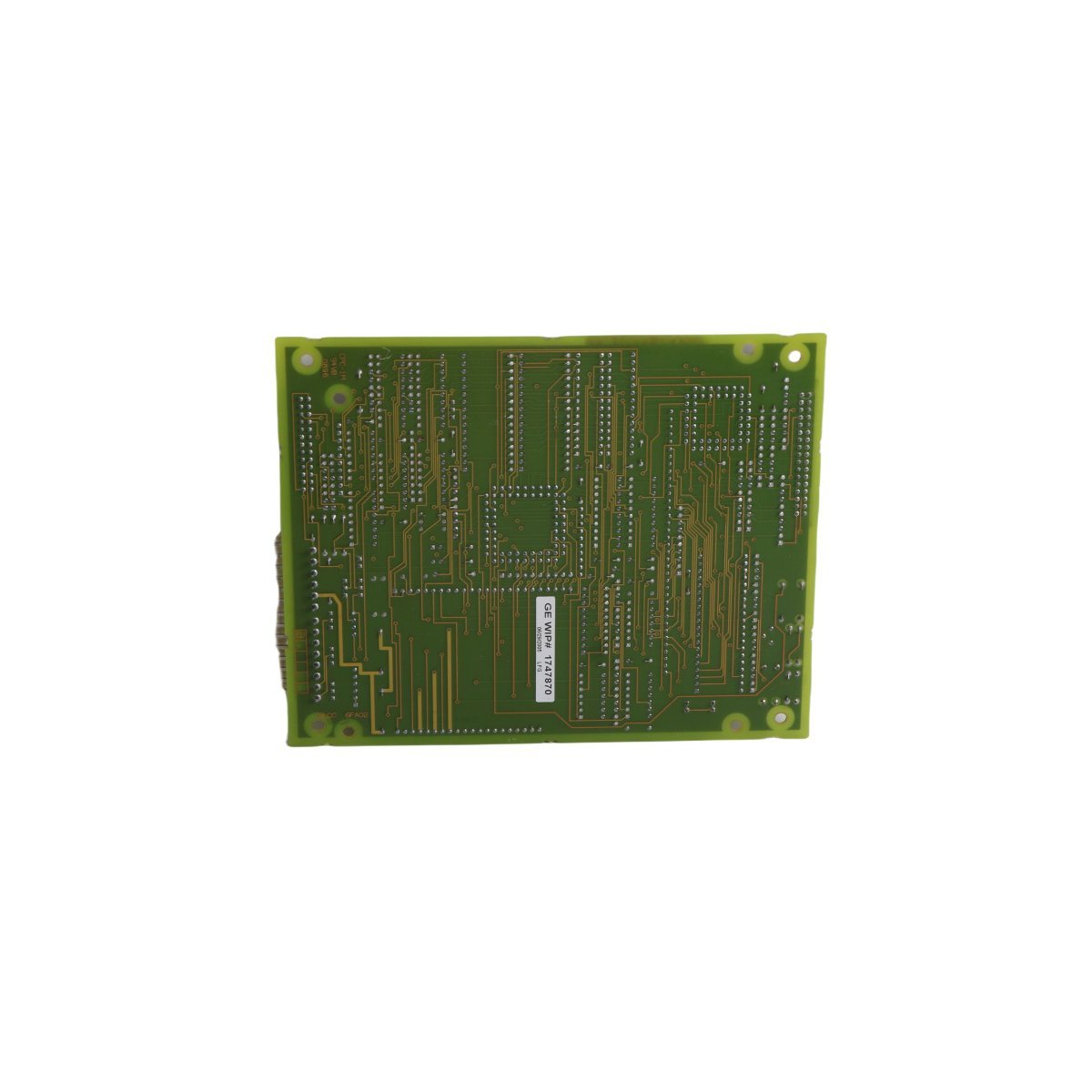

The GE DS215SLCCG1AZZ01A is a specialized LAN communications card designed for the Speedtronic Mark V turbine control system. This module provides essential networking capabilities for steam, gas, and wind turbine applications. It manages the critical data flow between the drive control processor and the wider plant network. By utilizing advanced communication protocols, the card ensures high-speed synchronization of turbine operations. This hardware represents the final evolution of GE’s dedicated Speedtronic technology before the transition to modern Ethernet-based platforms.

Functional Components and Processing Power

This interface card employs a dedicated LAN Control Processor (LCP) to handle complex networking tasks. The LCP unburdens the main turbine controller by managing local data traffic independently.

• Network Integration: Supports both DLAN and ARCNET industrial communication standards.
• Dual EPROM Slots: Features two sockets for field-replaceable firmware updates.
• Onboard RAM: Dedicated memory facilitates rapid data exchange between system processors.
• Configuration Port: Includes a KPPL programming slot for diagnostics and parameter adjustments.
• Isolation Circuitry: Combines isolated and non-isolated paths to prevent electrical interference.

Technical Specification Overview

The DS215SLCCG1AZZ01A offers a rugged physical design for installation in harsh industrial turbine environments.
