Description

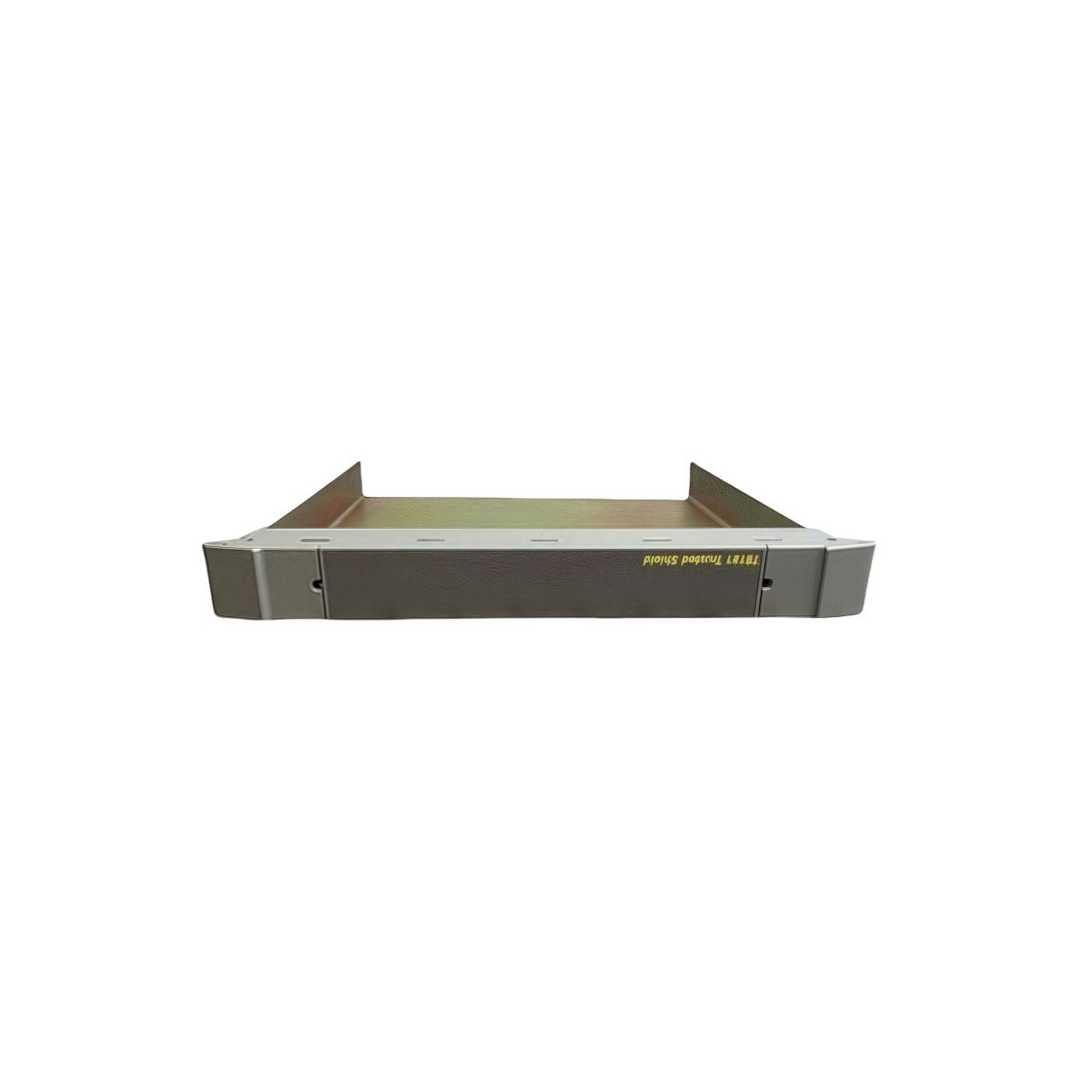

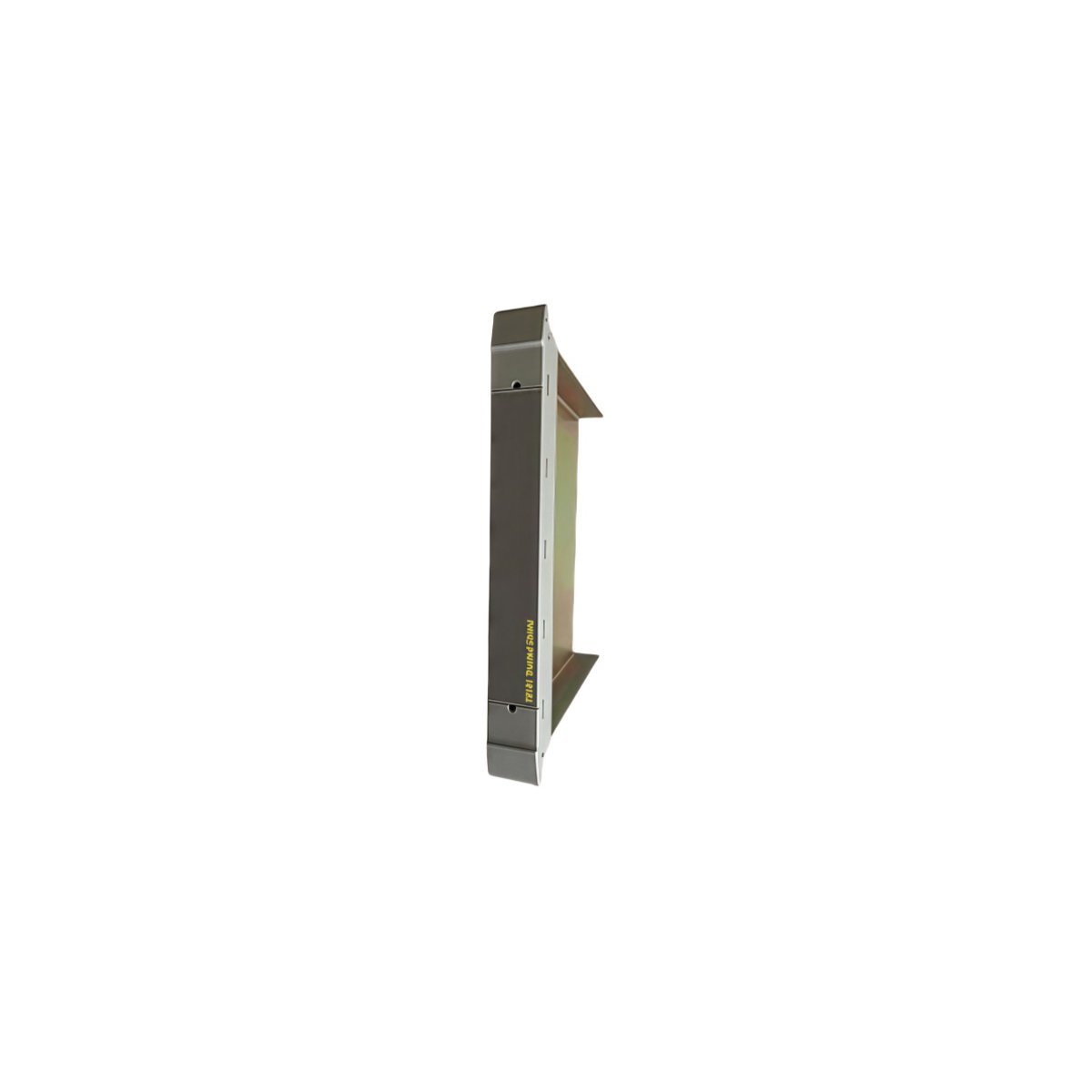

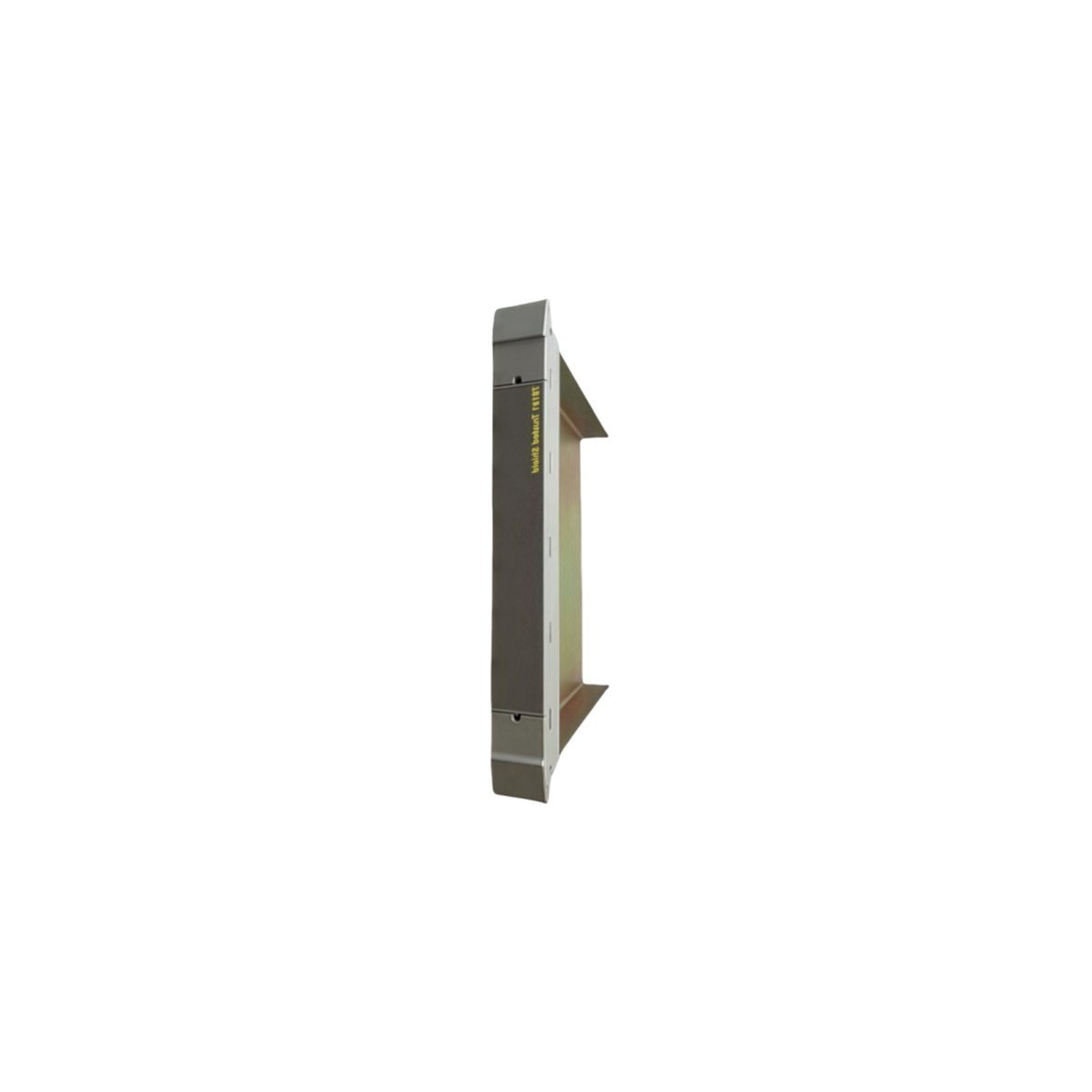

The ICS Triplex T8191 acts as a specialized communication gateway for the Trusted Triple Modular Redundant (TMR) processor system. This module establishes a secure link between the main control processors and external automation networks. It mounts directly to the rear of the T8100 Controller Chassis to save internal cabinet space. The dual-connector design ensures the module remains in constant contact with both active and standby processors. Consequently, the system maintains high availability and prevents data loss during processor switchovers.

Core Technical Characteristics

• Dual 48-way DIN41612 connectors provide redundant paths for processor data exchange.
• Two RS422/RS485 serial ports support both 2-wire and 4-wire industrial configurations.
• Integrated MODBUS Master capability allows the module to control subordinate field devices effectively.
• Optional IRIG-B time synchronization ensures precise event logging across the entire plant network.
• Dedicated monitoring ports track Power Supply Unit (PSU) health and general system fault status.
• The rugged metal enclosure protects sensitive internal electronics from harsh industrial electromagnetic interference.
