Description

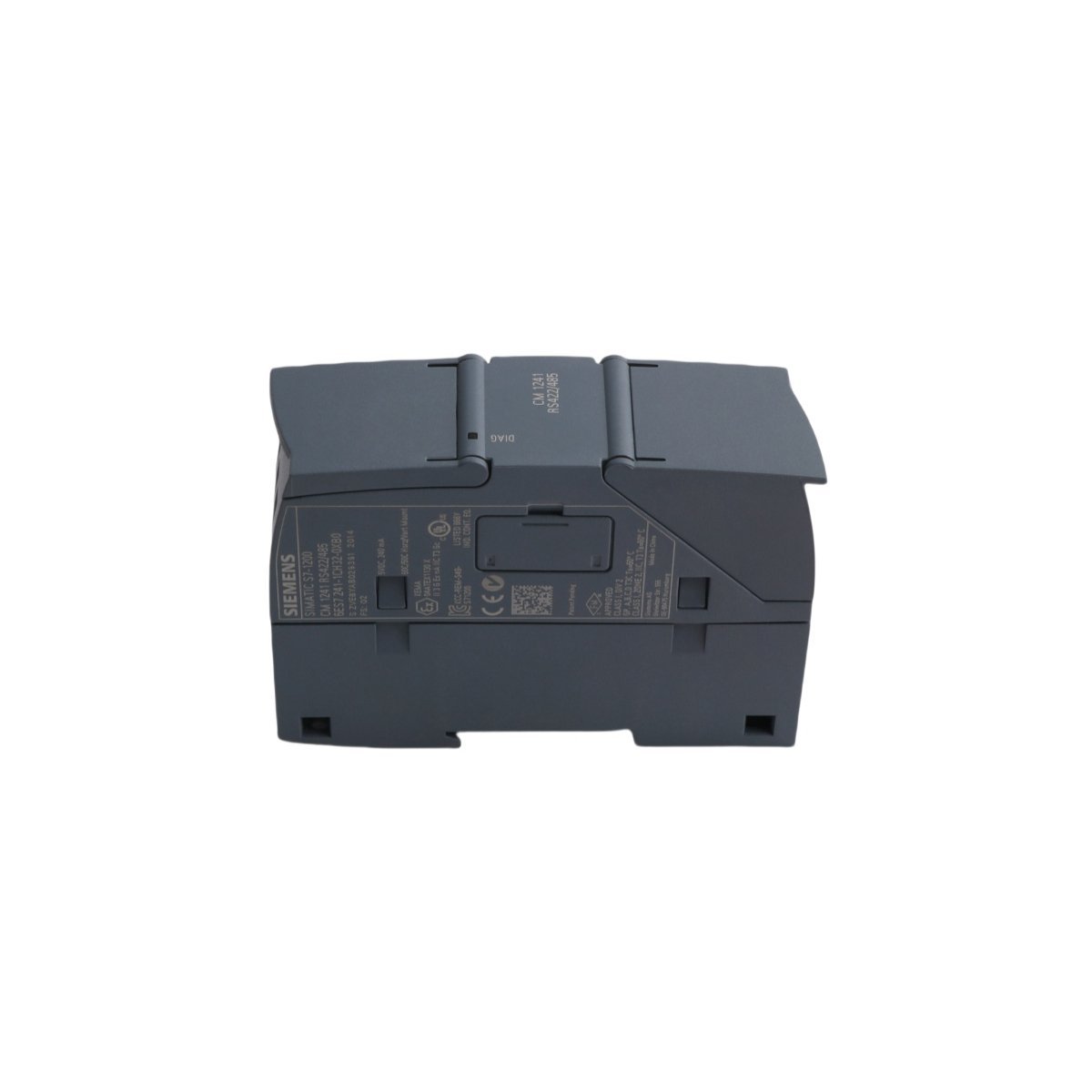

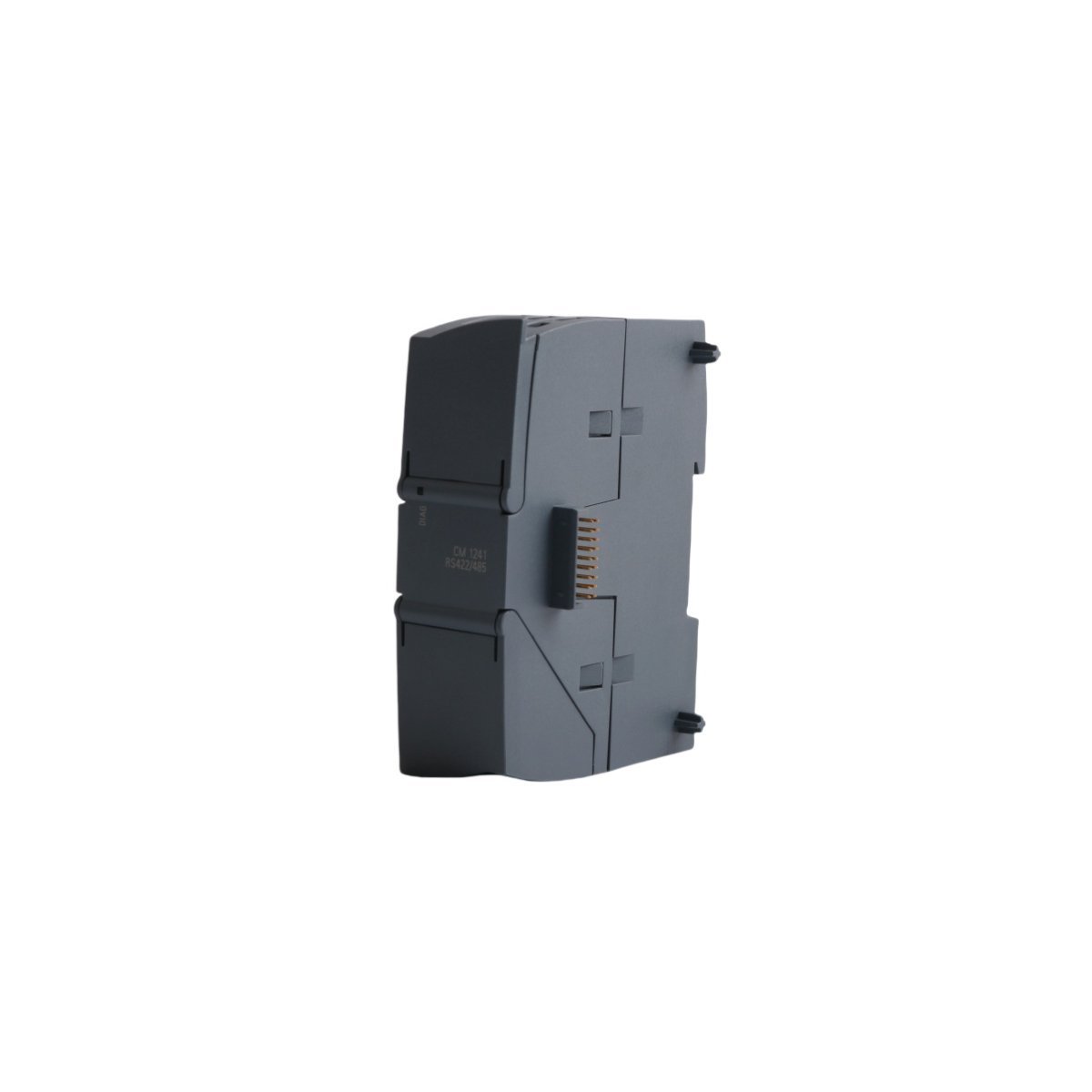

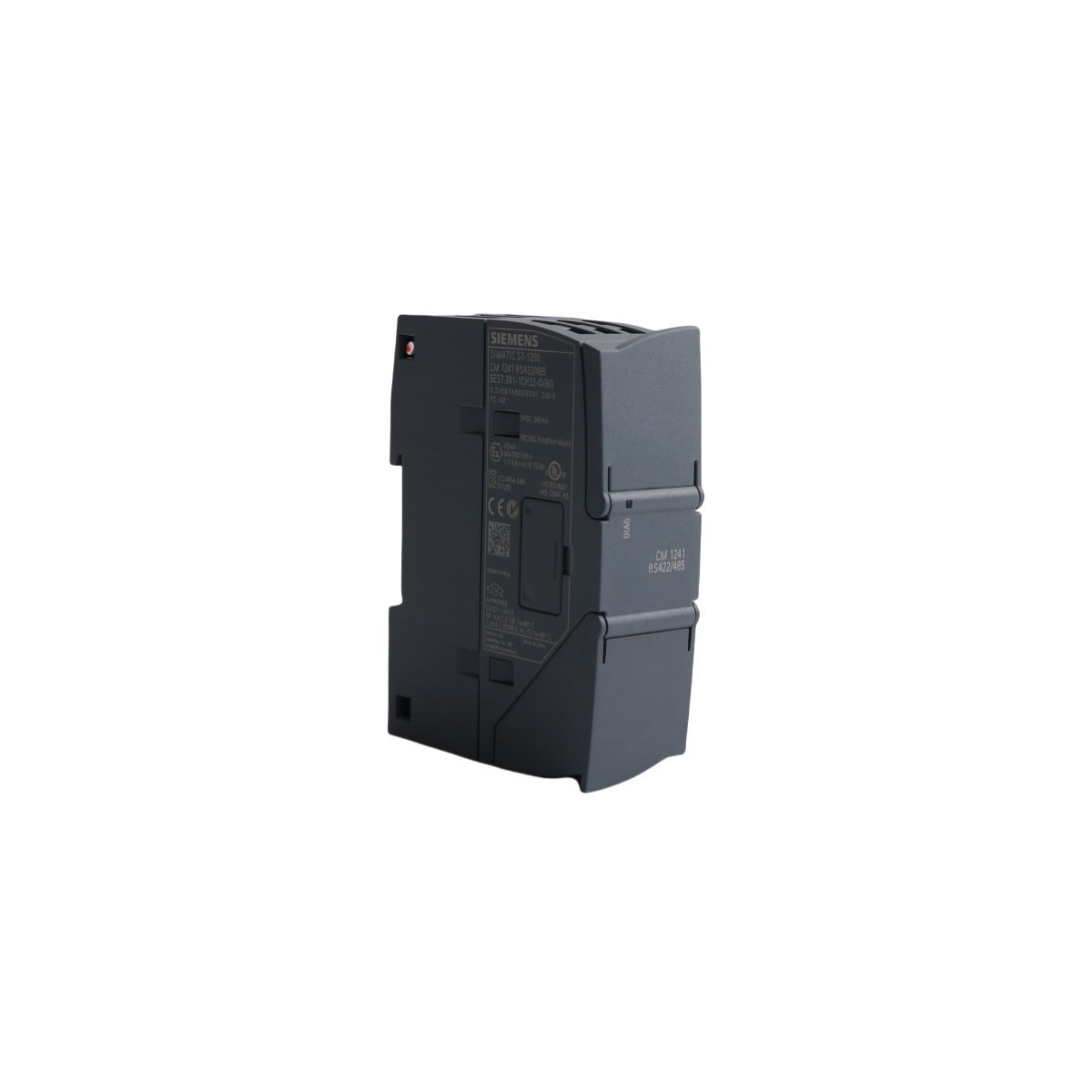

The Siemens 6ES7241-1CH32-0XB0 is a specialized serial communication module for the SIMATIC S7-1200 PLC series. It expands the controller’s connectivity by providing a dedicated RS422 and RS485 interface. This hardware allows the PLC to exchange data with external devices like drives, printers, or third-party sensors. Because it supports the Freeport protocol, engineers can implement custom point-to-point communication routines. This flexibility makes it a vital tool for integrating diverse hardware into a unified automation network.

Technical Specifications

Advanced Serial Connectivity and Protocol Support

This module excels in creating robust links between the S7-1200 CPU and peripheral equipment. The RS422/485 physical layer provides high immunity against electromagnetic interference in factory environments. Furthermore, the CM 1241 supports widely used industrial protocols including Modbus RTU and USS. Users can configure these settings directly within the TIA Portal software environment. This seamless software integration simplifies the setup of complex data polling tasks. Consequently, the module reduces the engineering time required for cross-platform system integration.

Durable Design and Cabinet Optimization

The 6ES7241-1CH32-0XB0 features a compact housing designed for standard DIN rail mounting. Its small footprint allows for high-density installation within cramped control cabinets. Despite its size, the module maintains excellent thermal performance during continuous high-speed data transmission. The front-facing 9-pin D-sub connector ensures easy access for wiring and maintenance. Additionally, diagnostic LEDs provide immediate feedback on the module’s power and transmission status. These visual indicators help technicians quickly troubleshoot communication errors on the factory floor.

Key Functional Characteristics

• Enhances S7-1200 PLCs with versatile RS422 and RS485 serial ports.
• Facilitates point-to-point links via Freeport, Modbus RTU, and USS protocols.
• Features high-speed data transmission rates up to 115.2 kbit/s.
• Includes a standard 9-pin D-sub female connector for universal connectivity.
• Offers reliable operation across a wide industrial temperature range.
• Integrates fully into the TIA Portal for simplified programming and diagnostics.
• Provides galvanized isolation to protect the PLC from external electrical surges.
