Description

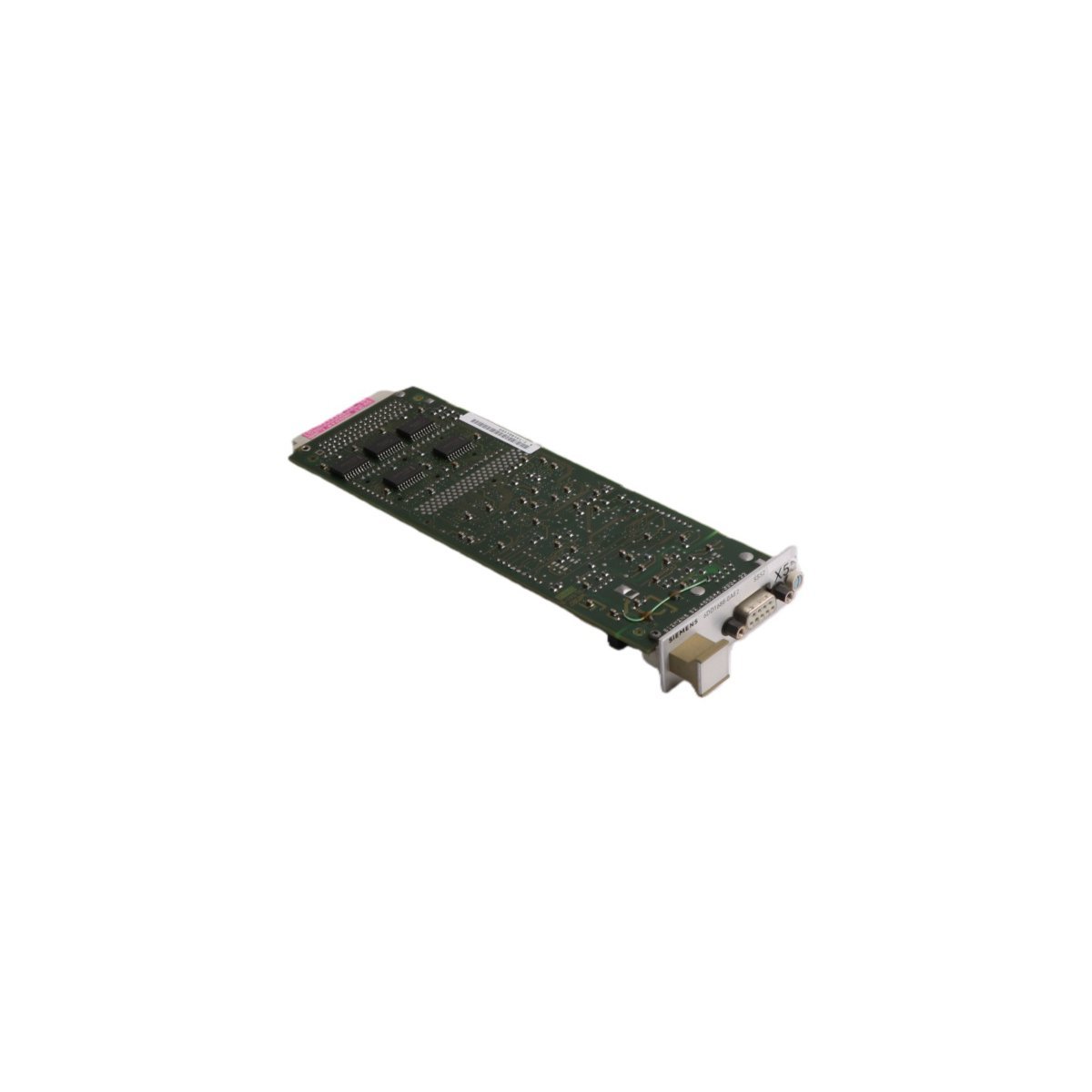

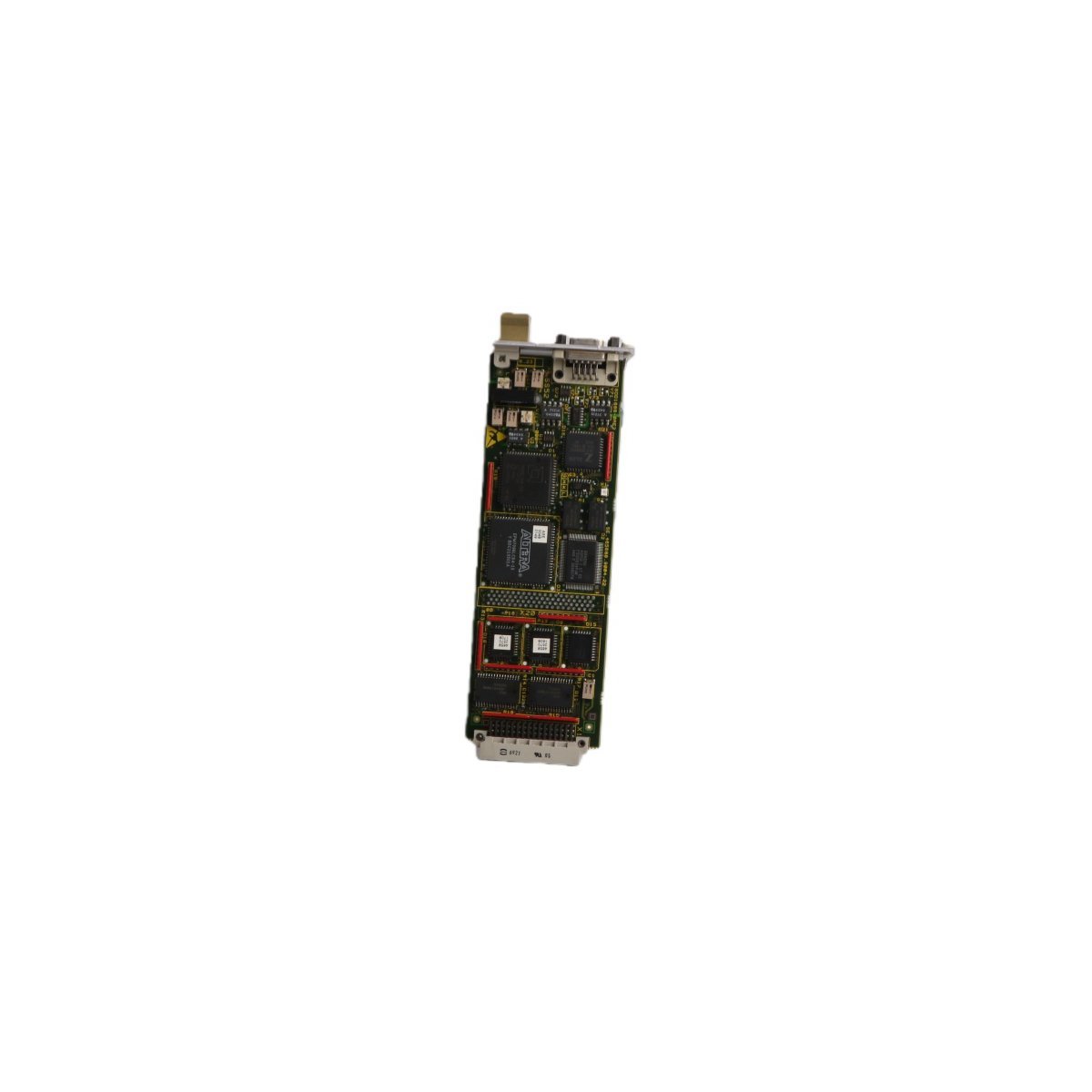

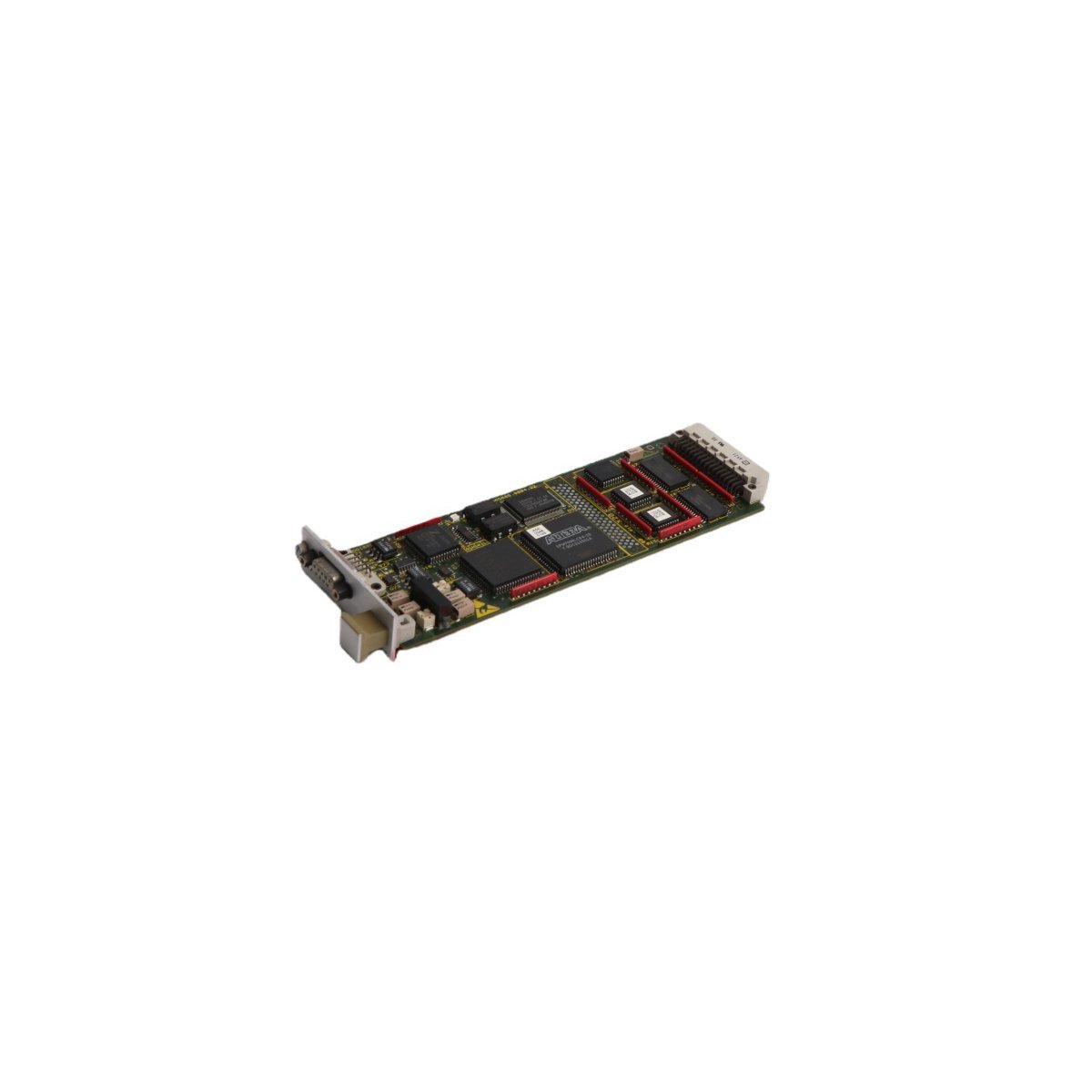

The Siemens 6DD1688-0AE2 is a high-performance communication submodule designed for the SIMADYN D control system. This SS52 master interface integrates directly into a CS7 carrier module to establish reliable industrial networking. It primarily facilitates a PROFIBUS DP connection for the SINEC L2 bus environment. Because it handles high-speed data exchange, the module ensures synchronized communication between CPUs and peripheral devices. Its robust architecture makes it a cornerstone for complex drive automation and process control tasks.

Technical Specifications

Network Connectivity and Signal Integrity

This module utilizes an RS-485 format via the X5 connector to manage fieldbus traffic. Integrated electrical isolation protects the internal circuitry from industrial noise and ground loops. Furthermore, the unit supports configurable terminating resistors to maintain high signal quality across the bus. This hardware setup allows for flexible network topologies in large-scale manufacturing plants. Consequently, the 6DD1688-0AE2 provides the deterministic timing necessary for high-precision motion control applications.

Integration and Performance Logic

The submodule communicates with system processors through the 16 kbyte dual-port RAM on the parent CS7 module. This shared memory architecture reduces CPU overhead during intensive data transfers. Moreover, the master functionality allows the module to control multiple PROFIBUS DP slaves simultaneously. It effectively bridges the central control layer with distributed sensors and actuators. As a result, users achieve a highly responsive and reliable automated network. Its compact design also fits easily into standard SIMADYN D rack configurations.

Key Product Features

• Operates as a dedicated SS52 master interface for PROFIBUS DP networks.
• Plugs directly into CS7 carrier modules for seamless system expansion.
• Features an electrically isolated RS-485 interface to ensure data reliability.
• Supports high-speed deterministic communication for real-time control requirements.
• Utilizes shared dual-port RAM for efficient data exchange with central CPUs.
• Accommodates direct SINEC L2 bus connectors or terminal-based wiring.
• Built with industrial-grade components to survive harsh automation environments.
