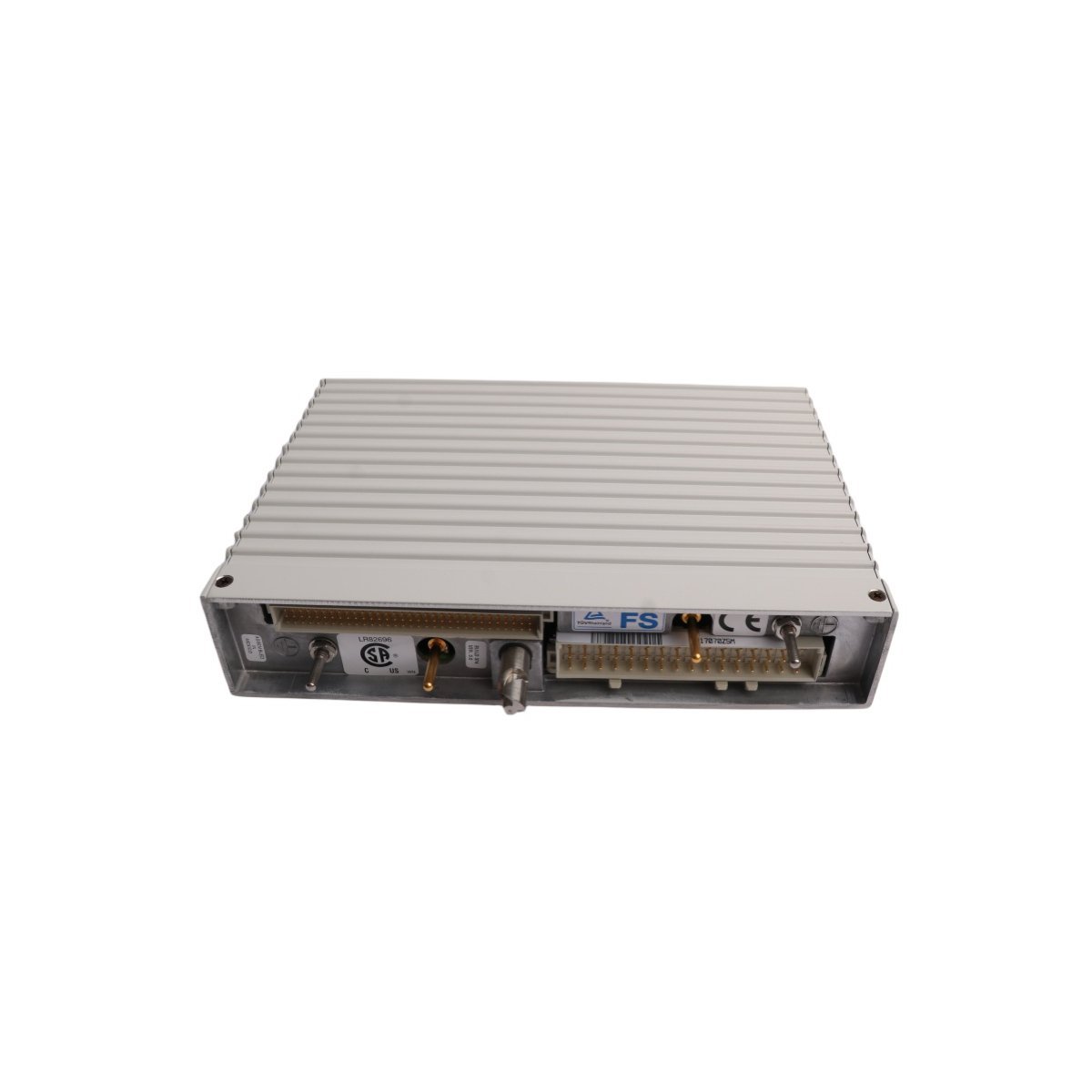

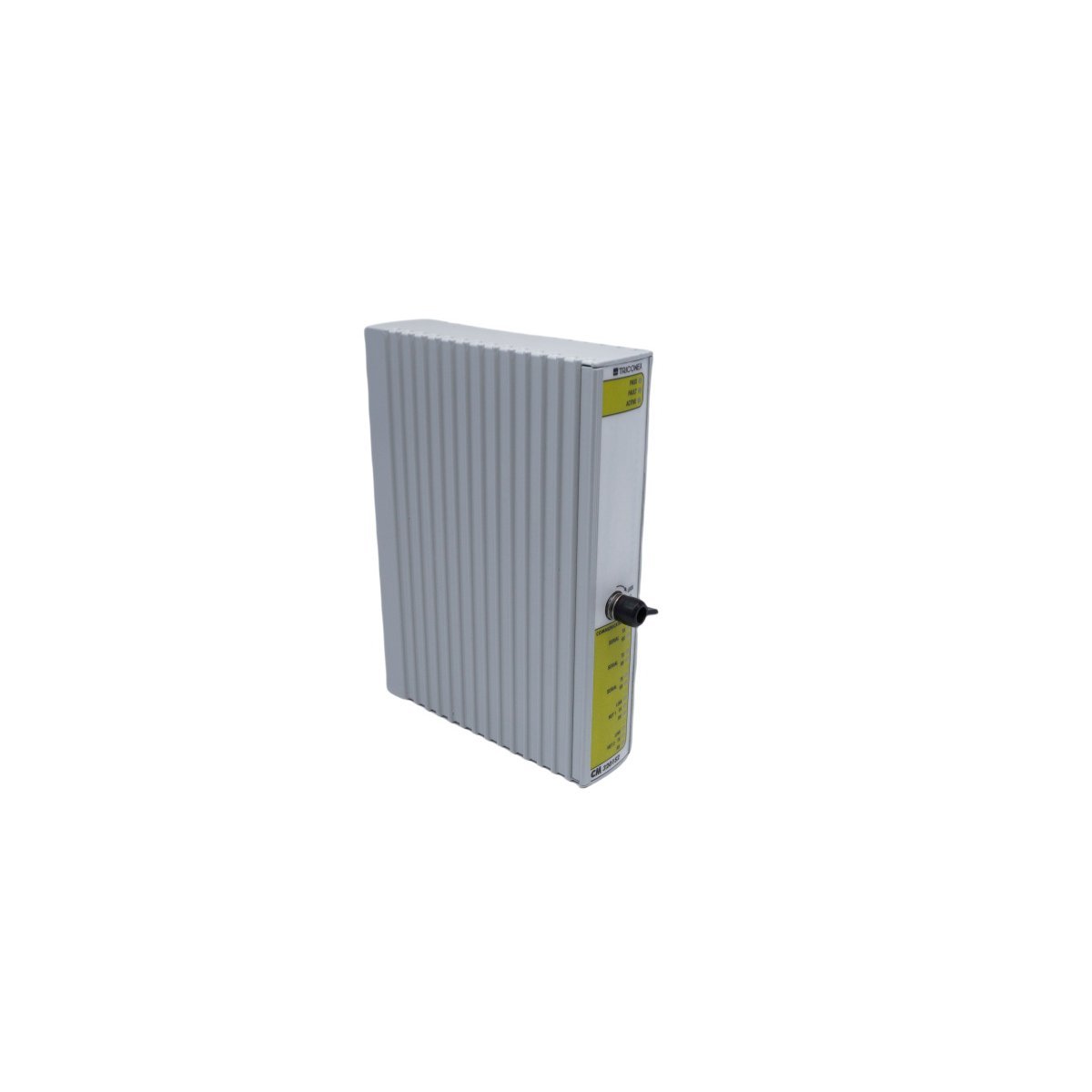

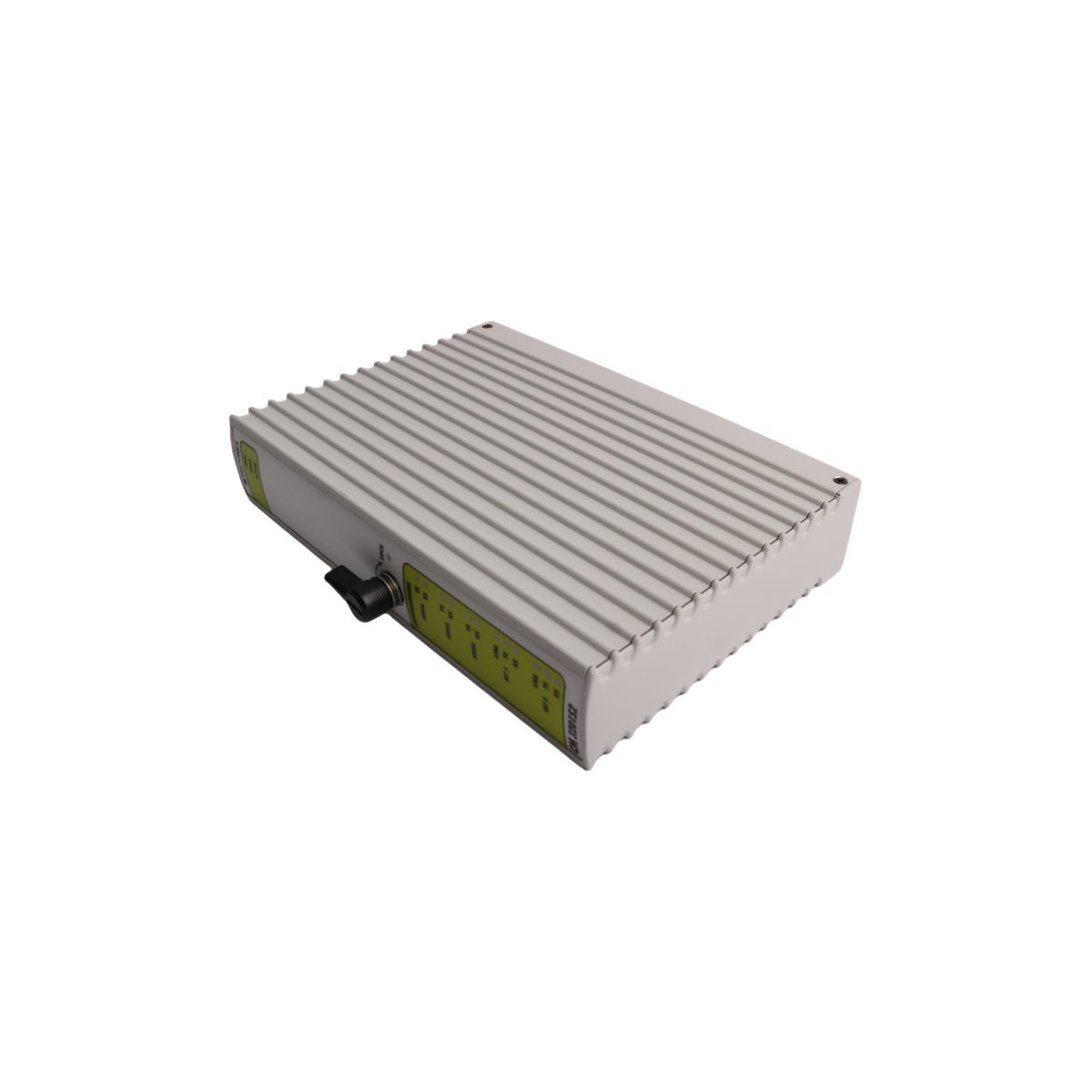

Triconex CM 3201 Communication Module
The Triconex CM 3201 is a versatile communication module featuring dual Ethernet and triple serial ports. It enables secure, redundant data exchange between Triconex safety systems and external DCS or host computers in SIL 3 environments.
Description
The Triconex CM 3201 functions as a high-performance bridge between safety processors and external control networks. This communication module facilitates rapid data transfer to distributed control systems and supervisory computers. It maintains strict safety isolation while providing the connectivity needed for modern industrial automation.
Core Technical Specifications
| Characteristic | Specification Detail |
| Brand | Triconex (Schneider Electric) |
| Model Number | CM 3201 |
| Part Type | Communication Module |
| Serial Ports | 3x RS-232/RS-485 |
| Ethernet Ports | 2x 10/100 Base-T |
| Module Weight | 1.5 kg |
| Dimensions | 4.5 x 18.6 x 21.7 cm |
| System Origin | United States |
| System Usage | Tricon v9-10 / Trident v11 |
Network Connectivity and Port Configuration
The CM 3201 provides extensive flexibility through its multi-port hardware design. Each module features three serial ports capable of supporting RS-232 or RS-485 electrical standards. These ports allow the safety system to talk with legacy PLC hardware or local human-machine interfaces.
Furthermore, the dual Ethernet ports support high-speed open network communication. This setup allows the system to broadcast safety status data to plant-wide historians. The module handles these tasks without compromising the processing power of the main safety CPUs.
Redundancy and High Availability Features
Reliability remains a priority for the CM 3201 in safety-critical environments. Users can install two modules on a single baseplate to create a fully redundant communication path. This configuration prevents a single module failure from interrupting the data stream to the DCS.
The secondary module operates independently but stands ready to handle all traffic during maintenance. This hot-swappable capability ensures the safety system remains visible to operators at all times. Such architecture proves essential for facilities targeting 99.99% operational uptime.
Industrial Applications and Safety Compliance
Triconex engineered this module specifically for sectors with high-risk operational profiles. The CM 3201 provides reliable data links for various critical safety functions including:
- Integration of Emergency Shutdown Systems with plant DCS.
- Remote monitoring of Fire and Gas detection networks.
- Serial data logging for turbine control systems.
- Secure communication for nuclear safety actuation.
Additional information
| Weight | 1.5 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 4.5 x 18.6 x 21.7 cm |
